· Updated Sep 9, 2026Mobile Vertical Farming Rack
Product SKU
Description
- Horticulture equipment for vertical farming rack layouts.
- Mobile configuration differentiates it from static vertical farming racks.
- Mechanical assist is included with the rack.
- Galvanized steel construction.
Revit 2023 (2.91 MB)
Revit 2024 (2.91 MB)
Revit 2025 (2.91 MB)
Revit 2026 (2.91 MB)
Revit 2027 (2.91 MB)

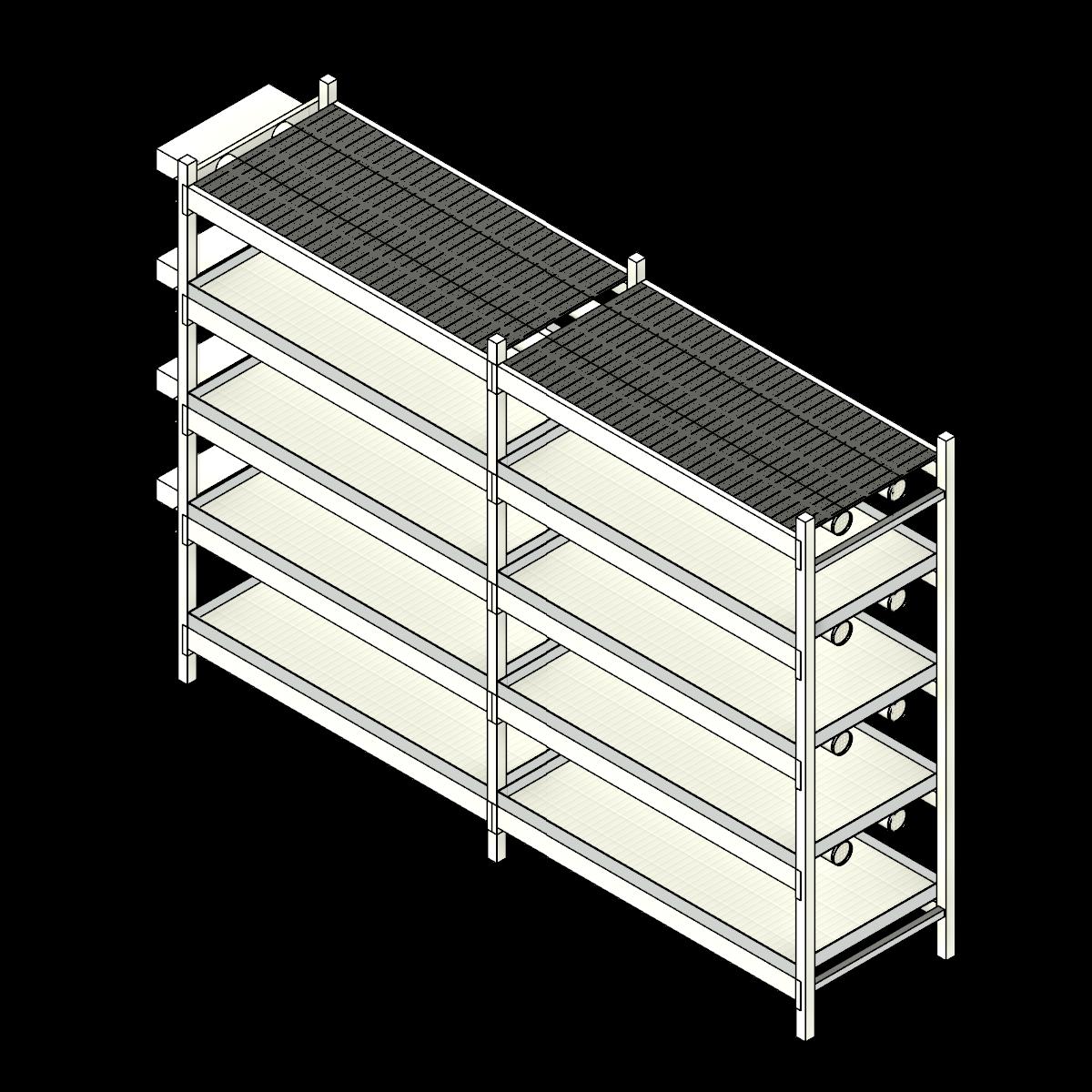

Vertical Mobile Grow Rack - Mechanical Assist
The Mobile Vertical Farming Rack is a mechanically assisted mobile rack for horticulture vertical farming. Its mobile configuration and mechanical assist distinguish it from a static vertical farming rack. Specify it for horticulture and vertical farming layouts that need a mobile rack. The rack is made from galvanized steel.
The mobile vertical grow rack Revit family represents a mechanically assisted mobile cultivation system designed to maximize growing capacity and optimize floor space in horticulture facilities. The configurable family supports 2 - 12 tiers, multiple bay widths from 48" to 144", bay depths from 24" to 66", and heights from 6' to 30' in 6" increments. Its mobile configuration supports flexible rack positioning and aisle access for indoor farms, greenhouses, nurseries, and controlled-environment agriculture facilities. The family enables designers to configure rack dimensions and tier arrangements for facility planning, space coordination, and horticulture BIM workflows.
| Parameter | Value |
|---|---|
| Rear Clearance | 0' 2" (2") |
| Top Clearance | 1' 6" (18") |
| Minimum Number of Tiers | 2 |
| Maximum Number of Tiers | 12 |
| Minimum Number of Bays | 1 |
| Minimum Number of Carriages | 2 |
| Minimum Aisle Clearance | 3' 0" (36") |
| Standard Bay Widths | 48", 96"*, 120", 144" |
| Minimum Bay Width | 4' 0" (48") |
| Maximum Bay Width | 12' 0" (144") |
| Standard Bay Depths | 24", 30", 36", 42", 48"*, 54", 60", 66" |
| Minimum Bay Depth | 2' 0" (24") |
| Maximum Bay Depth | 5' 6" (66") |
| Standard Bay Heights | 6'-30' (6" increments) |
| Minimum Bay Height | 6' 0" (72") |
| Maximum Bay Height | 30' 0" (360") |
| Manufacturer | Southwest Solutions Group_CMF |
| Model | AR |
| MasterFormat | 11 93 00 |
| UniFormat | E1090.40 – Horticultural Equipment |
| Property | Value |
|---|---|
| Includes Pricing | Yes |
| ADA Compliant | No |
| Has MEP Connectors | No |
| Includes Sustainability | No |
| Primary Material | Galvanized steel |
| IFC | Furniture |
| MasterFormat | 11 93 00 |
| OmniClass | 23.40.70.34 – Agricultural Equipment |
| UniFormat | E1090.40 – Horticultural Equipment |
