· Updated Aug 12, 2026Turbine Roof Ventilation
Product SKU
Description
- Ideal for industrial and commercial roof ventilation.

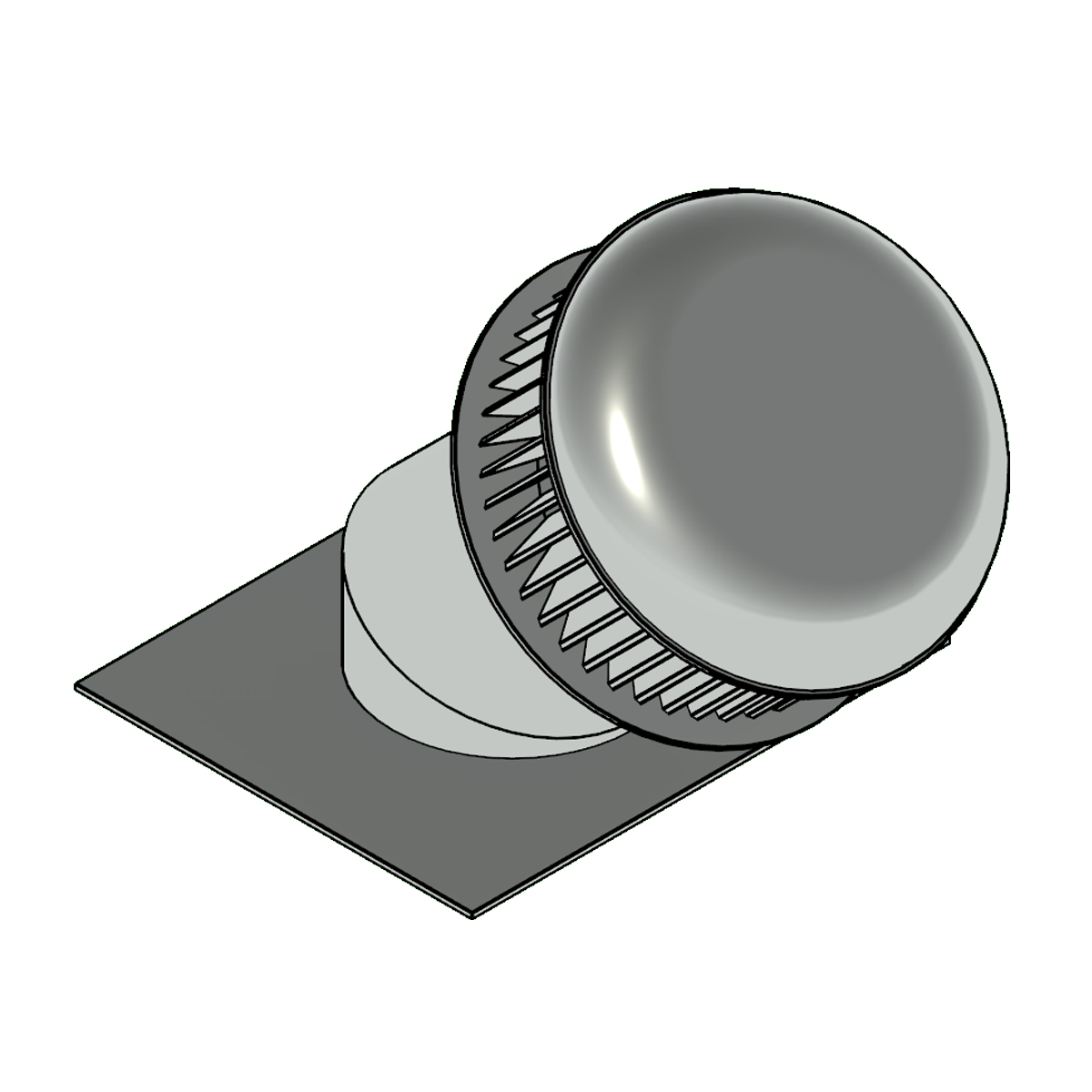

- Features a variable pitch flue section for sloped roof installations.
- No electrical, wiring, or operating costs.
- Supports high wind speeds up to 205.2 km/h.
Revit 2023 (1.64 MB)
Revit 2024 (1.64 MB)
Revit 2025 (1.64 MB)
Revit 2026 (1.64 MB)
Revit 2027 (1.64 MB)
(0.20 MB)
Questions
Need some help? Send us a message if you have any sales or model related questions.
Turbine Ventilation

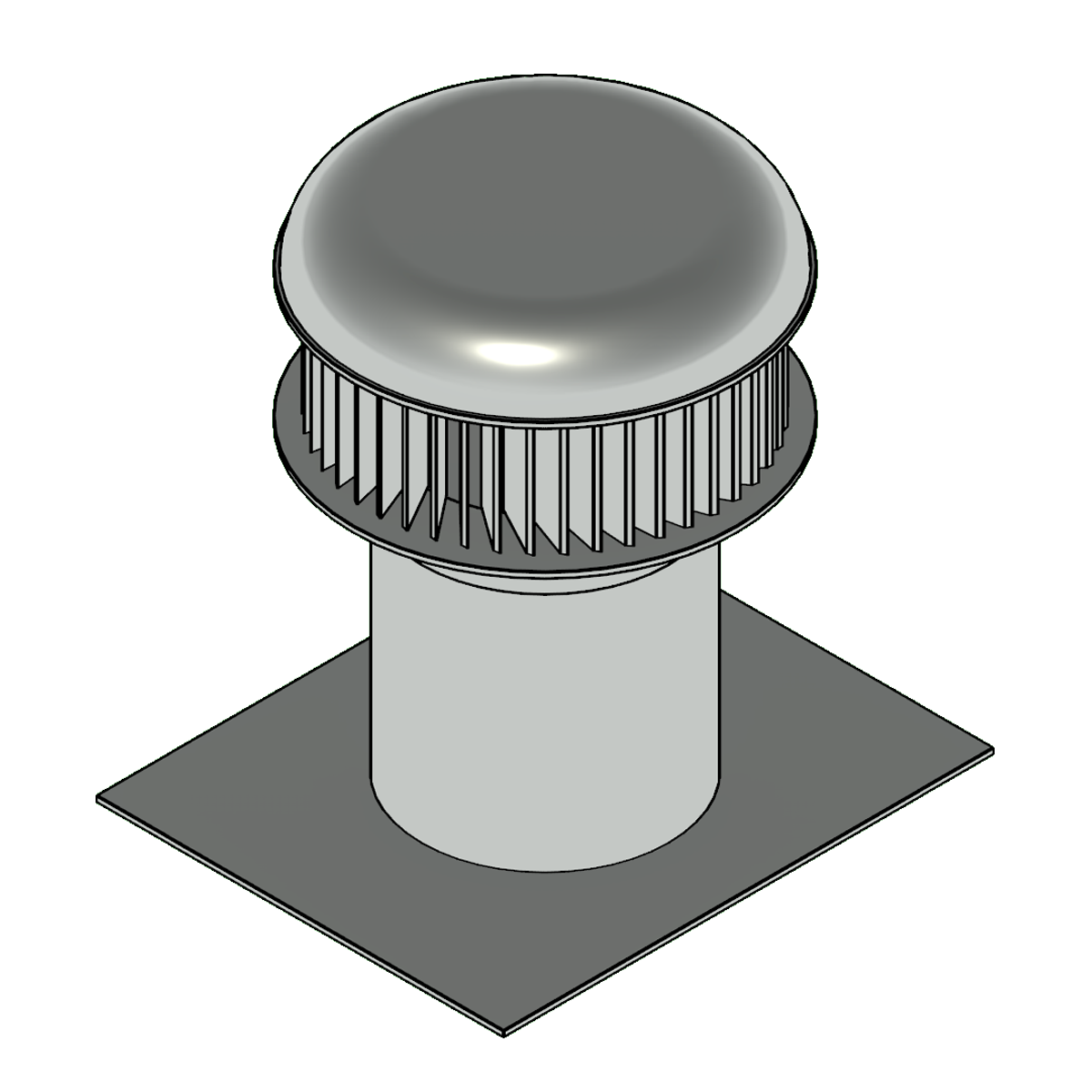

This Turbine Ventilator is a high-performance, wind-driven ventilation solution designed for both sloped and flat roof installations.
Distinguished by its variable-pitch flue section, this product accommodates roof pitches up to 45 degrees, ensuring horizontal alignment for optimal efficiency. Available in sizes ranging from 12 to 36 inches, each unit—crafted from robust Aluminum 5005 H34 and featuring double-row ball bearings—offers exceptional durability and reduced maintenance. The turbine efficiently expels stale air, reduces energy costs, and enhances indoor air quality by harnessing natural wind currents to drive airflow. Its compatibility with various architectural designs and ease of installation make it an ideal choice for architects and designers seeking sustainable, eco-friendly ventilation solutions.
| Parameter | Value |
|---|---|
| Standard Nominal Throat Diameters | 12", 24", 28", 36" |
| Standard ACTUAL Throat Diameters | 11 205/256", 23 1/12", 27 23/64", 35" |
| Manufacturer | Southwest Solutions Group_ENV |
| Lead Time | Contact SSG for more information |
| Model | H |
| MasterFormat | 23 35 00 – Special Exhaust Systems |
| UniFormat | D3040200 – Exhaust Ventilation Systems |
| Property | Value |
|---|---|
| Includes Pricing | Yes |
| ADA Compliant | No |
| Has MEP Connectors | Yes |
| Includes Sustainability | No |
| Primary Material | Aluminum |
| IFC | Flow Moving Device |
| OmniClass | 23.75.35.21 – Extractors |
| Omnia | No |
| Sourcewell | No |
| Equalis | No |
| Vizient | No |
| Systec | No |
