Legal-3 Unit-7 Tier 4 Post Shelving Revit model group
Legal-3 Unit-7 Tier 4 Post Shelving Revit model group
Updated Jul 27, 2021

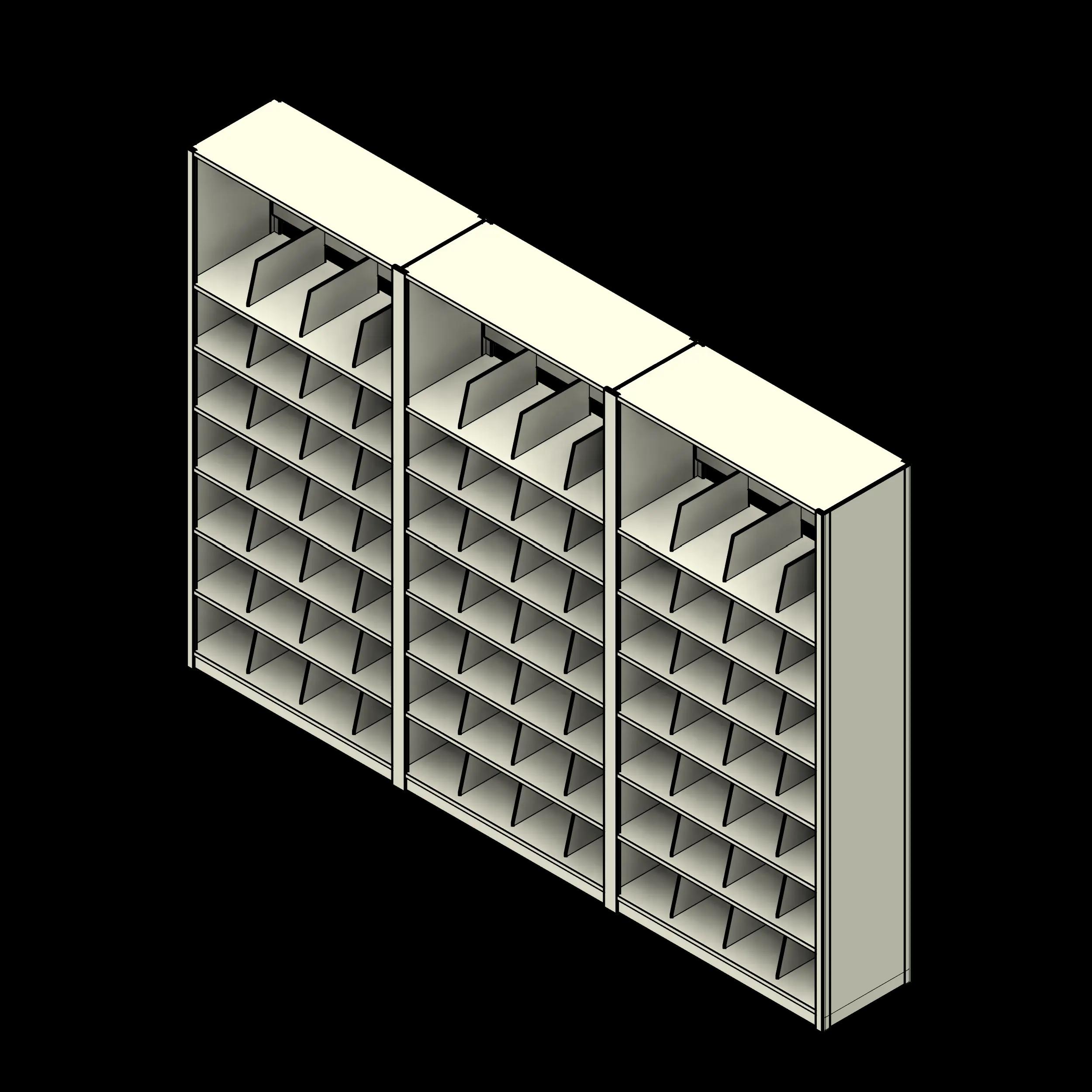

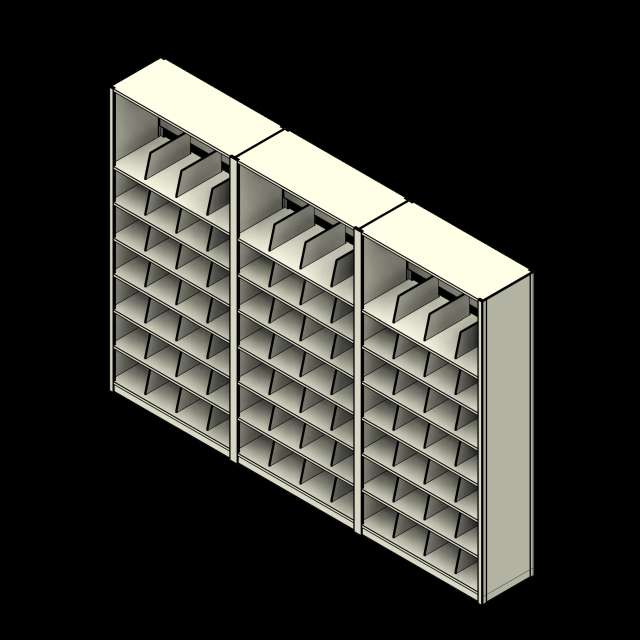

Legal-3 Unit-7 Tier 4 Post Shelving

Product SKU

SKU: SSG-4P-127-LEB

Downloads

Get Fetch to load families straight into Revit →
Model group
Pricing

Description

  • 7 Tiers High
  • Great for file storage
  • Flexible components for adaptable storage
  • Shelf system

Questions about this product?

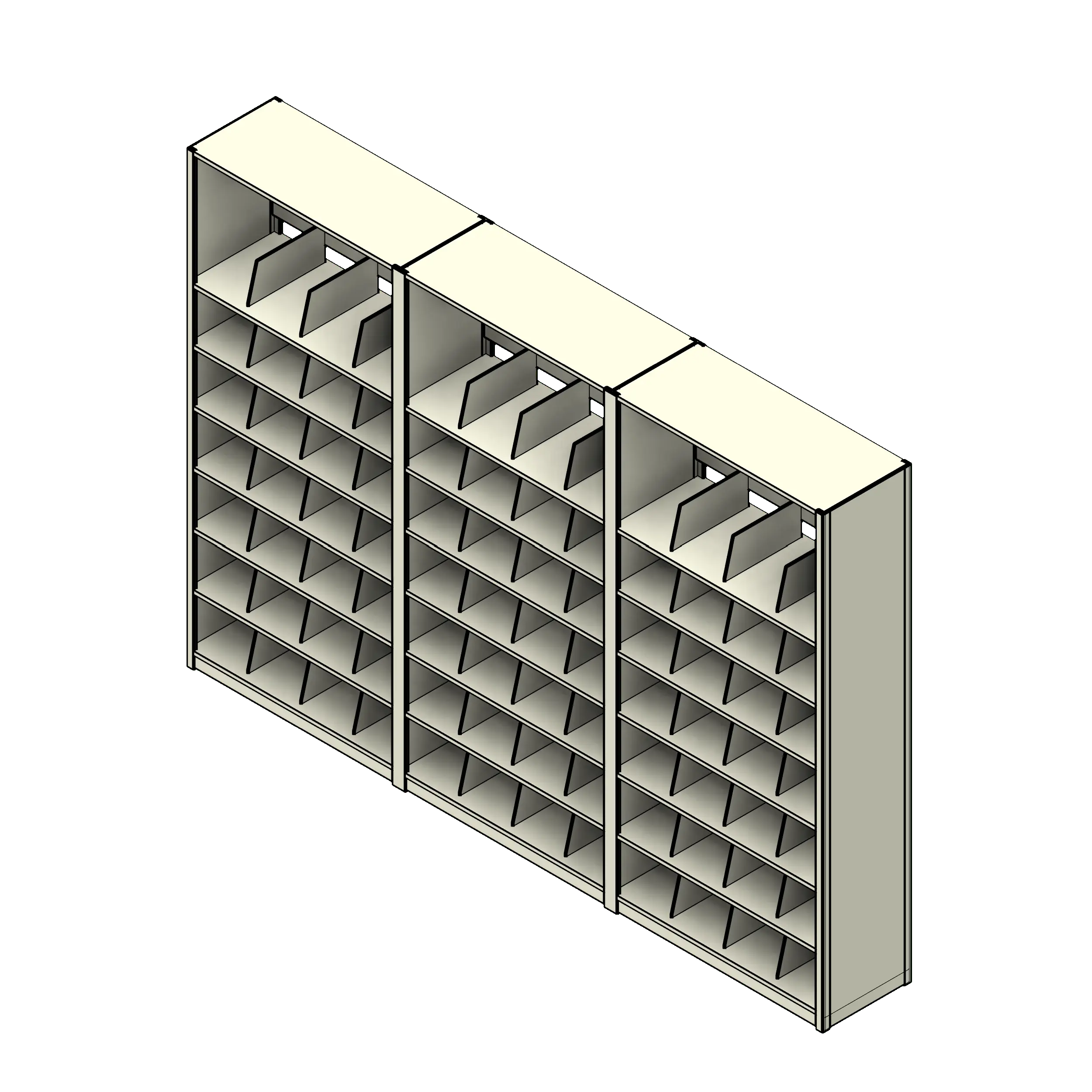

This 108-inch-wide, 15-inch-deep, 76-inch-high three-unit 4-post shelving run provides seven tiers for legal file storage in business and industrial storage areas. It gives projects needing a longer filing run a 9-foot storage layout without moving to a deeper configuration. Powder-coated steel uprights and shelves form a shelf system with independently adjustable shelves, allowing shelf spacing to change in 1-1/2-inch increments as filing requirements change. Keyhole slots on the upright inner walls and shoulder-rivet shelf supports interlock without nuts, bolts, or clips. Available accessories include file dividers, center stops, reference shelves, back stops, backs, bin dividers, bin fronts, laminate end panels, and end-panel mounting brackets.

The 4-Post line is designed to be highly flexible and adaptable with every Revit model built to reflect its real world counterparts as closely as possible. Use the prebuilt shelving family to visualize your storage solutions or use the shared sub-component families to build your own custom solution right down to the last shelf.

Our 4-Post shelving incorporates both “L” & “T” shaped uprights allowing for a variety of shelving configurations. All shelf units are assembled without the use of nuts, bolts, or clips and are available for both single entry (wall unit) and double entry (back to back storage) allowing for maximum filing/storage capacity with minimal floor intrusion. Shelves are available slotted to accept adjustable file dividers. All shelf units are designed for expansion and are available as mobile-ready for easy conversion. Our 4-Post units are ready to assemble with no special tools required. Available depths make it an ideal choice for letter, legal, binder, and book storage applications.

Specifications
Dimensions
Width108"
Depth15"
Height76"
Product
Number of Columns3
Number of Levels7
Primary MaterialPowder coated steel
Type of Storage SizeLegal
Classification
IFCFurniture
OmniClass23-21 11 11 11
Revit family
Includes PricingYes
ADA CompliantNo
Has MEP ConnectorsNo
Configurable options
  • Base option
  • Divider option
  • Dividers per shelf
  • Openings
  • Back panel
  • Doors
  • Open upright
