- Industry Application: Ideal for EMS and healthcare storage solutions.
- Maximum space efficiency with up to 100% greater utilization of available area.
- Customizable design with a wide range of styles, colors, and configurations.
- Unique zero-force sensor for enhanced safety and operational reliability.

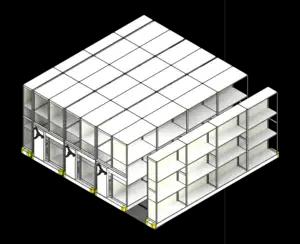

4 Post Standard High Density System
These systems offer up to 100% greater space utilization by eliminating the need for fixed aisles. The adaptable design allows nearly any type of filing or storage equipment to be mounted on robust steel or aluminum carriages. With customizable styles, colors, and configurations, these systems provide endless design possibilities.
Specifically engineered for demanding healthcare settings, the mobile systems ensure secured access, uncompromised safety, and compliance with all relevant government mandates. The systems are available with manual, mechanical assist, or powered controls, including a mobile app for programmable options, ensuring a tailored fit for your specific needs.
Key features include a zero-force sensor for aisle safety, anti-tip protection for earthquake-prone areas, and advanced aisle lighting. These systems help double the capacity of existing spaces or save up to half the floor space, making them ideal for high-density storage in medical supply rooms, records departments, or pharmaceutical storage. Installations are supported by a comprehensive network of service locations, ensuring expert installation and maintenance. Enjoy peace of mind with a five-year warranty and industry-leading safety features, perfect for the critical demands of healthcare environments.
| Parameter | Value |
|---|---|
| Standard Widths | 0 |
| Minimum Grout Height | 0' 0 1/4" (0 1/4") |
| Maximum Grout Height | 0' 2 3/4" (2 3/4") |
| Minimum Offset Rail | 0' 4" (4") |
| Maximum Offset Rail | 2' 5" (29") |
| Back Clearance | 0' 3" (3") |
| Top Clearnace | 0' 2" (2") |
| Front Clearance | 0' 3" (3") |
| Minimum Aisle Width | 3' 0" (36") |
| Minimum Width | 0' 0" (0") |
| Maximum Width | 0' 0" (0") |
| Standard Depths | 0 |
| Minimum Depth | 0' 0" (0") |
| Maximum Depth | 0' 0" (0") |
| Standard Heights | 0 |
| Minimum Height | 0' 0" (0") |
| Maximum Height | 0' 0" (0") |
| Minimum Mobile Carriage Width | 1' 3 1/2" (15 1/2") |
| Maximum Mobile Carriage Width | 5' 0 1/2" (60 1/2") |
| Minimum Static Carriage Width | 1' 0 1/2" (12 1/2") |
| Maximum Static Carriage Width | 2' 6 1/2" (30 1/2") |
| Minimum Shelving Height | 1' 8 3/4" (20 3/4") |
| Maximum Shelving Height | 11' 11 3/4" (143 3/4") |
| Minimum Carriage Length | 3' 0" (36") |
| Maximum Carriage Length | 81' 0" (972") |
| Manufacturer | Southwest Solutions Group_SPA |
| Lead Time | Contact SSG for more information |
| Model | HD-4P |
| Keynote | 10 56 26 |
| Assembly Code | E2010 |
| Author | KBruxvoort / AWright / TBenavides |
| Toll Free Number | 1-800-803-1083 |
| Property | Value |
|---|---|
| Includes Pricing | No |
| ADA Compliant | No |
| Has MEP Connectors | No |
| Includes Sustainability | Yes |
| Primary Material | Powder coated steel |
| Secondary Material | Laminate |
| BIMobject Category | Furniture: Shelving & Storage |
| IFC | Furniture |
| Omniclass | 23.40.20.27.21 |
