Under Rack Pullout Shelving

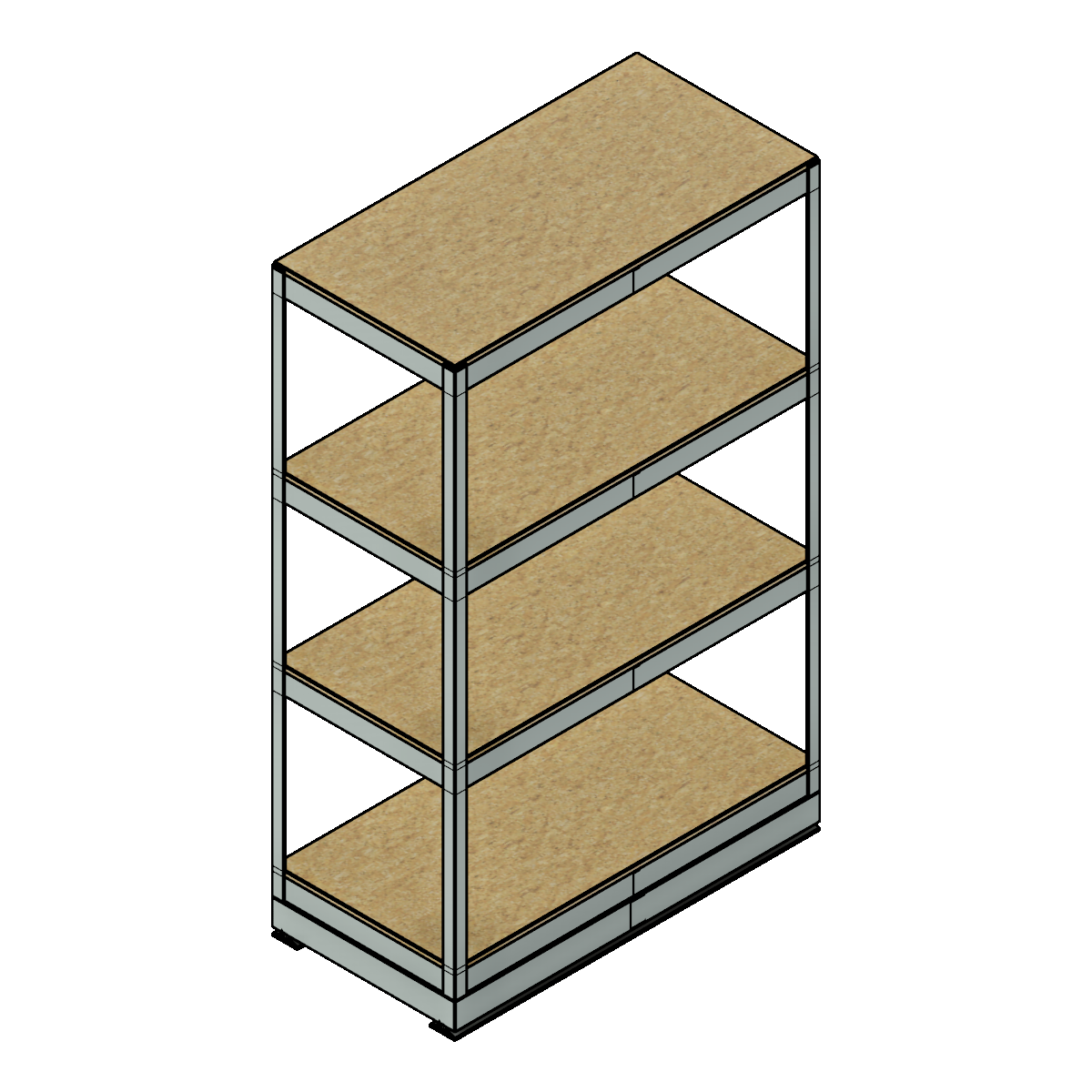

The Rivet Style Shelving system is a robust and versatile storage solution ideal for high-density applications.

Designed with easy assembly in mind, it features a unique rivet connection that integrates with 14-gauge angle posts to form a sturdy framework. The system's keyhole slots and snap-in rivet design eliminate the need for additional hardware, allowing shelves to adjust in 1-1/2" increments for maximum flexibility. This shelving supports various decking options, including particle board, metal, perforated metal, and wire grid, catering to different storage needs and code requirements.

The shelving system boasts a weight capacity of 375-600 lbs per shelf, making it suitable for both commercial and industrial use. Its heavy-duty construction supports long spans and can handle significant loads, while low-profile and Z-beam supports offer additional reinforcement. The Rivet Style Shelving is perfect for optimizing space in warehouses, retail environments, or any setting requiring adaptable, high-capacity storage. Its compatibility with mobile storage systems further enhances its utility, offering a dynamic solution for evolving storage needs.

Specifications
Dimensions
Width	12", 14", 16", 18", 24"
Depth	36", 42", 48"
Height	24" to 144"
Product
Number of Shelves	0 to 12
Manufacturer	Southwest Solutions Group_PIP
Lead Time	Contact SSG for more information
Model	URM
Primary Material	Powder coated steel
Classification
MasterFormat	10 56 26.13 – Manual Mobile Storage Shelving
UniFormat	E2010 – Fixed Furnishings
IFC	Furniture
OmniClass	23.40.20.27.21 – Mobile Storage Units
Revit family
Includes Pricing	No
ADA Compliant	Yes
Has MEP Connectors	No
Includes Sustainability	No

Construction

Heavy Upright Post: Constructed of 14-gauge steel, angled at 1-11/16” x 2-1/4”, punched on 1-1/2” centers for beam attachment.
Angle Upright Post: Made from 14-gauge steel, angled at 1-15/32” x 1-15/32”, punched with keyhole slots on 1-1/2” centers.
Left to Right & Front to Back Double Rivet Beam: 14-gauge steel, angled with legs 2-3/4” and 1”, with shoulder rivets on 1-1/2” centers.
Low Profile Double Rivet Shelf Support: Formed of 14-gauge steel for normal use and 11-gauge for heavy applications, with channel depth of 1-1/8”.
Front to Back Shelf Deck Support: Constructed of 14-gauge steel for intermediate shelf support.

Shelf Decking

Particle Board Decking: 5/8” medium density, industrial grade.
Metal Shelf Decking: 375-pound capacity, 22-gauge steel with welded "BOX" channels.
Circle Perforated Metal Shelf Decking: 375-pound capacity, 22-gauge steel, 50% open pattern.
Wire Grid Shelf Decking: 1/4” round powder-coated steel, 2” x 4” mesh pattern, 150-pound capacity per shelf on average.
Melamine Decking: 5/8" medium density, industrial grade particle board coated on all side with high-pressure melamine laminate in designer white.

Finish

All steel parts cleaned in a multistage washer with phosphate coating for superior paint adhesion and rust resistance.
Industrial enamels applied with electrostatic spraying for even coverage, capable of withstanding 250 hours in a salt spray chamber.

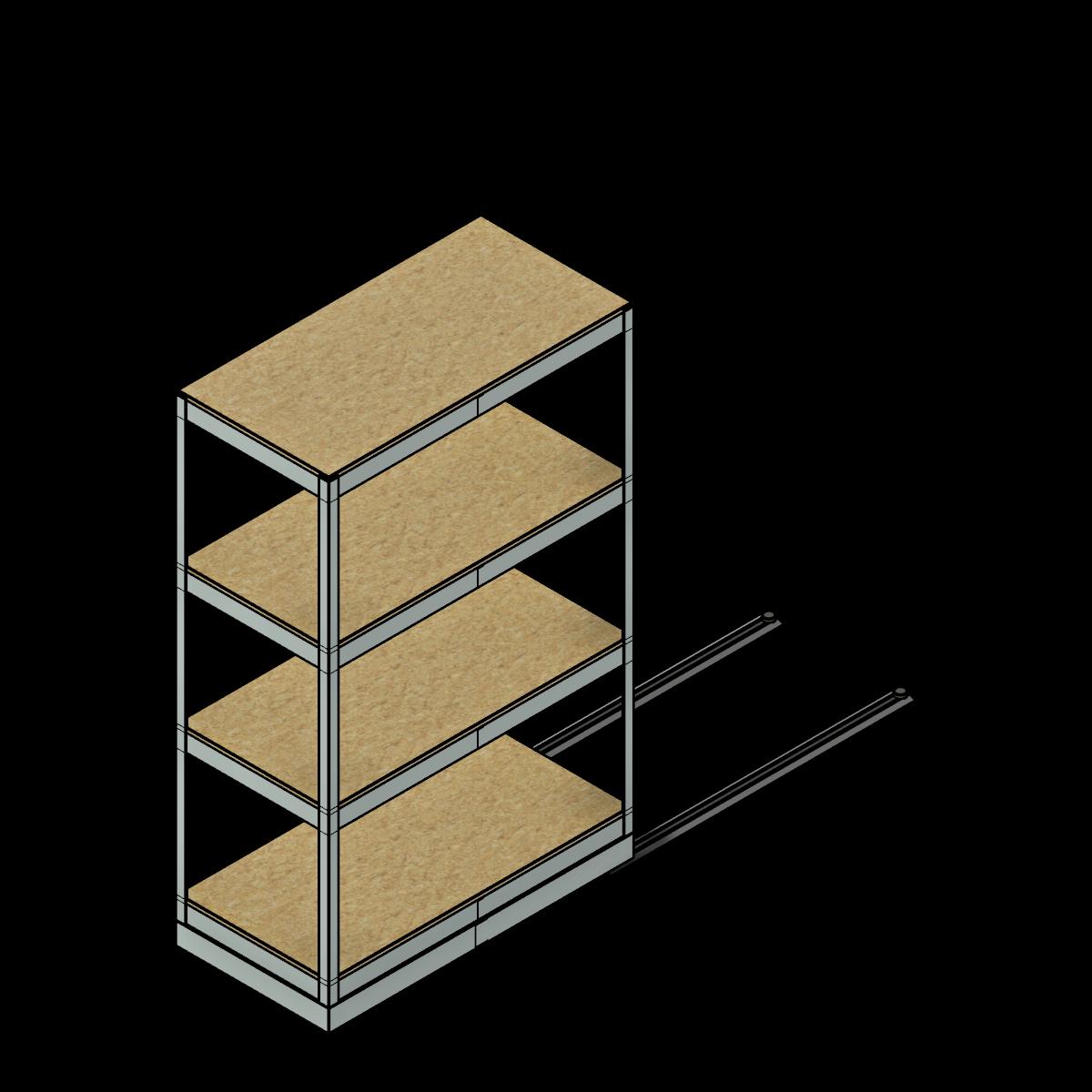

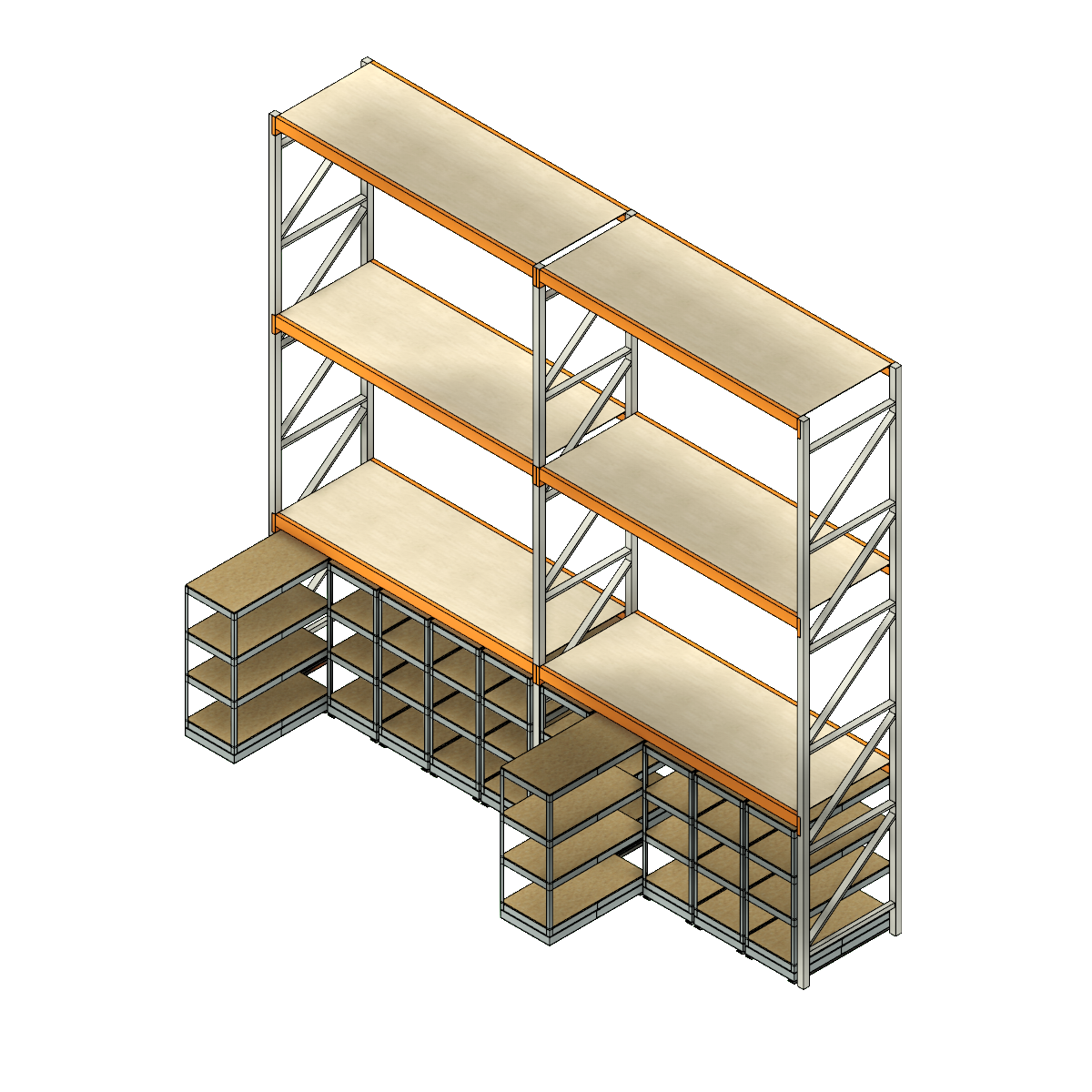

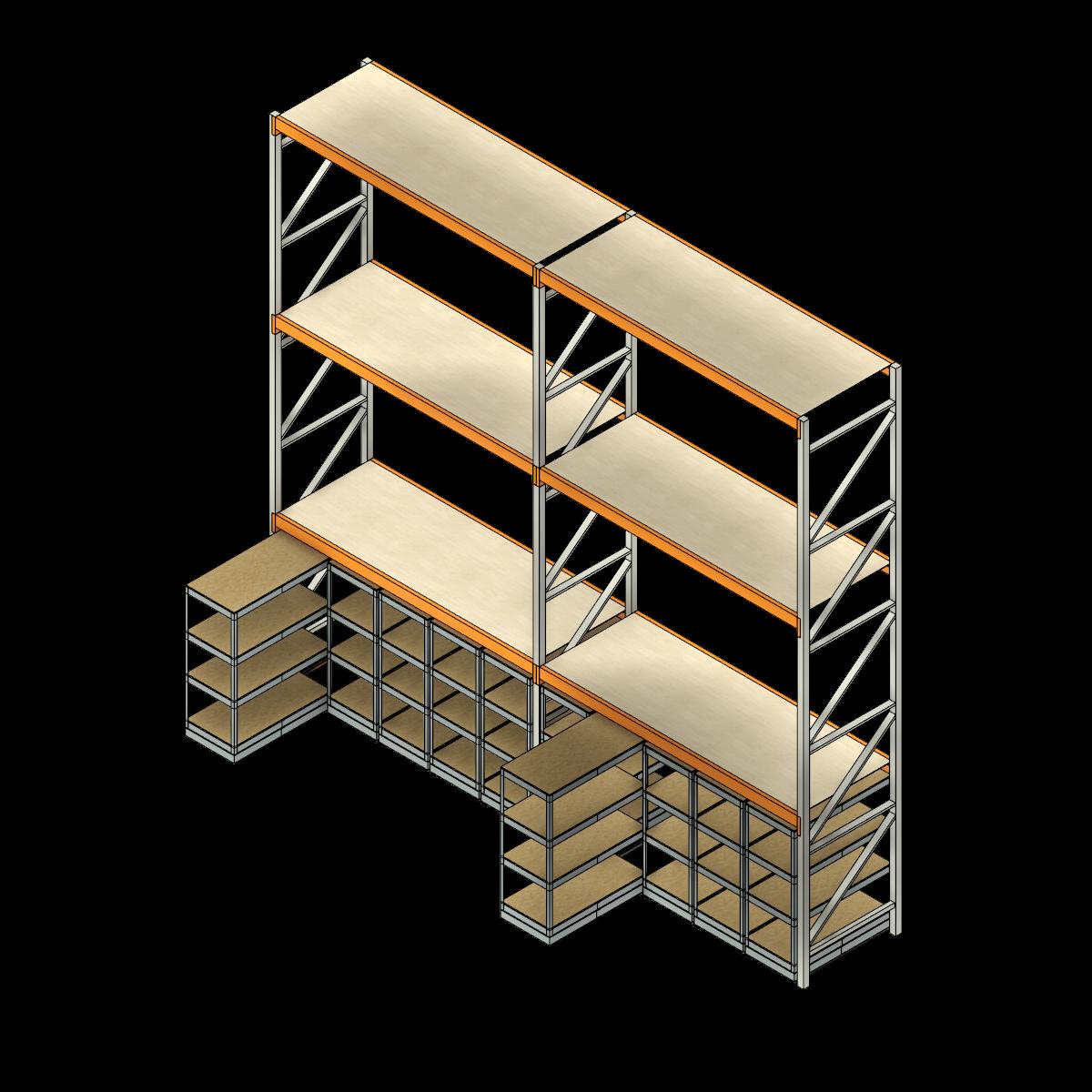

Under-Rack Mobile Storage System

Installs beneath existing racking, utilizing main aisle as a temporary access point.
Features floor-mounted tracks and a durable urethane front wheel for smooth operation.
Handles loads up to 3,000 lbs per unit.
ADA compliant with anti-tip features for seismic zones.

Specifications

Shelves support 400 - 600 lbs based on size.
Adjustable in 1-1/2” increments for flexibility.
Available shelf decking options: Particle Board, Solid Metal, Perforated Metal, Wire Grid.
Optional end panels: Solid Metal, Slat Wall, Wire Grid, Clear Acrylic, Peg Board, Laminated.
