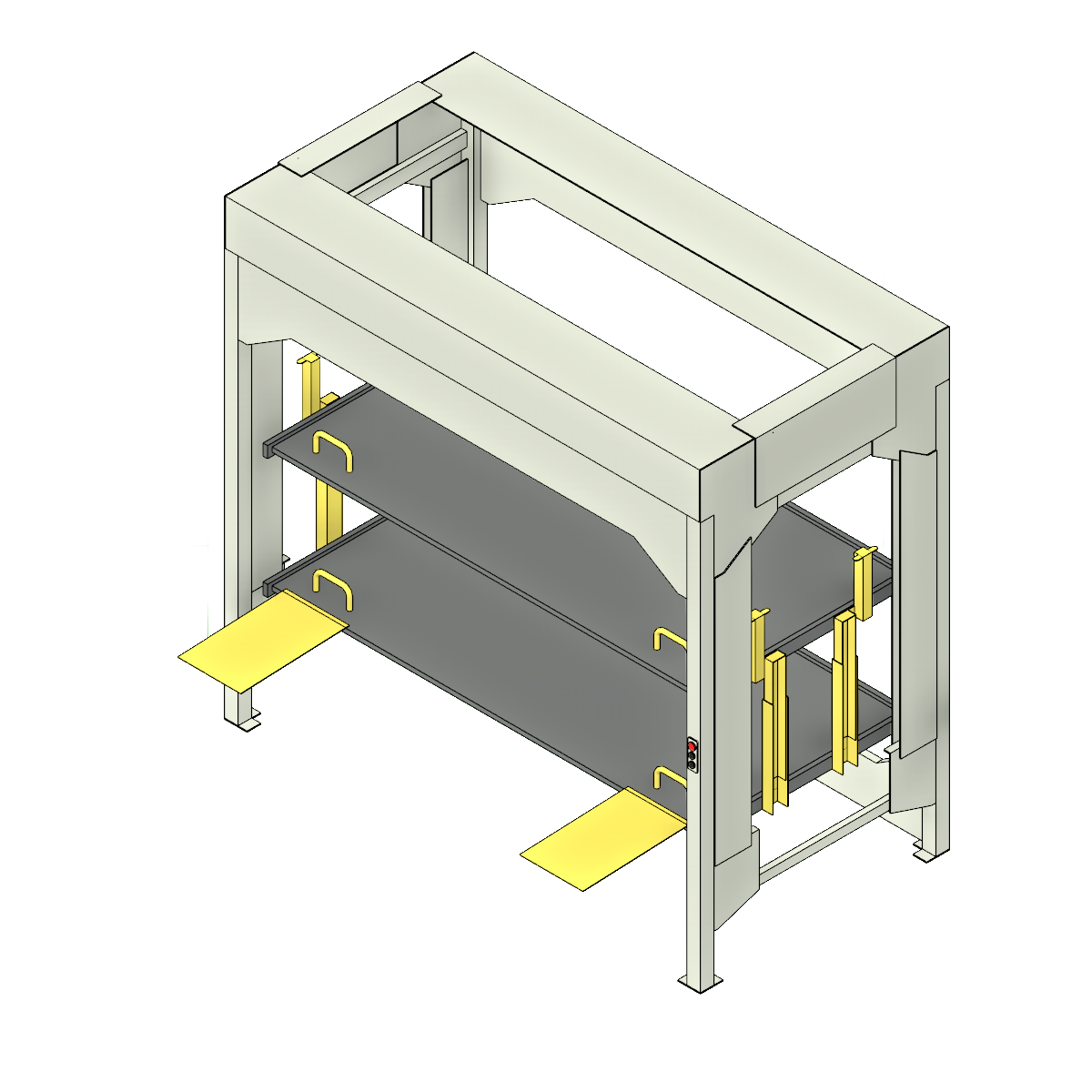

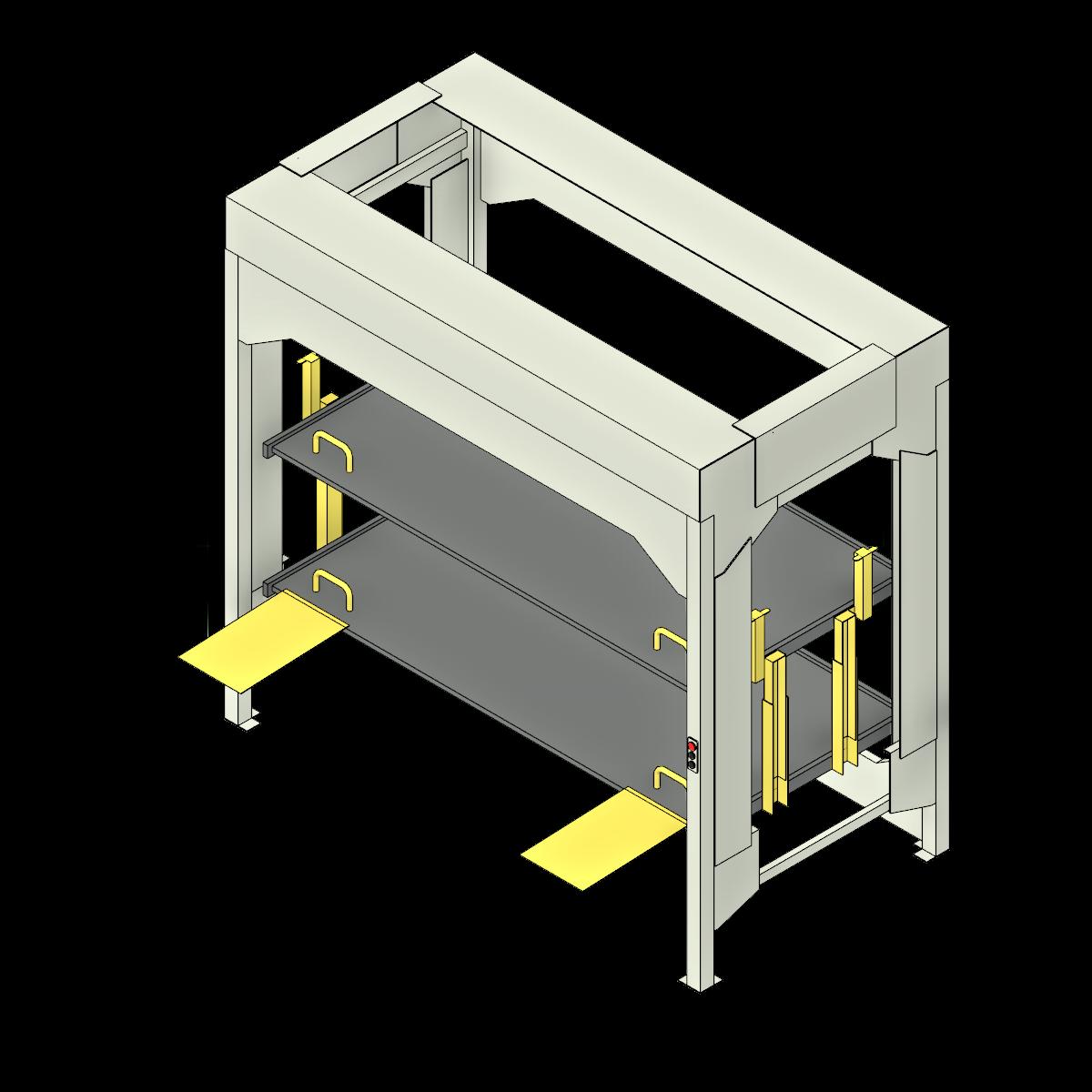

 SSG Lift Universal Front Load PCS 3 Level

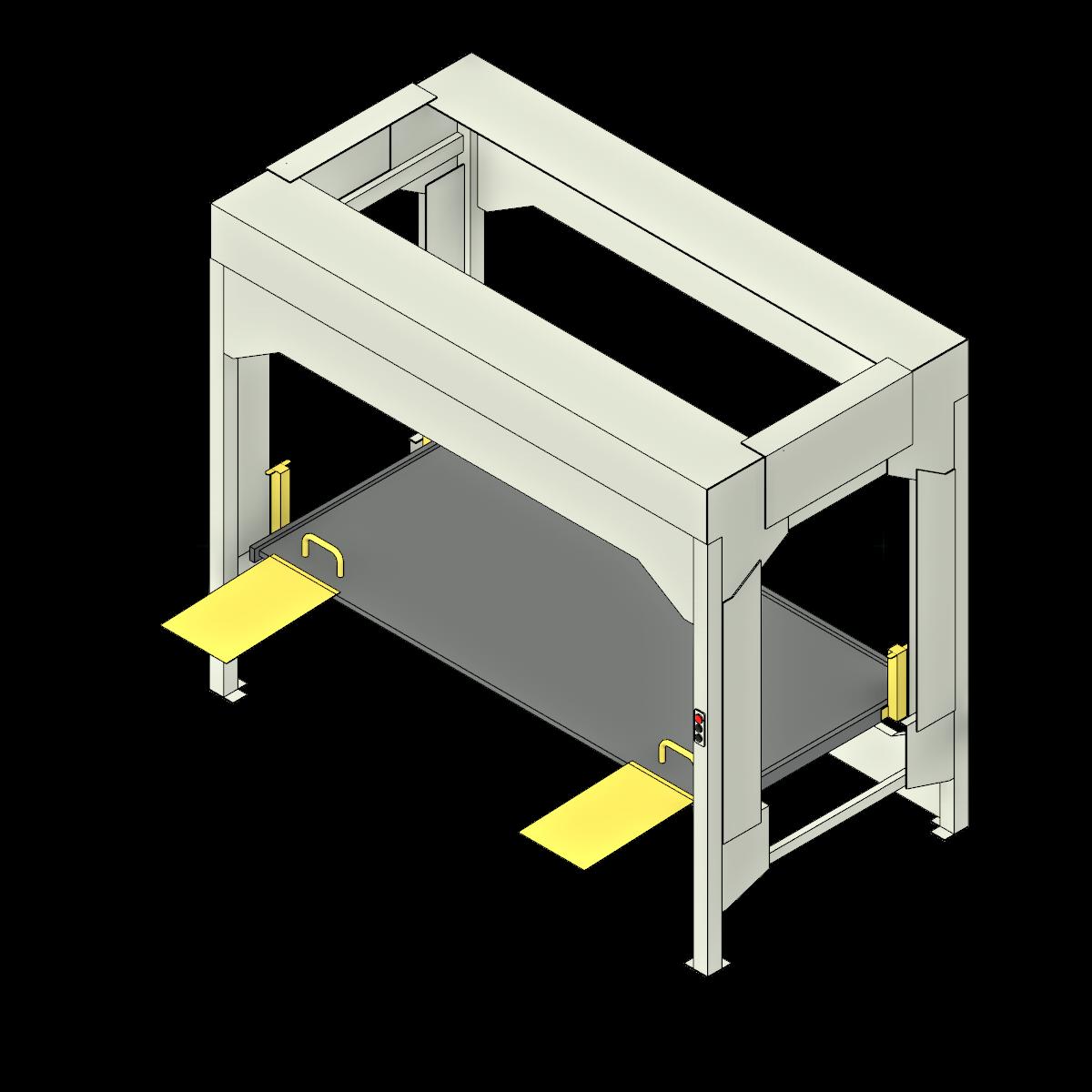

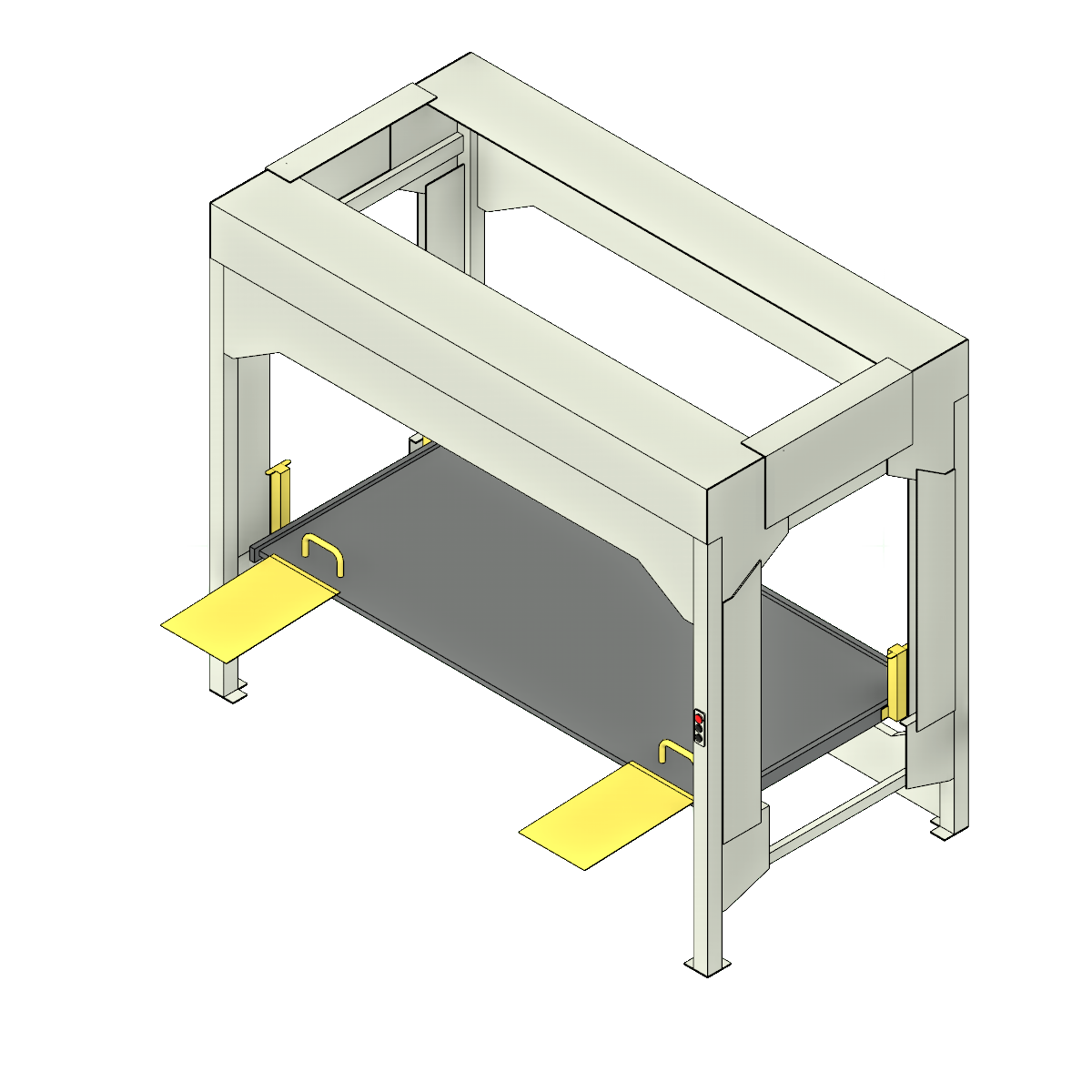

 SSG Lift Universal Front Load PCS 2 Level

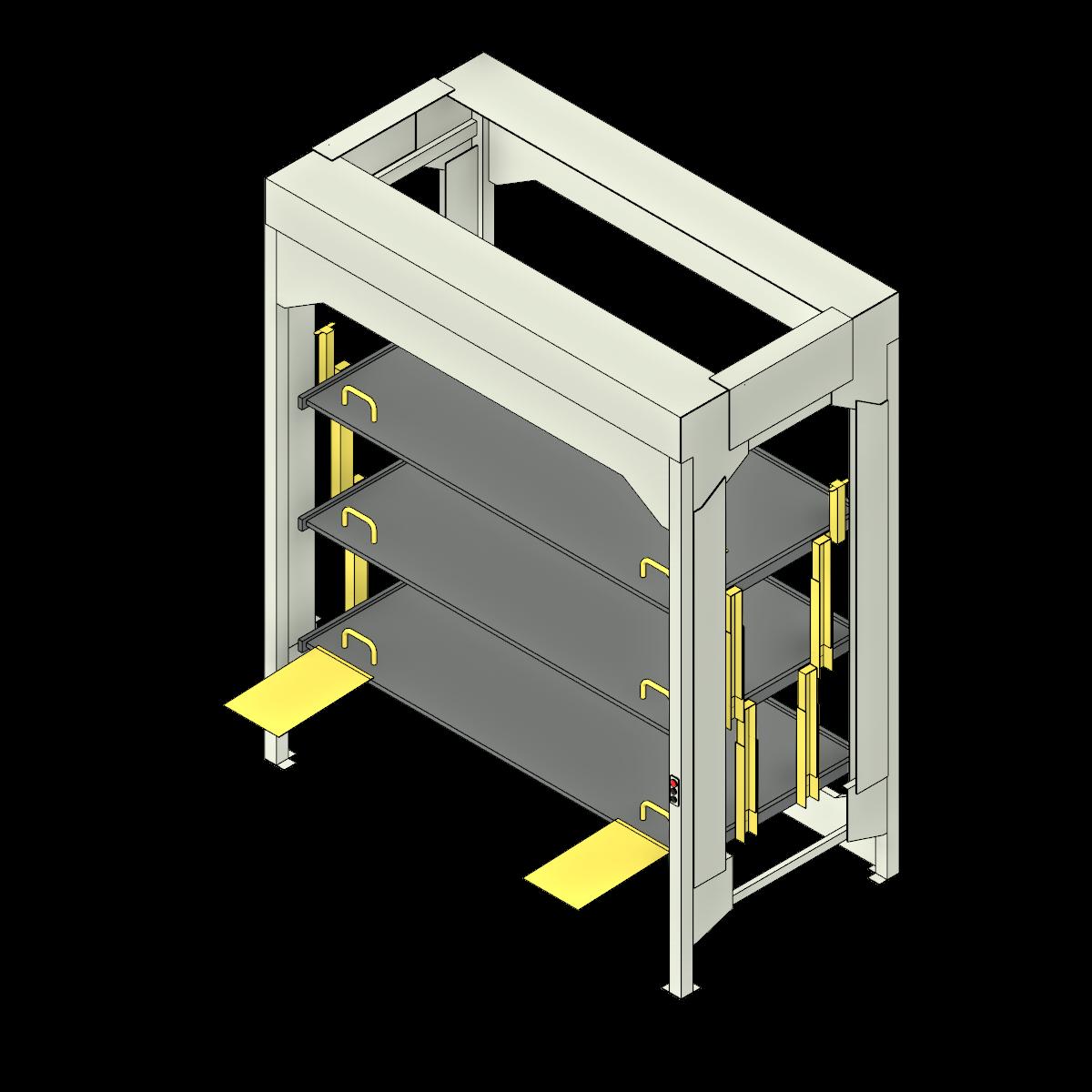

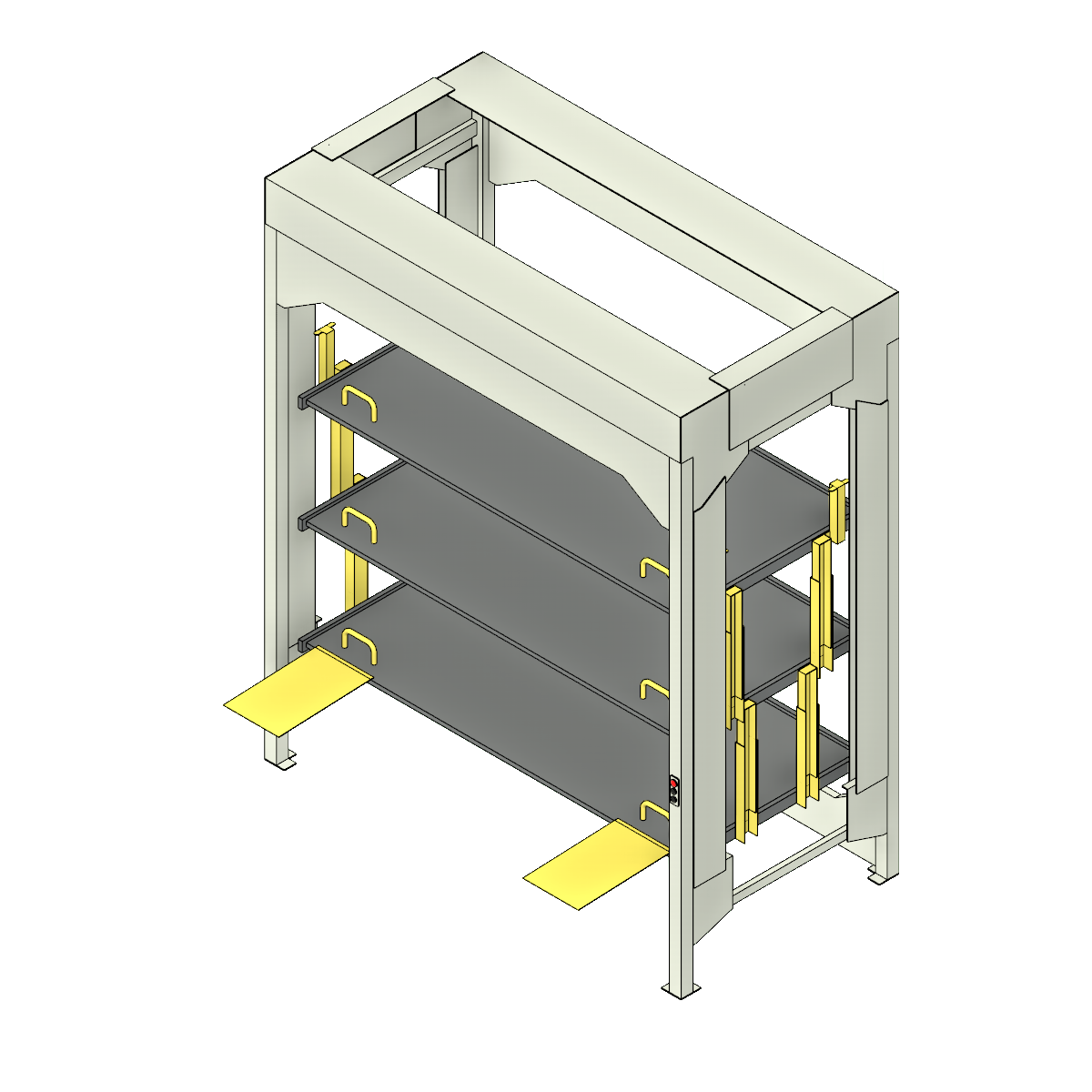

 SSG Lift Universal Front Load PCS 4 Level
2025.11.6.0

Product SKU

Description

  • Designed for hospitals, clinics, and rehab centers with limited side access
  • Stores 2–4 beds vertically (up to 900 lbs per platform)
  • Front-load configuration with integrated ramp for easy bed entry

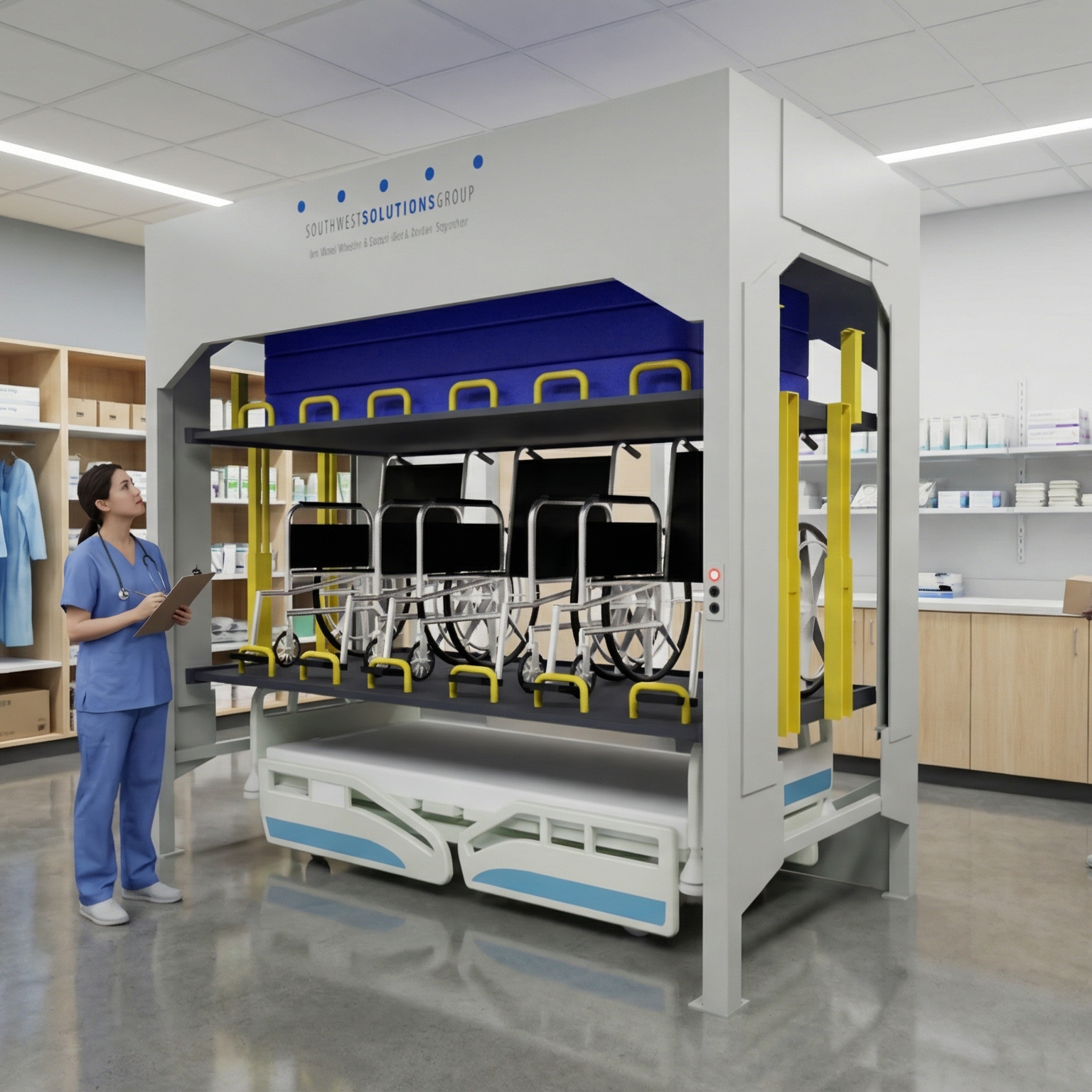

  • Convertible system for storing hospital beds, carts, and wheelchairs
a square with short lines outside the corner
Family
icon of a person with gears next to its head
Pricing
icon of a person with gears next to its head
Connectors
Revit file icon
Revit 2022 (1.98 MB)
Revit file icon
Revit 2023 (1.98 MB)
Revit file icon
Revit 2024 (1.98 MB)
Revit file icon
Revit 2025 (1.98 MB)
Revit file icon
Revit 2026 (1.98 MB)
adobe reader icon
(2.59 MB)
adobe reader icon
(0.24 MB)
Questions
Need some help? Send us a message if you have any sales or model related questions.

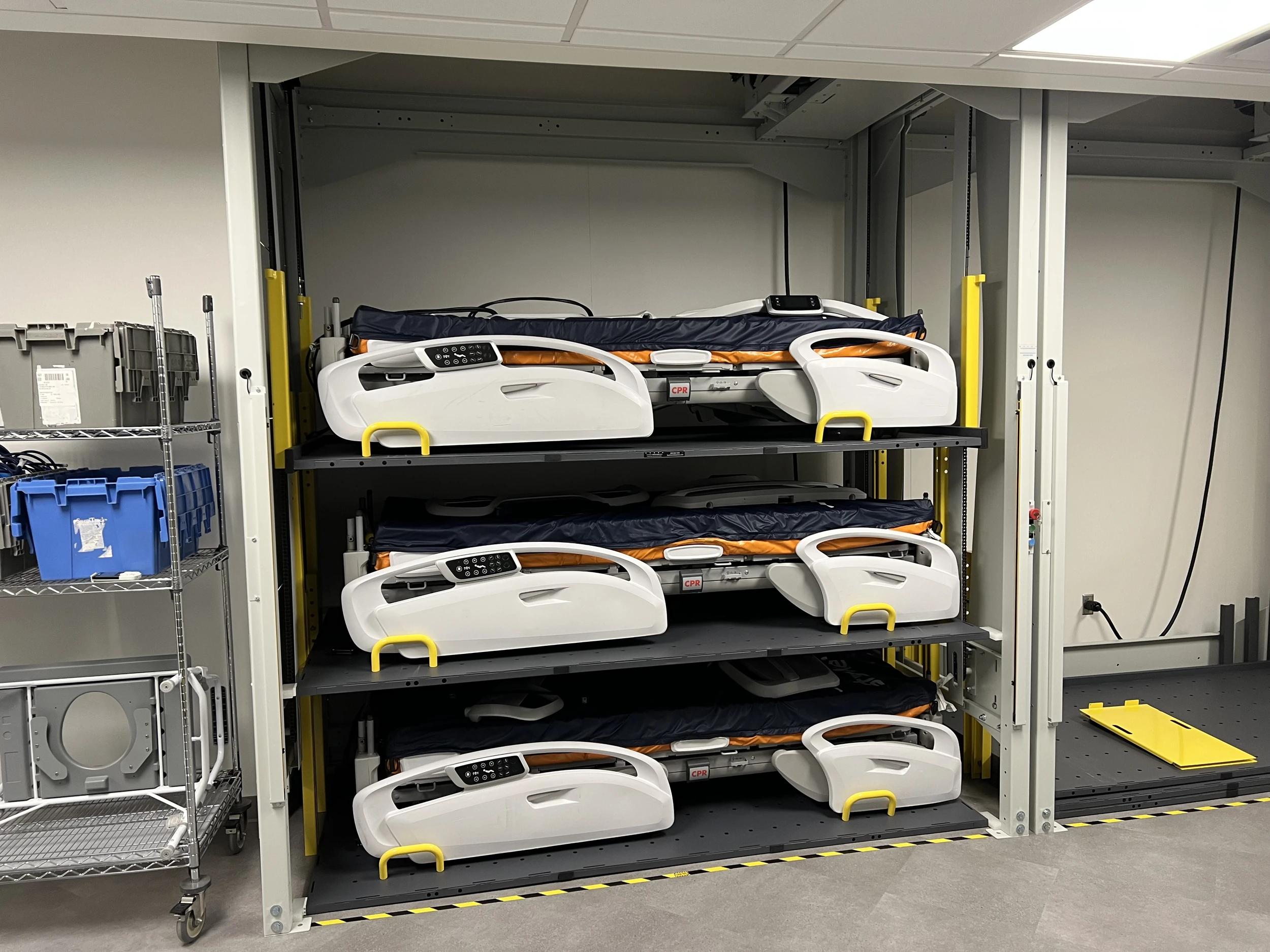

Universal Storage Lift - Front Load

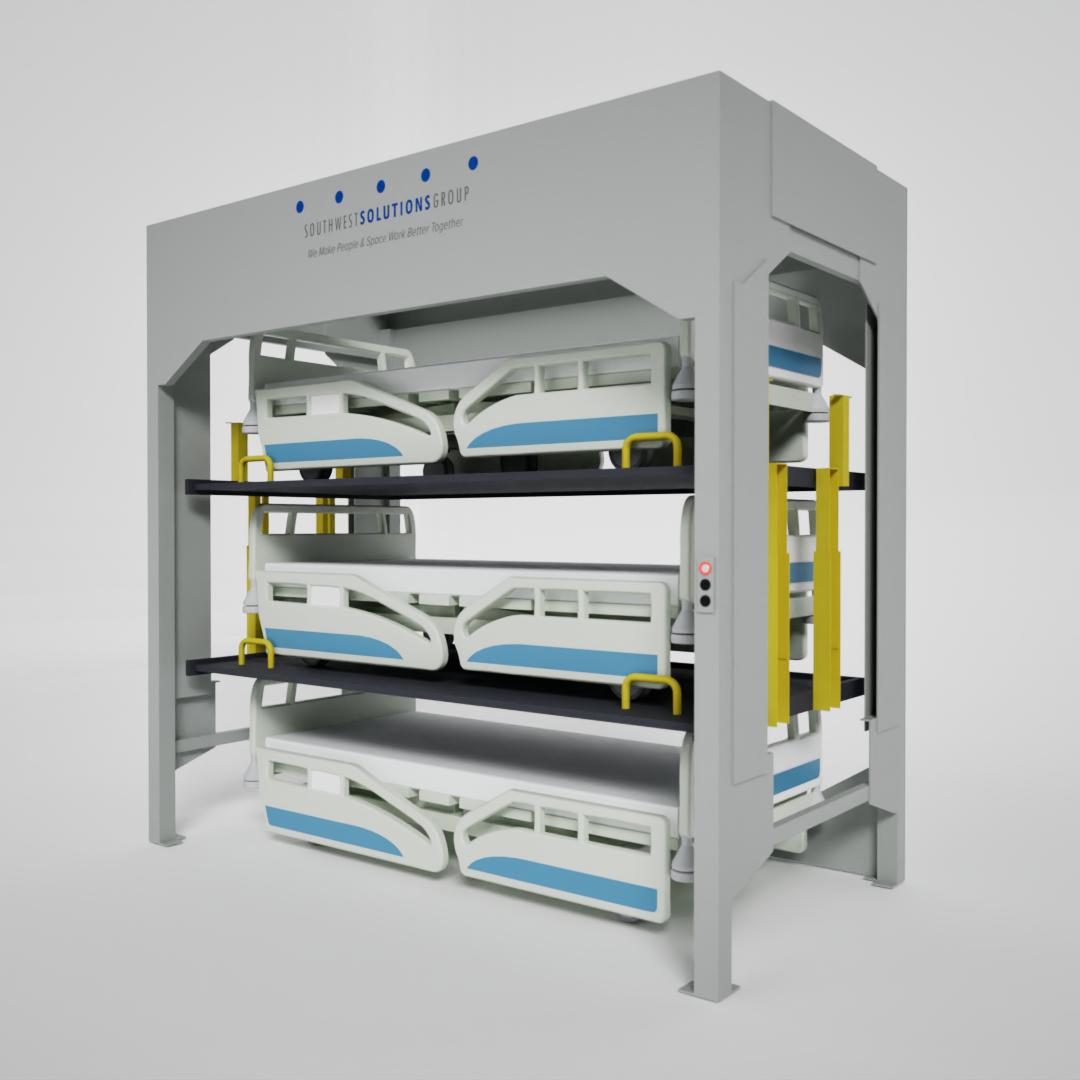

The Front-Load Hospital Bed Lift is a purpose-built platform lift that optimizes hospital storage by vertically stacking multiple beds from the front. Designed for healthcare facilities with limited aisle or side clearance, it allows staff to quickly load and store beds while keeping hallways clear and compliant.

The Hospital Bed Stacker efficiently utilizes vertical space, freeing up valuable floor areas and ensuring compliance with Joint Commission and OSHA guidelines. This robust system accommodates 2–5 beds, each weighing up to 900 lbs, with adjustable platforms that can be spaced between 24" and 36" to fit various bed types. It offers front or side loading for flexibility and includes features like seismic-rated anchoring, adjustable wheel chocks, loading ramps, and a safety curtain for operator protection. With backlit controls and a keyed emergency stop, it ensures ease of use and safety. The lift is engineered for quick installation, typically completed in one day, and is proudly built in the USA. It stands out from competitors by offering a convertible system for beds, carts, and wheelchairs, making it a versatile choice for hospitals, rehab centers, and other medical facilities looking to enhance space efficiency, safety, and operational effectiveness.

ParameterValue
Standard Number of Levels2, 3, 4
Minimum Number of Levels2
Maximum Number of Levels4
Standard Platform Clearance24" - 36" (3" increments)
Minimum Platform Clearance2' 0" (24")
Maximum Platform Clearance3' 0" (36")
Standard Widths105"
Minimum Width8' 9" (105")
Maximum Width8' 9" (105")
Standard Depths55"
Minimum Depth4' 7" (54")
Maximum Depth4' 7" (54")
Standard Heights89", 100", 127"
Minimum Height7' 5" (89")
Maximum Height10' 7" (126")
Lifting Speedmax. 11.7 seconds per position
Electrical Specification110V, 1PH, 15 Amp -OR- 220V, 1PH, 10 Amp
ManufacturerSouthwest Solutions Group_LNS
ModelF
Keynote10 56 29.16
Assembly CodeE1040.20
AuthorAWright
Toll Free Number1-800-803-1083
PropertyValue
Includes PricingYes
ADA CompliantNo
Has MEP ConnectorsYes
Includes SustainabilityNo
Primary MaterialPowder coated steel
BIMobject CategoryFurniture: Shelving & Storage
IFCFurniture
Omniclass23-21 11 11 15
OmniaNo
SourcewellNo
EqualisNo
VizientYes
SystecYes
