09' Wide - Option 02 Break Room
Product SKU
SKU: SSG-BR09-2-L
Downloads
- 104 KB
Description

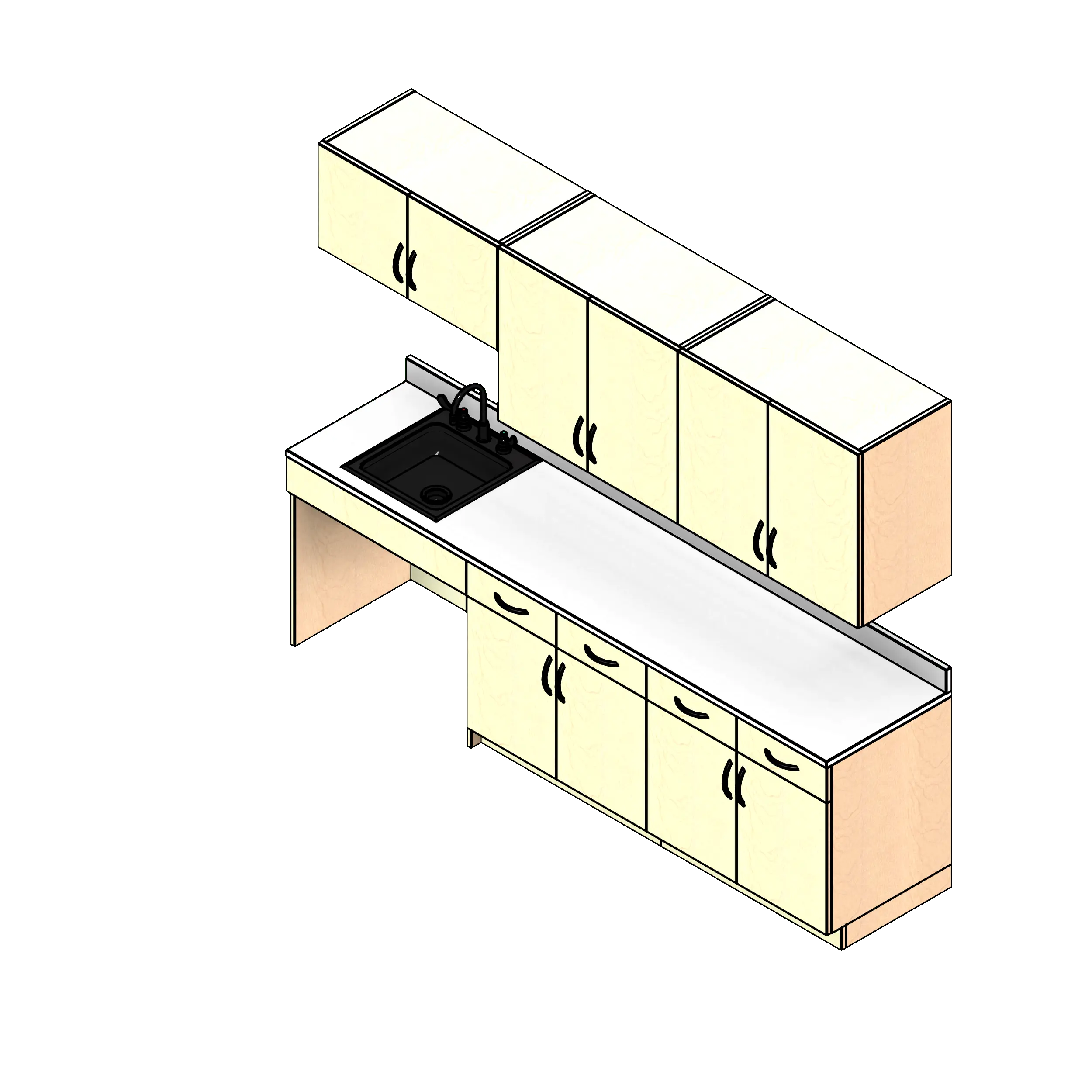

- Kit is designed to represent one common option used for Break rooms at this Height and Width
- Kit includes three base cabinets, four upper wall cabinets, one countertop with backsplash, and one sink with faucet.
- ADA accessible.
- Appliances are for visual representation only, NOT included in budget price
This 9 ft wide laminate break room casework kit is for business and education break rooms that need enclosed wall storage, two 36 in. base cabinets with two doors and two drawers each, and an ADA sink cabinet in one 108 by 31 by 84 in. layout. Three 36 in. two-door wall cabinets keep supplies behind closed doors, while the paired base cabinets add drawer storage below the 108 in. laminate countertop. The kit includes a single-bowl stainless steel sink with faucet ledge and a laboratory deck-mounted chrome-plated brass faucet. It is ADA accessible and is also suited to laminate casework applications in museum projects.
Each kit comes with a variety of options that each have a unique price attached to them. A typical solution would comprise of both upper and lower cabinets with a sink and counter top. Each cabinet door can be equipped with a lock.
Design
- Multiple pull options
- Angled top is optional
- Counter can be equipped with side splash if necessary
- Lock options available
| Dimensions | |
|---|---|
| Width | 108" |
| Depth | 31" |
| Height | 84" |
| Product | |
| Primary Material | Laminate |
| Room Type | Break Room |
| Classification | |
| IFC | Furniture |
| OmniClass | 23-21 19 11 |
| Revit family | |
| Includes Pricing | Yes |
| ADA Compliant | Yes |
| Has MEP Connectors | No |
| Configurable options |
|
