Single Aisle Pallet Retrieval

Product SKU

Description

  • Typically used in industrial, manufacturing, and military settings, the ingenious design allows a single operator to move up to 6000 pounds without an operator's license and minimal training
  • Smaller aisles and adjustable steel pallets condense storage to save floor space
  • Eliminates the daily need for potentially dangerous forklifts
  • System configured for single-aisle use
a square with short lines outside the corner
Family
Questions
Need some help? Send us a message if you have any sales or model related questions.

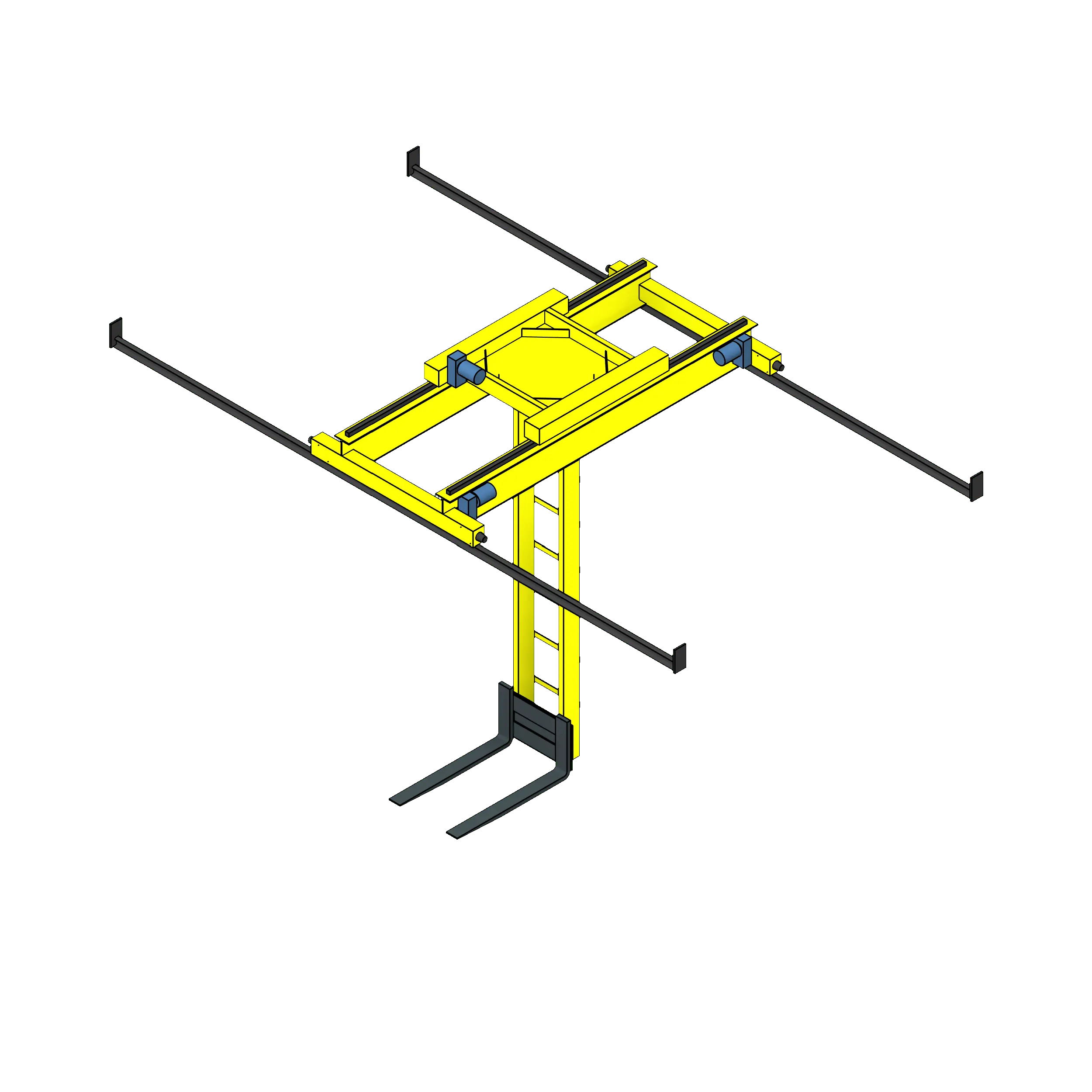

Automatic Pallet Retrieval System - Single Aisle

This family is intended to be used with the Modular Pallet Rack family, as the gantry is designed to sit directly on top of the rack. To use this family, insert it into your project from the Fetch app and click to place it in your project. The easy-to-use parameters are in the properties window while the family is selected. Use the parameters to choose your desired pallet size, number of bays, and shelving height to automatically size the system to fit your shelving configuration. Use the align tool to snap the shelving units to the strong references in the gantry family to ensure proper aisle spacing. The maximum capacity can be adjusted using the ENTER_Max Capacity Number parameter and will automatically scale to the capacity limits set.

ParameterValue
Standard Widths11' 10" - 33' 4"
Minimum Width11.8333333333333
Maximum Width33.3333333333333
Standard Depths16' 1" - 99' 3"
Minimum Depth16.0833333333333
Maximum Depth99.25
Standard Heights12' 11" - 27' 9"
Minimum Height12.9166666666667
Maximum Height27.75
ManufacturerSouthwest Solutions Group_RAP
Lead TimeContact SSG for more information
ModelP
Keynote10 56 29.16
AuthorAWright
Toll Free Number1-800-803-1083
PropertyValue
Includes PricingNo
ADA CompliantNo
Has MEP ConnectorsNo
Primary MaterialPowder coated steel
BIMobject CategoryFurniture: Shelving & Storage
IFCFurniture
Omniclass23 40 20 27 17
