Updated Jul 31, 2018

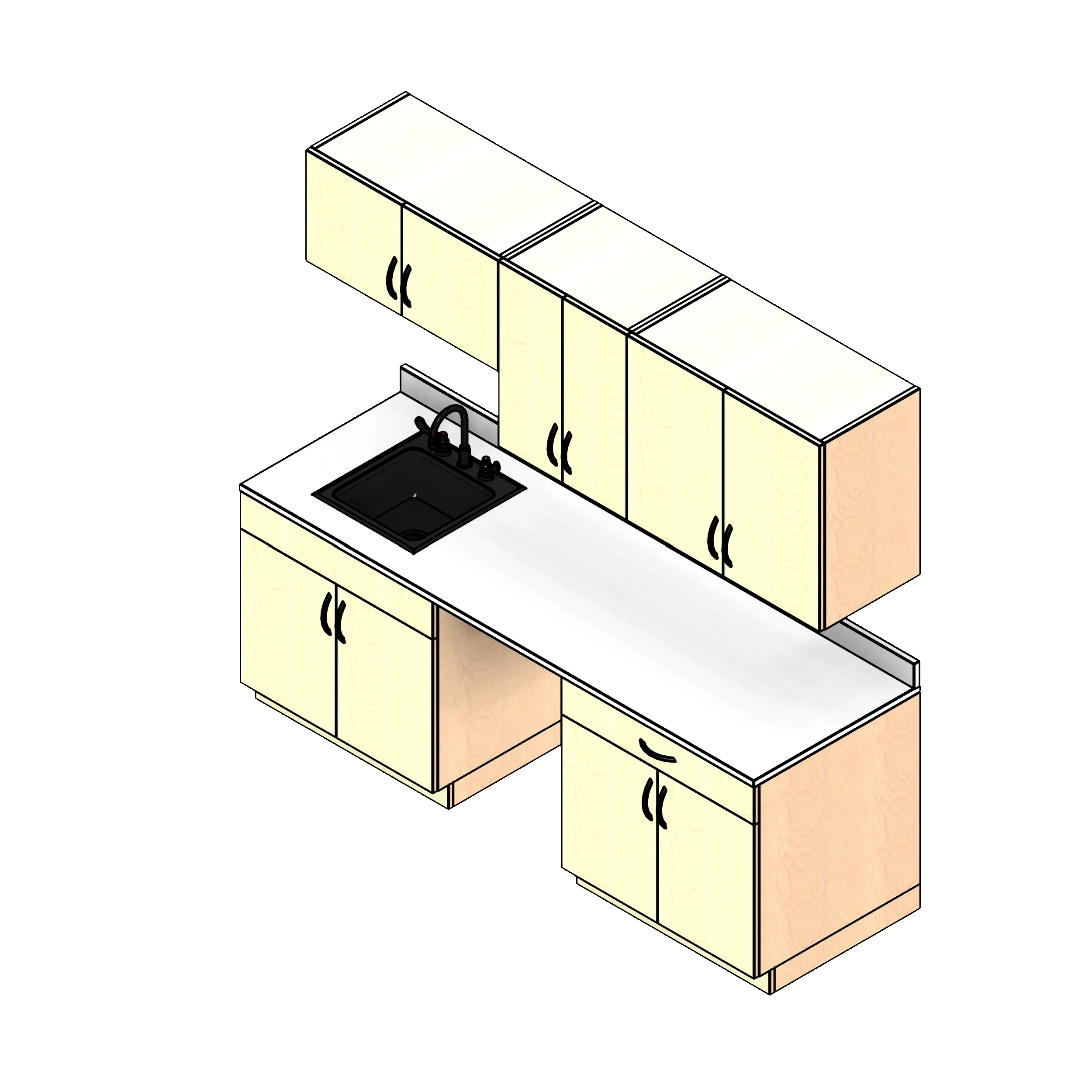

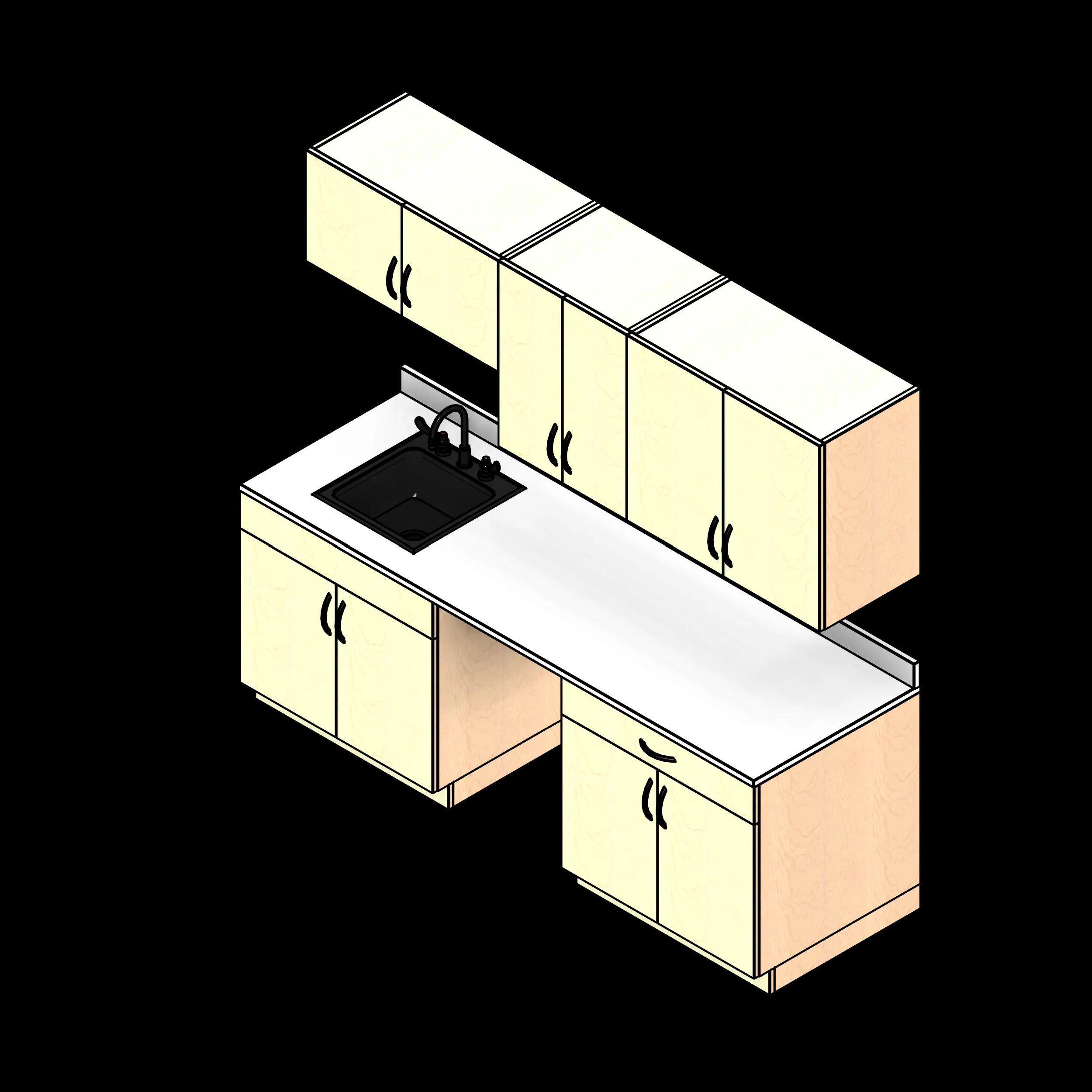

08' Wide - Option 03 Break Room Revit model group
08' Wide - Option 03 Break Room Revit model group
Updated Jul 31, 2018

08' Wide - Option 03 Break Room

Product SKU

SKU: SSG-BR08-3-L

Downloads

Model group
Pricing

Description

  • Kit is designed to represent one common option used for Break rooms at this Height and Width
  • Kit includes two base cabinets, three upper wall cabinets, one countertop with backsplash, and one sink with faucet.
  • Not ADA accessible.
  • Appliances are for visual representation only, NOT included in budget price

Questions about this product?

This 8 ft. wide laminate break room casework kit combines a 36 in. two-door, one-drawer base cabinet, a 36 in. sink base, and three wall cabinets for staff break rooms that need enclosed storage and a dedicated cleanup area. At 96 in. wide, 31 in. deep, and 84 in. high, the layout fits business, education, and museum break rooms with a 96 in. laminate countertop and backsplash. The cabinet mix includes two 36 in. two-door wall cabinets and one 24 in. two-door wall cabinet, paired with a single-bowl stainless steel sink with faucet ledge and a deck-mounted chrome-plated brass faucet. The kit is not ADA accessible. Cabinets use double-faced melamine over 3/4 in. industrial-grade substrate with 2 mm PVC edge banding, rail mounting, and concealed cam fasteners. Cabinet doors can be equipped with locks.

Each kit comes with a variety of options that each have a unique price attached to them. A typical solution would comprise of both upper and lower cabinets with a sink and counter top. Each cabinet door can be equipped with a lock.

Design

  • Multiple pull options
  • Angled top is optional
  • Counter can be equipped with side splash if necessary
  • Lock options available
Specifications
Dimensions
Width96"
Depth31"
Height84"
Product
Primary MaterialLaminate
Room TypeBreak Room
Classification
IFCFurniture
OmniClass23-21 19 11
Revit family
Includes PricingYes
ADA CompliantNo
Has MEP ConnectorsNo
Configurable options
  • Door
  • Handle
  • Kick plate
  • Locks
  • Top of cabinet
  • Angled top
  • Back splash
