08' Wide - Option 06 Break Room Revit model group
08' Wide - Option 06 Break Room Revit model group
Updated Jul 31, 2018

08' Wide - Option 06 Break Room

Product SKU

SKU: SSG-BR08-6-L

Downloads

Model group
Pricing
ADA

Description

  • Kit is designed to represent one common option used for Break rooms at this Height and Width
  • Kit includes two base cabinets, three upper wall cabinets, one countertop with backsplash, and one sink with faucet.
  • ADA accessible.
  • Appliances are for visual representation only, NOT included in budget price

Questions about this product?

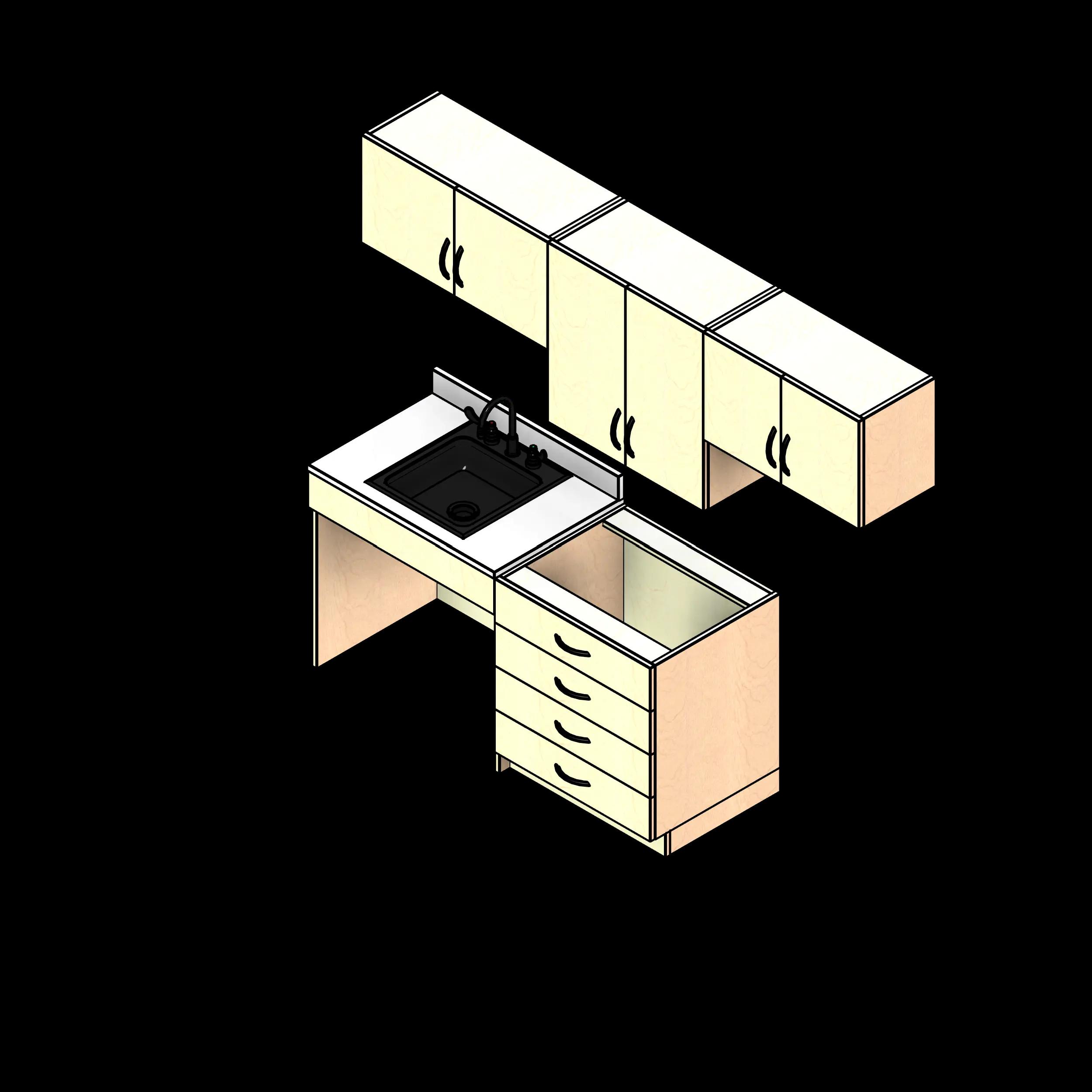

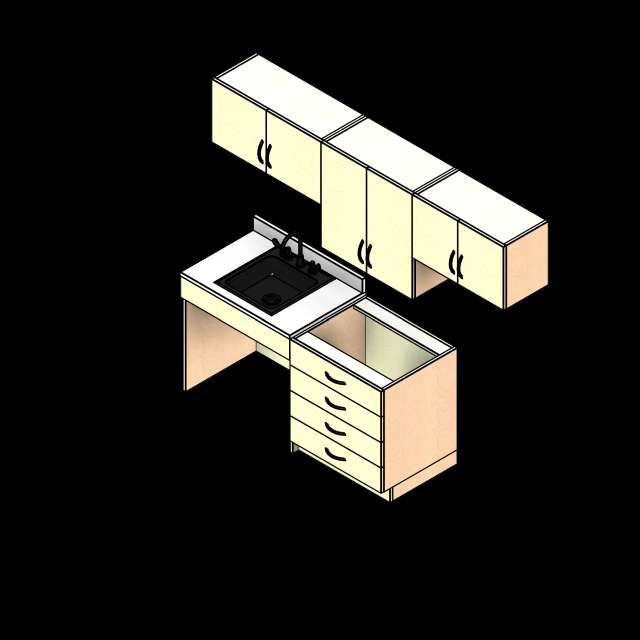

This 8-foot-wide, ADA-accessible break room casework kit pairs a 36-inch sink base with a 30-inch multi-drawer base for business and education break rooms that need sink access and dedicated drawer storage within a 25-inch-deep run. The 96-inch-wide, 84-inch-high configuration includes two 30-inch two-door laminate wall cabinets, one 36-inch two-door laminate wall cabinet, a 36-inch ADA sink laminate base cabinet, a 30-inch multi-drawer laminate base cabinet, a 36-inch laminate countertop, a single-bowl stainless steel sink with faucet ledge, and a deck-mounted chrome-plated brass faucet. Cabinets use 3/4-inch industrial-grade, double-faced melamine substrate with 2 mm PVC edge banding and rail mounting. The work surface is 1 1/16-inch high-pressure laminate. Use this made 3D break room casework layout when the project needs a compact 8-foot cabinet run with enclosed upper storage, drawer organization at the base, and an accessible sink location. Appliances are shown for visual representation only and are not included in the budget price.

Each kit comes with a variety of options that each have a unique price attached to them. A typical solution would comprise of both upper and lower cabinets with a sink and counter top. Each cabinet door can be equipped with a lock.

Design

  • Multiple pull options
  • Angled top is optional
  • Counter can be equipped with side splash if necessary
  • Lock options available
Specifications
Dimensions
Width96"
Depth25"
Height84"
Product
Primary MaterialLaminate
Room TypeBreak Room
Classification
IFCFurniture
OmniClass23-21 19 11
Revit family
Includes PricingYes
ADA CompliantYes
Has MEP ConnectorsNo
Configurable options
  • Door
  • Handle
  • Kick plate
  • Locks
  • Top of cabinet
  • Angled top
  • Back splash
