Storage Laminate Filler Panel

Product SKU

Description

  • Pricing is INCLUDED in model
  • Used to fill gaps between edge of storage cabinets and walls.
  • Allows storage cabinets with doors enough space to properly open when placed near walls.
a square with short lines outside the corner
Family
icon of a person with gears next to its head
Pricing
icon of a person with gears next to its head
ADA
Questions
Need some help? Send us a message if you have any sales or model related questions.

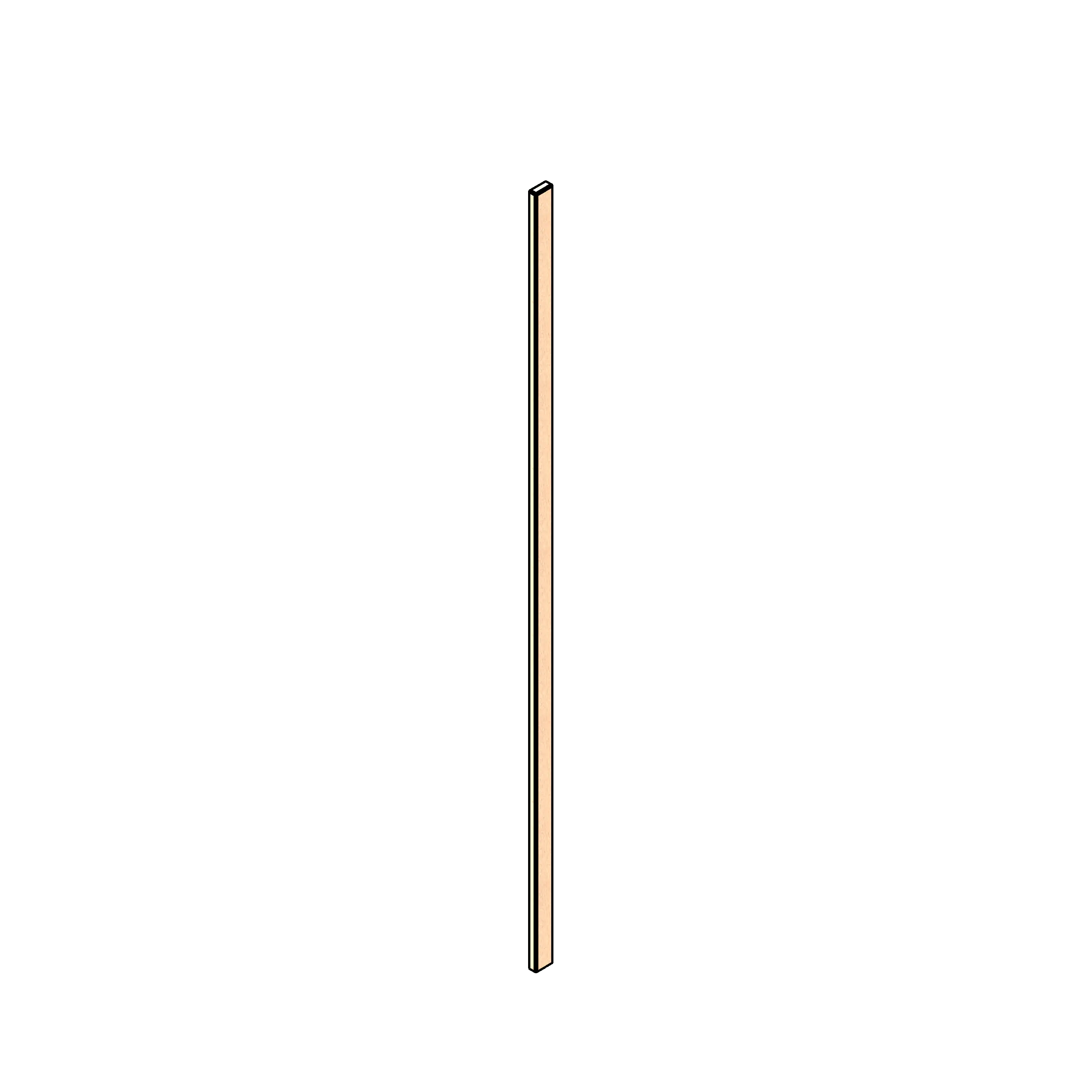

Plastic Laminate Storage Cabinet Filler

The storage cabinet filler bridges the gap between a storage cabinet and a wall. The filler also allows doors to open completely when placed next to a wall.

The Southwest Solutions Group casework line is designed to be highly flexible and adaptable with every Revit model built to reflect its real world counterpart. Once loaded, each model has a variety of parameters which allow you to easily manipulate and customize various aspects of the casework design without ever needing to load a type catalog ever again.

Such features include:

  • Quickly Manipulate Sizes
  • Toe Kick Options
  • Door Styles
  • Handle Types
  • Lock Options
  • Angled Top Options
  • Material Options

In addition, each model comes with a high level of information built in, including a worst-case budget price that dynamically updates as you manipulate the model within Revit. This allows the designer and client to quickly understand where the money is being spent. Also, within each model type, there are links to more detailed information should you need it. Having this level of flexibility combined with a high level of information is truly what BIM is meant to be.

ParameterValue
Standard Widths2", 8", 12"
Minimum Width.166667
Maximum Width1
Standard Depths18", 24", 30"
Minimum Depth1
Maximum Depth3
Standard Heights60", 66", 72", 84"
Minimum Height3.5
Maximum Height7
ManufacturerSouthwest Solutions Group_HAM
Lead Time4-6 Weeks
Construction TypeFrameless cabinet construction w/ flush overlay fronts
ModelMCPI
Keynote12 32 16
Assembly CodeE2020
AuthorKBruxvoort
Toll Free Number1-800-803-1083
PropertyValue
EqualisNo
OmniaNo
SourcewellNo
SystecYes
VizientYes
Includes PricingYes
ADA CompliantYes
Has MEP ConnectorsNo
Primary MaterialLaminate
BIMobject CategoryFurniture: Shelving & Storage
IFCFurniture
Omniclass23-21 19 11 13
