Large Narrow Storage Vertical Carousel

Specially designed for spaces with limited width

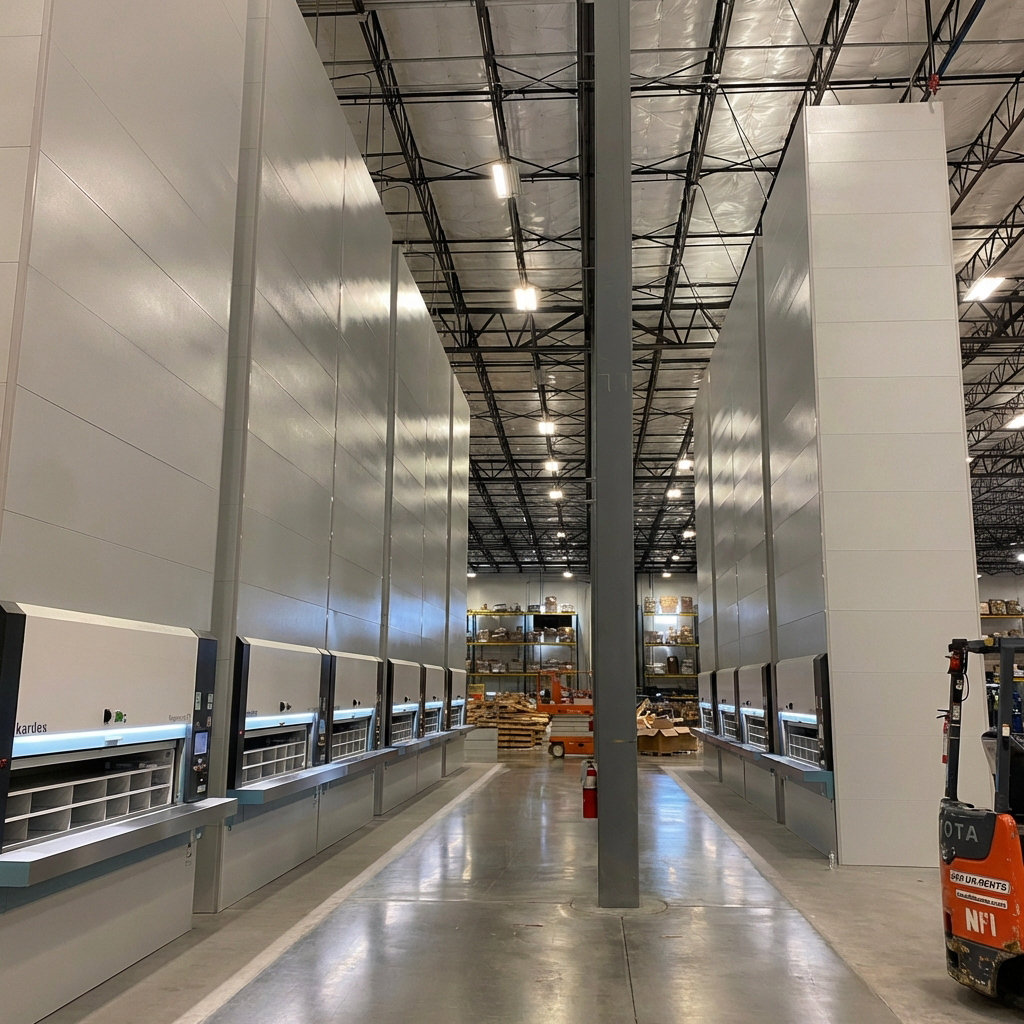

Used extensively in manufacturing and material handeling environments

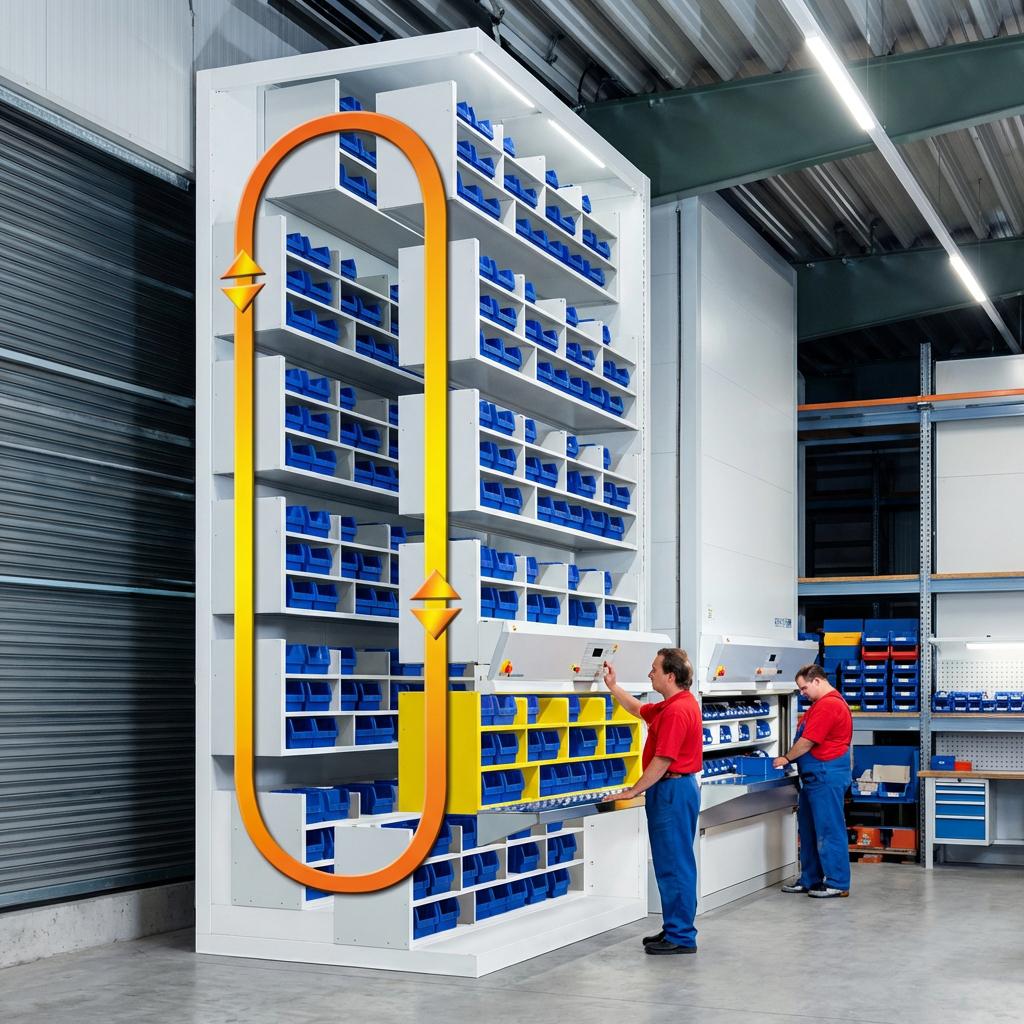

Quickly access small parts with auto-picking system
Reclaim floorspace by storing objects vertically
650 kg max load per carrier

Family

Pricing

Connectors

Revit 2020 (0.80 MB)

Revit 2021 (0.80 MB)

Revit 2022 (0.80 MB)

Revit 2023 (0.80 MB)

Revit 2024 (0.80 MB)

Revit 2025 (0.80 MB)

Questions

Need some help? Send us a message if you have any sales or model related questions.

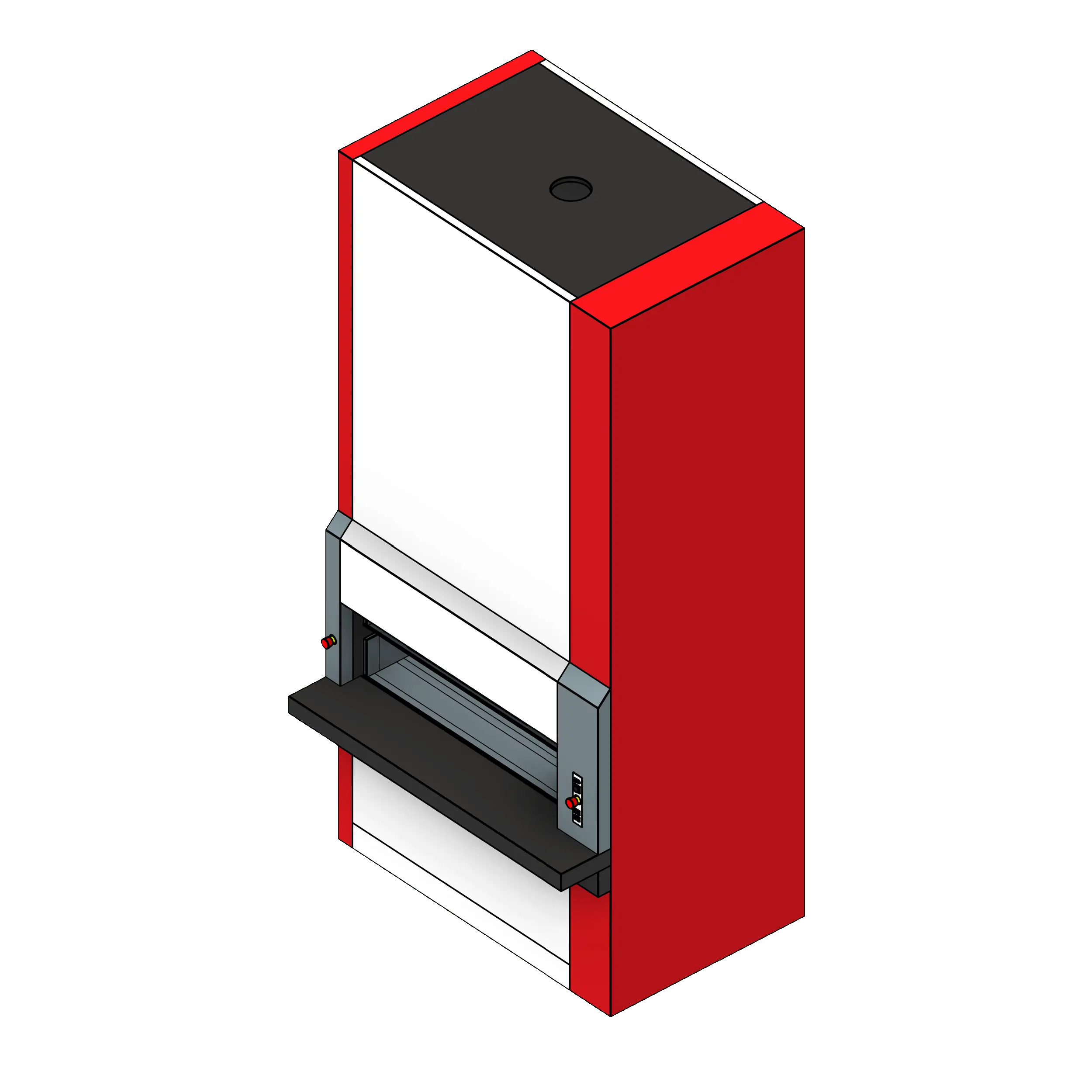

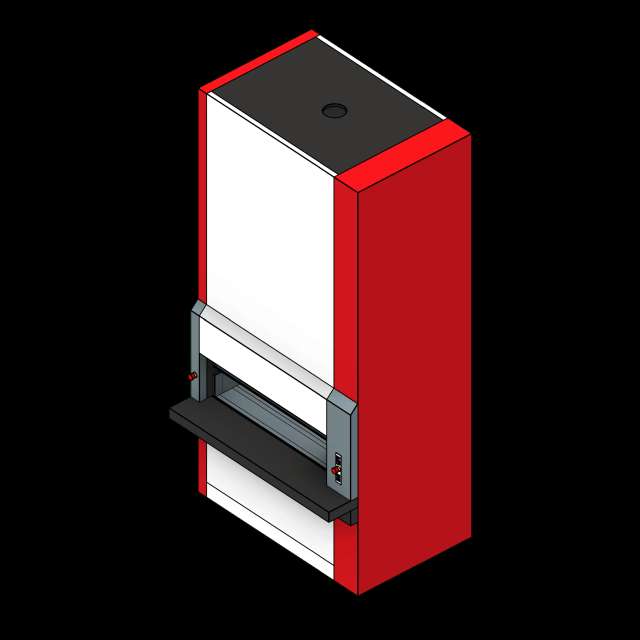

Vertical Carousel Narrow - Large Object Storage

To configure this family, simply select the desired tray width from eleven available options ranging from 1250 mm to 4050 mm, and choose a tray depth of 609.6 mm, 812.8 mm, or 863.6 mm. The Vertical Lift Module is highly versatile, offering hundreds of height variations between 2550 mm and 30,050 mm (just under 100 feet) to suit a wide range of design requirements.

Parameter	Value
Standard Widths	1250 - 2425 on 25mm increments
Minimum Width	4' 1 1/4" (49 1/4")
Maximum Width	7' 11 1/2" (95 1/2")
Standard Depths	428, 528, 628
Minimum Depth	1' 4 7/8" (16 7/8")
Maximum Depth	2' 0 3/4" (24 3/4")
Standard Heights	2285 mm - 9910 mm
Minimum Height	7' 6" (89")
Maximum Height	32' 6 1/8" (390 1/8")
Manufacturer	Southwest Solutions Group_KAR
Lead Time	Contact SSG for info
Model	MEG RS 650
Keynote	41 51 13
Assembly Code	E10
Author	AWright
Toll Free Number	1-800-803-1083

Property	Value
Equalis	No
Omnia	No
Sourcewell	Yes
Systec	No
Vizient	Yes
Includes Pricing	Yes
ADA Compliant	Yes
Has MEP Connectors	Yes
Primary Material	Powder coated steel
BIMobject Category	Furniture: Shelving & Storage
IFC	Furniture
Omniclass	23-23 17 00

Model	Width	Depth	Height	Weight
SSG-MEG RS 350.2.1250.4.305.10	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	7' 5" (88")	10225
SSG-MEG RS 350.2.1250.4.305.11	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	7' 10 7/8" (94 7/8")	10598
SSG-MEG RS 350.2.1250.4.305.12	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	8' 4 3/4" (100 3/4")	10981
SSG-MEG RS 350.2.1250.4.305.13	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	8' 10 3/4" (106 3/4")	11354
SSG-MEG RS 350.2.1250.4.305.14	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	9' 5 5/8" (113 5/8")	11724
SSG-MEG RS 350.2.1250.4.305.15	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	9' 11 1/2" (119 1/2")	12099
SSG-MEG RS 350.2.1250.4.305.16	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	10' 5 3/8" (125 3/8")	12474
SSG-MEG RS 350.2.1250.4.305.17	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	10' 11 1/4" (131 1/4")	12844
SSG-MEG RS 350.2.1250.4.305.18	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	11' 5 1/4" (137 1/4")	13230
SSG-MEG RS 350.2.1250.4.305.19	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	11' 11 1/8" (143 1/8")	13602
SSG-MEG RS 350.2.1250.4.305.20	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	12' 5" (149")	13973
SSG-MEG RS 350.2.1250.4.305.21	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	12' 10 7/8" (154 7/8")	14348
SSG-MEG RS 350.2.1250.4.305.22	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	13' 4 7/8" (160 7/8")	14720
SSG-MEG RS 350.2.1250.4.305.23	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	13' 10 3/4" (166 3/4")	15093
SSG-MEG RS 350.2.1250.4.305.24	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	14' 4 5/8" (172 5/8")	15465
SSG-MEG RS 350.2.1250.4.305.25	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	14' 11 1/2" (179 1/2")	15849
SSG-MEG RS 350.2.1250.4.305.26	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	15' 5 3/8" (185 3/8")	16221
SSG-MEG RS 350.2.1250.4.305.27	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	15' 11 3/8" (191 3/8")	16596
SSG-MEG RS 350.2.1250.4.305.28	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	16' 5 1/4" (197 1/4")	16969
SSG-MEG RS 350.2.1250.4.305.29	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	16' 11 1/8" (203 1/8")	17339
SSG-MEG RS 350.2.1250.4.305.30	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	17' 5" (209")	17714
SSG-MEG RS 350.2.1250.4.305.31	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	17' 11" (214")	18095
SSG-MEG RS 350.2.1250.4.305.31	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	18' 4 7/8" (220 7/8")	18470
SSG-MEG RS 350.2.1250.4.305.33	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	18' 10 3/4" (226 3/4")	18845
SSG-MEG RS 350.2.1250.4.305.34	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	19' 4 5/8" (232 5/8")	19217
SSG-MEG RS 350.2.1250.4.305.35	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	19' 11 5/8" (239 5/8")	19588
SSG-MEG RS 350.2.1250.4.305.36	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	20' 5 1/2" (245 1/2")	19262
SSG-MEG RS 350.2.1250.4.305.37	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	20' 11 3/8" (251 3/8")	19195
SSG-MEG RS 350.2.1250.4.305.38	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	21' 5 1/4" (257 1/4")	19974
SSG-MEG RS 350.2.1250.4.305.39	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	21' 11 1/4" (263 1/4")	19897
SSG-MEG RS 350.2.1250.4.305.40	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	22' 5 1/8" (269 1/8")	20254
SSG-MEG RS 350.2.1250.4.305.41	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	22' 11" (275")	20604
SSG-MEG RS 350.2.1250.4.305.42	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	23' 4 7/8" (280 7/8")	20955
SSG-MEG RS 350.2.1250.4.305.43	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	23' 10 3/4" (286 3/4")	21305
SSG-MEG RS 350.2.1250.4.305.44	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	24' 4 3/4" (292 3/4")	21656
SSG-MEG RS 350.2.1250.4.305.45	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	24' 11 5/8" (299 5/8")	20293
SSG-MEG RS 350.2.1250.4.305.46	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	25' 5 1/2" (305 1/2")	21484
SSG-MEG RS 350.2.1250.4.305.47	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	25' 11 3/8" (311 3/8")	20937
SSG-MEG RS 350.2.1250.4.305.48	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	26' 5 3/8" (317 3/8")	22150
SSG-MEG RS 350.2.1250.4.305.49	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	26' 11 1/4" (323 1/4")	21568
SSG-MEG RS 350.2.1250.4.305.50	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	27' 5 1/8" (329 1/8")	22815
SSG-MEG RS 350.2.1250.4.305.51	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	27' 11" (335")	22200
SSG-MEG RS 350.2.1250.4.305.52	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	28' 5" (340")	22516
SSG-MEG RS 350.2.1250.4.305.53	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	28' 10 7/8" (346 7/8")	22831
SSG-MEG RS 350.2.1250.4.305.54	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	29' 4 3/4" (352 3/4")	23146
SSG-MEG RS 350.2.1250.4.305.55	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	29' 10 5/8" (358 5/8")	23461
SSG-MEG RS 350.2.1250.4.305.56	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	30' 5 1/2" (365 1/2")	23779
SSG-MEG RS 350.2.1250.4.305.57	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	30' 11 1/2" (371 1/2")	24105
SSG-MEG RS 350.2.1250.4.305.58	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	31' 5 3/8" (377 3/8")	24420
SSG-MEG RS 350.2.1250.4.305.59	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	31' 11 1/4" (383 1/4")	24736
SSG-MEG RS 350.2.1250.4.305.60	6' 5 3/4" (77 3/4")	5' 1 7/8" (61 7/8")	32' 5 1/8" (389 1/8")	23029
