Mobile Cantilever Assembly Cantilever Shelving

Product SKU

Description

  • Mobile or Stationary options
  • Welded-frame uprights
  • Triple-bend shelf construction
  • Interlocking shelf end brackets
  • Metal gusset welded to base support to meet seismic requirements
a square with short lines outside the corner
Family
icon of a person with gears next to its head
Pricing
Questions
Need some help? Send us a message if you have any sales or model related questions.

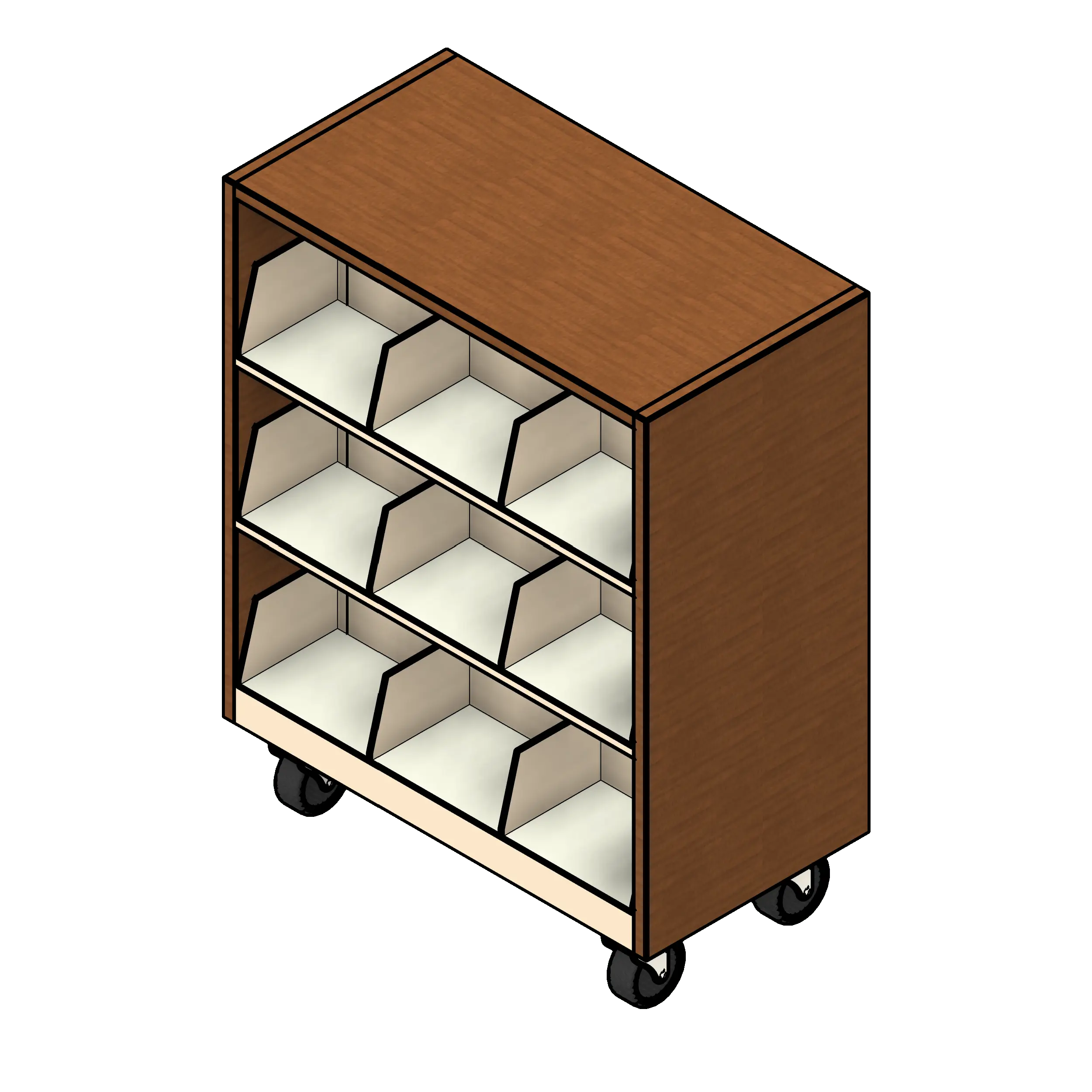

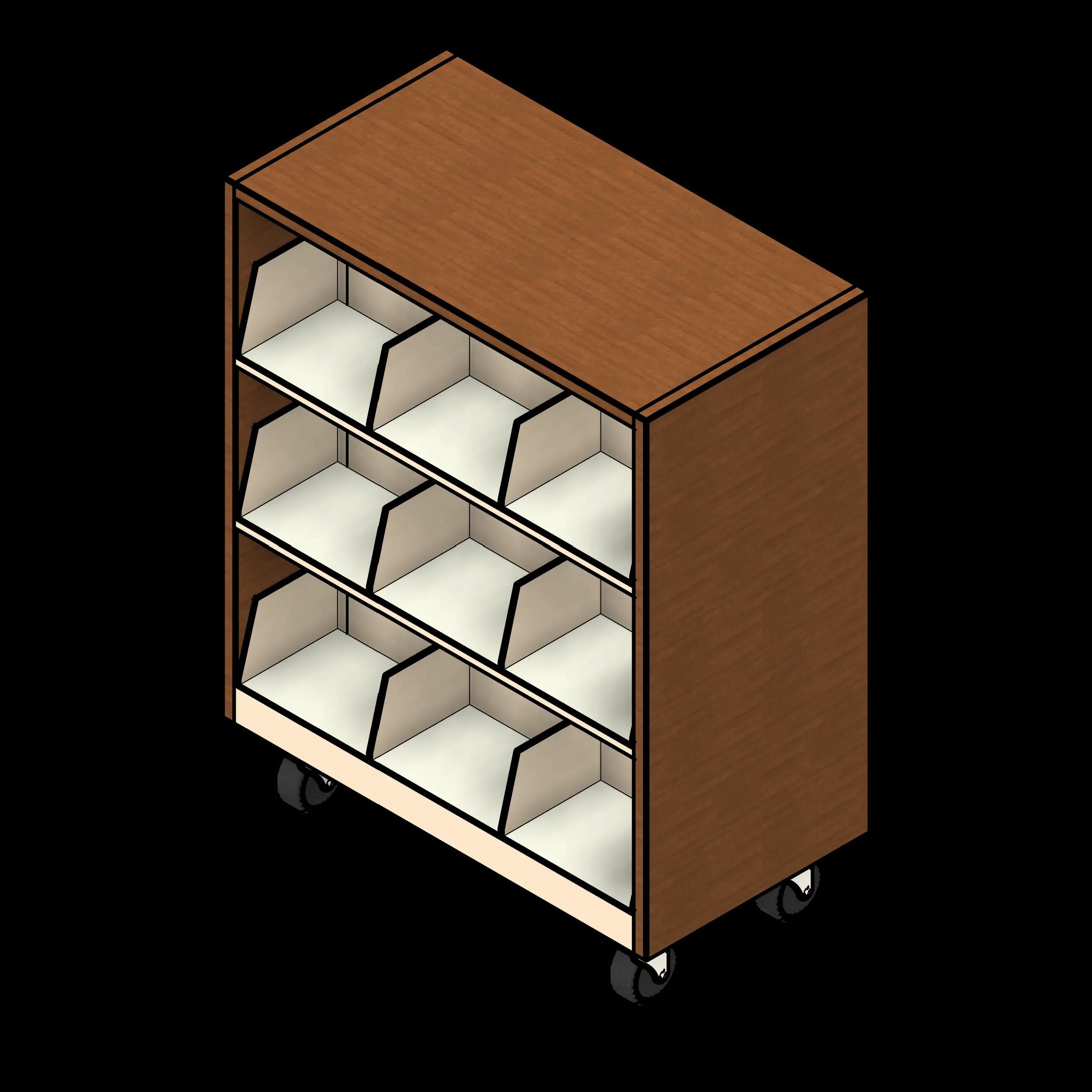

Cantilever Shelving With Casters

This mobile cantilever family is made entirely of shared component files, giving users a comprehensive set of pre-assembled configurations, and the power to assemble a completely custom solution from scratch. Visible sub-components update the schedule with product codes, weights, and listed prices in real time.

The cantilever shelving line is designed to be highly flexible with every model built to reflect its real-world counterpart as closely as possible. Use the prebuilt cantilever shelving family to easily visualize your storage solution. You can also use the shared sub-component families to build custom shelving solutions.

All shelf units are assembled without the use of nuts, bolts, or clips and are available for both single entry and double entry (back to back storage) allowing for maximum filing/storage capacity with minimal floor intrusion. Shelves are available slotted to accept adjustable file dividers.

ParameterValue
Standard Widths24", 30", 36"
Minimum Width2
Maximum Width3
Standard Depths20", 28"
Minimum Depth1.66666666666667
Maximum Depth2.66666666666667
Standard Heights42"
Minimum Height3.5
Maximum Height3.5
ManufacturerSouthwest Solutions Group_SPA
Lead Time4-6 Weeks
Construction Type0
ModelCMS
Keynote11 51 23
Assembly CodeE2010
Authorssmartin
Toll Free Number1-800-803-1083
PropertyValue
EqualisYes
Includes SustainabilityYes
OmniaYes
SourcewellYes
SystecYes
VizientYes
Includes PricingYes
ADA CompliantNo
Has MEP ConnectorsNo
Includes SustainabilityYes
Primary MaterialPowder coated steel
BIMobject CategoryFurniture: Shelving & Storage
IFCFurniture
Omniclass23 40 20 27 11
