· Updated Aug 13, 2026Frame Cantilever Shelving
Product SKU
Description
- Use this standalone frame family with any combination of shelf assemblies, dividers, and other accessories to build your own cantilever shelving solution
- 14 gauge, welded steel construction
- Powder coat finishes available in matte or glossy

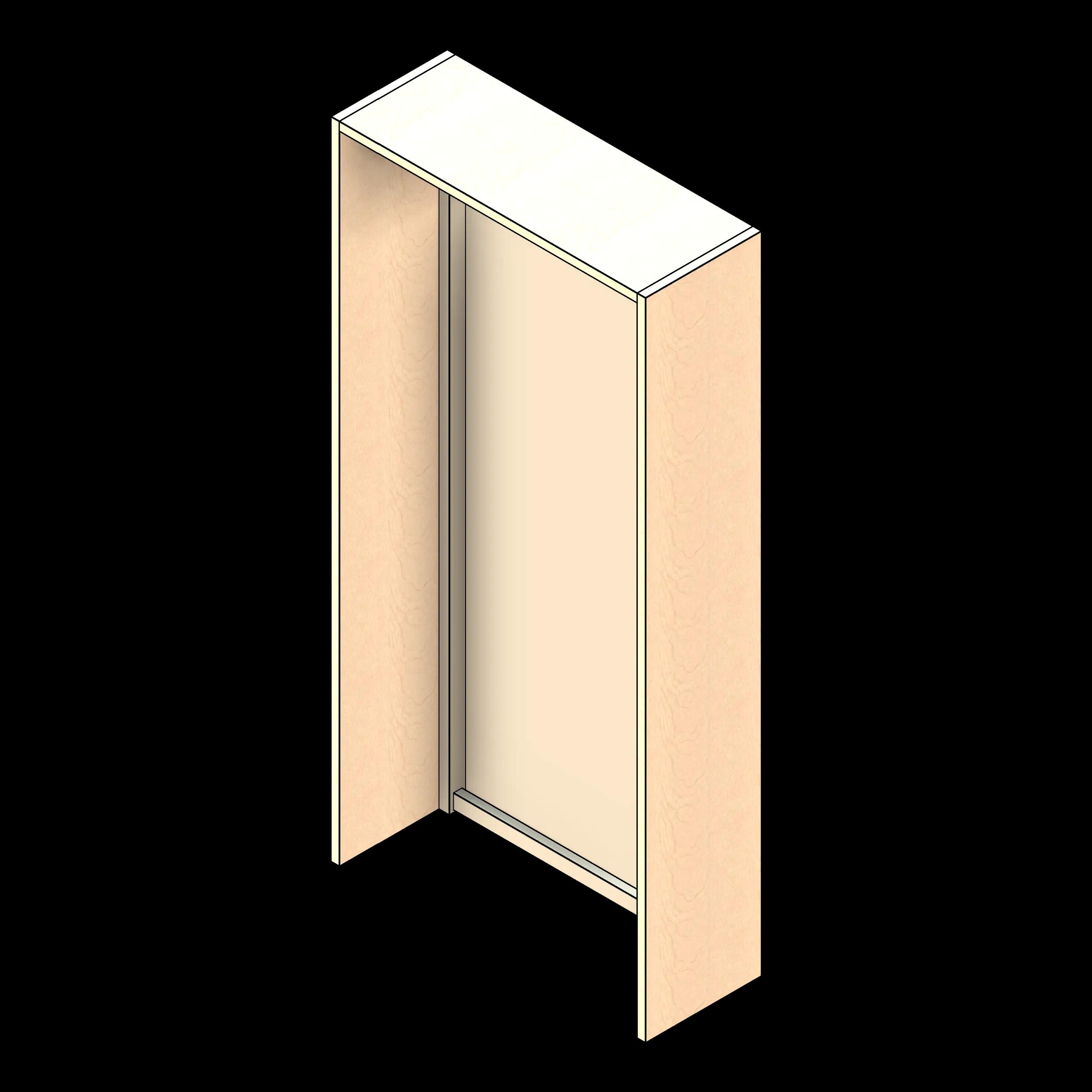

- Optional top canopy available Adjustable end panels are also available
Revit 2023 (0.63 MB)
Revit 2024 (0.63 MB)
Revit 2025 (0.63 MB)
Revit 2026 (0.63 MB)
Revit 2027 (0.63 MB)
(1.32 MB)
(0.03 MB)
(0.09 MB)
Frame for SSG Cantilever Families
The cantilever shelving line is designed to be highly flexible with every model built to reflect its real-world counterpart as closely as possible. Use the prebuilt cantilever shelving family to easily visualize your storage solution. You can also use the shared sub-component families to build custom shelving solutions.
All shelf units are assembled without the use of nuts, bolts, or clips and are available for both single entry and double entry (back to back storage) allowing for maximum filing/storage capacity with minimal floor intrusion. Shelves are available slotted to accept adjustable file dividers.
| Parameter | Value |
|---|---|
| Minimum Depth | 0' 8" (8") |
| Maximum Depth | 2' 8" (32") |
| Minimum Height | 3' 6" (42") |
| Maximum Height | 7' 6" (90") |
| Manufacturer | Southwest Solutions Group_SPA |
| Lead Time | 4-6 Weeks |
| Construction Type | Welded Steel |
| MasterFormat | 11 51 23 – Library Stack Systems |
| UniFormat | E2010 – Fixed Furnishings |
| Property | Value |
|---|---|
| Includes Pricing | Yes |
| ADA Compliant | No |
| Has MEP Connectors | No |
| Includes Sustainability | Yes |
| Primary Material | Powder coated steel |
| IFC | Furniture |
| OmniClass | 23 40 20 27 11 – Shelves |
| Omnia | Yes |
| Sourcewell | Yes |
| Equalis | Yes |
| Vizient | Yes |
| Systec | Yes |
