Standard 4 Post High Density Shelving

Product SKU

Description

  • This infinitely expandable mobile shelving system is capable of storing virtually anything
  • Central steel frame with balanced wheels on steel rails make for quiet and smooth operation.
  • Select between manual, mechanically assisted, or powered operation.
  • Highly configurable model makes planning complex high-density systems easy.
a square with short lines outside the corner
Family
icon of a person with gears next to its head
Pricing
Questions
Need some help? Send us a message if you have any sales or model related questions.

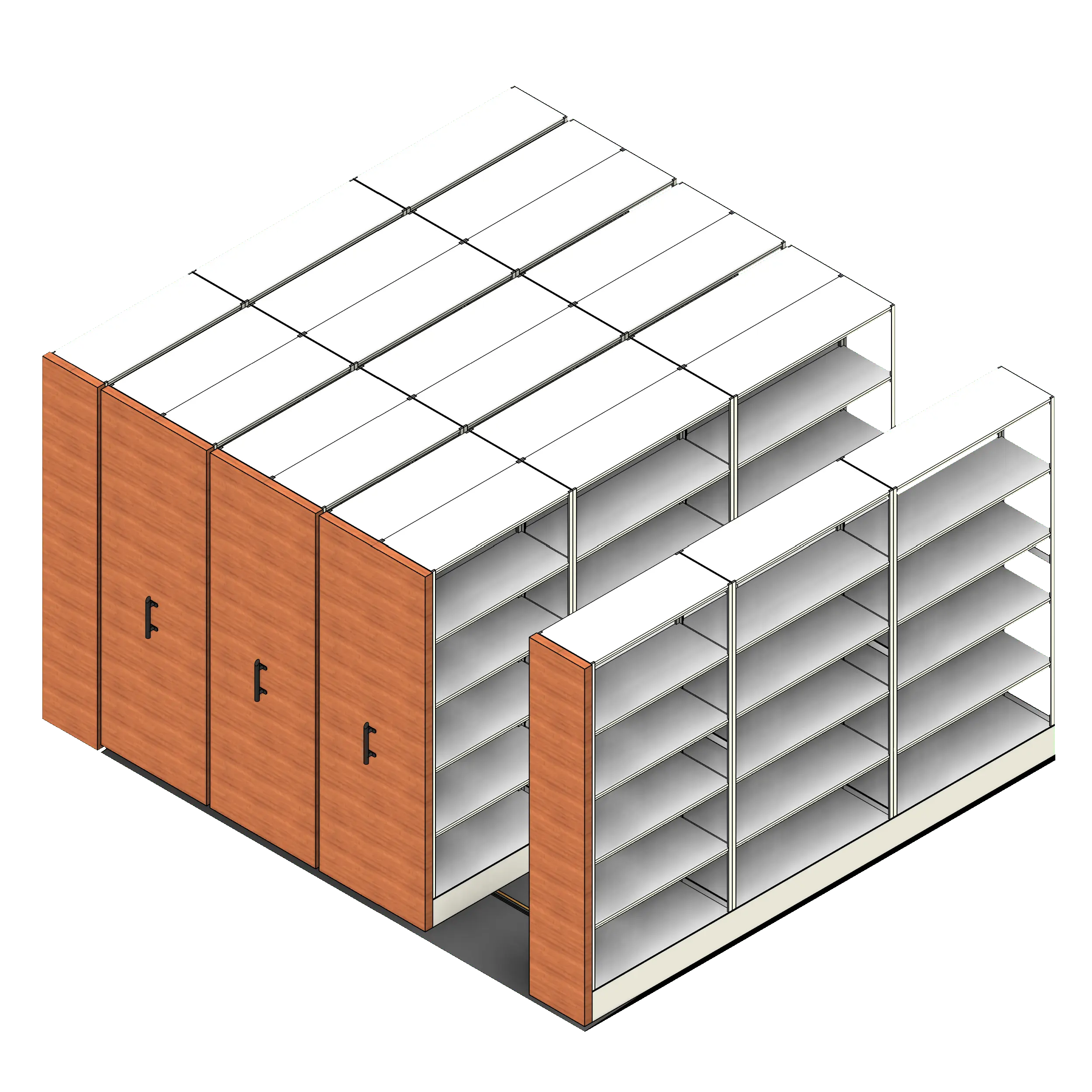

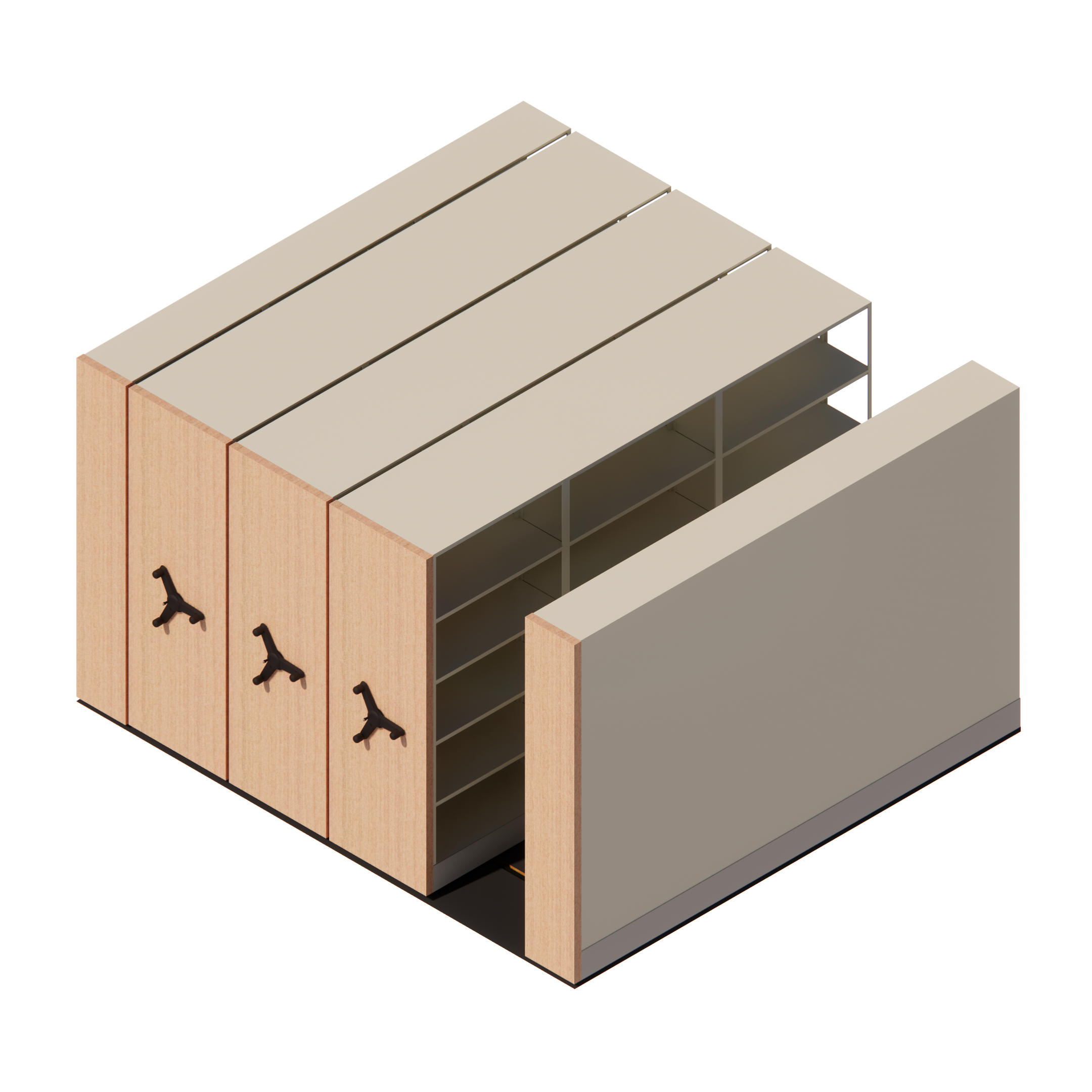

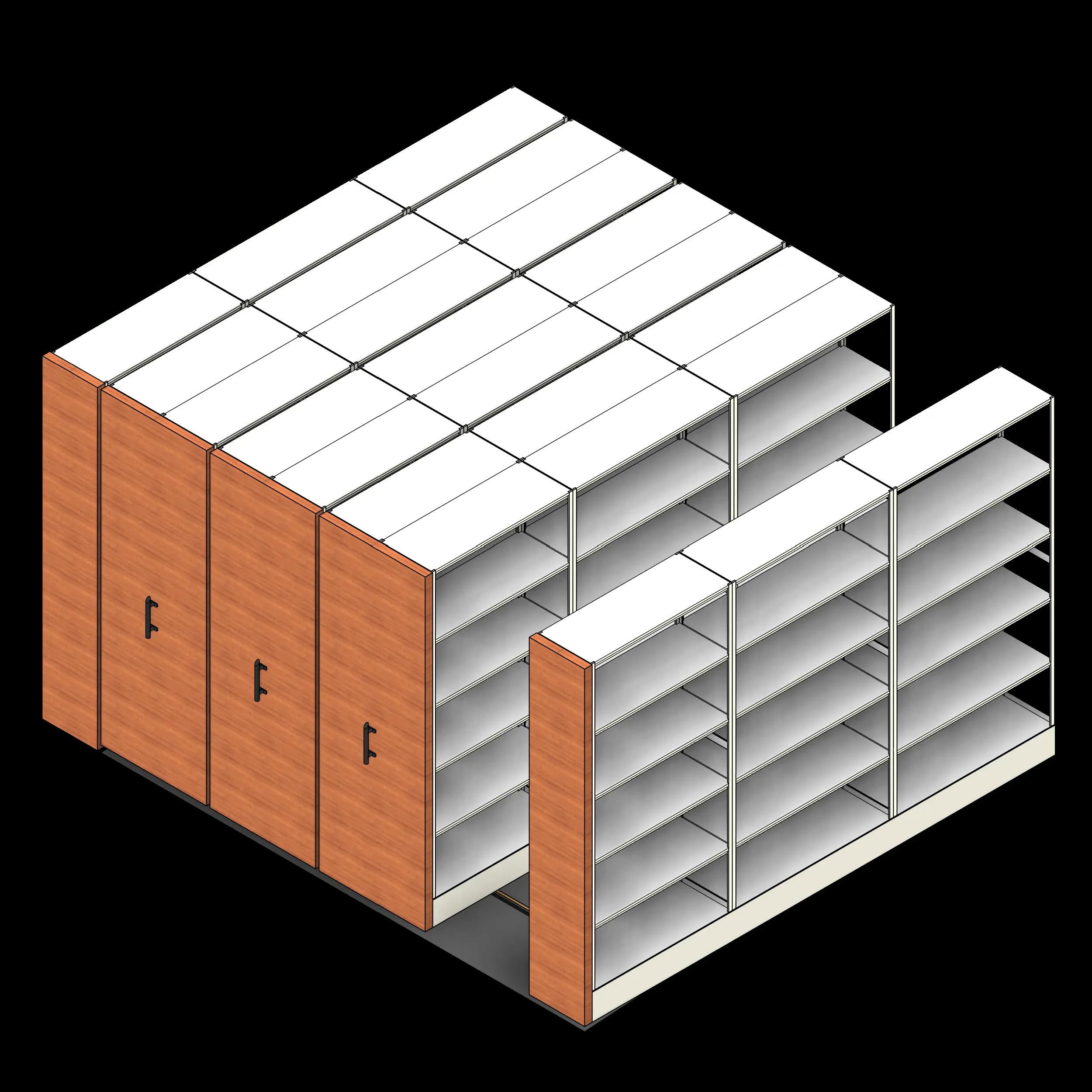

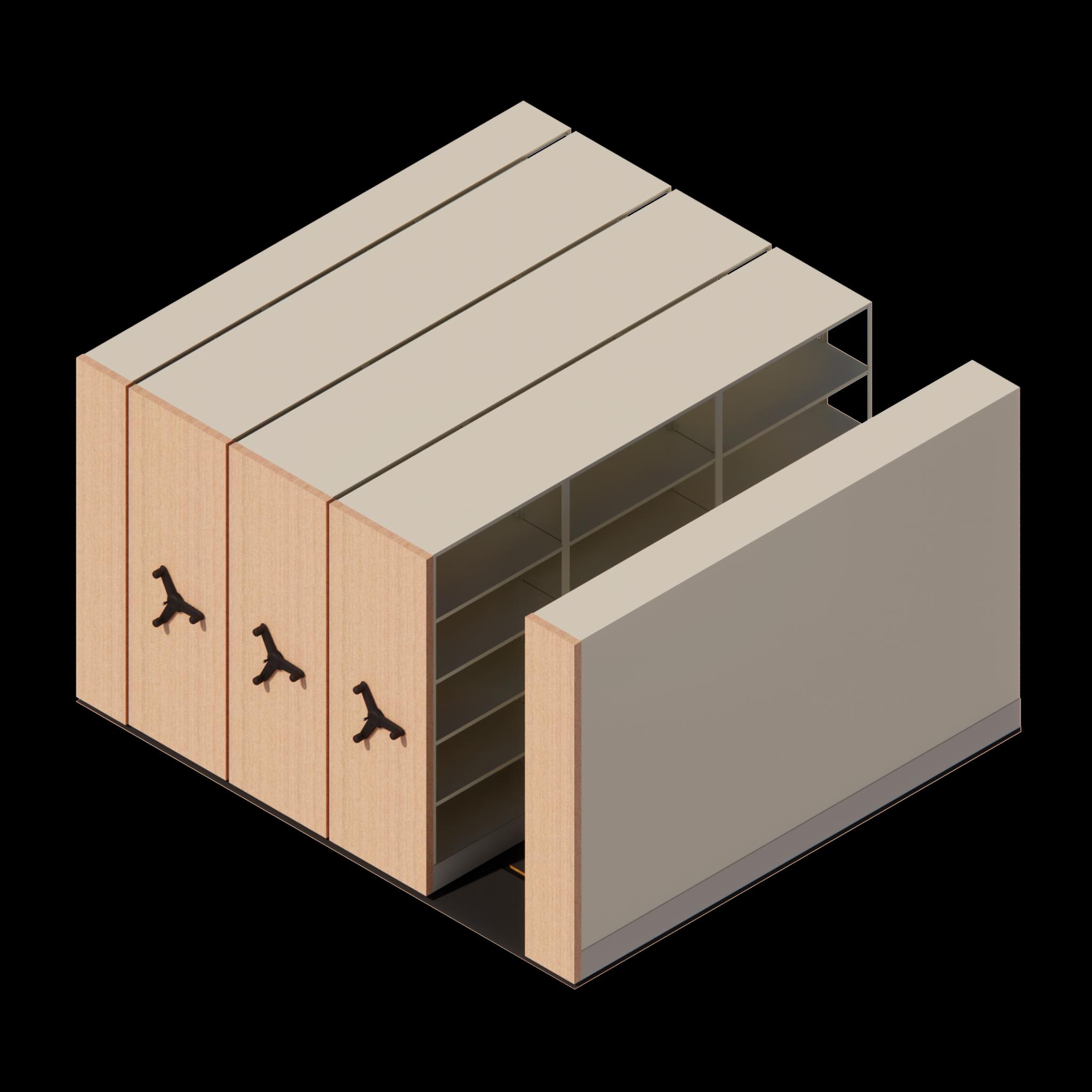

4 Post Standard High Density System

This High-Density Mobile Shelving family is sure to satisfy your storage planning needs. This family includes a detailed 4-Post shelving family for maximum visualization potential.

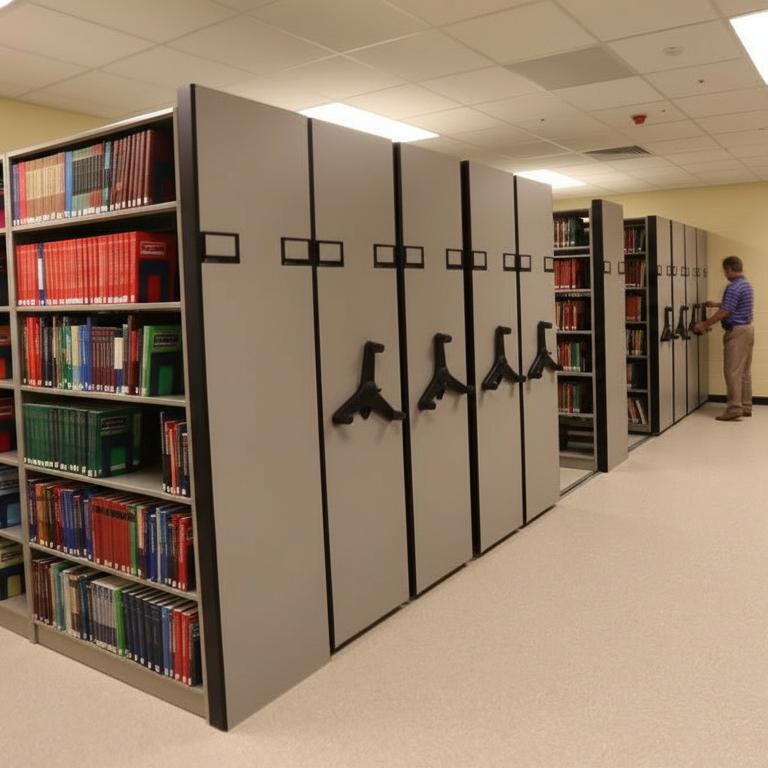

The High-Density Mobile Storage System is a state-of-the-art solution designed for maximizing storage efficiency by utilizing movable carriages on rails, reducing the need for fixed aisles. This innovative system offers up to three times more storage capacity per square foot compared to traditional systems, making it ideal for environments where space is at a premium. Its adaptability allows it to store virtually anything, from files in an office to artifacts in a museum, making it suitable for a range of applications including libraries, hospitals, and warehouses.

This system is particularly distinguished by its ability to be customized with various shelving and cabinet options, and its operation modes—manual, mechanically assisted, or powered—cater to different activity levels and user preferences. Thanks to its configurable design, it integrates seamlessly with existing architectural layouts and ensures user safety with features like color-coded lock indicators and safety locks.

The mobile storage system is constructed from durable materials like cold rolled steel and features a smooth, quiet operation due to its precision-machined components. It also meets ADA accessibility standards, ensuring ease of use for all users. With its intuitive control features, including a smart app for remote aisle management, the system enhances workflow and organizational efficiency, making it a valuable addition to any space-conscious design.

ParameterValue
Minimum Mobile Carriage Width1' 3 1/2" (15 1/2")
Maximum Mobile Carriage Width5' 0 1/2" (60 1/2")
Minimum Static Carriage Width1' 0 1/2" (12 1/2")
Maximum Static Carriage Width2' 6 1/2" (30 1/2")
Minimum Shelving Height1' 8 3/4" (20 3/4")
Maximum Shelving Height11' 11 3/4" (143 3/4")
Minimum Carriage Length3' 0" (36")
Maximum Carriage Length81' 0" (972")
ManufacturerSouthwest Solutions Group_SPA
Lead Time4-6 Weeks
ModelHD-4P
Keynote10 56 26
Assembly CodeE20
AuthorKBruxvoort / AWright / TBenavides
Toll Free Number1-800-803-1083
PropertyValue
Includes PricingYes
ADA CompliantNo
Has MEP ConnectorsNo
Includes SustainabilityYes
Primary MaterialPowder coated steel
BIMobject CategoryFurniture: Shelving & Storage
IFCFurniture
Omniclass23-21 11 11 11
OmniaYes
SourcewellYes
EqualisYes
VizientYes
SystecYes
