· Updated Aug 17, 2026Line Based Generic Casework
Product SKU
Description
- Line-based casework family can be used in any project to plan cabinet layouts
- Integrated options for counter overhangs, top cabinets, and angled or soffit tops
- Detailed dimensions for overhangs, toe kicks, and backsplash can be found in the type menu
Revit 2023 (0.42 MB)
Revit 2024 (0.42 MB)
Revit 2025 (0.42 MB)
Revit 2026 (0.42 MB)
Revit 2027 (0.42 MB)
(0.03 MB)
(4.24 MB)
(0.62 MB)

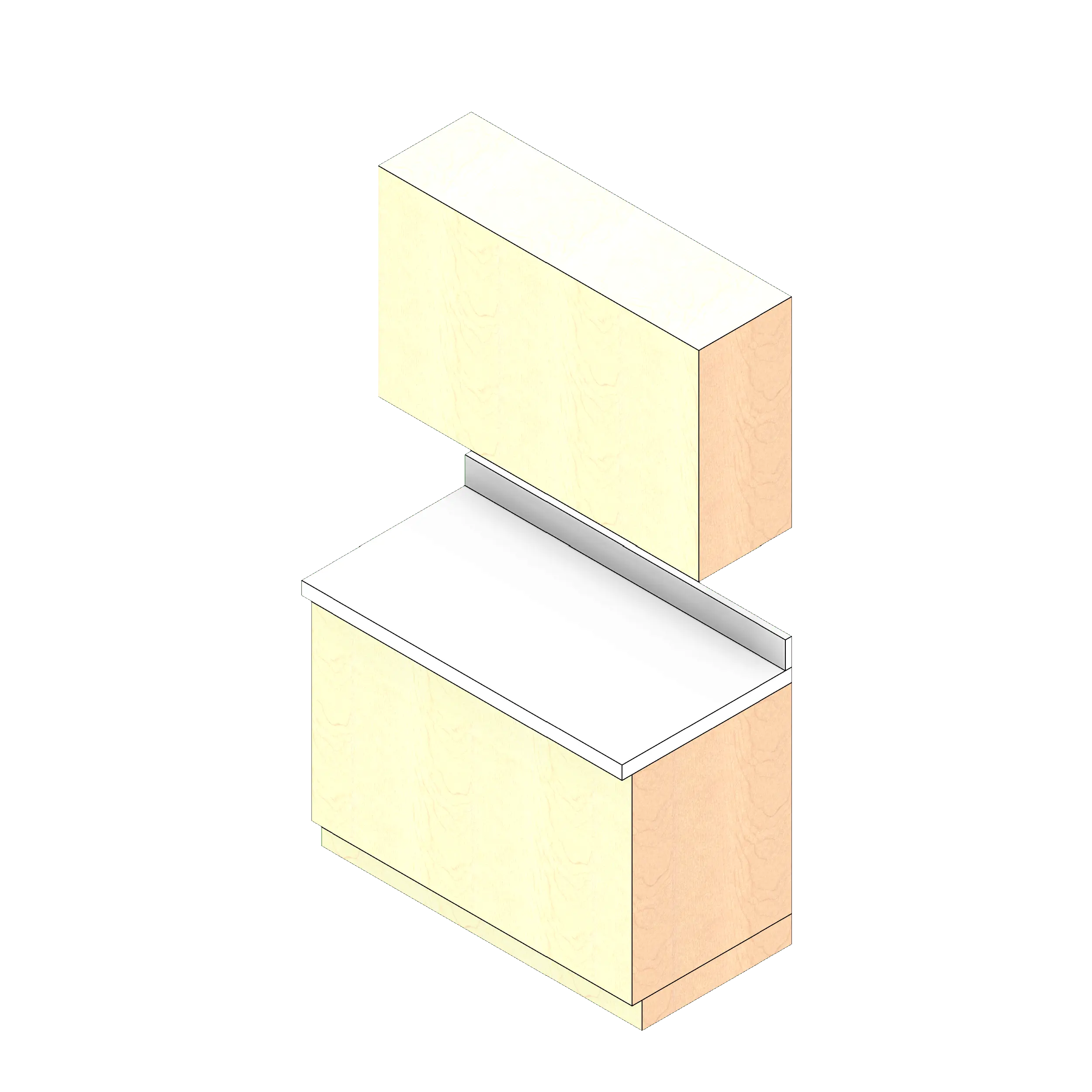

Generic Casework - Planning Model

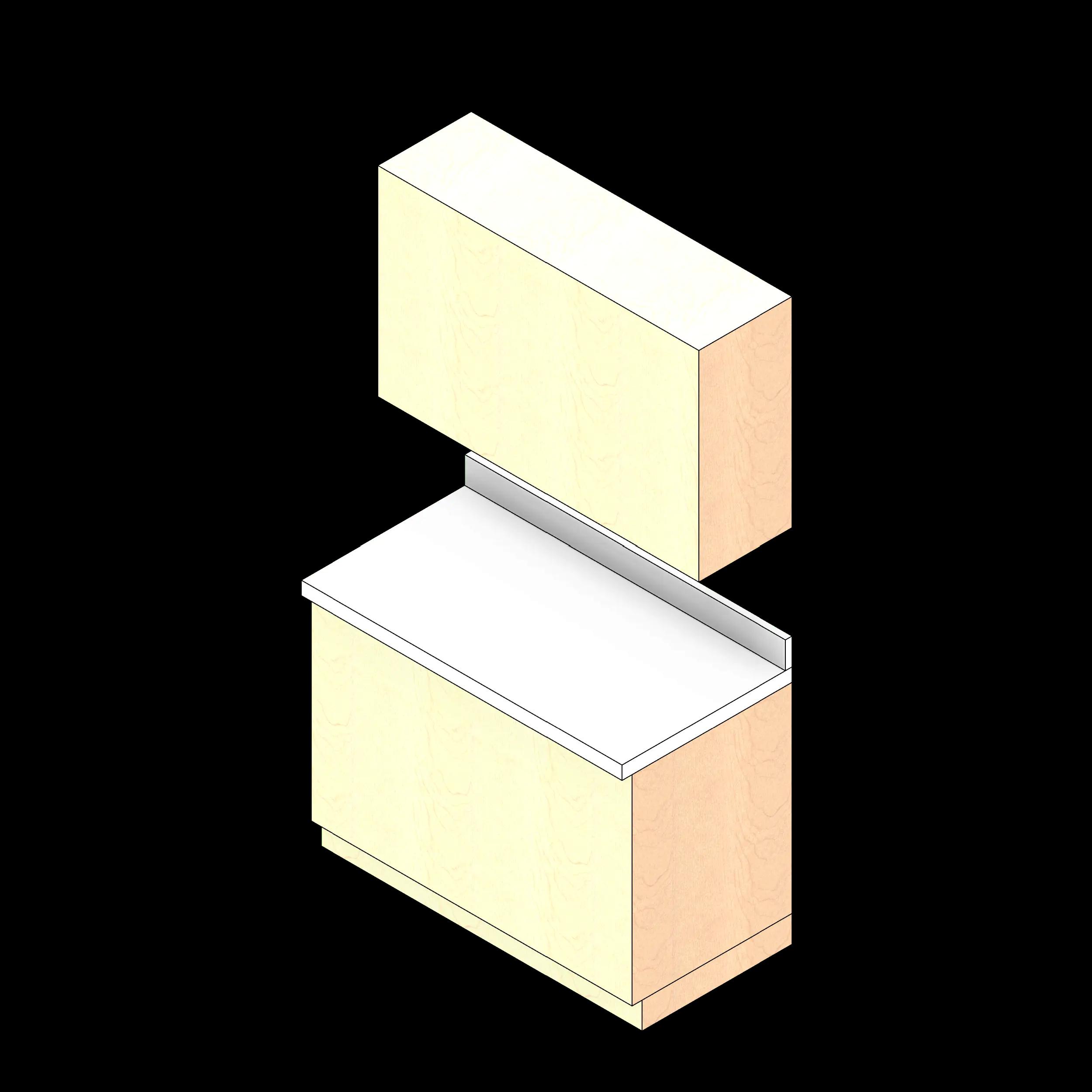

This casework model is a line-based family. To use, insert the family and draw a line the length of your intended casework group. The model will insert with the back of the casework on the line. Adjust your desired dimensions in the Dimensions category in the property browser. Use the checkboxes in the construction category of the properties browser to view or hide additional options, such as counter overhangs, backsplash, top cabinets, and top types.
| Parameter | Value |
|---|---|
| Minimum Cabinet Depth | 0' 6" (6") |
| Maximum Cabinet Depth | 3' 0" (36") |
| Minimum Cabinet Height | 1' 0" (12") |
| Maximum Cabinet Height | 6' 0" (72") |
| Manufacturer | Southwest Solutions Group_HAM |
| Lead Time | 4-6 Weeks |
| Construction Type | Frameless cabinet construction w/ flush overlay fronts |
| Model | CW |
| MasterFormat | 12 32 16 – Manufactured Plastic-Laminate-Clad Casework |
| UniFormat | E2020 – Moveable Furnishings |
| Property | Value |
|---|---|
| Includes Pricing | Yes |
| ADA Compliant | Yes |
| Has MEP Connectors | No |
| Primary Material | Laminate |
| IFC | Furniture |
| OmniClass | 23-21 19 11 13 |
| Omnia | No |
| Sourcewell | No |
| Equalis | No |
| Vizient | Yes |
| Systec | Yes |
