Fire Rated Pass Through Metal Locker
Product SKU
Description
- Safely transfer flammable objects to secure areas
- Fits objects up to 36"x36"
- 90 minute fire rating
Revit 2020 (0.74 MB)
Revit 2021 (0.74 MB)
Revit 2022 (0.74 MB)
Revit 2023 (0.74 MB)
Revit 2024 (0.74 MB)
Revit 2025 (0.74 MB)

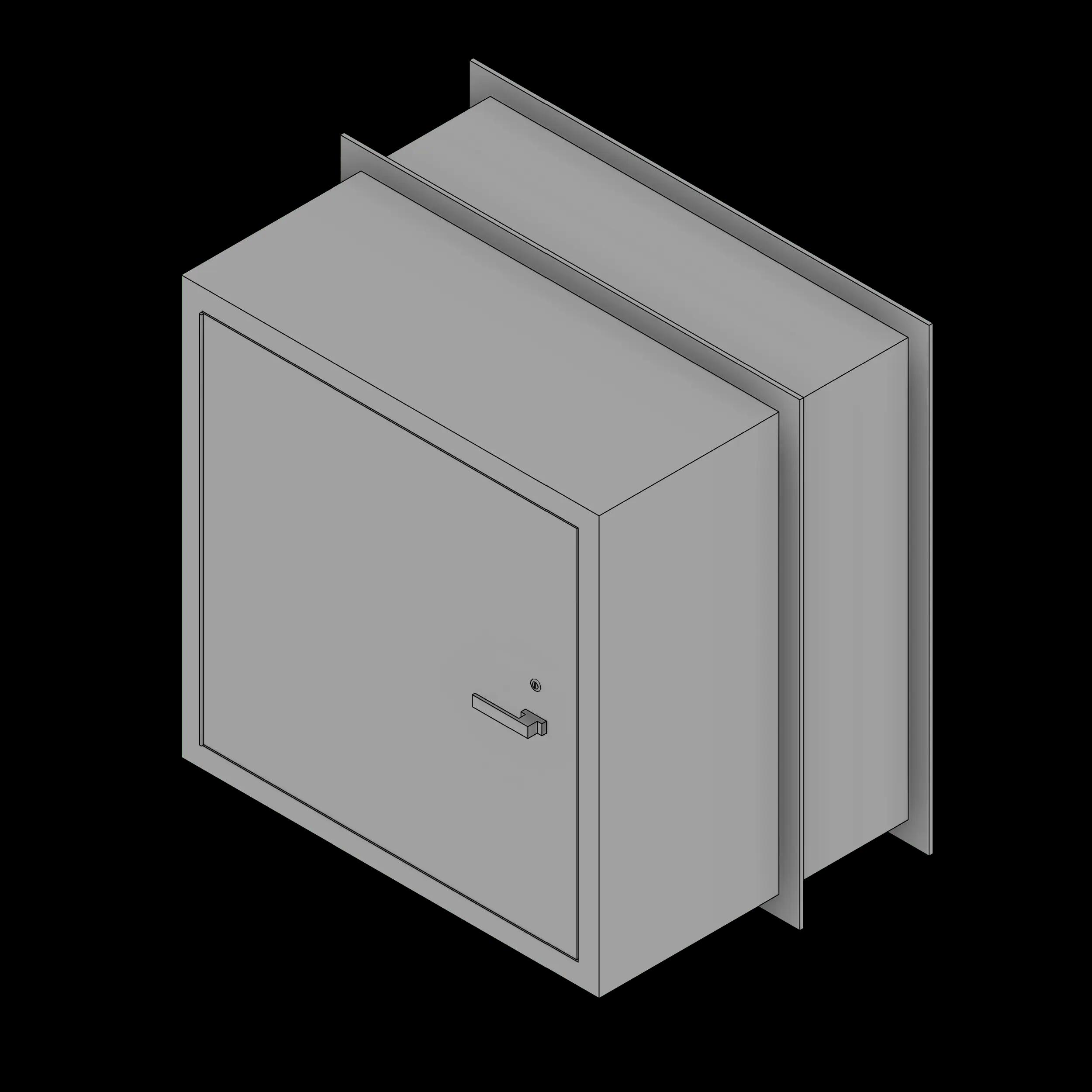

Fire Rated Pass-Through Cabinet
This fire-rated pass-through cabinet is designed to transfer firearms and flammable items to secure locations safely.
To use this family, insert the model into your project from the Fetch app and place it on a wall or surface. Enter the wall depth to flush the back finish plate with the wall. Door sizes can be adjusted in 2" increments from 12" to 36" square. The locker housing and face plates will automatically scale with the door size.
| Parameter | Value |
|---|---|
| Standard Widths | 12" - 36" |
| Minimum Width | 1' 0" (12") |
| Maximum Width | 3' 0" (36") |
| Standard Depths | 12" - 36" |
| Minimum Depth | 1' 0" (12") |
| Maximum Depth | 3' 0" (36") |
| Standard Heights | 30" |
| Minimum Height | 2' 6" (30") |
| Maximum Height | 2' 6" (30") |
| Model | FPP |
| Author | AWright |
| Toll Free Number | 1-800-803-1083 |
| Property | Value |
|---|---|
| BIMobject Category | Furniture: Shelving & Storage |
| IFC | Furniture |
