08' Wide - Option 03 Exam Room
Product SKU
SKU: SSG-EX08-3-L
Downloads
- 99 KB
Description
- Kit is designed to represent one common option used for Exam rooms at this Height and Width
- Kit includes three base cabinets, three upper wall cabinets, one countertop with backsplash, and one sink with faucet.
- Not ADA accessible.

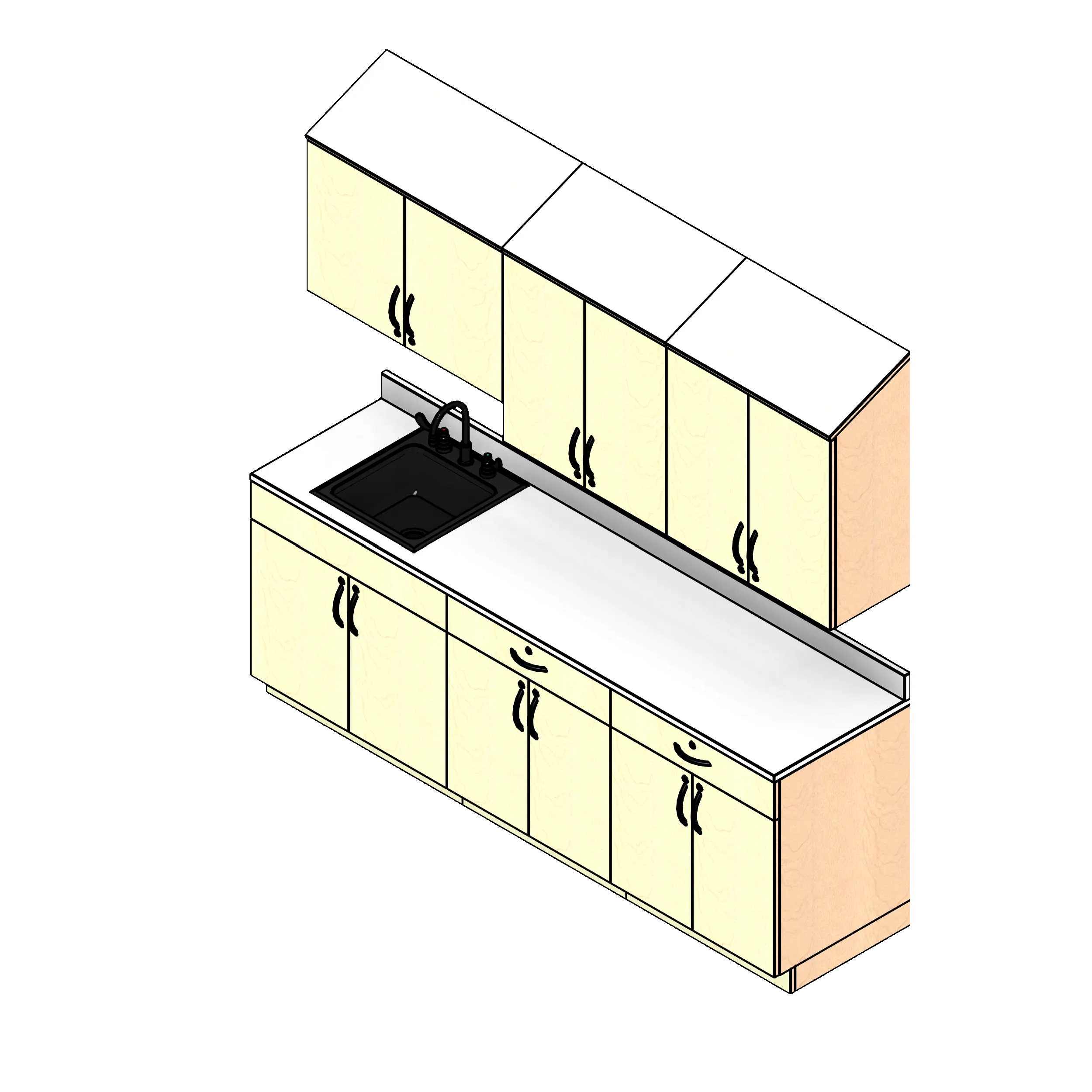

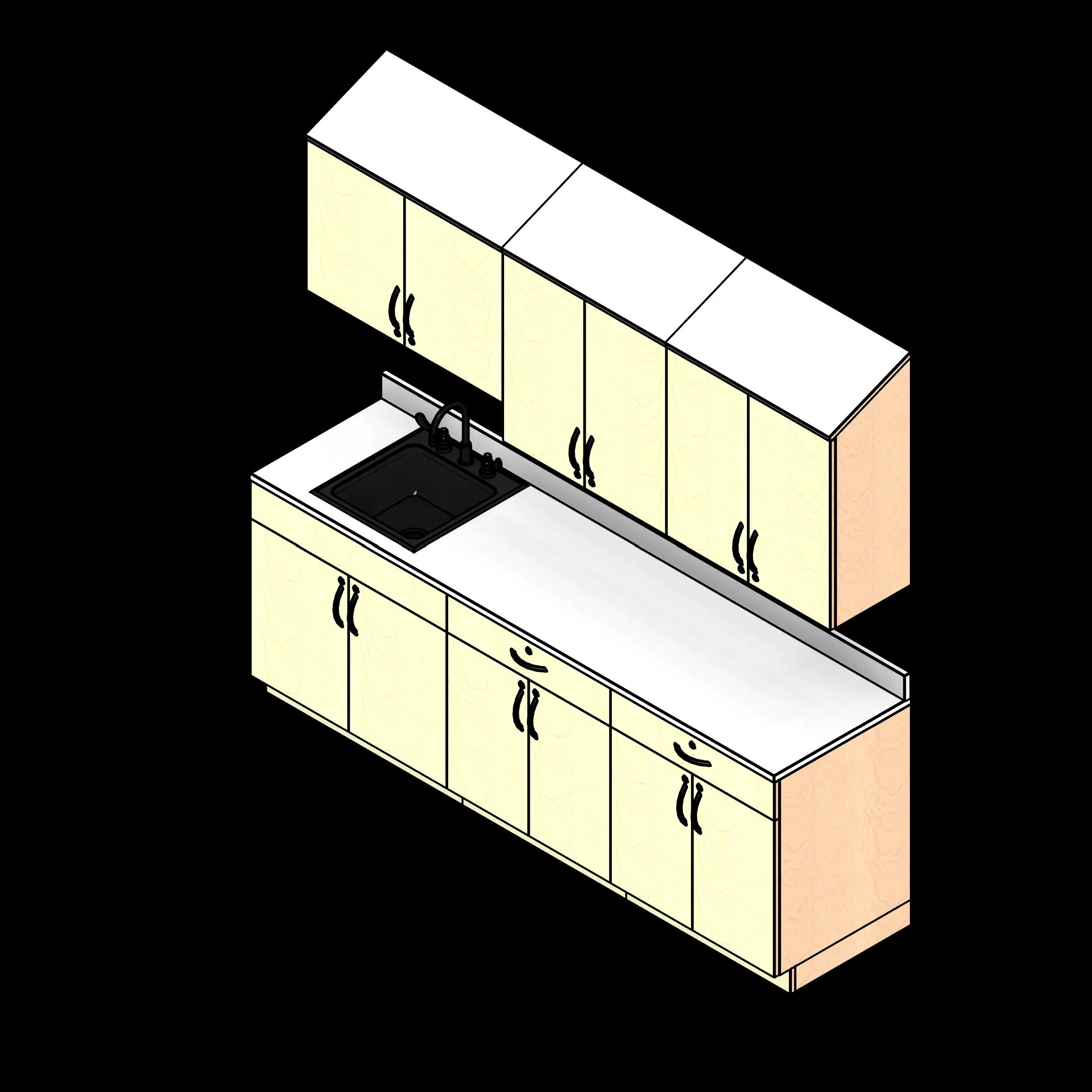

This 96-inch-wide laminate exam room casework kit combines two 30-inch base cabinets with a 36-inch sink base and three upper cabinets for exam rooms that need two matching drawer-equipped storage positions in one wall run. The 25-inch-deep, 84-inch-high configuration suits healthcare, education, and business exam rooms where a sink, countertop, and enclosed storage need to fit along the same wall. Each 30-inch base cabinet has two doors and one drawer. Above the counter, two 30-inch two-door wall cabinets and one 36-inch two-door wall cabinet provide additional enclosed storage. A 96-inch laminate countertop with backsplash spans the run. The kit also includes a 36-inch two-door sink base cabinet, a single-bowl stainless steel sink with faucet ledge, and a laboratory deck-mounted chrome-plated brass faucet. This configuration is not ADA accessible.
System Overview
Each kit comes with a variety of options that each have a unique price attached to them. A typical solution would comprise of both upper and lower cabinets with a sink and counter top. Each cabinet door can be equipped with a lock.
Design
- Multiple pull options
- Angled top is optional
- Counter can be equipped with side splash if necessary
- Lock options available
| Dimensions | |
|---|---|
| Width | 96" |
| Depth | 25" |
| Height | 84" |
| Product | |
| Primary Material | Laminate |
| Room Type | Exam Room |
| Classification | |
| IFC | Furniture |
| OmniClass | 23-21 19 11 |
| Revit family | |
| Includes Pricing | Yes |
| ADA Compliant | No |
| Has MEP Connectors | No |
| Configurable options |
|
