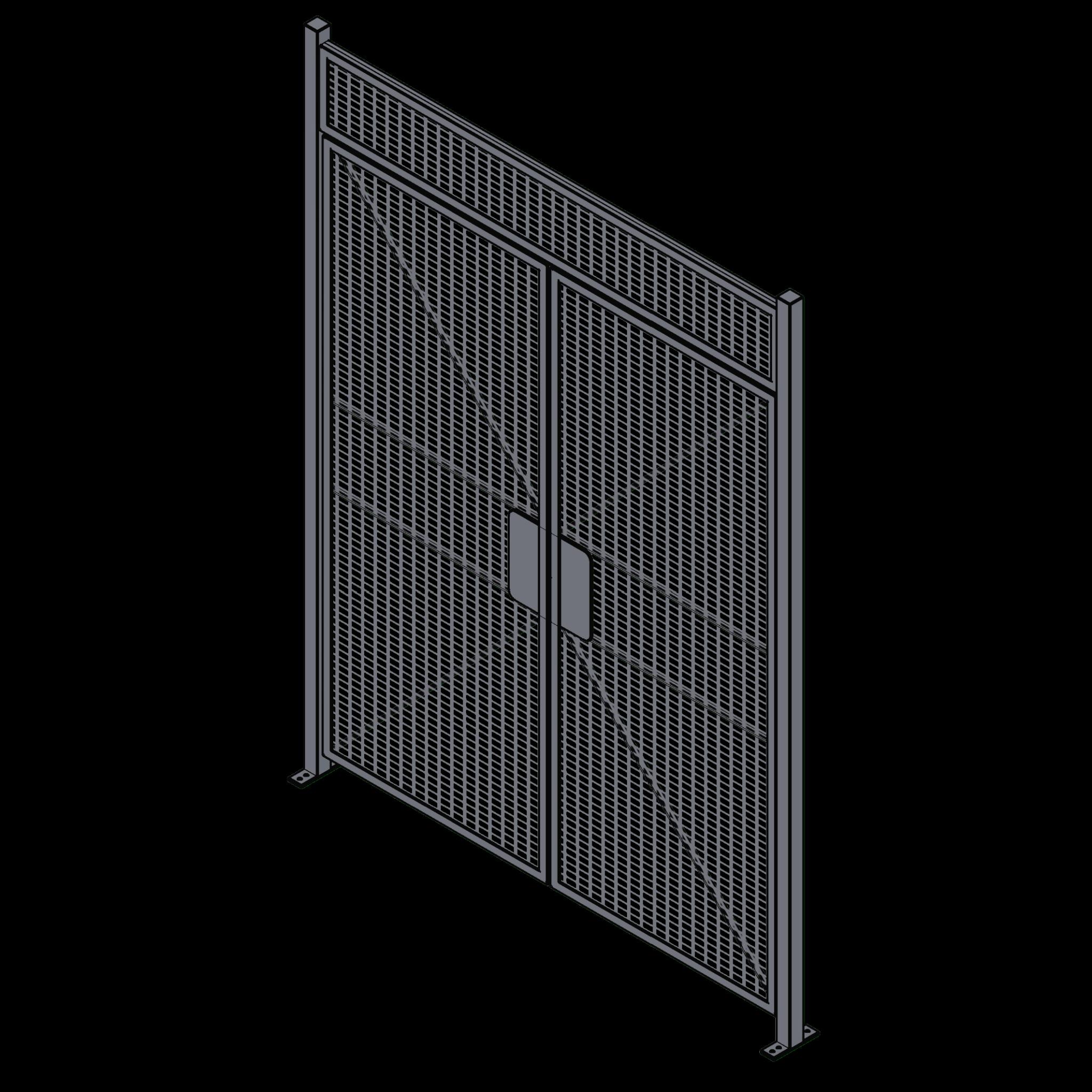

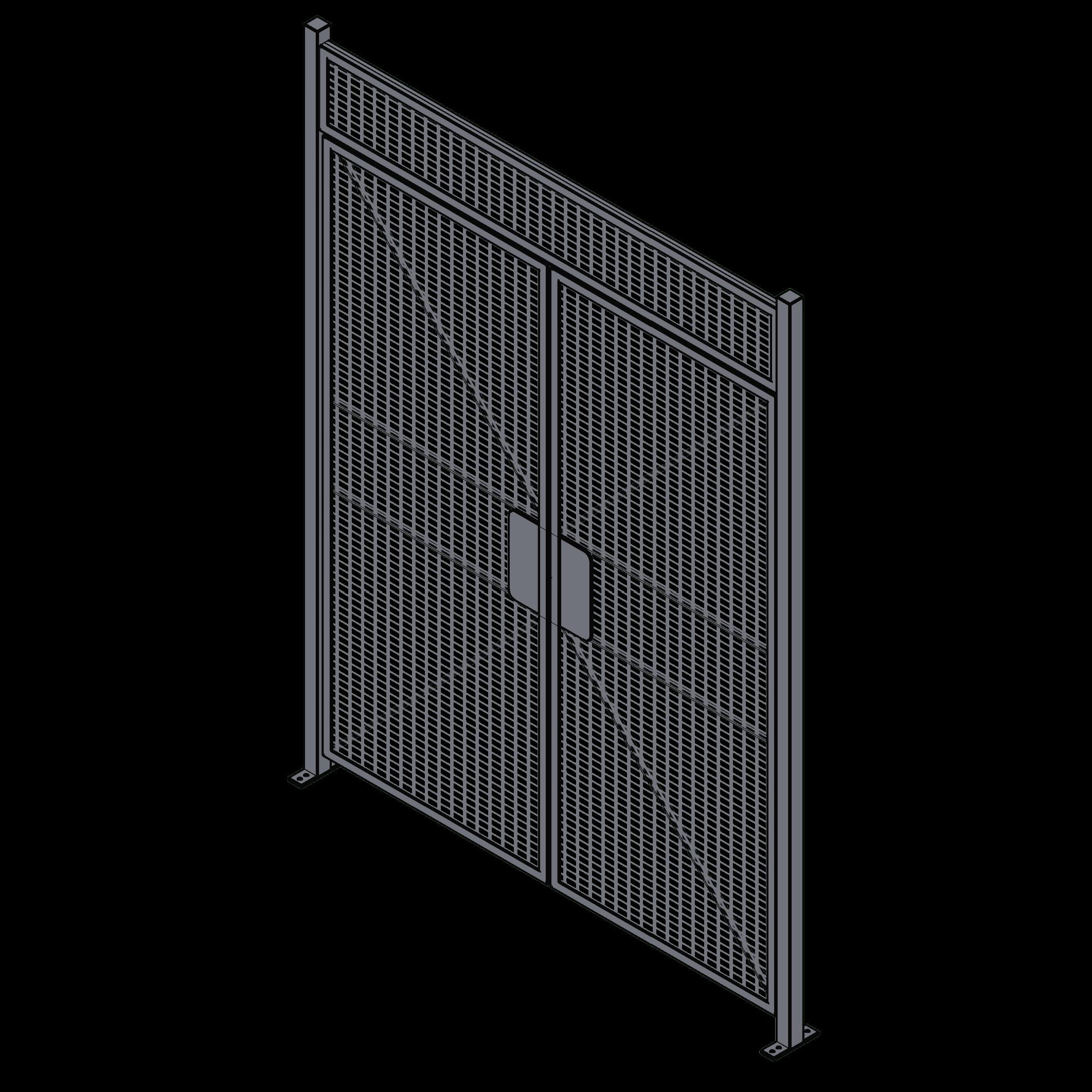

Double Hinged Door Wire Partition

Downloads

Get Fetch to load families straight into Revit →

Family

Pricing

Included in our free Revit Model:

Flexible combinations and modular design
Works seamlessly with our wire partition system models
6' or 8' wide by 7' 3-1/4" high entryway opening
Transom panel sized to match partition height
Inside or outside swing
Doors for no overhead obstruction also available

Great for use as:

Datacenter cages
DEA drug storage
Driver access cages
Tool cribs to securely store tools and equipment
Server cages for securing network servers and expensive computer equipment
Evidence enclosures or holding cells for law enforcement

Questions about this product?

Wire Double Doors

Wire partitions are a robust, cost-effective solution designed to enhance security and control access within busy distribution centers, data center floors, law enforcement, DEA storage facilities, and more. This system prevents unauthorized personnel from entering areas with active machinery or vehicle traffic, thereby enhancing safety. The wire cage features wire mesh partition walls that are open, yet secure, eliminating the need for additional lighting, HVAC, or sprinkler systems, and is available for quick shipment with customizable configurations. Accessories like push bars, coded access locks, and ceiling panels enhance functionality and security. Ideal for maintaining safety and efficiency, modular wire fencing is an essential component for modern facilities requiring controlled access solutions.

These wire cages are simple to reconfigure as your needs change. They are versatile, adaptable, customizable, and highly secure. Bolts are only accessible from within the cage or partition, and posts can be anchored to the floor for added stability.

Great for use as:

Datacenter cages
DEA drug storage
Driver access cages
Tool cribs to securely store tools and equipment
Server cages for securing network servers and expensive computer equipment
Evidence enclosures or temporary holding cells for law enforcement
Specialty secure storage for hazardous materials such as aerosol

Specifications
Dimensions
Width	76", 100"
Depth	7"
Height	8' 5 1/4", 10' 5 1/4", 12' 5 1/4"
Product
Manufacturer	Southwest Solutions Group_WIR
Lead Time	3-4 Weeks
Model	Double Doors
Primary Material	Powder coated steel
Classification
MasterFormat	10 22 13 – Wire Mesh Partitions
UniFormat	C1010 – Interior Partitions
IFC	Furniture
OmniClass	23-15 11 15 17 11
Purchasing
Contracts	Equalis
Revit family
Includes Sustainability	Yes
Includes Pricing	Yes
ADA Compliant	No
Has MEP Connectors	No

Panel Construction

Customizable width (max 10ft per panel).
8' or 10' height panel sections.
Frame is 1-1/4" x 1 1/4" x 1/8" hot rolled steel angle.
Standard Mesh is 10 gauge wire woven into 2" x 1" rectangular openings.
Panels available in mesh, expanded metal, sheet metal, or clear polycarbonate.
Angled frame and mesh design gives a clear view of the cage interior
Wire mesh panels may be used as walls or ceilings with proper reinforcement.

Upright Construction

Upright posts made form 2" x 2" 14 gauge Square HSS Steel.
Posts include a welded base plate with floor anchors.
Posts may be anchored to the floor using 1" lag bolts that must be pinned or brazed once installed.
Additional base plate available for "sandwiching" data center floors.

Door Construction

Single Hinged: 3' or 4' wide by 7' 3-1/4" high opening.
Double Hinged: 6' or 8' wide by 7' 3-1/4" high opening
Sliding Door: 3', 4', 5', 6', 8', or 10' widths and 8' or 10' tall opening.
Transom panel sized to match partition height.
Three 4" x 4" 10-gauge tight pin hinges per hinged door.
Sliding doors include four-wheel trolley trucks, a 16-gauge track, and hardware.
Inactive leaf secured by cane bolt (base) and chain bolt (top)
Padlock lug standard, cylinder, or digital locks available.
Universal construction works for left or right hand, inside or outside swing/slide.
Complete with two upright posts and hardware.
Custom size and no overhead obstruction doors available.

Service Window Construction

4' wide panel with a 24" x 21" window opening.
Transom panel sized to match partition height.
Sliding window panel secures in place from the inside when not in use.
Complete with two upright posts and hardware.
Custom sizes available.

System Assembly

Mount two or more panels between posts to reach wall height.
Panel height may be adjusted to mount flush to the top and bottom to meet DEA storage requirements.
Standard-size panels work in wall and ceiling configurations.
Wall has a minimum of 1-1/2" horizontal reinforcement at least every 60 inches.
Clear spanned ceiling up to 35'-0" across.
Standard 3/8" mounting and assembly hardware.
Assembly hardware is inaccessible from the secured side of the partition.
Single-hinged, double-hinged, sliding, and vertical rise doors available.
Self-closing and self-locking door hardware available for secure projects.
Keyed or digital locks may be added for additional security
Custom size panels and special heights available on request.
Frames, mesh, and uprights are finished in a matching high-quality powder coat color.
Custom colors available with a paint chip or RAL number.

Sustainability

Wire mesh contains up to 95% pre and post-consumer recycled content
Roll-formed angle steel contains up to 71% pre and post-consumer recycled content
