File Drawers Steel Lab Base Cabinet

Product SKU

Description

  • Ideal for scientific, research, or technical labs
  • Fully-welded, heavy-guage steel construction, lab grade finish
  • Basic file cabinet configuration with 2, 3, or 4 drawer configurations
a square with short lines outside the corner
Family
icon of a person with gears next to its head
ADA
Questions
Need some help? Send us a message if you have any sales or model related questions.

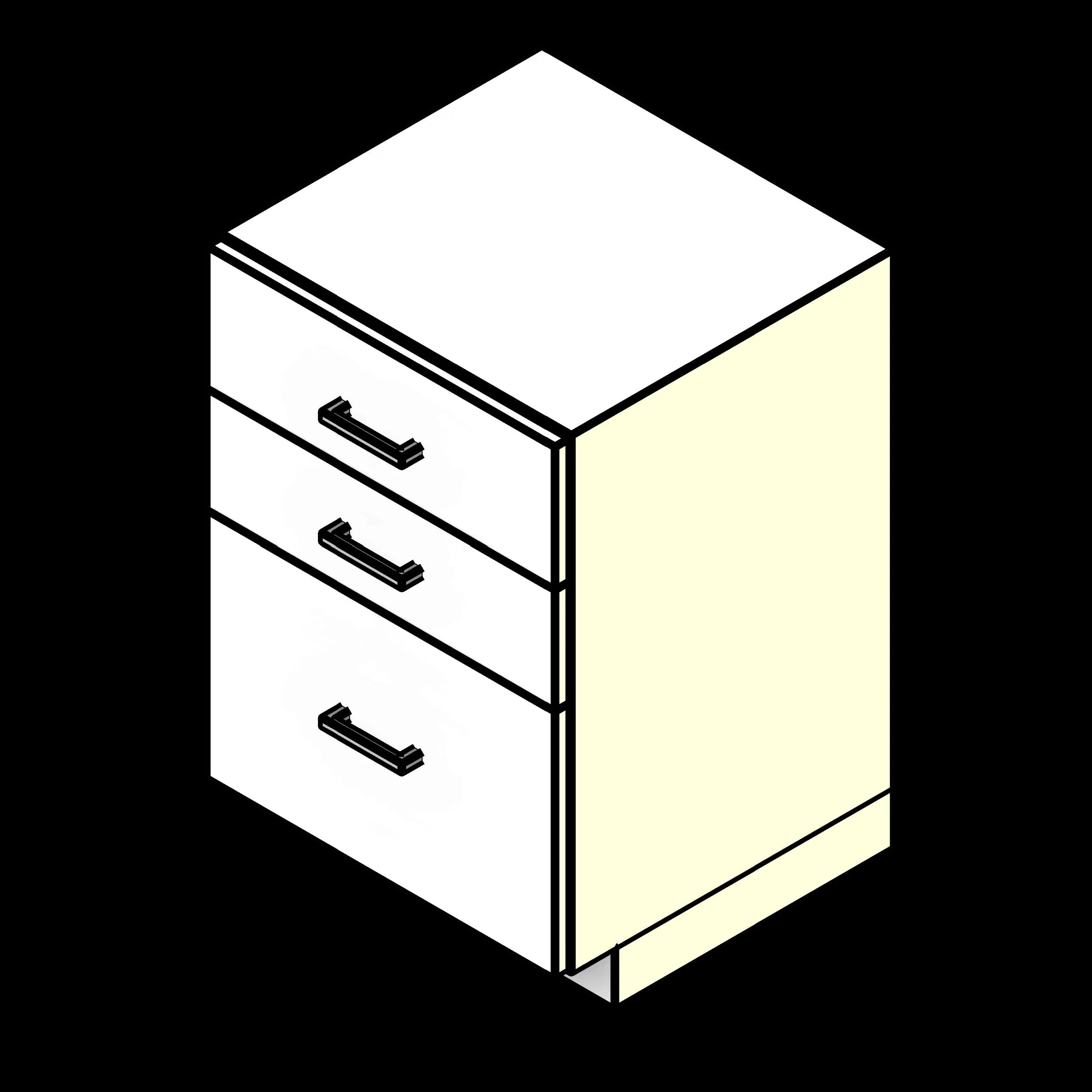

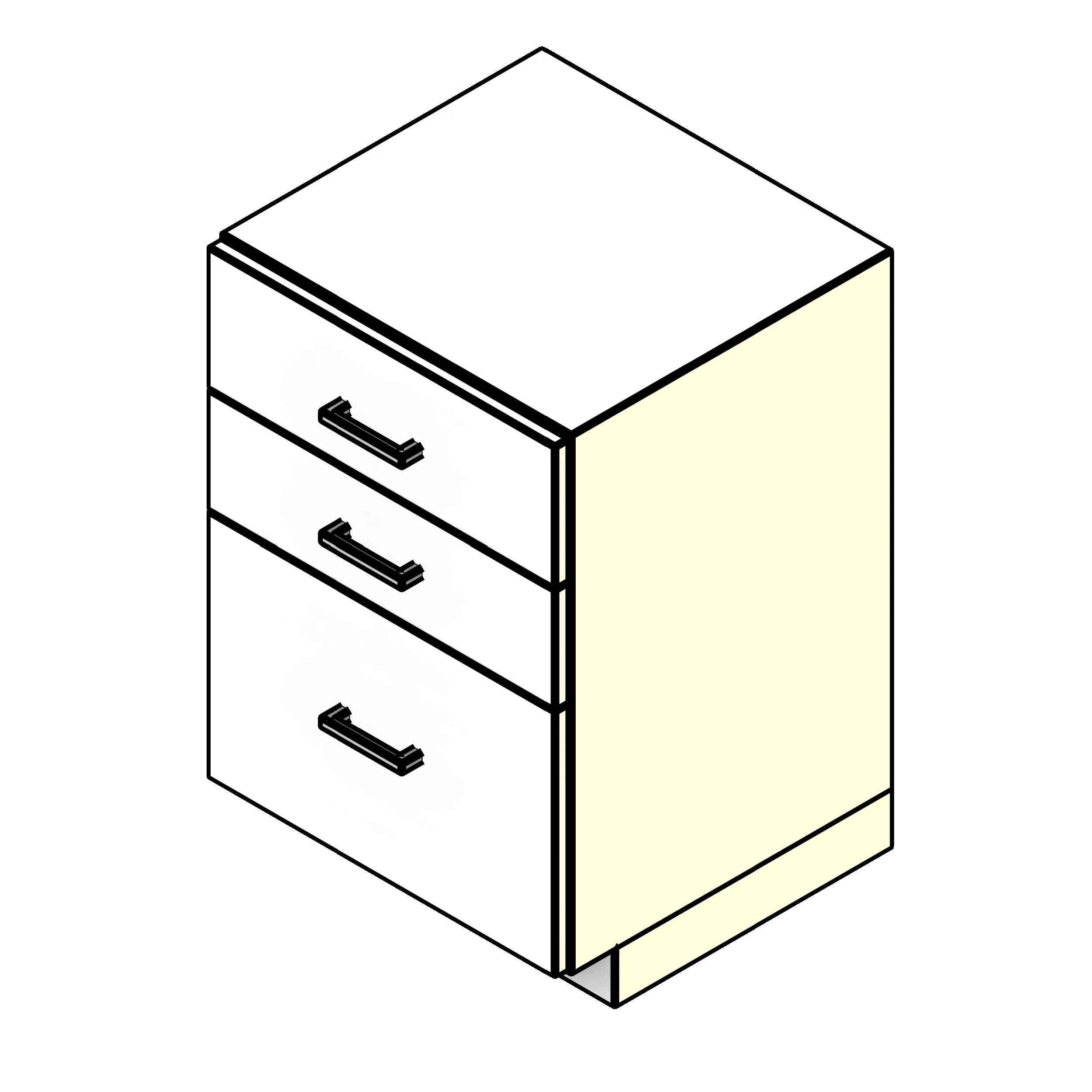

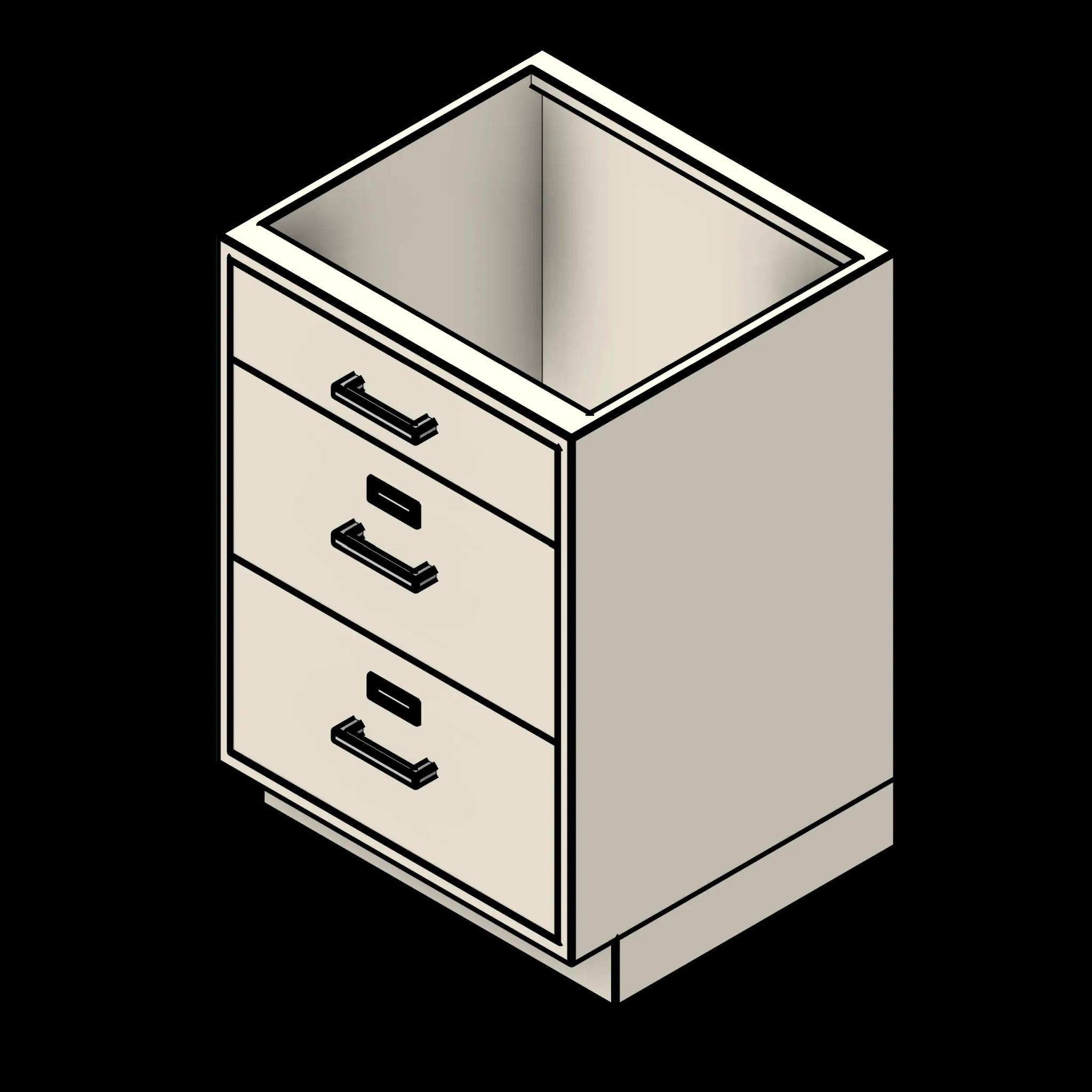

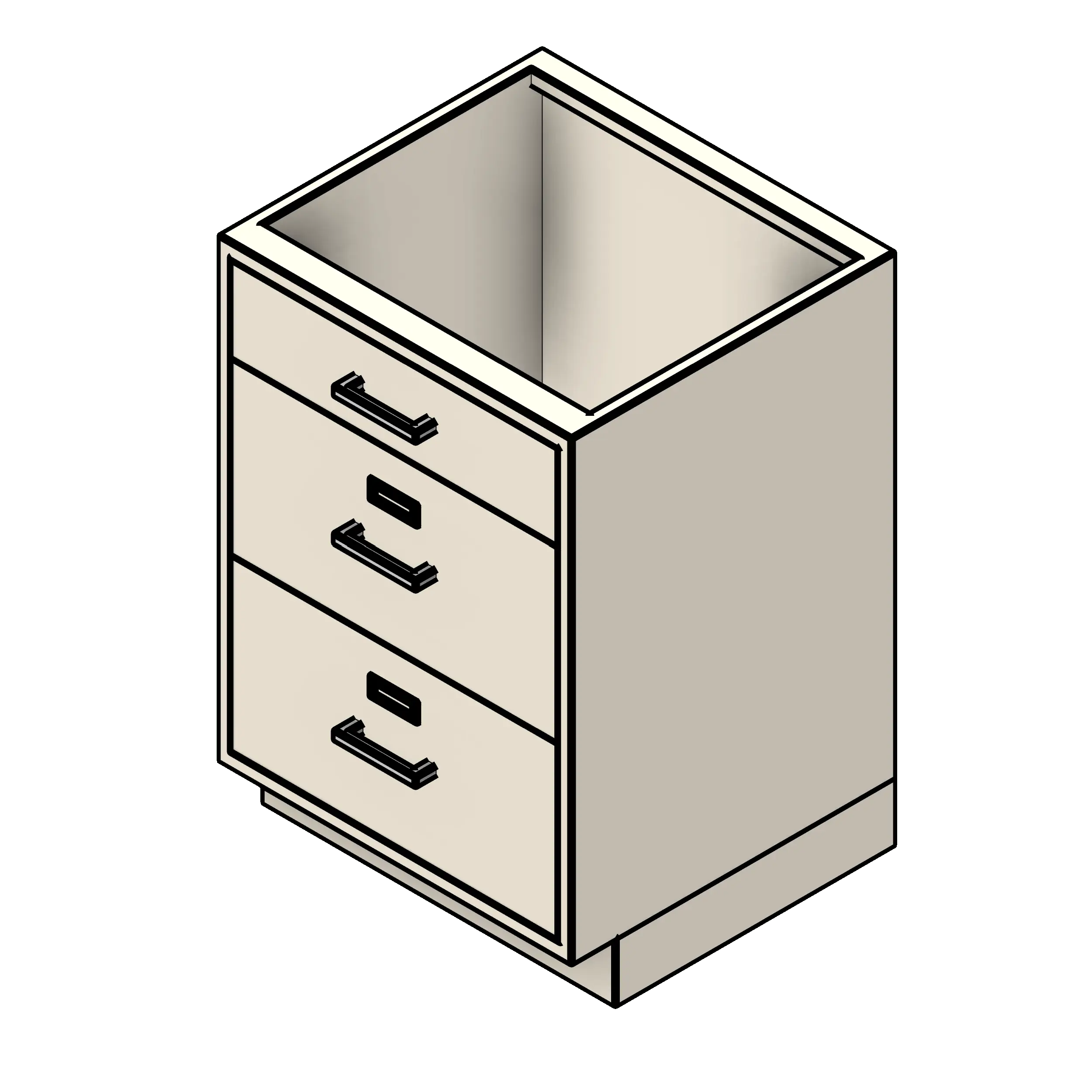

Steel Lab Base Cabinet File Drawers

Steel lab base cabinet with a variety of file drawer configurations. Use simple parameters to customize this unit.

Our fully-welded, heavy-gauge, steel cabinets are designed to SEFA 8 performance standards and built to rigorous benchmarks. The classic "unit" design allows doors and drawers to be reconfigured in place. The configurable design provides a rich offering of hardware and aesthetic options.

Additional features include
  • Four sided, flush front, frame construction
  • Solid finished back with optional removable back
  • Full-depth adjustable shelf
  • Leveling bolts accessible through cabinet top
Cabinet styles are available in inset with square edge, overlay with square edge, overlay with bevel edge, and overlay with wood on steel.
ParameterValue
Standard Widths15", 18", 21", 24"
Minimum Width1.25
Maximum Width2
Standard Depths22"
Minimum Depth1.83333333333333
Maximum Depth1.83333333333333
Standard Heights28 1/4", 31 109/128", 35 1/2"
Minimum Height2.35416666666667
Maximum Height2.95833333333333
ManufacturerSouthwest Solutions Group_ICI
Lead TimeContact SSG for info
Construction TypeWelded, cold-rolled steel Frame with flush overlay Steel, inset steel, or flush overlay wood doors
ModelP
Keynote12 35 53.13
Assembly CodeE2020
AuthorAWright
Toll Free Number1-800-803-1083
PropertyValue
EqualisNo
Includes SustainabilityYes
OmniaNo
SourcewellNo
SystecYes
VizientYes
Includes PricingNo
ADA CompliantYes
Has MEP ConnectorsNo
Primary MaterialPowder coated steel
Secondary MaterialWood
BIMobject CategoryFurniture: Shelving & Storage
IFCFurniture
Omniclass23-21 19 15 25 11
