Updated Aug 20, 2021
6 Tier - 12"W x 24"D Column Laminate Day Lockers Revit model group
6 Tier - 12"W x 24"D Column Laminate Day Lockers Revit model group
Updated Aug 20, 2021

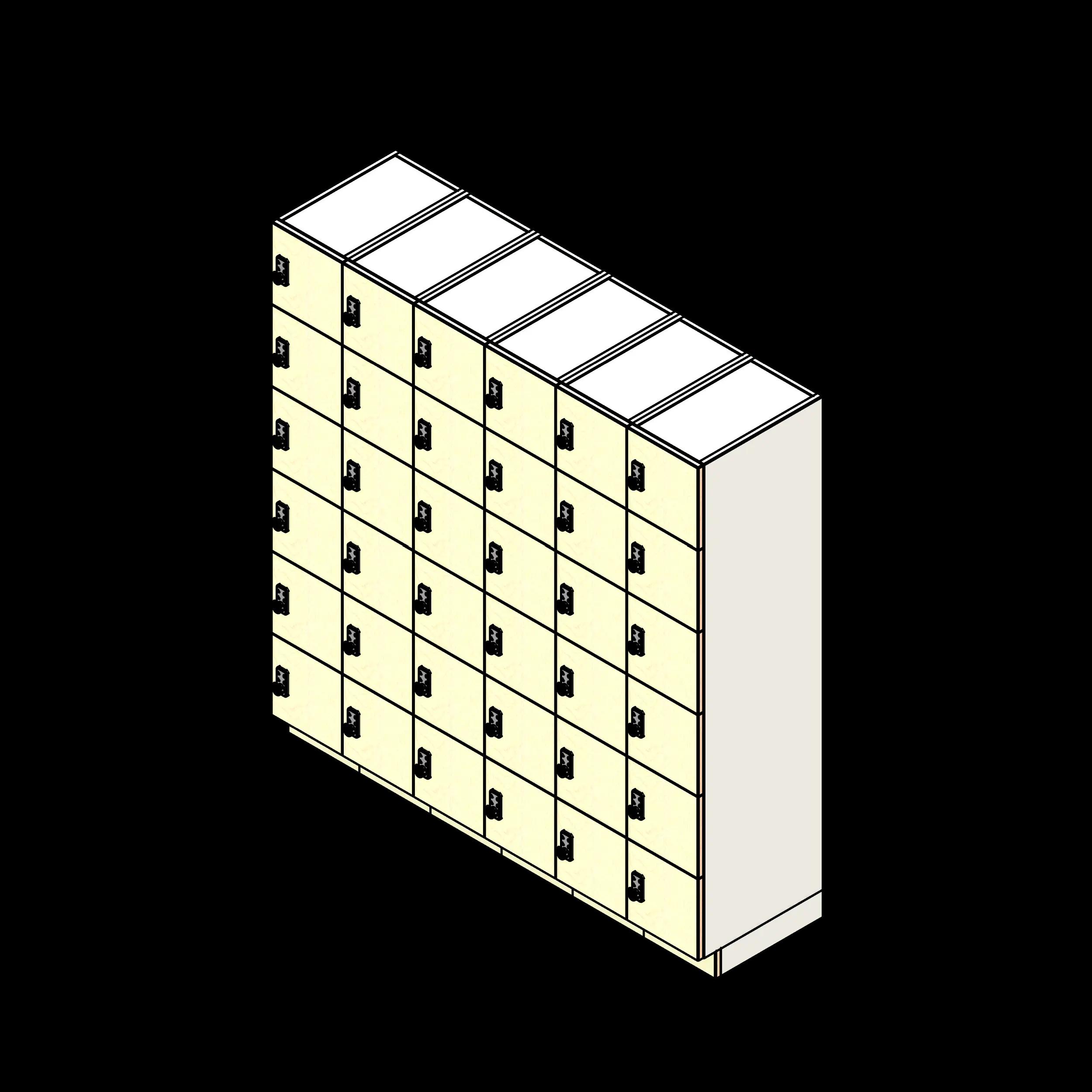

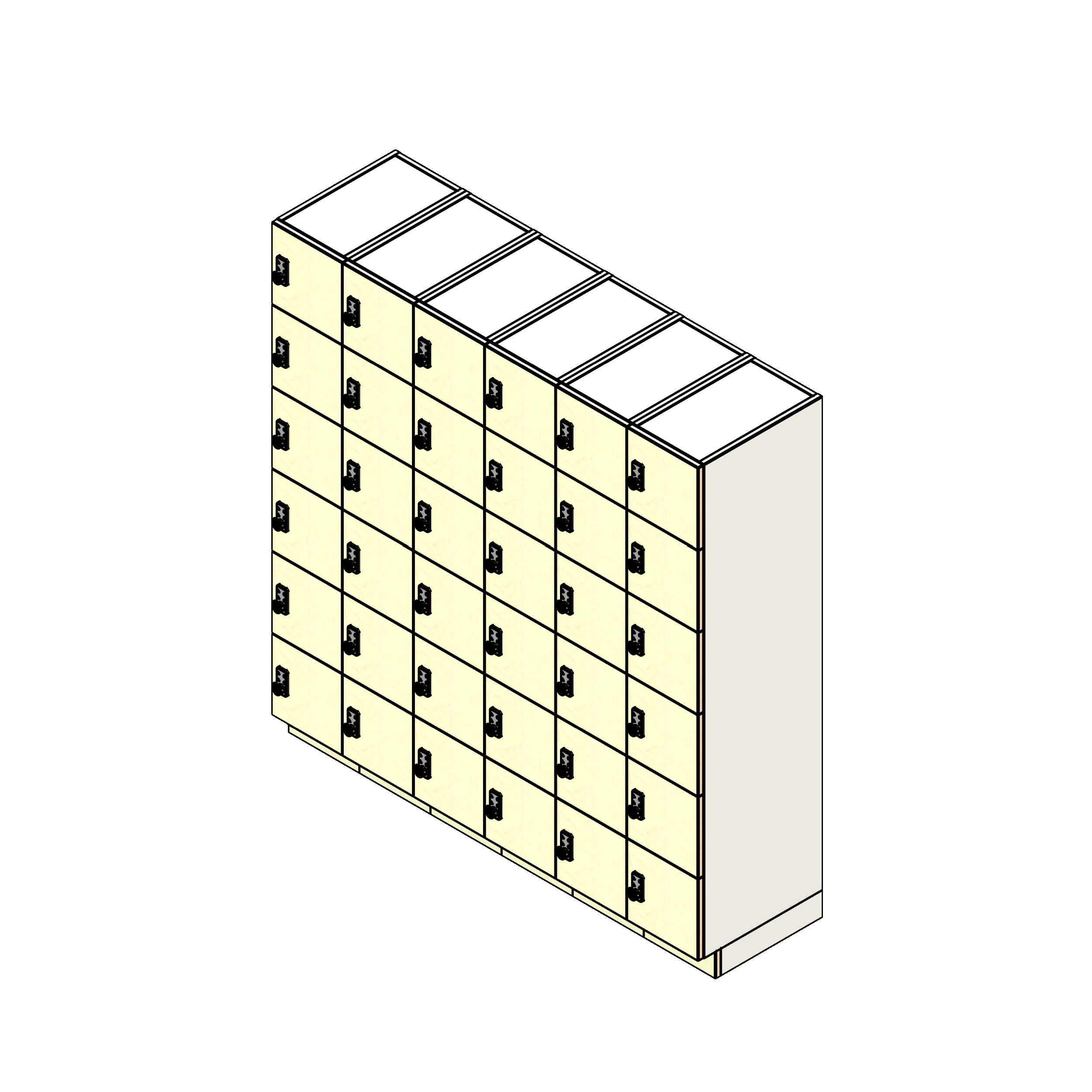

6 Tier - 12"W x 24"D Column Laminate Day Lockers

Product SKU

SKU: SSG-6T-122472

Downloads

Model group
Pricing

Description

  • Kit is designed for multiple user locker areas
  • Locks are cable-free and battery powered
  • Kit includes 36 total lockers

Questions about this product?

This laminate day locker bank of 6-tier, 12" W x 24" D columns is 72" wide, 24" deep, and 72" high, with 36 individual day-use compartments for high-traffic shared spaces. Six multi-door laminate locker components create a six-tier arrangement for projects needing more individual storage positions within a 6-foot-wide run, while the 24-inch depth distinguishes this configuration from shallower 18-inch-deep locker banks. Specify this locker bank for universities, airports, gyms, offices, and other multiple-user locker areas where occupants need temporary, individually secured storage and staff need to avoid key distribution. Cable-free, battery-powered locks remain unaffected by power outages, and an LED identifies available lockers. No keys, transponders, or external programming devices are required. A master code is possible. The latch-bolt lock has a metal outer housing and is rated for up to 100,000 closures. Cabinets use 3/4-inch industrial-grade, double-faced melamine substrate with 2 mm PVC edge banding on exposed edges. Panels connect with hidden cam fasteners, and the cabinets are rail mounted for installation. An angled top and other lock types, including radial combination and RFID locks, are available options.

Each smart day use locker kit was created for high traffic applications like universities, airports, gyms, or offices. Each lock comes with a brightly shining LED which identifies available lockers. Locks are keyless and cable-free so they are unaffected by power outages.

Design

  • Other lock type options can be chosen with a potential upcharge. Including Radial combination locks and RFID locks
  • Angled top is optional
  • Number of Doors, Width, Depth, and Height can be chosen to fill exact needs
Specifications
Dimensions
Width12"
Cabinet Depth24"
Height72"
Depth24"
Product
Left Hinge0
Number of Columns6
Day Locker Tiers6
Primary MaterialLaminate
Classification
IFCFurniture
OmniClass23-19 13 13
Revit family
Includes PricingYes
ADA CompliantNo
Has MEP ConnectorsNo
Configurable options
  • Lock type
  • Lockers
  • Angled top
  • Integrated toe kick
  • Left end panel
  • Right end panel
