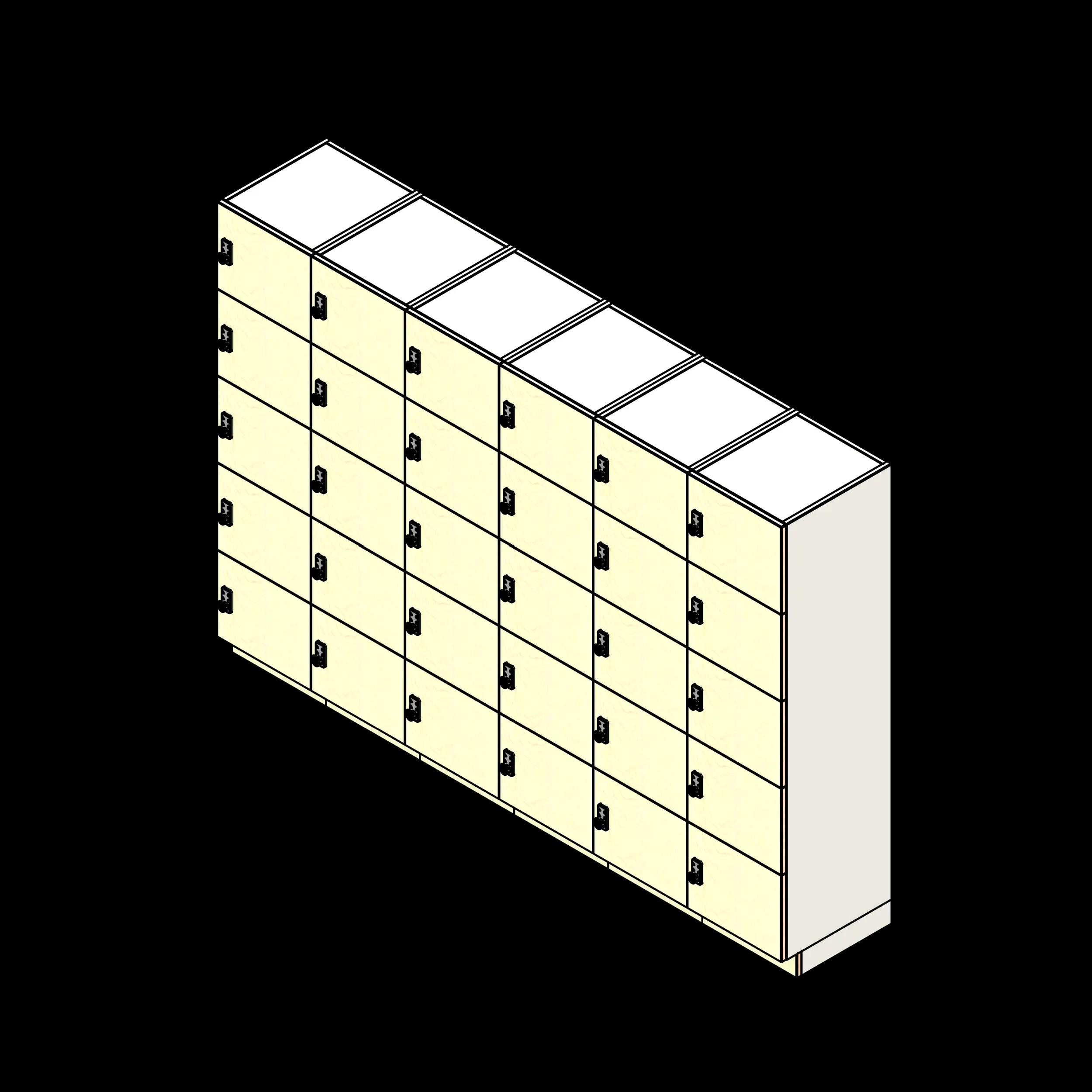

 SSG Day Locker 5 Tier 1824 LAM
 SSG Day Locker 5 Tier 1824 LAM
Updated Aug 20, 2021

5 Tier - 18"W x 24"D Column Laminate Day Lockers

Product SKU

SKU: SSG-5T-182472

Downloads

Model group
Pricing

Description

  • Kit is designed for multiple user locker areas
  • Locks are cable-free and battery powered
  • Kit includes 30 total lockers

Questions about this product?

This laminate day-use kit of 5-tier, 18" W x 24" D columns provides 30 lockers for multiple-user locker areas. At 108 inches wide, 24 inches deep, and 72 inches high, it combines six multi-door laminate locker units into a 9-foot-long bank with five tiers for projects needing many individual day-use compartments along one wall. Specify it for high-traffic university, airport, gym, or office locker areas where users need to identify an available locker quickly and move on. Each keyless lock is cable-free and battery powered, so locker access is unaffected by power outages. A bright LED identifies available lockers. No keys, transponders, or external programming devices are required, and a master code is possible. The locks have metal outer housings with matte chrome fronts and are rated for up to 100,000 closures. Cabinets use 3/4-inch industrial-grade 40–50 lb substrate with double-faced melamine, 2 mm PVC edge banding on exposed edges, hidden cam fasteners, and rail-mounted installation.

Each smart day use locker kit was created for high traffic applications like universities, airports, gyms, or offices. Each lock comes with a brightly shining LED which identifies available lockers. Locks are keyless and cable-free so they are unaffected by power outages.

Design

  • Other lock type options can be chosen with a potential upcharge. Including Radial combination locks and RFID locks
  • Angled top is optional
  • Number of Doors, Width, Depth, and Height can be chosen to fill exact needs
Specifications
Dimensions
Width18"
Cabinet Depth24"
Height72"
Depth24"
Product
Left Hinge0
Number of Columns6
Day Locker Tiers5
Primary MaterialLaminate
Classification
IFCFurniture
OmniClass23-19 13 13
Revit family
Includes PricingYes
ADA CompliantNo
Has MEP ConnectorsNo
Configurable options
  • Lock type
  • Lockers
  • Angled top
  • Integrated toe kick
  • Left end panel
  • Right end panel
