Rolled Blueprint Storage
Product SKU
Downloads
- 520 KB
- 231 KB
- 8.0 MB
Description
- Ideal for use in architecture firms, construction offices, design studios
- Available options include casters, workspace, and shelf dividers
- Number of shelves dynamically changes to fit the size of unit
- Primary material: Powder coated steel

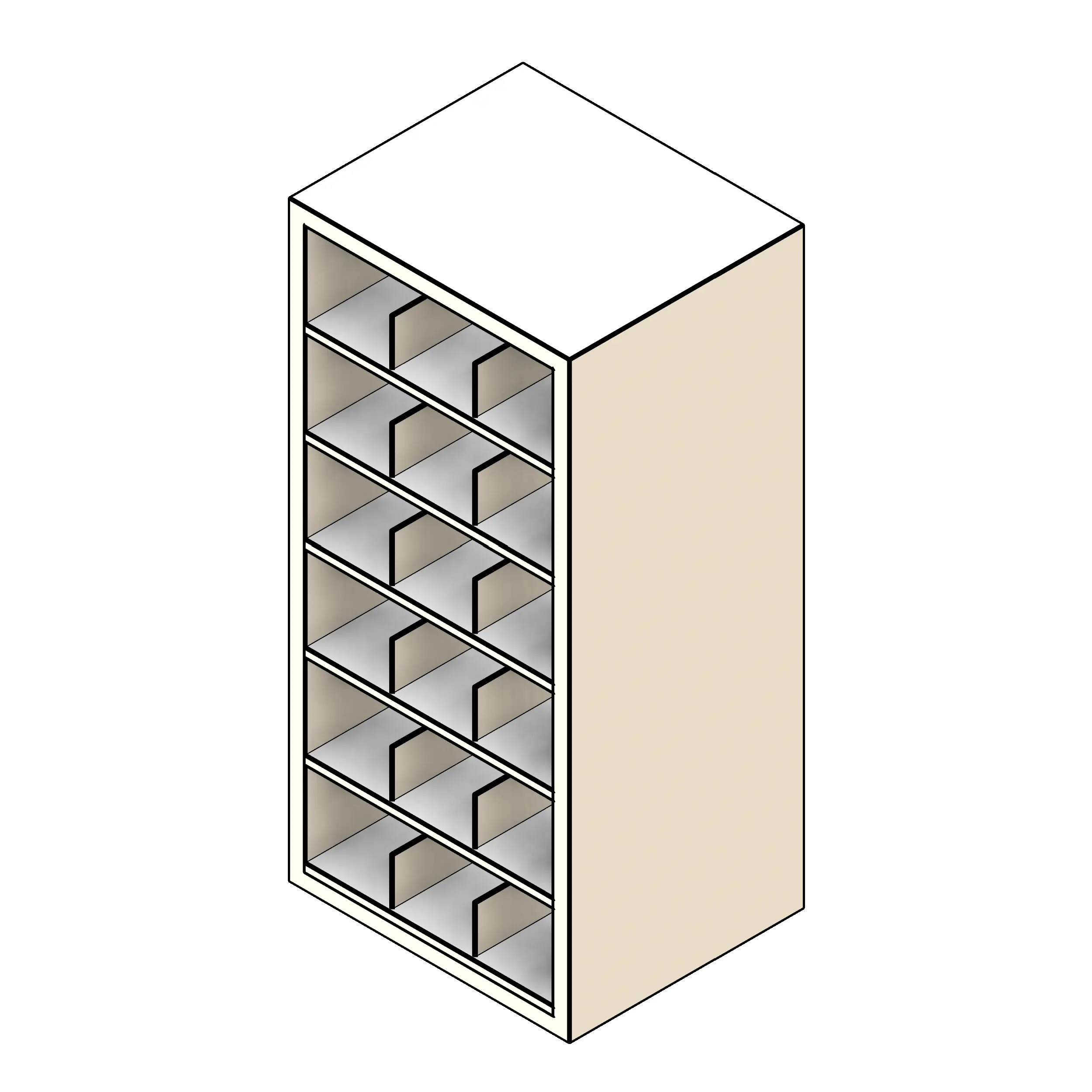

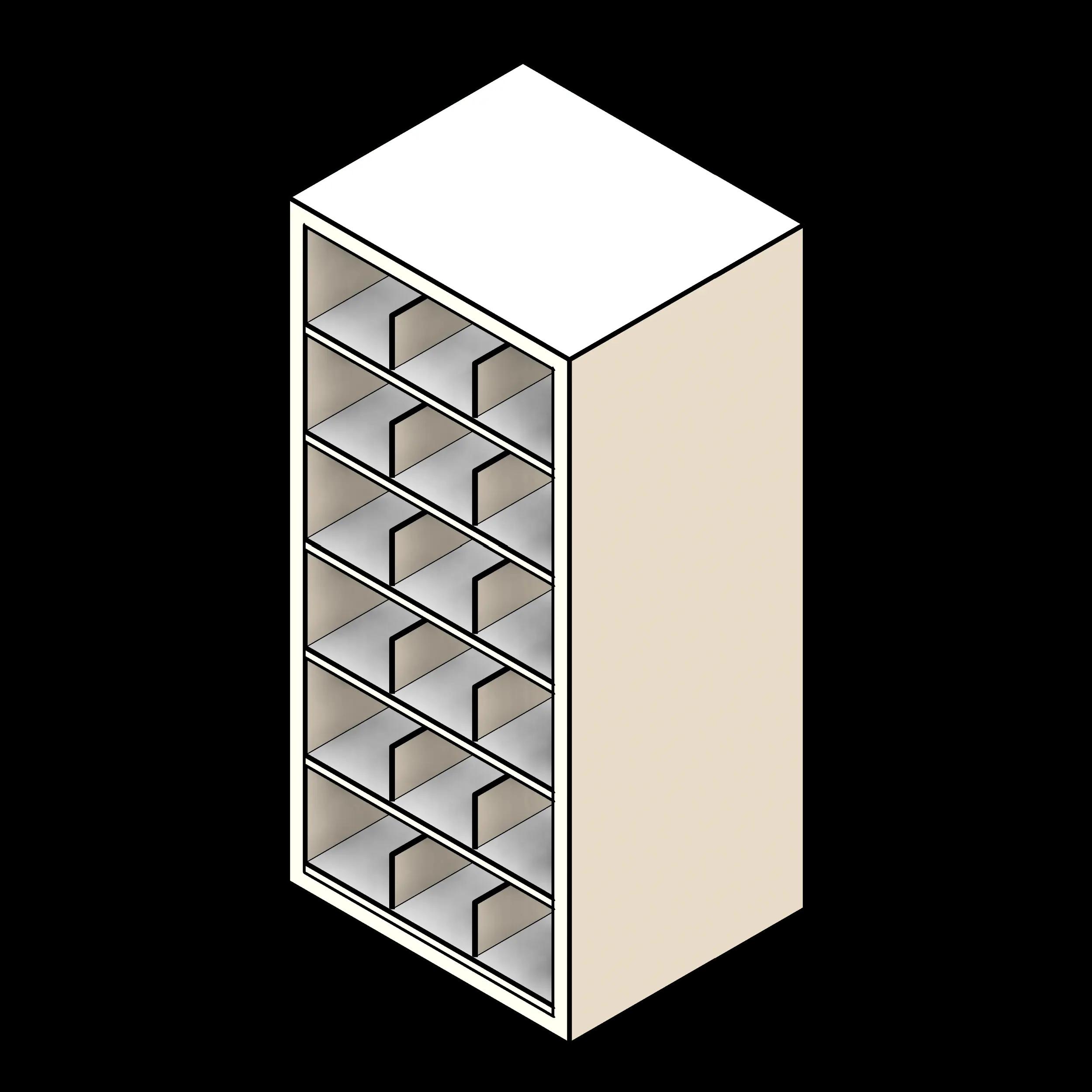

Shelf for Rolled Blueprints
Our 5D BIM blueprint storage systems come in a variety of storing options, including:
- shelves, cubbies, or drawers
- full-height, work surface height, or mobile
- store rolled or flat
Our Flat File unit allows you to simply select your desired paper size you'd like to store and the size of the cabinet will scale accordingly. The unit comes in options of 5 or 10 drawers with either no stand, a 6 inch toe-kick, or a 20 inch base.

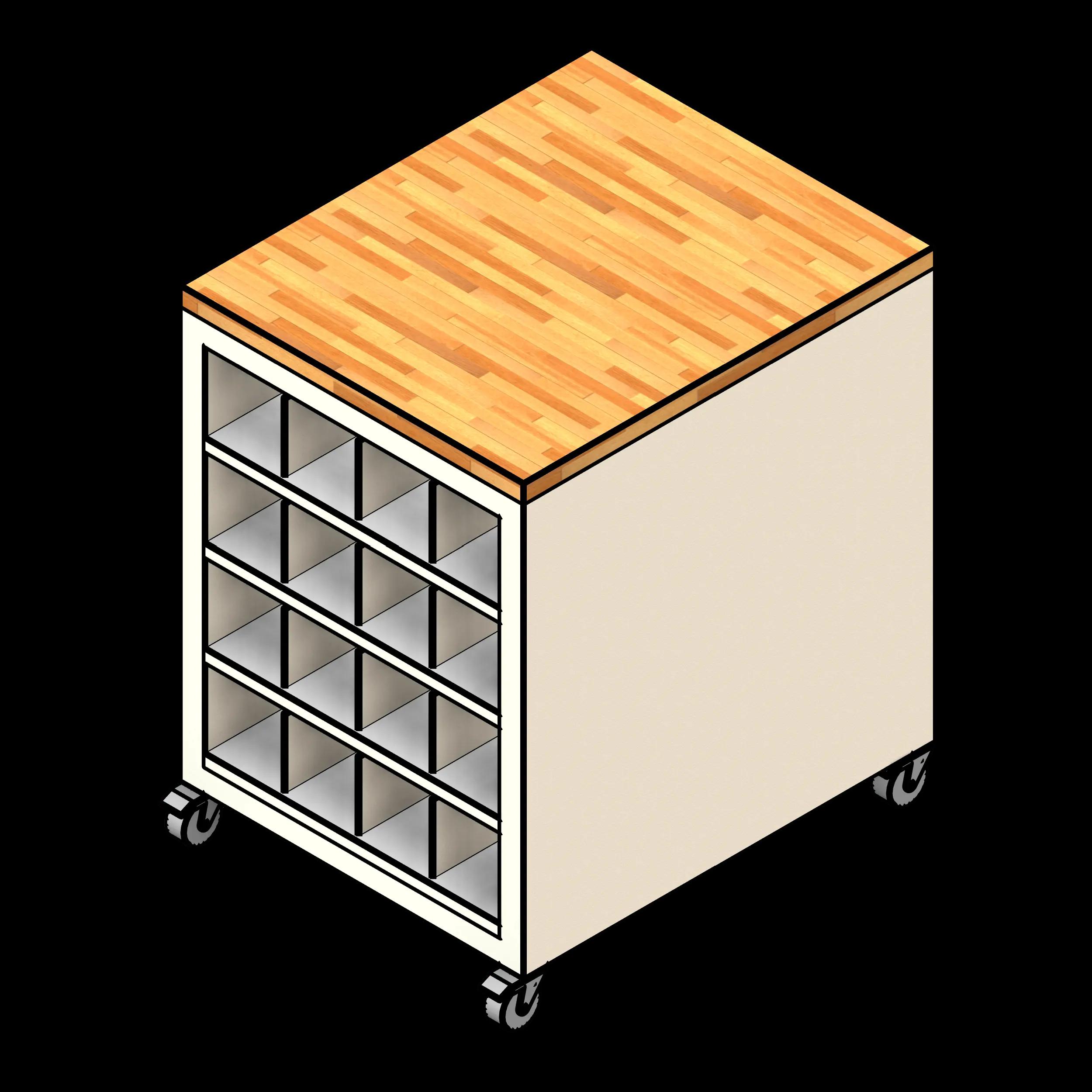

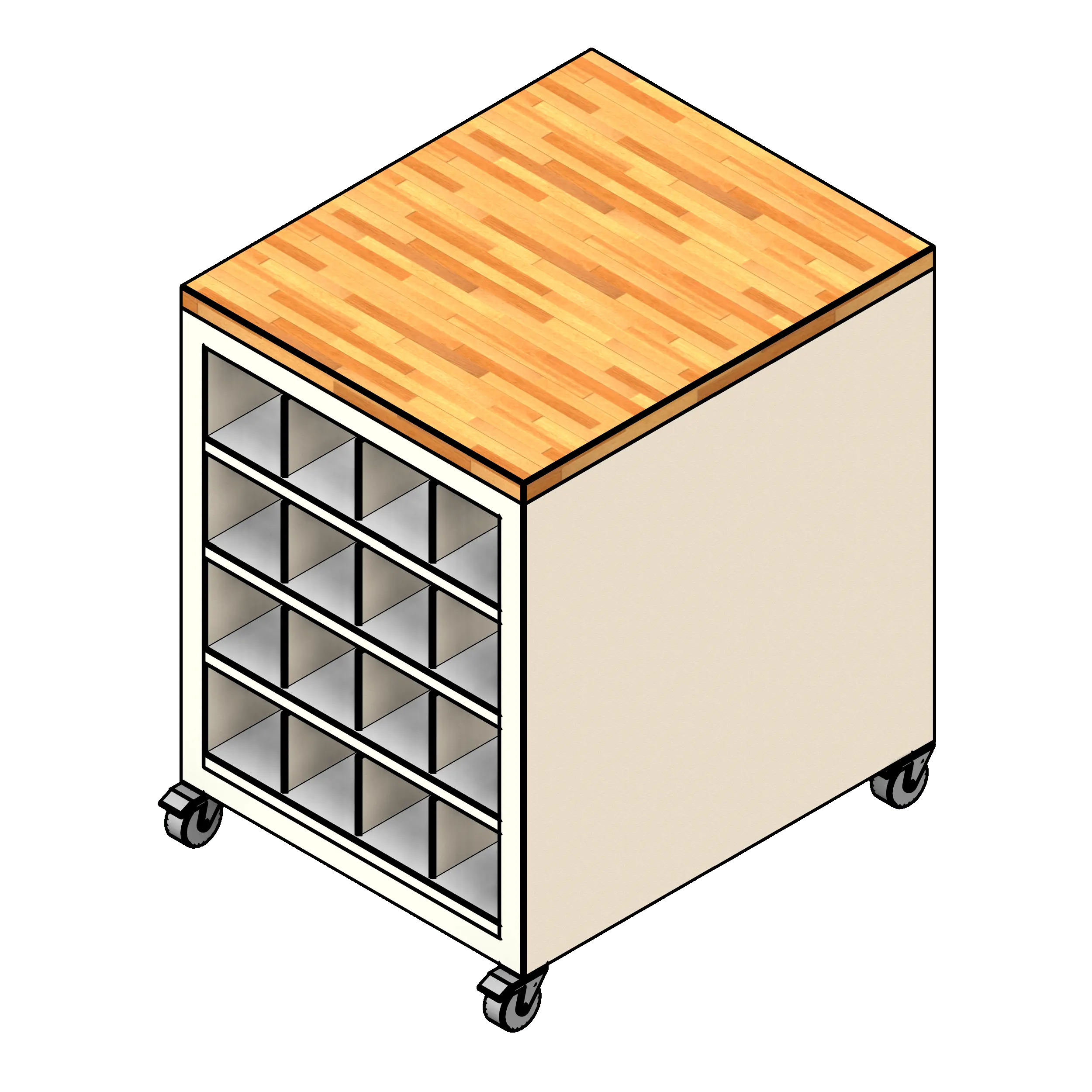

Rolled blueprint and flat file shelves act as a great solution for materials that need to be stored in specific ways. The shelving unit comes in a variety of dimensions, and rolled blueprint shelves can come with casters or a workspace on its top.
| Dimensions | |
|---|---|
| Width | 24", 30", 36", 42", 48" |
| Depth | 30", 36" |
| Height | 36", 76" |
| Product | |
| Manufacturer | Southwest Solutions Group_DAT |
| Lead Time | 20 - 30 Days |
| Model | PD |
| Primary Material | Powder coated steel |
| Classification | |
| MasterFormat | 12 31 00 – Manufactured Metal Casework |
| UniFormat | E20 – Furnishings |
| IFC | Furniture |
| Revit family | |
| Includes Pricing | Yes |
| ADA Compliant | No |
| Has MEP Connectors | No |
