· Updated Aug 20, 20214 Tier - 12"W x 24"D Column Laminate Day Lockers
Product SKU
SKU: SSG-4T-122472
Description
- Kit is designed for multiple user locker areas
- Locks are cable-free and battery powered
- Kit includes 24 total lockers
Revit 2018 (3.17 MB)
Revit 2019 (3.17 MB)
Revit 2020 (3.17 MB)
Revit 2021 (3.17 MB)
Revit 2022 (3.17 MB)
Revit 2023 (3.17 MB)
Revit 2024 (3.17 MB)
Revit 2025 (3.17 MB)
Revit 2026 (3.17 MB)
Revit 2027 (3.17 MB)
(0.05 MB)
(0.44 MB)
(8.14 MB)

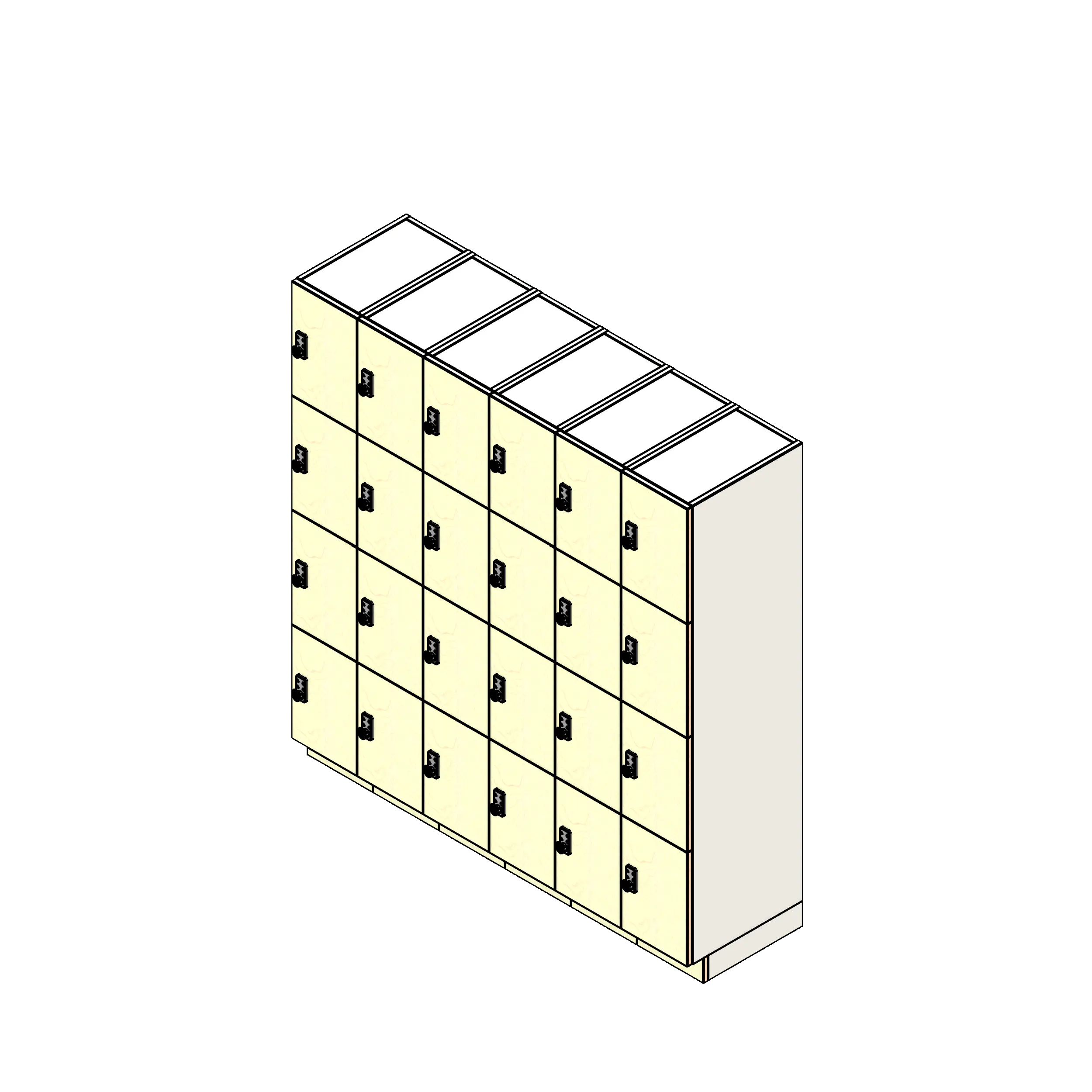

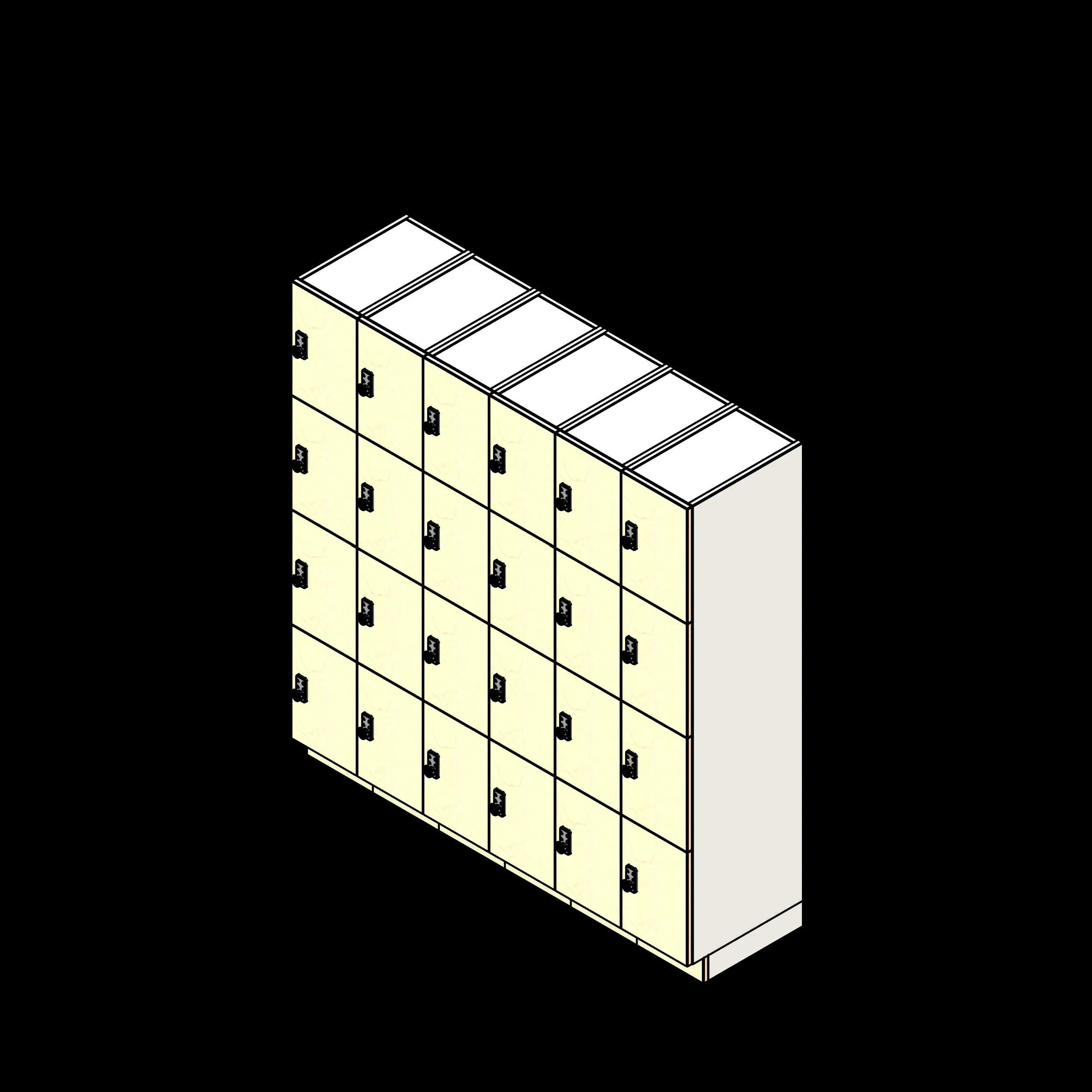

The 4 Tier - 12"W x 24"D Column Laminate Day Lockers is a 72"W x 24"D x 72"H day-use locker kit that provides 24 individually secured compartments for high-traffic shared spaces. Six multi-door laminate locker units form four tiers across the 6-foot-wide bank, giving universities, airports, gyms, and offices a defined location for short-term personal storage without adding keys or lock cabling. Each locker uses a battery-powered, cable-free lock with an LED to identify available lockers, so the bank remains unaffected by power outages. The keyless locks require no external programming device, keys, or transponders; a master code is possible. Specify this 24-inch-deep, four-tier configuration where a 6-foot-wide locker run needs 24 day-use compartments in a 72-inch-high installation. Download the free Revit family.
Each smart day use locker kit was created for high traffic applications like universities, airports, gyms, or offices. Each lock comes with a brightly shining LED which identifies available lockers. Locks are keyless and cable-free so they are unaffected by power outages.
Design
- Other lock type options can be chosen with a potential upcharge. Including Radial combination locks and RFID locks
- Angled top is optional
- Number of Doors, Width, Depth, and Height can be chosen to fill exact needs
| Parameter | Value |
|---|---|
| ENTER Lock Type Number | 2 |
| ENTER Number of Lockers | 4 |
| Width | 1' 0" (12") |
| Cabinet Depth | 2' 0" (24") |
| Height | 6' 0" (72") |
| ADD Angled Top | 0 |
| ADD Integrated Toe Kick | 1 |
| ADD Left End Panel | 0 |
| ADD Right End Panel | 0 |
| Left Hinge | 0 |
| Property | Value |
|---|---|
| Includes Pricing | Yes |
| ADA Compliant | No |
| Has MEP Connectors | No |
| Width | 6' 0" (72") |
| Depth | 2' 0" (24") |
| Height | 6' 0" (72") |
| Number of Columns | 6 |
| Day Locker Tiers | 4 |
| Primary Material | Laminate |
| IFC | Furniture |
| OmniClass | 23-19 13 13 |
