· Updated Aug 20, 20214 Tier - 12"W x 18"D Column Laminate Day Lockers
Product SKU
SKU: SSG-4T-121872
Description
- Kit is designed for multiple user locker areas
- Locks are cable-free and battery powered
- Kit includes 24 total lockers
Revit 2018 (3.17 MB)
Revit 2019 (3.17 MB)
Revit 2020 (3.17 MB)
Revit 2021 (3.17 MB)
Revit 2022 (3.17 MB)
Revit 2023 (3.17 MB)
Revit 2024 (3.17 MB)
Revit 2025 (3.17 MB)
Revit 2026 (3.17 MB)
Revit 2027 (3.17 MB)
(0.05 MB)
(0.43 MB)
(8.14 MB)

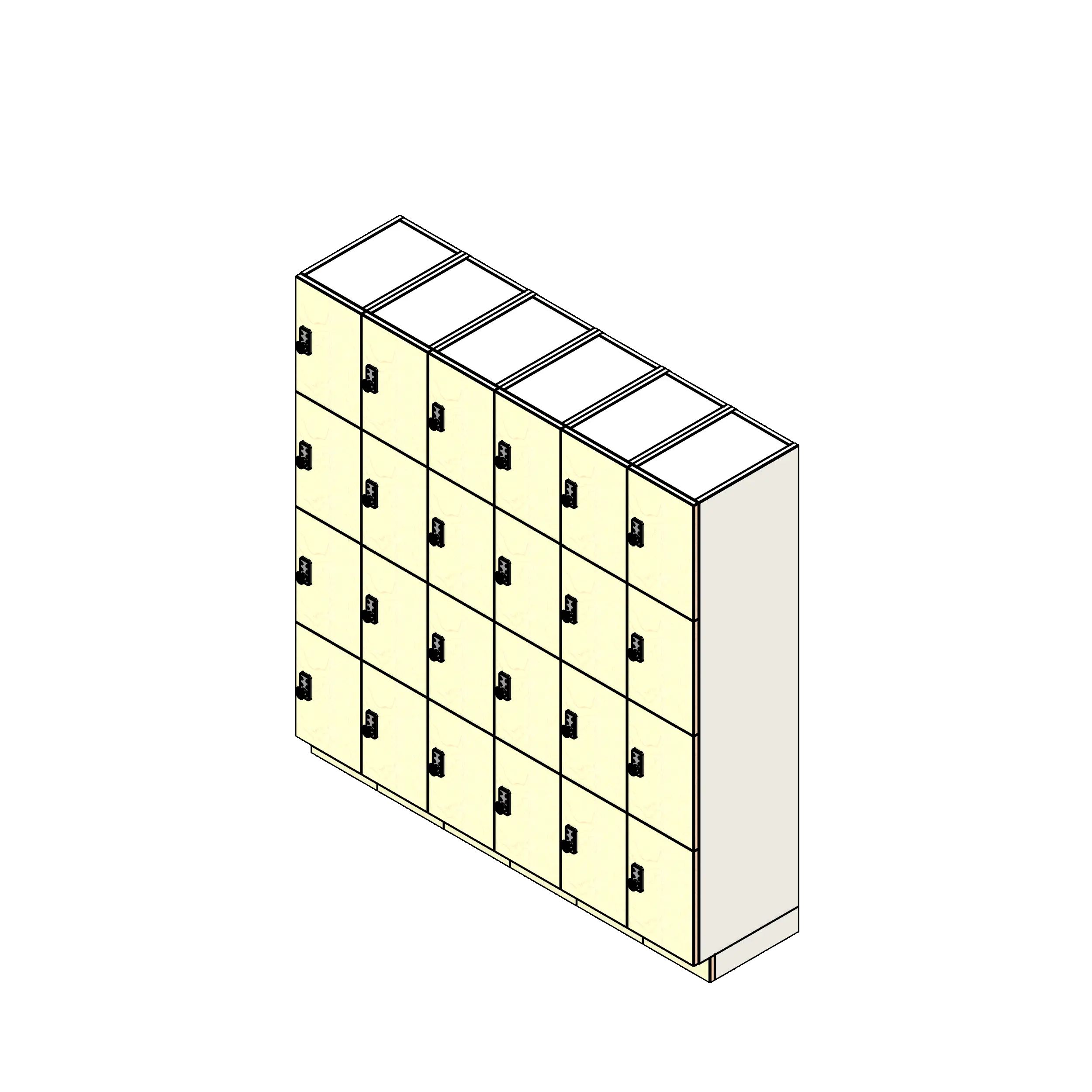

4 Tier - 12"W x 18"D Column Laminate Day Lockers is a 72-inch-wide, 18-inch-deep, 72-inch-high laminate locker bank that provides 24 keyless day-use lockers for multiple-user areas. Six multi-door laminate locker units create four tiers of 12-inch-wide compartments, giving universities, airports, gyms, and offices a compact 18-inch-deep option where many short-term storage spaces are needed along a wall. Cable-free, battery-powered locks remain unaffected by power outages, so users do not need keys or transponders. A bright LED identifies available lockers, while the latch-bolt lock has burglary protection, a metal outer housing, matte chrome front finish, and a possible master code. The lock is rated for up to 100,000 closures. Download the free Revit family.
Each smart day use locker kit was created for high traffic applications like universities, airports, gyms, or offices. Each lock comes with a brightly shining LED which identifies available lockers. Locks are keyless and cable-free so they are unaffected by power outages.
Design
- Other lock type options can be chosen with a potential upcharge. Including Radial combination locks and RFID locks
- Angled top is optional
- Number of Doors, Width, Depth, and Height can be chosen to fill exact needs
| Parameter | Value |
|---|---|
| ENTER Lock Type Number | 2 |
| ENTER Number of Lockers | 4 |
| Width | 1' 0" (12") |
| Cabinet Depth | 1' 6" (18") |
| Height | 6' 0" (72") |
| ADD Angled Top | 0 |
| ADD Integrated Toe Kick | 1 |
| ADD Left End Panel | 0 |
| ADD Right End Panel | 0 |
| Left Hinge | 0 |
| Property | Value |
|---|---|
| Includes Pricing | Yes |
| ADA Compliant | No |
| Has MEP Connectors | No |
| Width | 6' 0" (72") |
| Depth | 1' 6" (18") |
| Height | 6' 0" (72") |
| Number of Columns | 6 |
| Day Locker Tiers | 4 |
| Primary Material | Laminate |
| IFC | Furniture |
| OmniClass | 23-19 13 13 |
