Box-3 Unit-6 Tier 4 Post Shelving Revit model group
Box-3 Unit-6 Tier 4 Post Shelving Revit model group
Updated Jul 27, 2021

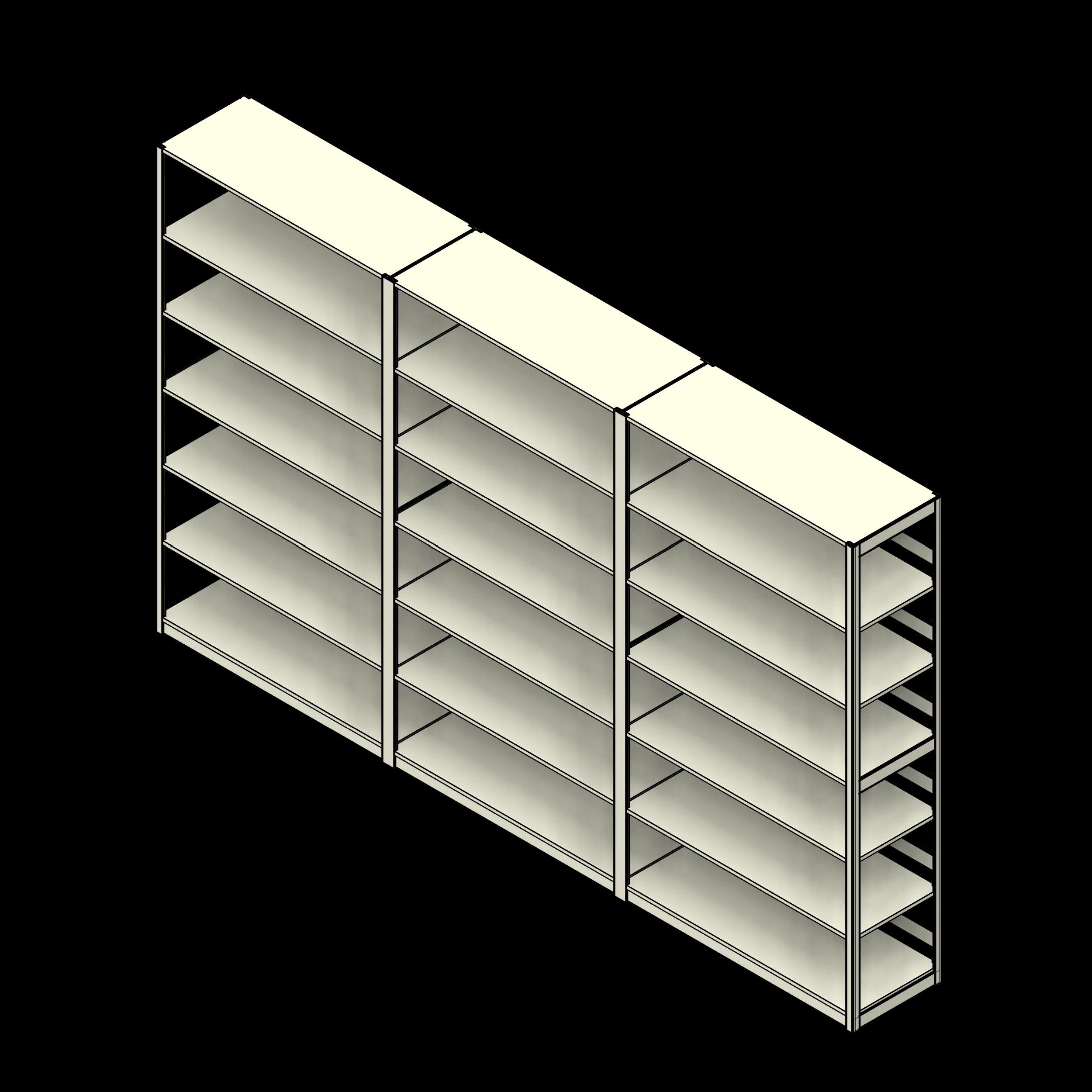

Box-3 Unit-6 Tier 4 Post Shelving

Product SKU

SKU: SSG-4P-126-BOB

Downloads

Get Fetch to load families straight into Revit →
Model group
Pricing

Description

  • 6 Tiers High
  • Great for file storage
  • Flexible components for adaptable storage
  • Shelf system

Questions about this product?

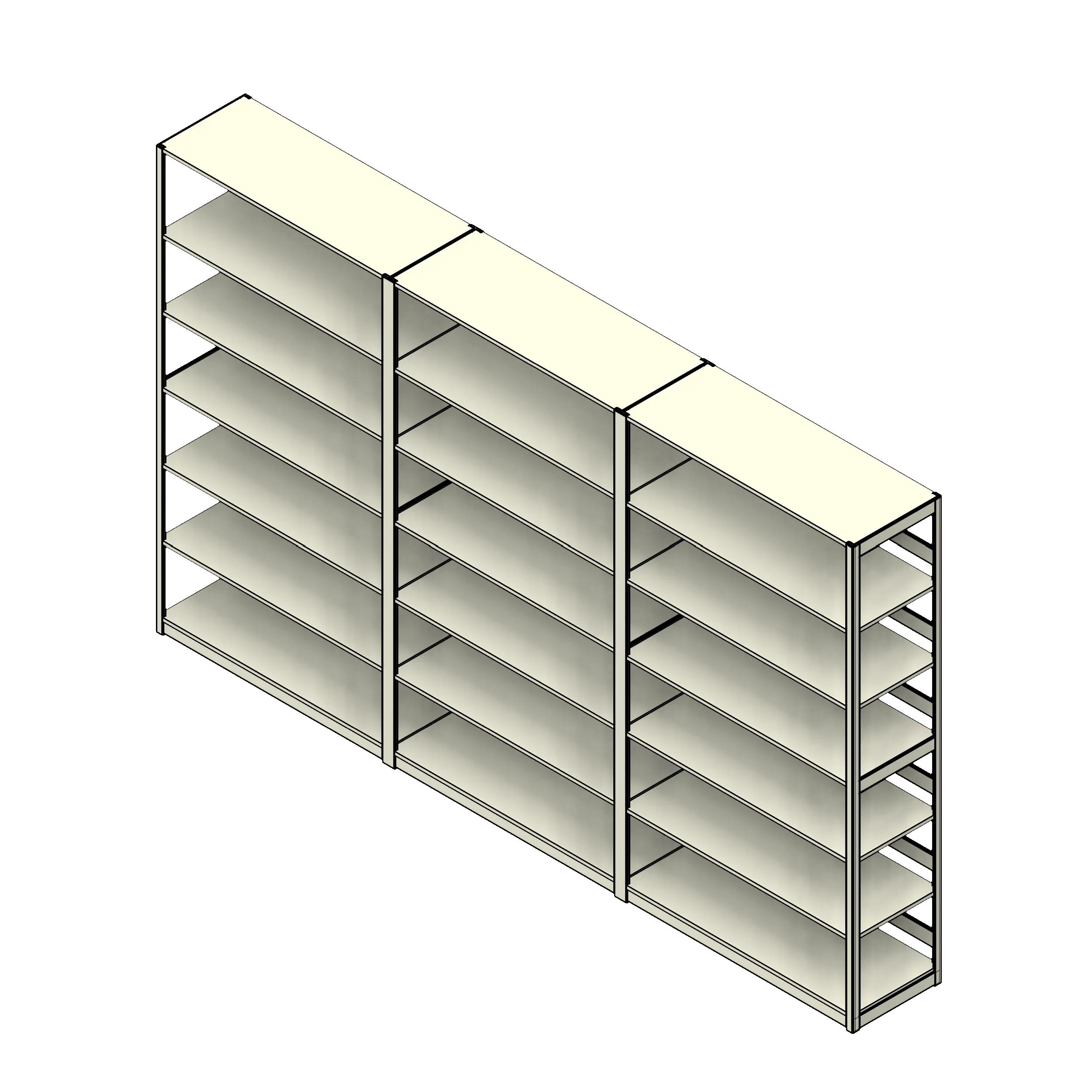

This 126 in. wide, 16 in. deep, 76 in. high shelving run combines three 4-post assemblies and six tiers for box storage in business settings where a long, shallow storage layout is needed. The 10 ft. 6 in. run organizes boxes and file storage across three units without increasing the 16 in. depth. Powder-coated steel shelves adjust independently in 1-1/2 in. increments, allowing storage teams to reset shelf clearance as box sizes or filing needs change. Formed steel uprights have keyhole slots on the inner wall, and shelf supports with solid steel shoulder rivets interlock with them, so the system assembles without nuts, bolts, clips, or special tools. File dividers, center stops, reference shelves, back stops, backs, bin dividers, bin fronts, laminate end panels, and end-panel mounting brackets are listed accessories for tailoring the storage arrangement.

The 4-Post line is designed to be highly flexible and adaptable with every Revit model built to reflect its real world counterparts as closely as possible. Use the prebuilt shelving family to visualize your storage solutions or use the shared sub-component families to build your own custom solution right down to the last shelf.

Our 4-Post shelving incorporates both “L” & “T” shaped uprights allowing for a variety of shelving configurations. All shelf units are assembled without the use of nuts, bolts, or clips and are available for both single entry (wall unit) and double entry (back to back storage) allowing for maximum filing/storage capacity with minimal floor intrusion. Shelves are available slotted to accept adjustable file dividers. All shelf units are designed for expansion and are available as mobile-ready for easy conversion. Our 4-Post units are ready to assemble with no special tools required. Available depths make it an ideal choice for letter, legal, binder, and book storage applications.

Specifications
Dimensions
Width126"
Depth16"
Height76"
Product
Number of Columns3
Number of Levels6
Primary MaterialPowder coated steel
Type of Storage SizeBox
Classification
IFCFurniture
OmniClass23-21 11 11 11
Revit family
Includes PricingYes
ADA CompliantNo
Has MEP ConnectorsNo
Configurable options
  • Base option
  • Divider option
  • Dividers per shelf
  • Openings
  • Back panel
  • Doors
  • Open upright
