Product SKU
Description
- Frequently used in classrooms, locker rooms, or secure facilities for storing distracting or unauthorized electronics
- In-wall installation is secure without taking up floor space
- Optional large doors can store larger electronics such as small laptops, tablets, game consoles, etc.
Revit 2019 (1.13 MB)
Revit 2020 (1.13 MB)
Revit 2021 (1.13 MB)
Revit 2022 (1.13 MB)
Revit 2023 (1.13 MB)
Revit 2024 (1.13 MB)
Revit 2025 (1.13 MB)
(0.03 MB)
(0.02 MB)
(0.52 MB)
(0.23 MB)

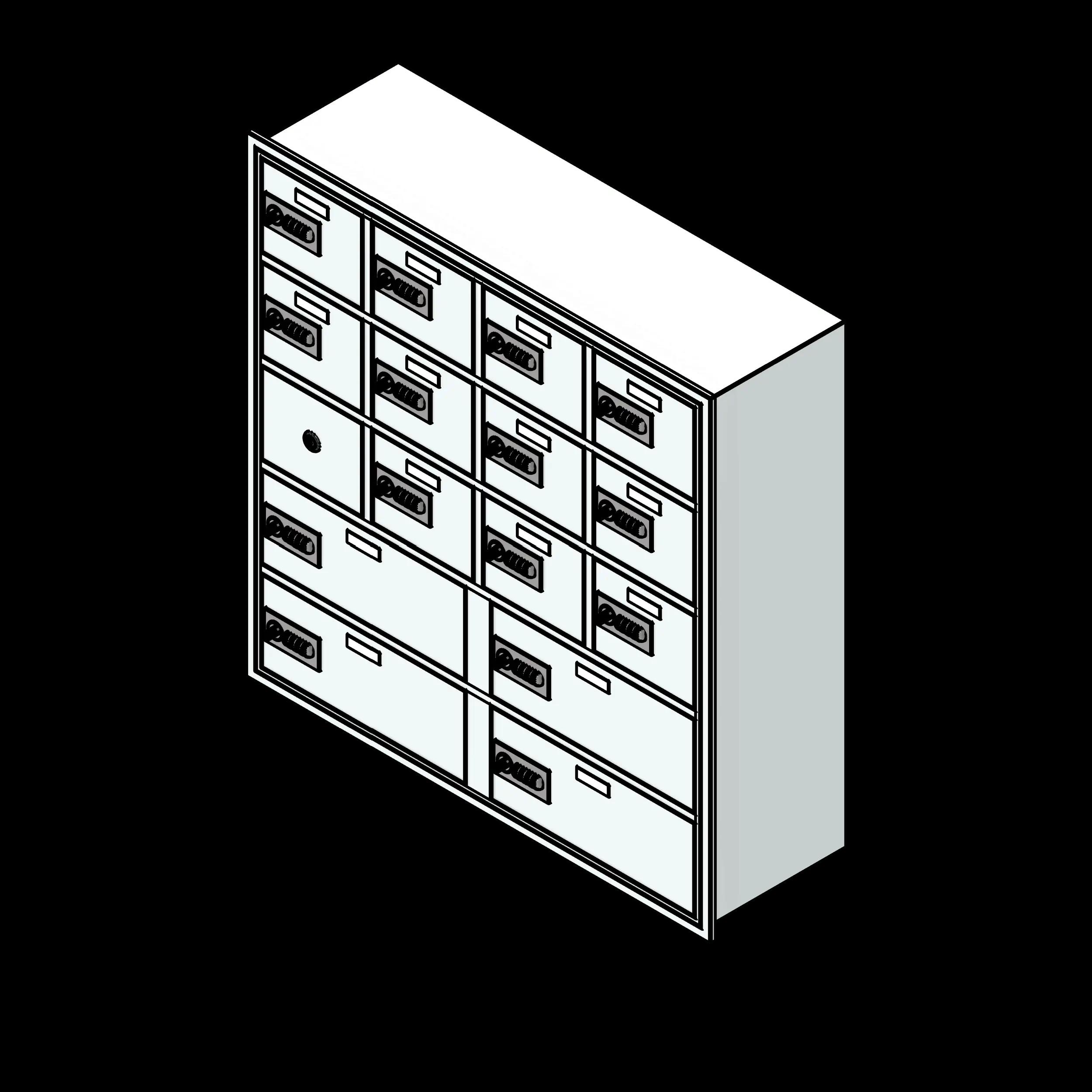

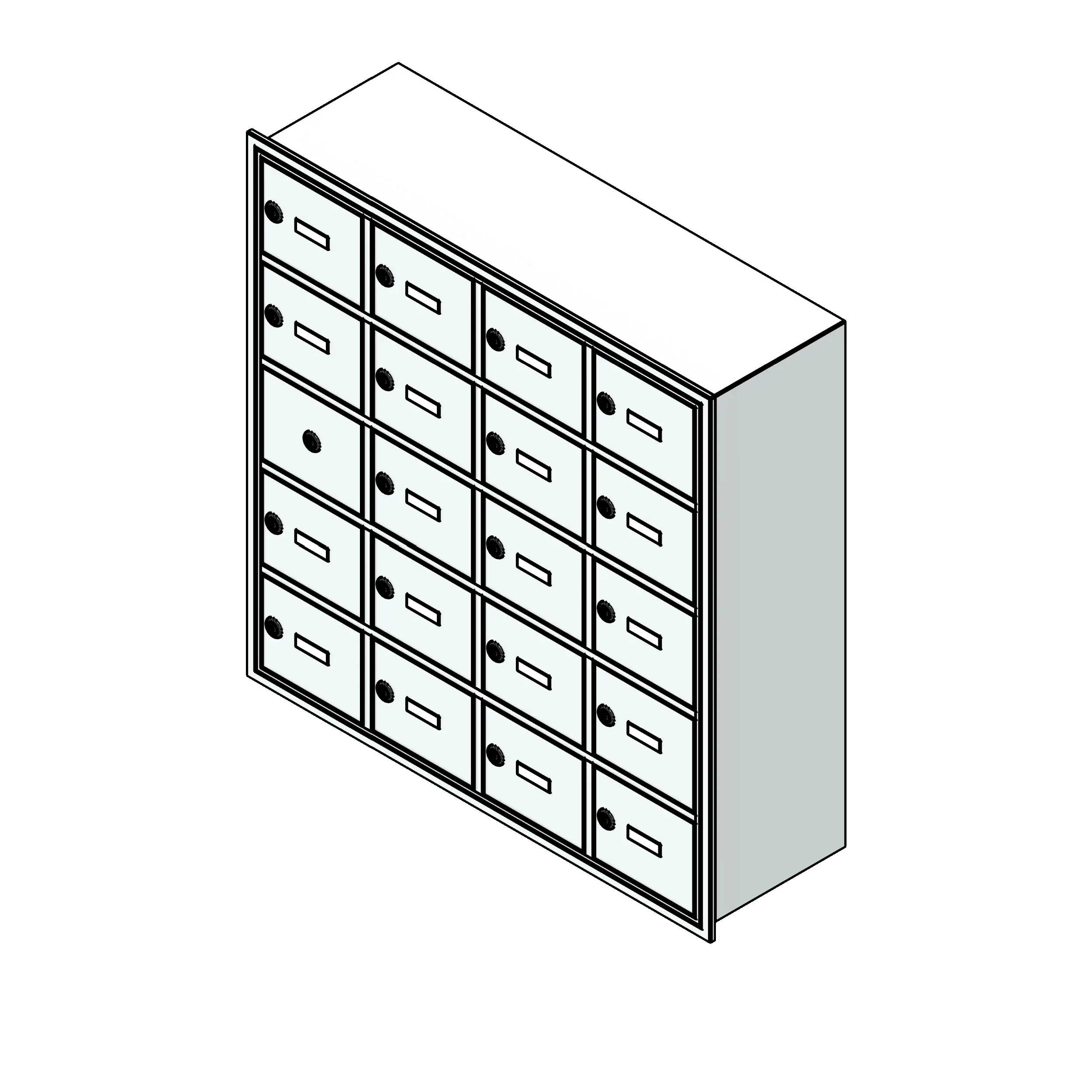

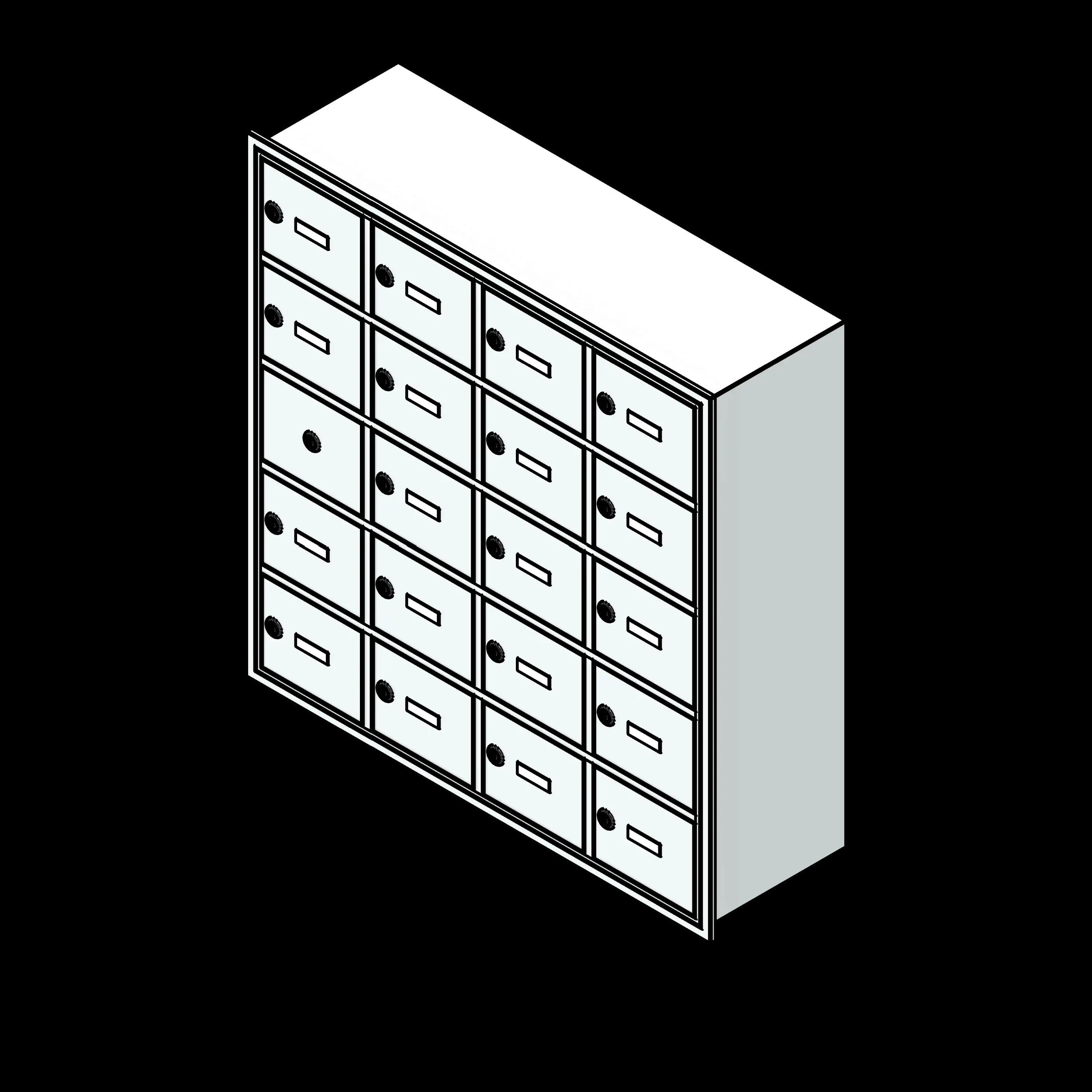

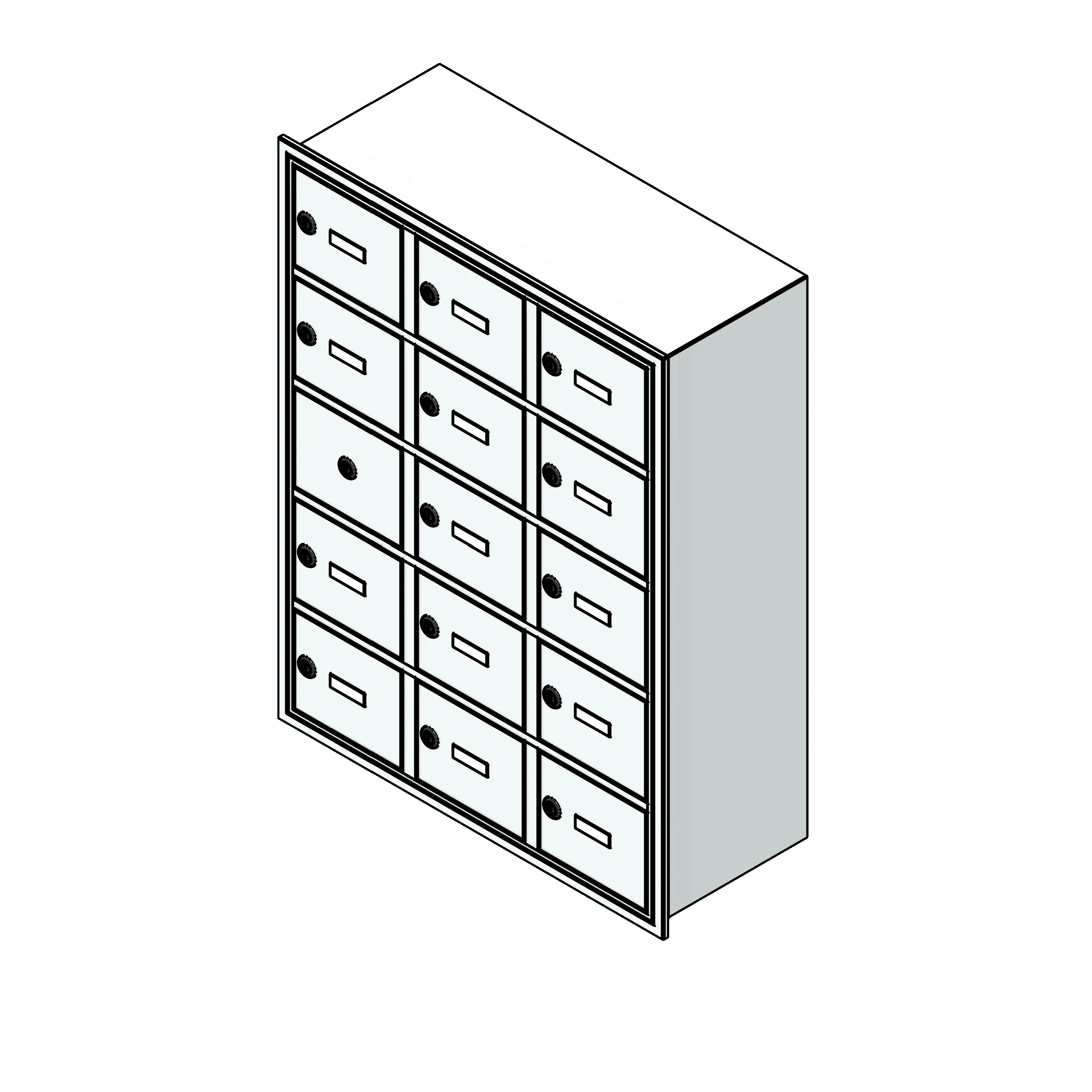

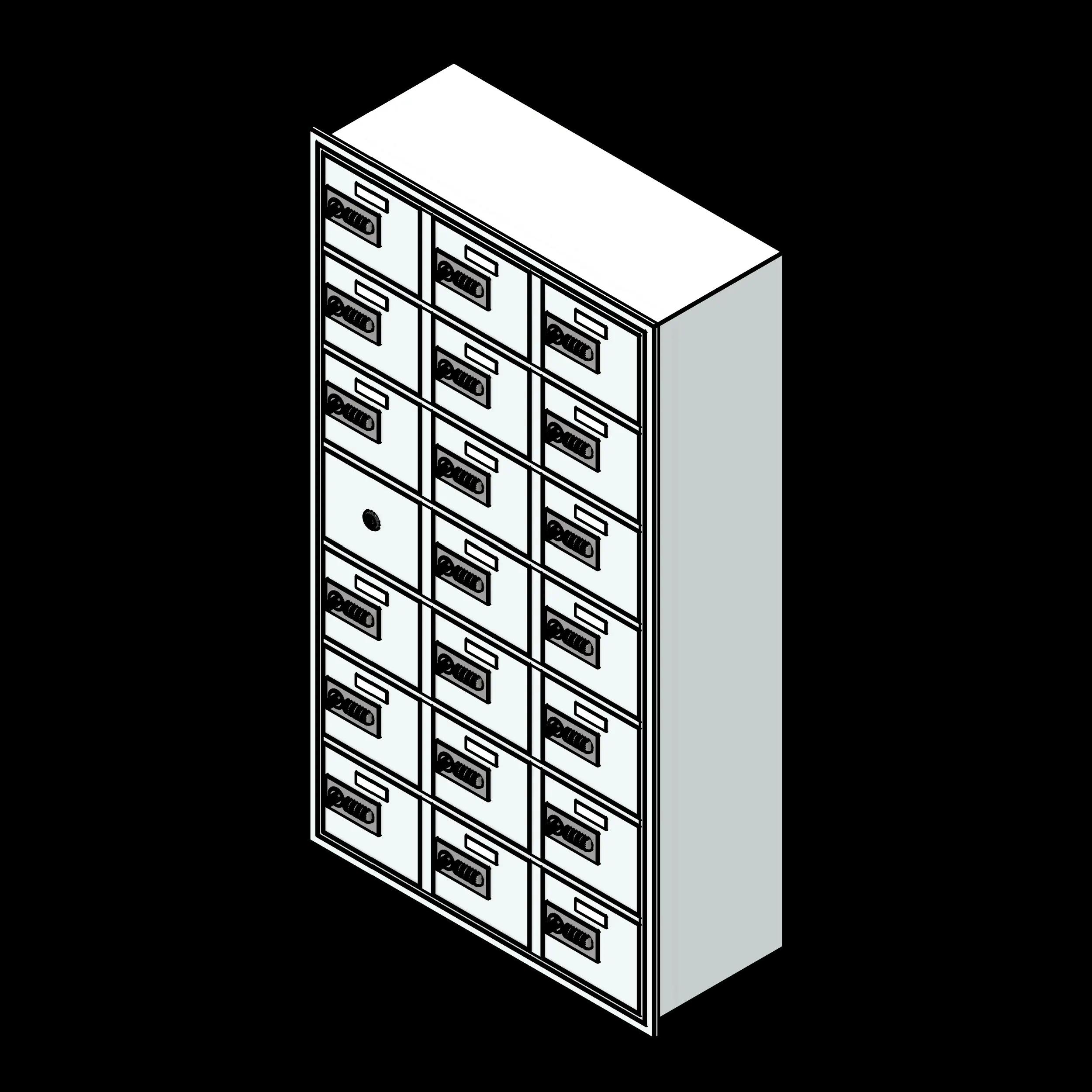

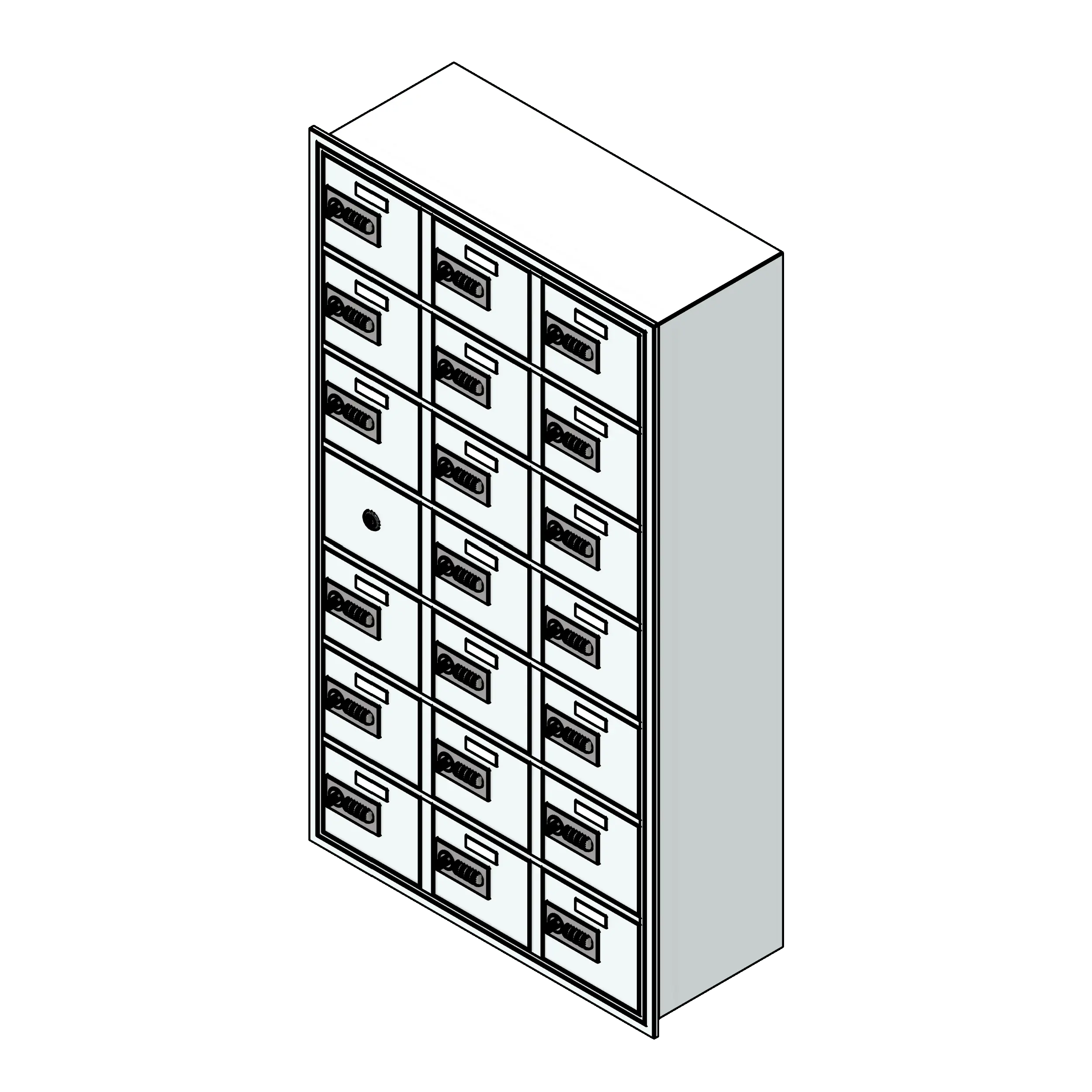

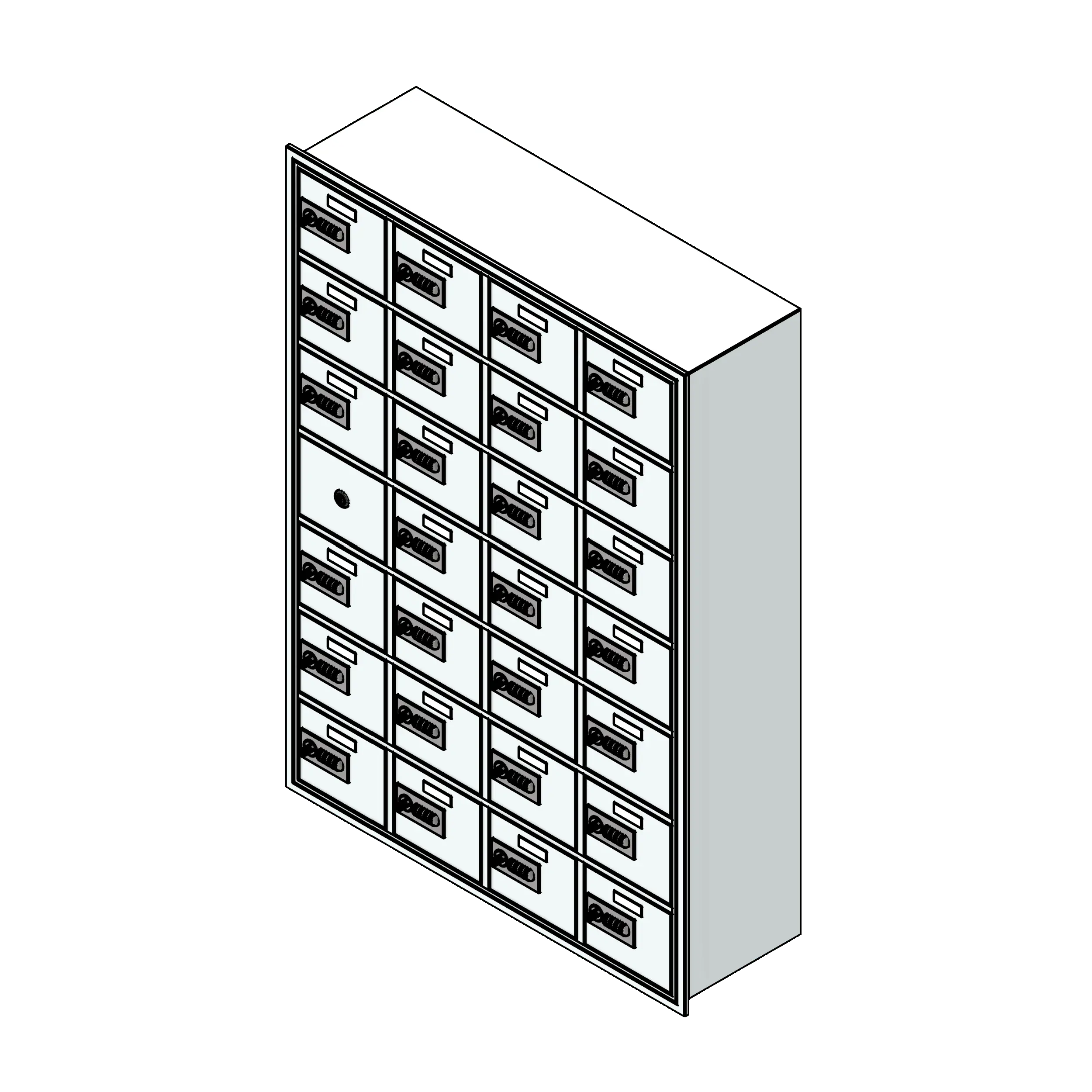

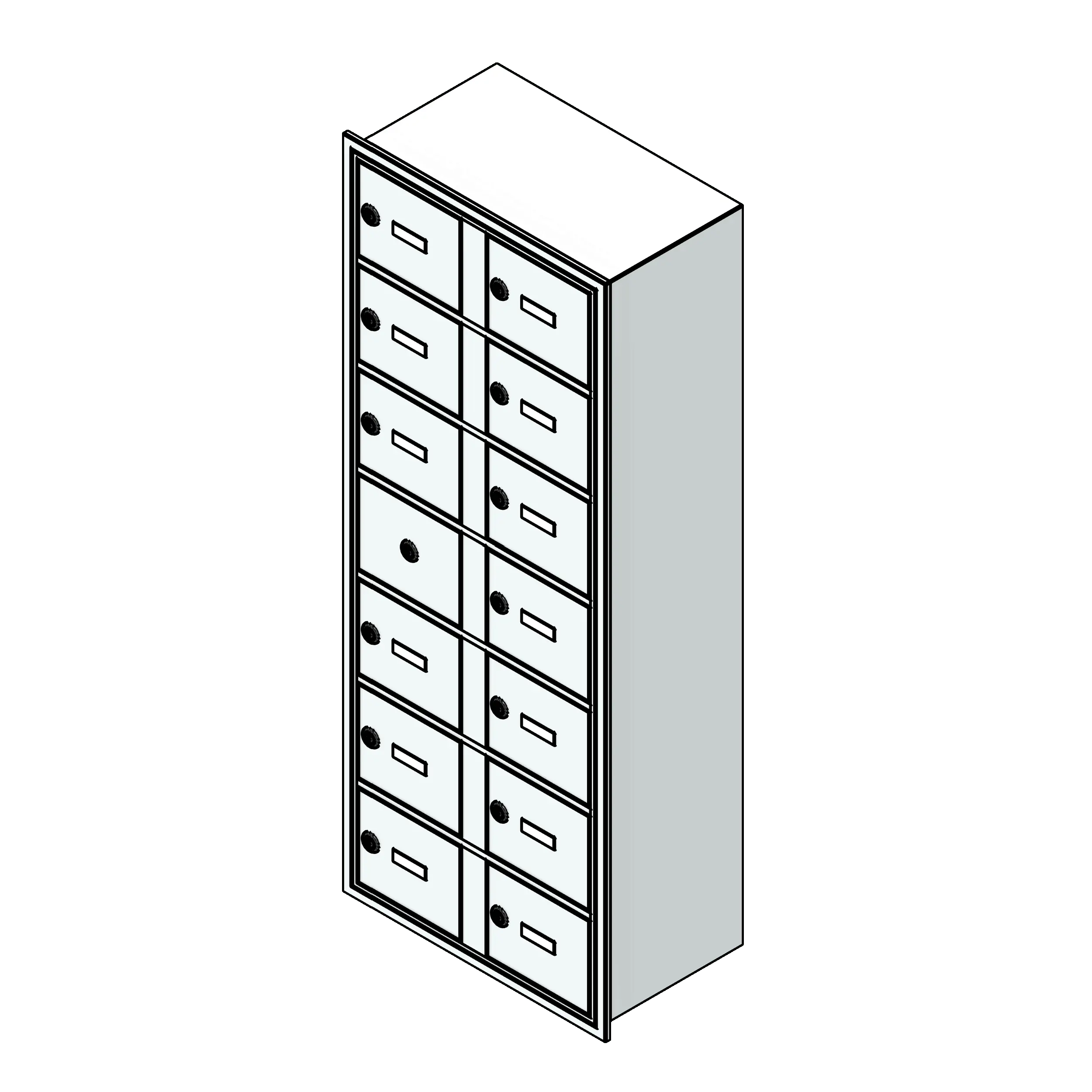

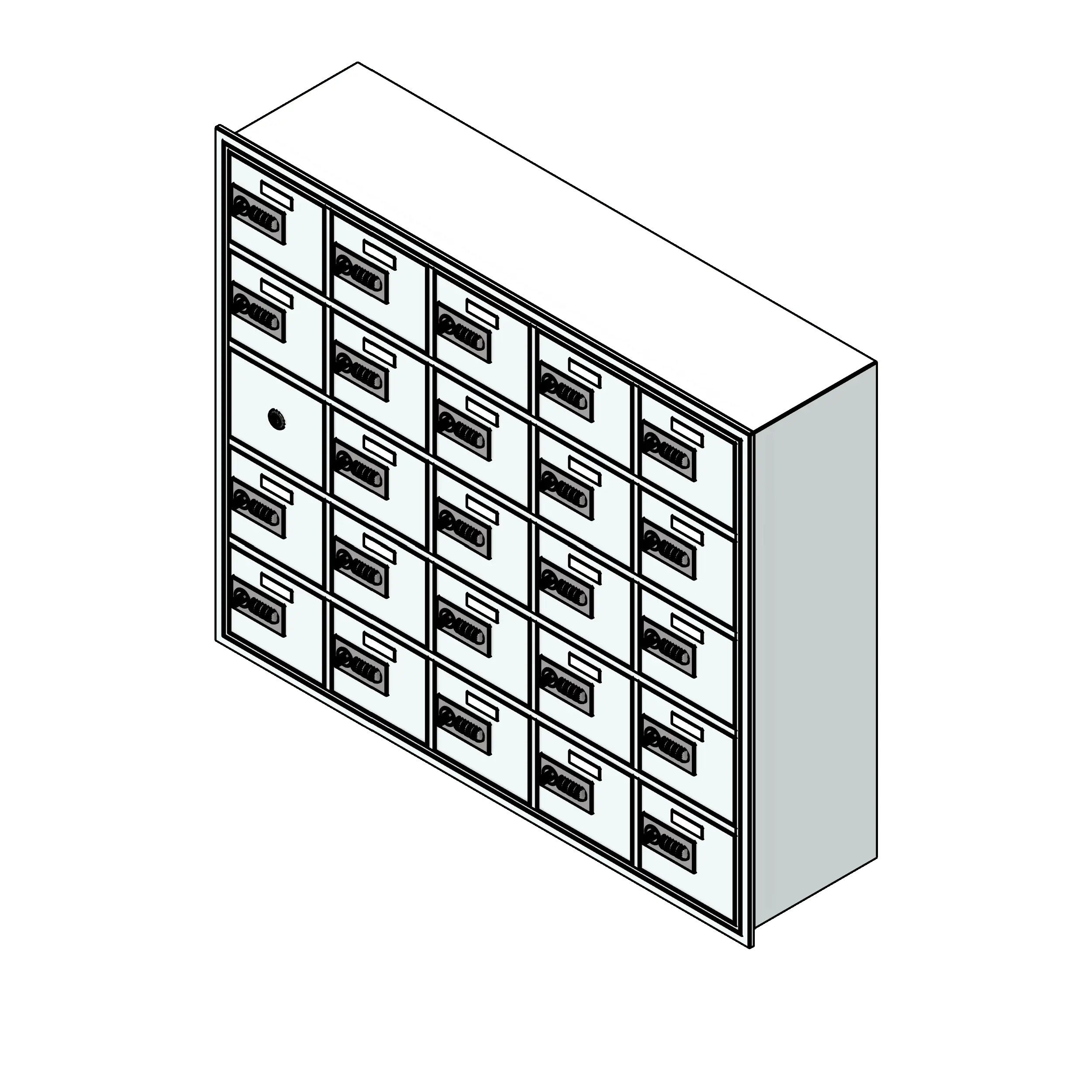

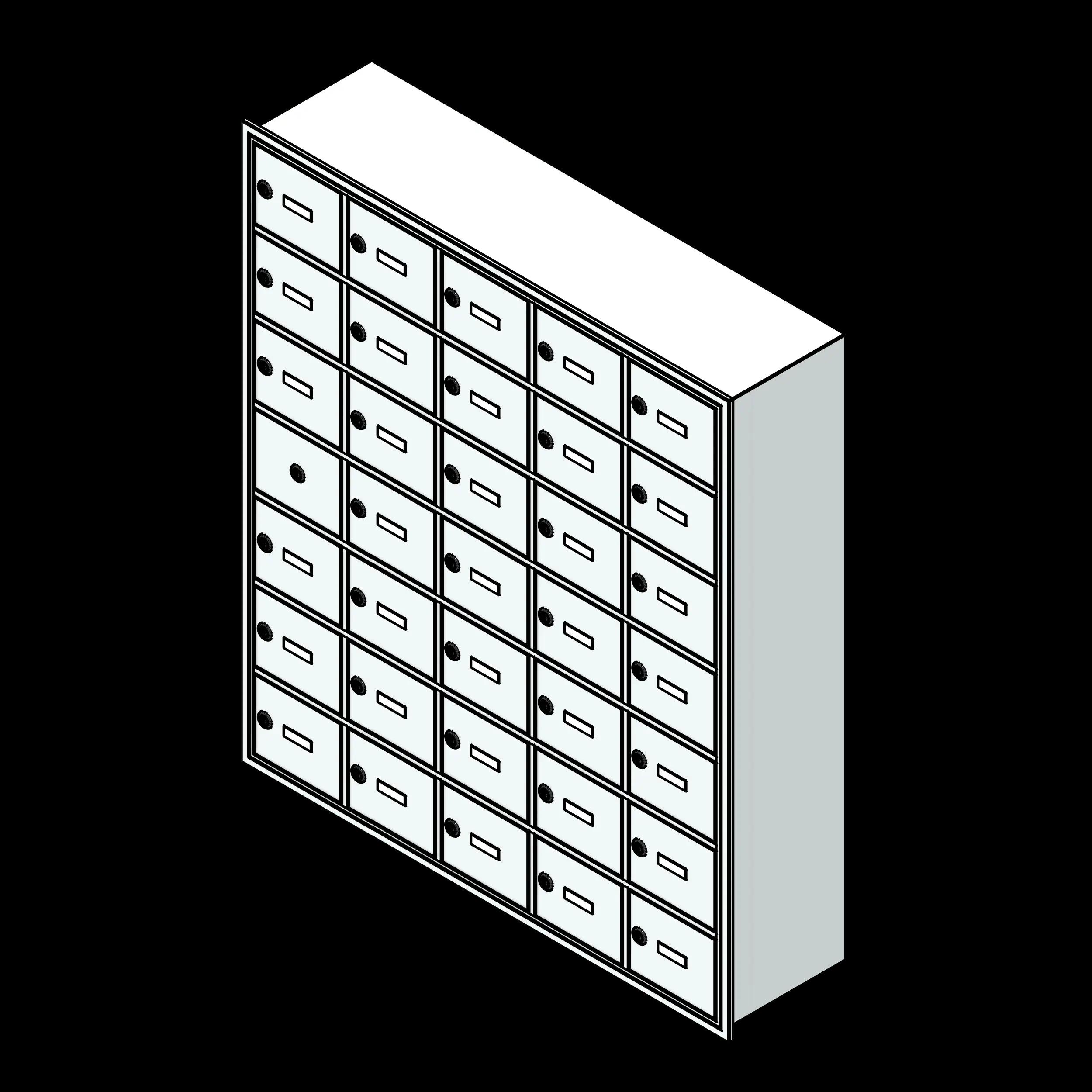

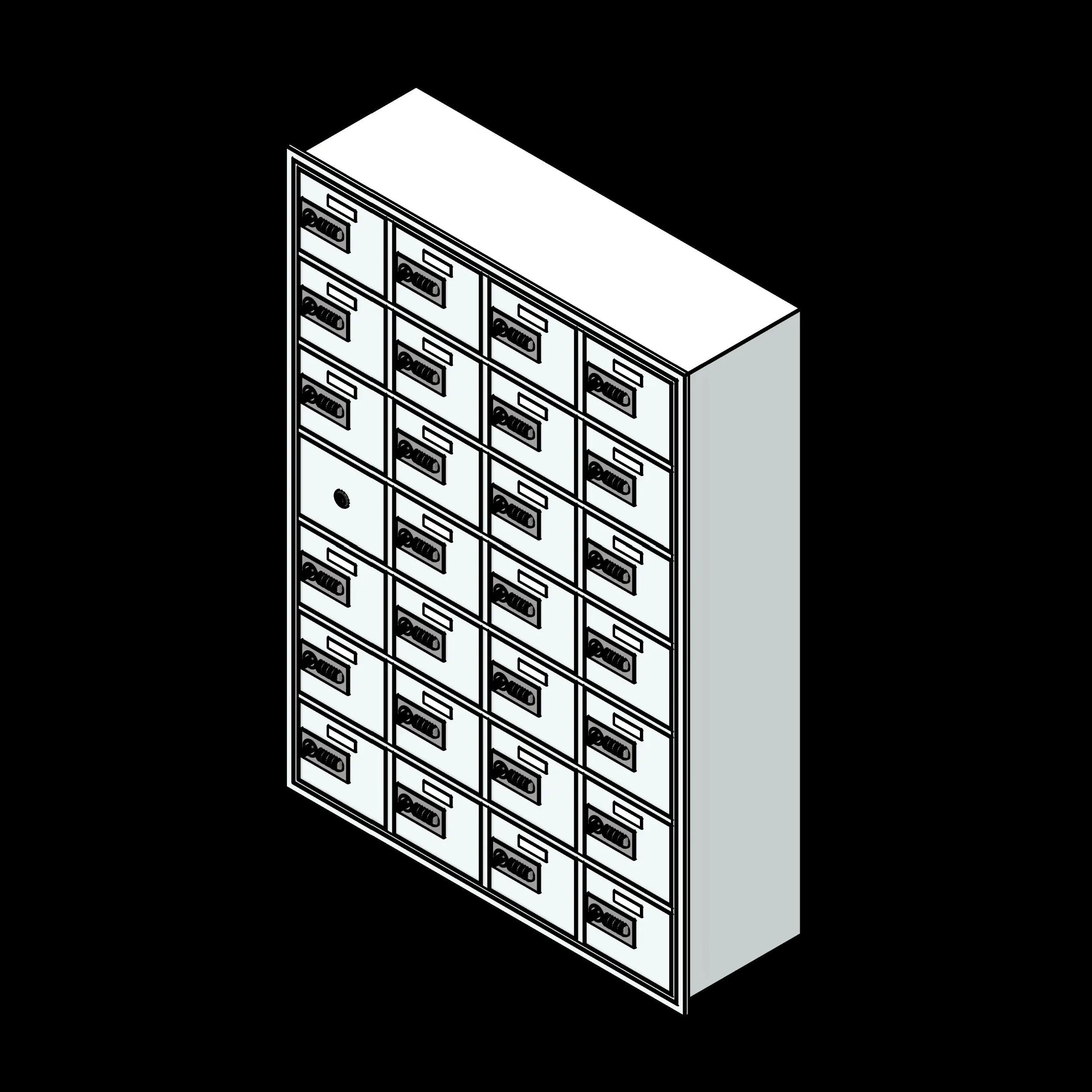

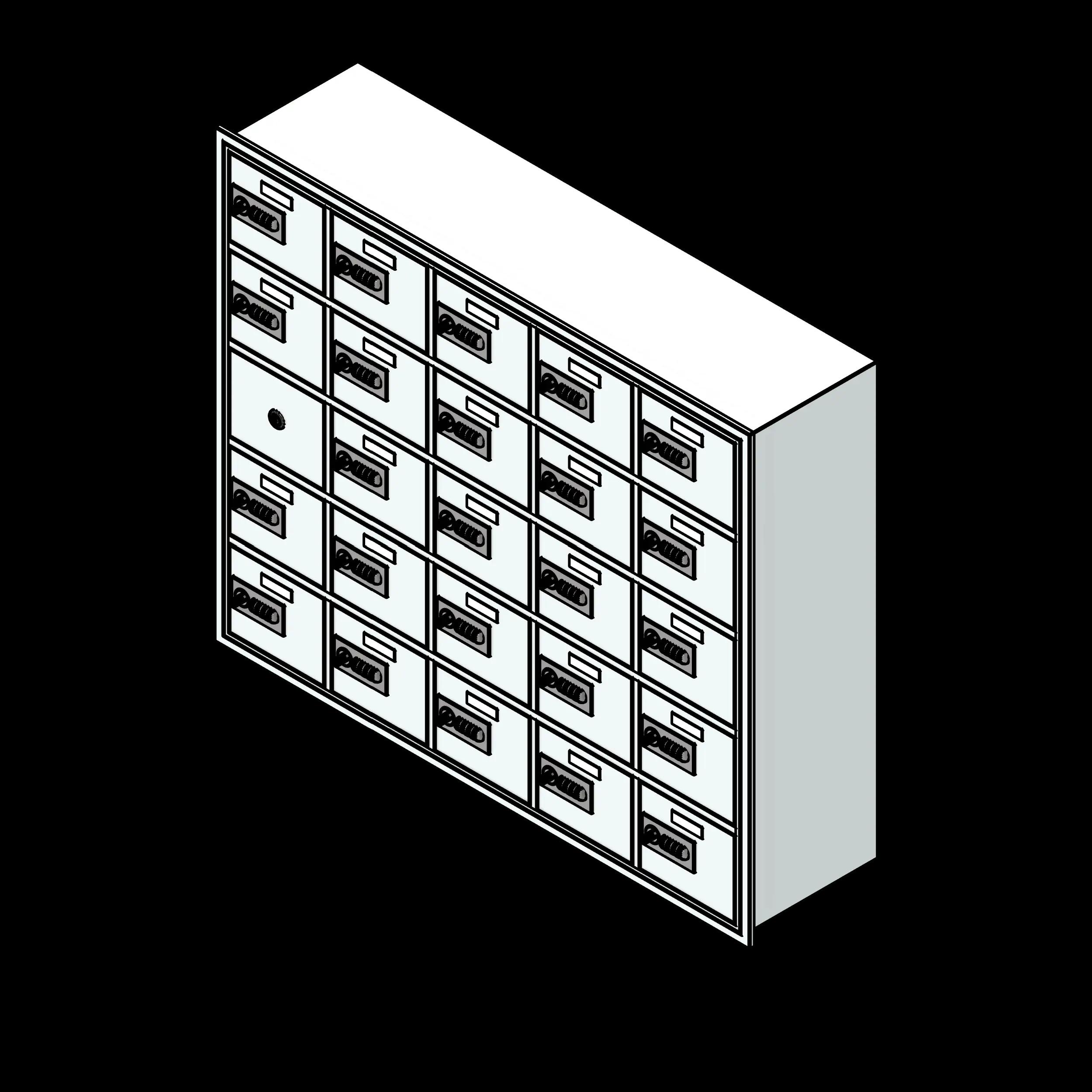

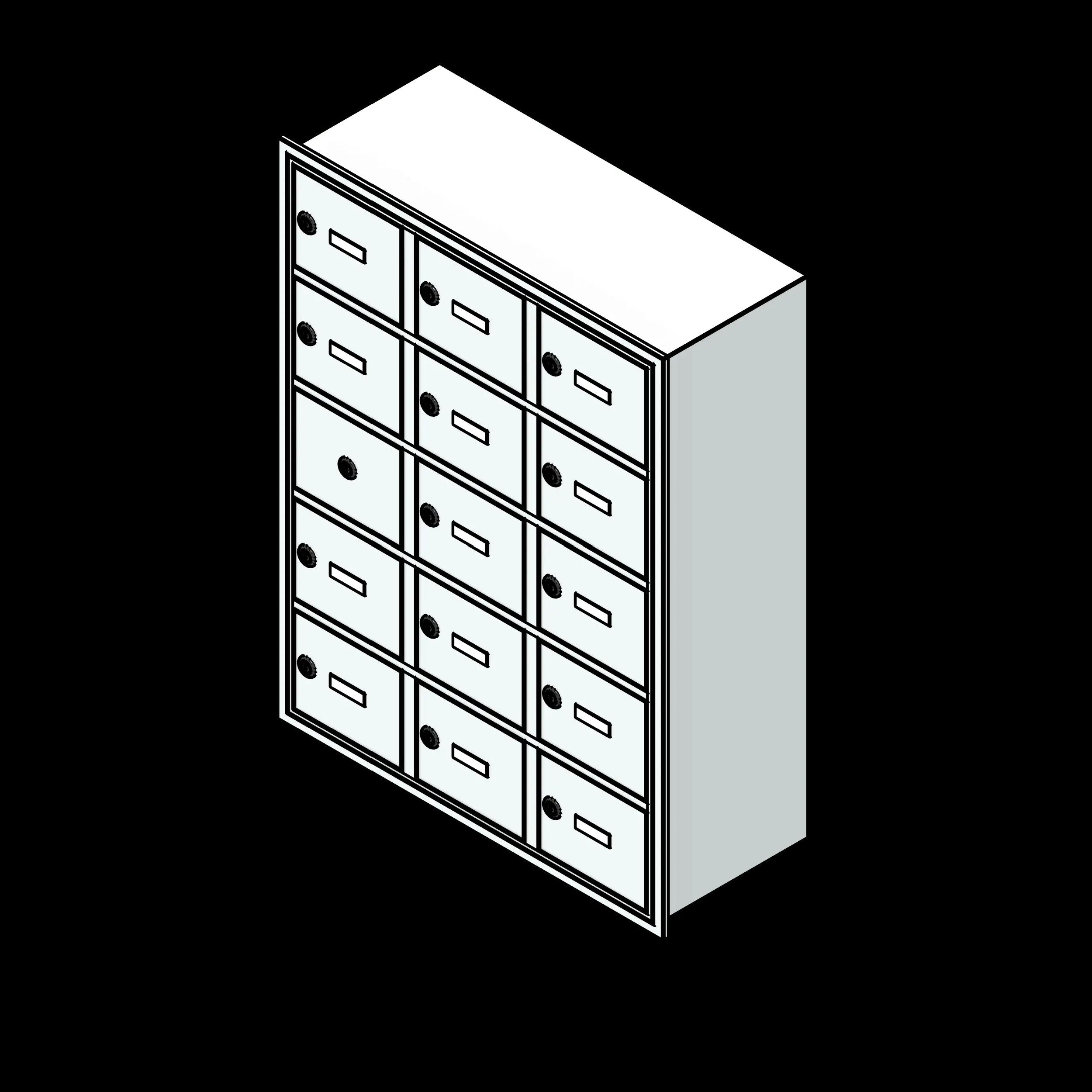

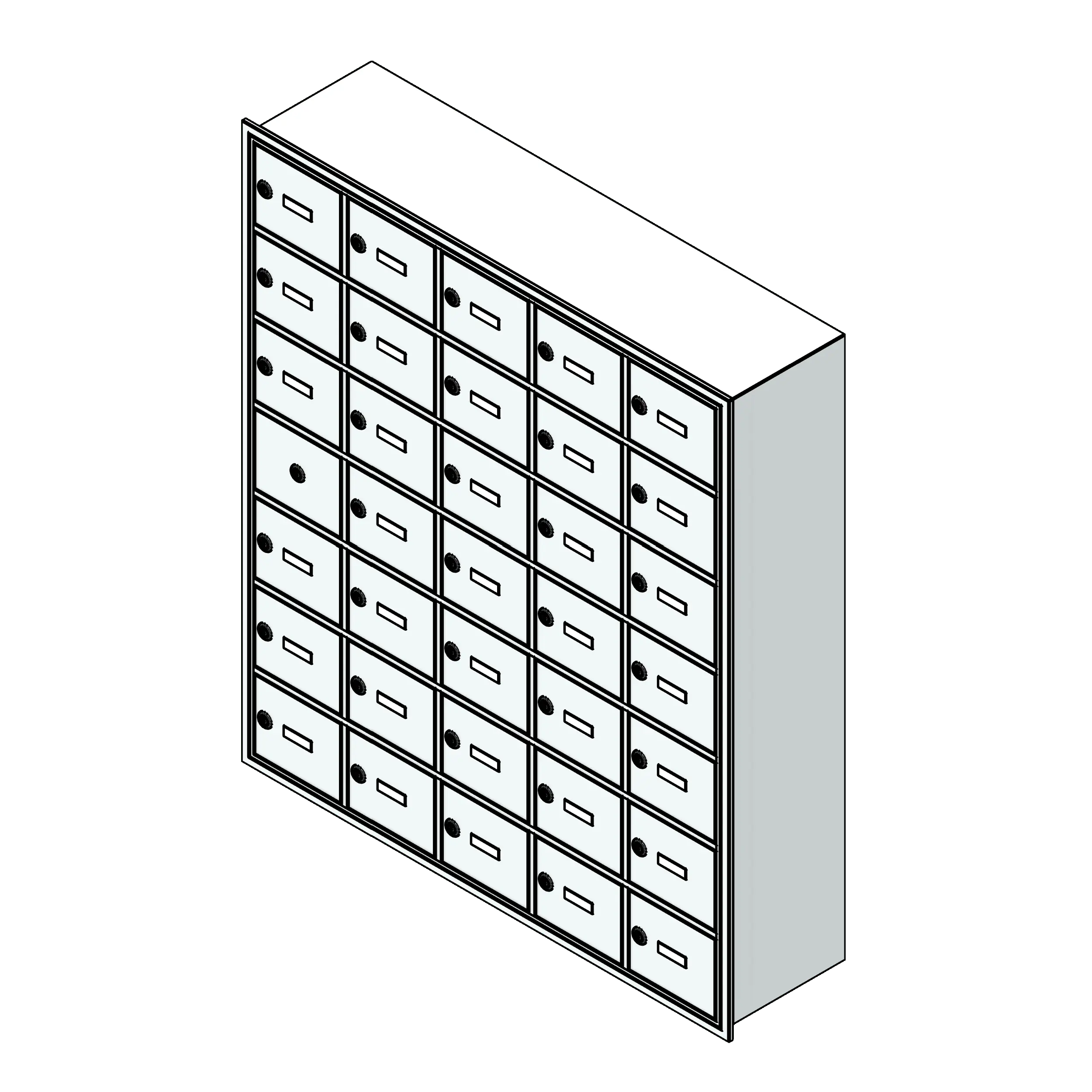

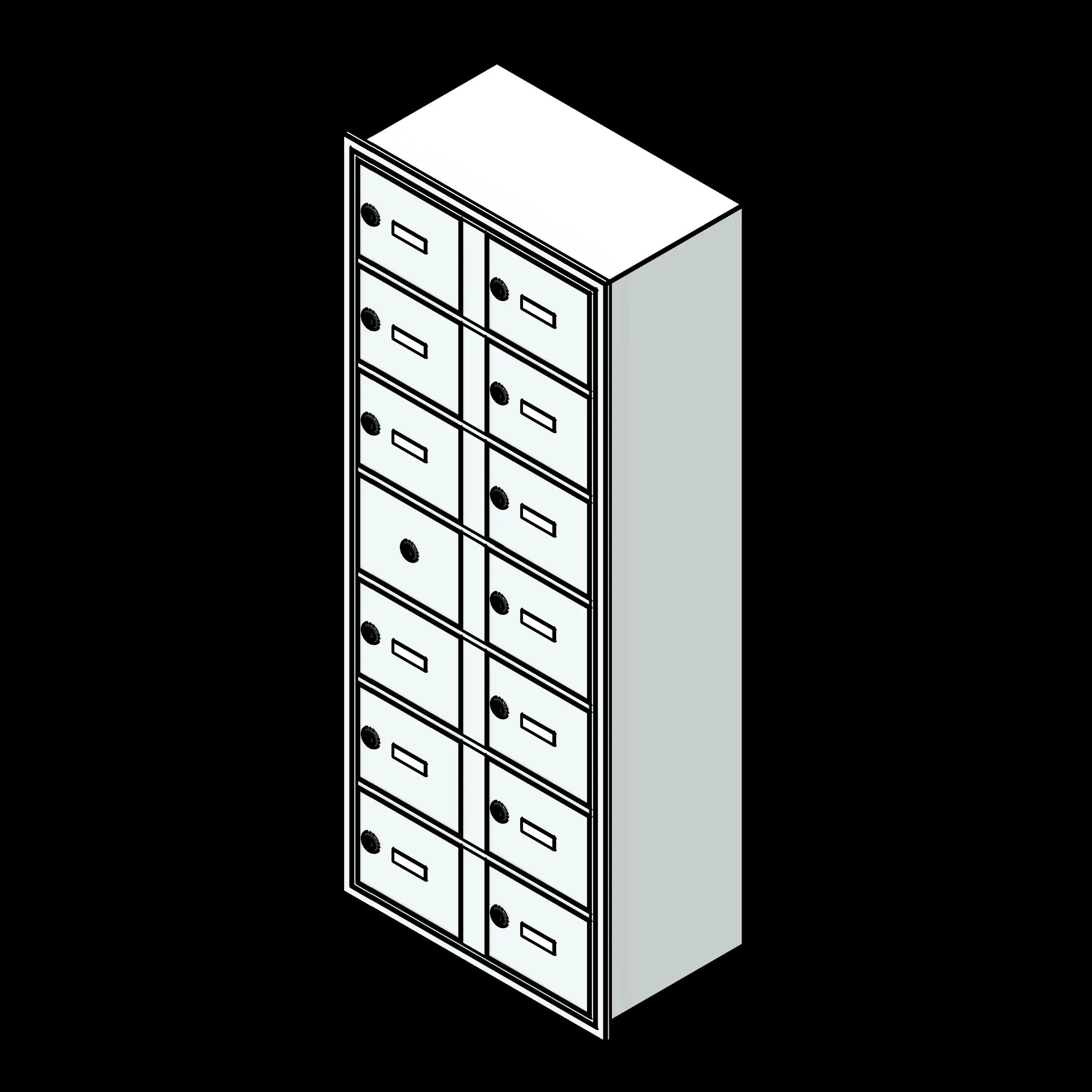

Recessed Cell Phone Locker

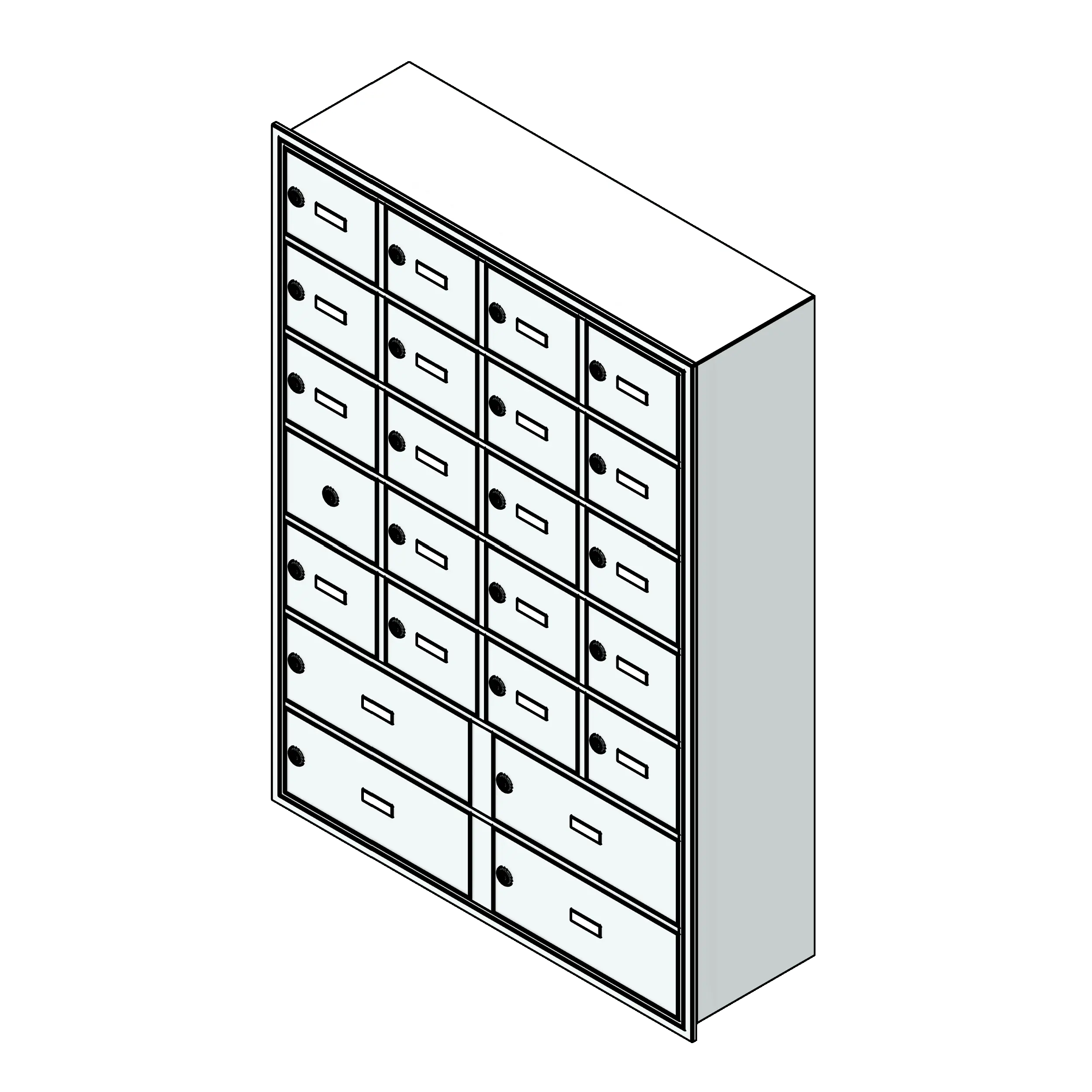

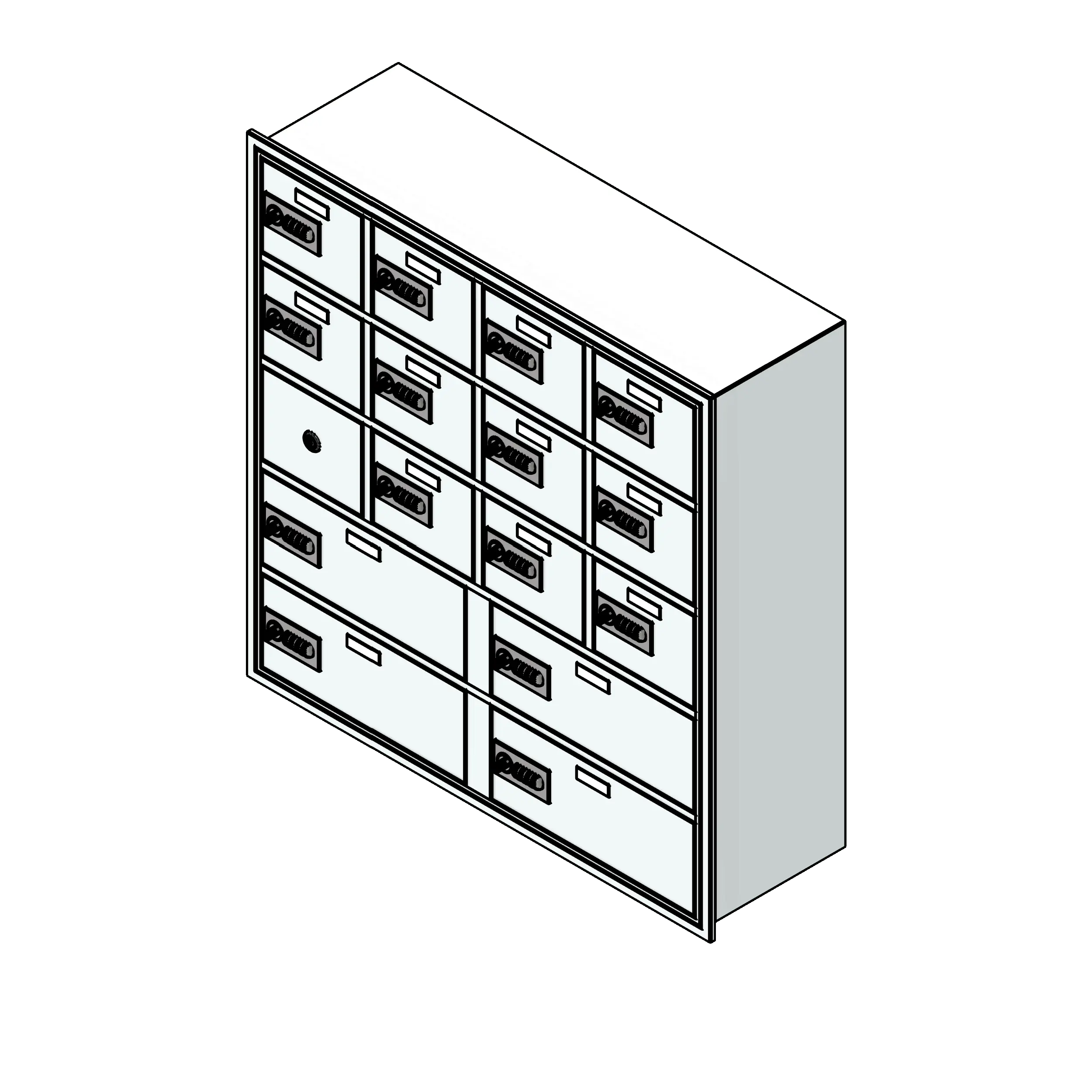

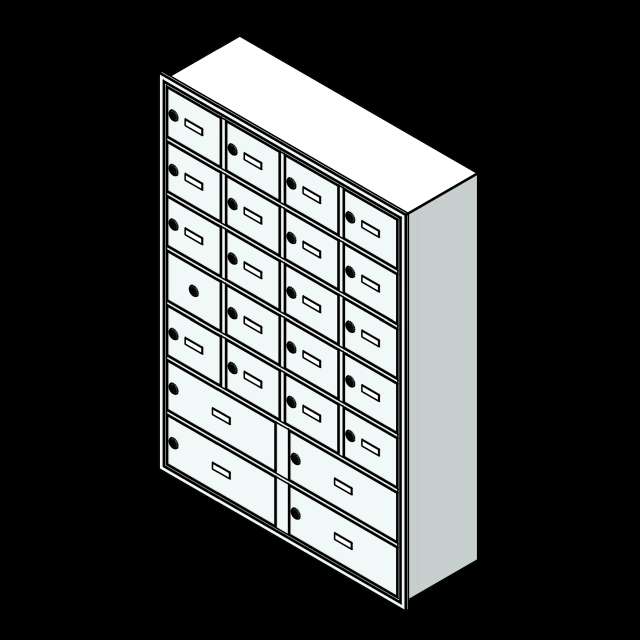

To use this family, import it into your project and click on a wall or other face to place. The included void will automatically cut into the wall. From there, select your preferred lock option and enter the number of openings desired. The model will automatically scale and insert the correct number of openings. Large bottom doors are available on all units with 4 openings wide, noted by "ELEGIBLE_Large Bottom Doors." Weight, pricing, and product codes are included with this family.
| Parameter | Value |
|---|---|
| Standard Widths | 16 1/4", 22 3/4", 29 1/4", 35 3/4" |
| Minimum Width | 1' 4 1/4" (16 1/4") |
| Maximum Width | 2' 11 3/4" (35 3/4") |
| Standard Depths | 9" (8" compartments) |
| Minimum Depth | 0' 9" (9") |
| Maximum Depth | 0' 9" (9") |
| Standard Heights | 29 3/4", 40 3/4" |
| Minimum Height | 2' 5 3/4" (29 3/4") |
| Maximum Height | 3' 4 3/4" (40 3/4") |
| Manufacturer | Southwest Solutions Group_SAL |
| Lead Time | Ships in 20-25 business days |
| Model | 191 |
| Keynote | 10 51 13 |
| Assembly Code | E2010200 |
| Author | AWright |
| Toll Free Number | 1-800-803-1083 |
| Property | Value |
|---|---|
| Includes Pricing | Yes |
| ADA Compliant | No |
| Has MEP Connectors | No |
| BIMobject Category | Furniture: Shelving & Storage |
| IFC | Furniture |
| Omniclass | 23 40 50 11 14 |
| Primary Materials | Powder coated steel |
