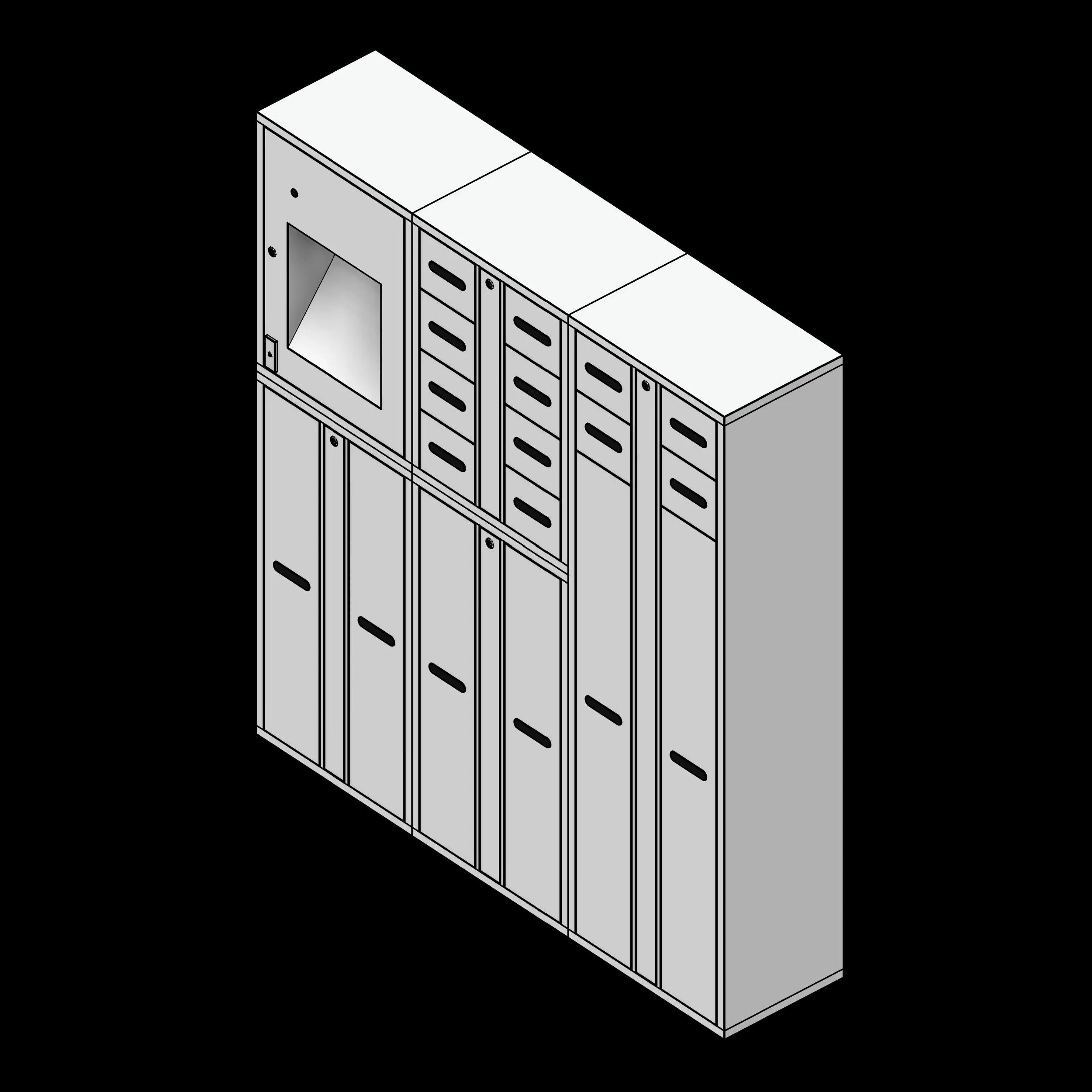

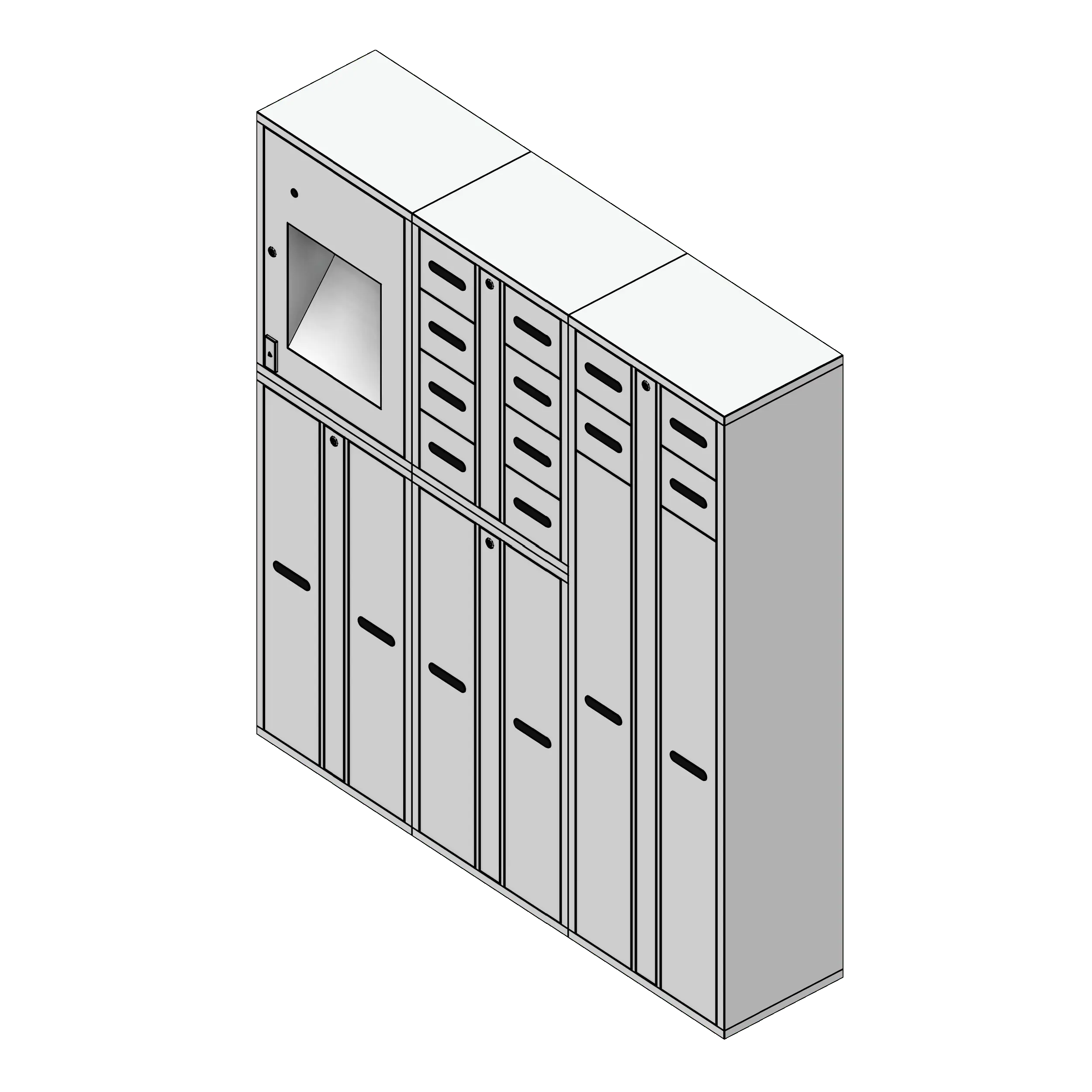

· Updated Jan 2, 202418 Door Weapons Tracking Locker
Product SKU
SKU: ssg-weapons locker-18 Door
Description
- 18 electronically controlled doors
- Access is controlled and logged via individual RFID key cards
- Each configuration includes a mix of hand gun, long gun, and oversized doors
Revit 2020 (2.40 MB)
Revit 2021 (2.40 MB)
Revit 2022 (2.40 MB)
Revit 2023 (2.40 MB)
Revit 2024 (2.40 MB)
Revit 2025 (2.40 MB)
Revit 2026 (2.40 MB)
Revit 2027 (2.40 MB)
(0.97 MB)
(1.95 MB)
(0.23 MB)
This family is designed to include all the necessary configurations to create your own smart weapons storage solution. To use this family, insert it into your project using the Fetch app and place as many units as you desire. One console is required for each group of locker units. The family includes a 12" filler for when a console or handgun unit (30" tall) is directly adjacent to long gun lockers (42" tall).
| Parameter | Value |
|---|
| Property | Value |
|---|---|
| Includes Pricing | Yes |
| ADA Compliant | No |
| Has MEP Connectors | Yes |
| Width | 5' 6" (66") |
| Depth | 1' 3" (15") |
| Height | 6' 0" (72") |
| # of Openings | 18 |
| Qty: Hand Gun Doors | 10 |
| Qty: Long Gun Doors | 4 |
| Qty: Oversize Doors | 2 |
| Qty: Touchscreens | 1 |
| Primary Material | Powder Coated Steel |
| IFC | Furniture |
| MasterFormat | 10 51 13 – Metal Lockers |
| OmniClass | 23.40.20.11.17 – Lockers |
| UniFormat | E2010 – Fixed Furnishings |
