Updated Aug 20, 2021
5 Tier - 18"W x 18"D Column Laminate Day Lockers Revit model group
5 Tier - 18"W x 18"D Column Laminate Day Lockers Revit model group
Updated Aug 20, 2021

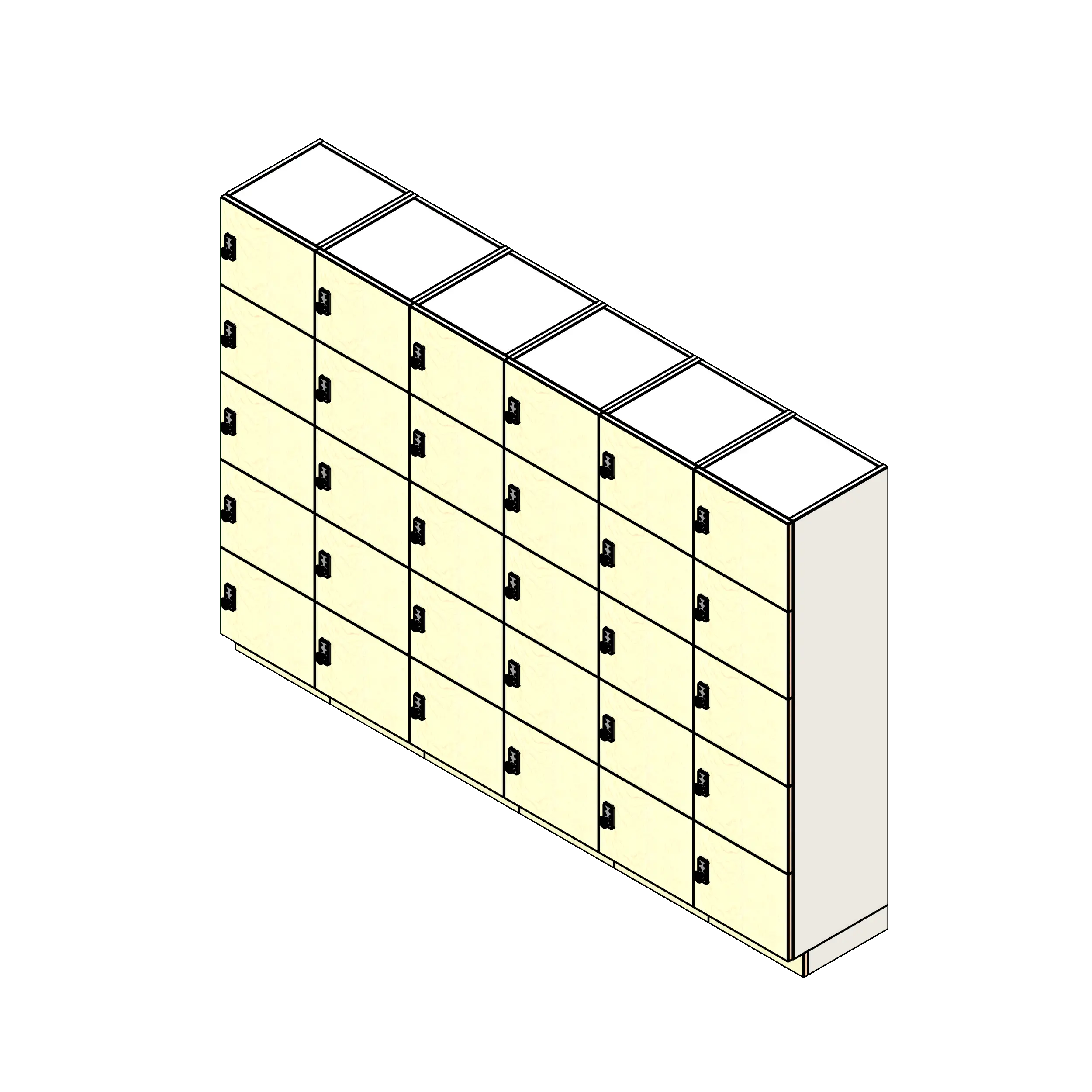

5 Tier - 18"W x 18"D Column Laminate Day Lockers

Product SKU

SKU: SSG-5T-181872

Downloads

Model group
Pricing

Description

  • Kit is designed for multiple user locker areas
  • Locks are cable-free and battery powered
  • Kit includes 30 total lockers

Questions about this product?

This keyless laminate day-use locker kit of 5-tier, 18" W x 18" D columns provides 30 lockers for high-traffic shared storage areas. The six-column configuration forms a 9 ft wide by 18 in deep by 6 ft high locker bank, providing five tiers of individual storage while limiting the locker run to an 18 in projection. Specify this configuration for universities, airports, gyms, or offices where many users need short-term storage and the layout calls for a 9 ft locker bank with a shallow 18 in depth. Each lock is cable-free and battery powered, so the lockers remain unaffected by power outages. Bright LED indicators identify available lockers, helping users find open storage without external programming devices, keys, or transponders. The laminate locker cabinets use 3/4 in industrial-grade, double-faced melamine substrate with 2 mm PVC edge banding on exposed edges. Rail-mounted cabinets support installation, while hidden cam fasteners connect the panels. Latch-bolt locks have metal outer housings, matte chrome fronts, burglary protection, a possible master code, and a lifespan of up to 100,000 closures.

Each smart day use locker kit was created for high traffic applications like universities, airports, gyms, or offices. Each lock comes with a brightly shining LED which identifies available lockers. Locks are keyless and cable-free so they are unaffected by power outages.

Design

  • Other lock type options can be chosen with a potential upcharge. Including Radial combination locks and RFID locks
  • Angled top is optional
  • Number of Doors, Width, Depth, and Height can be chosen to fill exact needs
Specifications
Dimensions
Width18"
Cabinet Depth18"
Height72"
Depth18"
Product
Left Hinge0
Number of Columns6
Day Locker Tiers5
Primary MaterialLaminate
Classification
IFCFurniture
OmniClass23-19 13 13
Revit family
Includes PricingYes
ADA CompliantNo
Has MEP ConnectorsNo
Configurable options
  • Lock type
  • Lockers
  • Angled top
  • Integrated toe kick
  • Left end panel
  • Right end panel
