Description
- Use this family where large-format book storage is desired such as municipality records storage, county plat records, or court dockets
- Rolling shelf inserts fixed at either 3 1/4" or 5 1/4" clear spacing able to accommodate books up to 3 1/8" and 5 1/8" respectably
- Includes one unslotted standard duty shelf (top of unit), two closed "L" uprights, up to seventy-six rolling shelf inserts, up to thirty-eight 42" heavy duty shelf supports, and two 2" tall kick plates
Revit 2018 (1.13 MB)
Revit 2019 (1.13 MB)
Revit 2020 (1.13 MB)
Revit 2021 (1.13 MB)
Revit 2022 (1.13 MB)
Revit 2023 (1.13 MB)
Revit 2024 (1.13 MB)
Revit 2025 (1.13 MB)
Revit 2026 (1.13 MB)
(8.00 MB)
(0.51 MB)
(0.49 MB)
(0.29 MB)

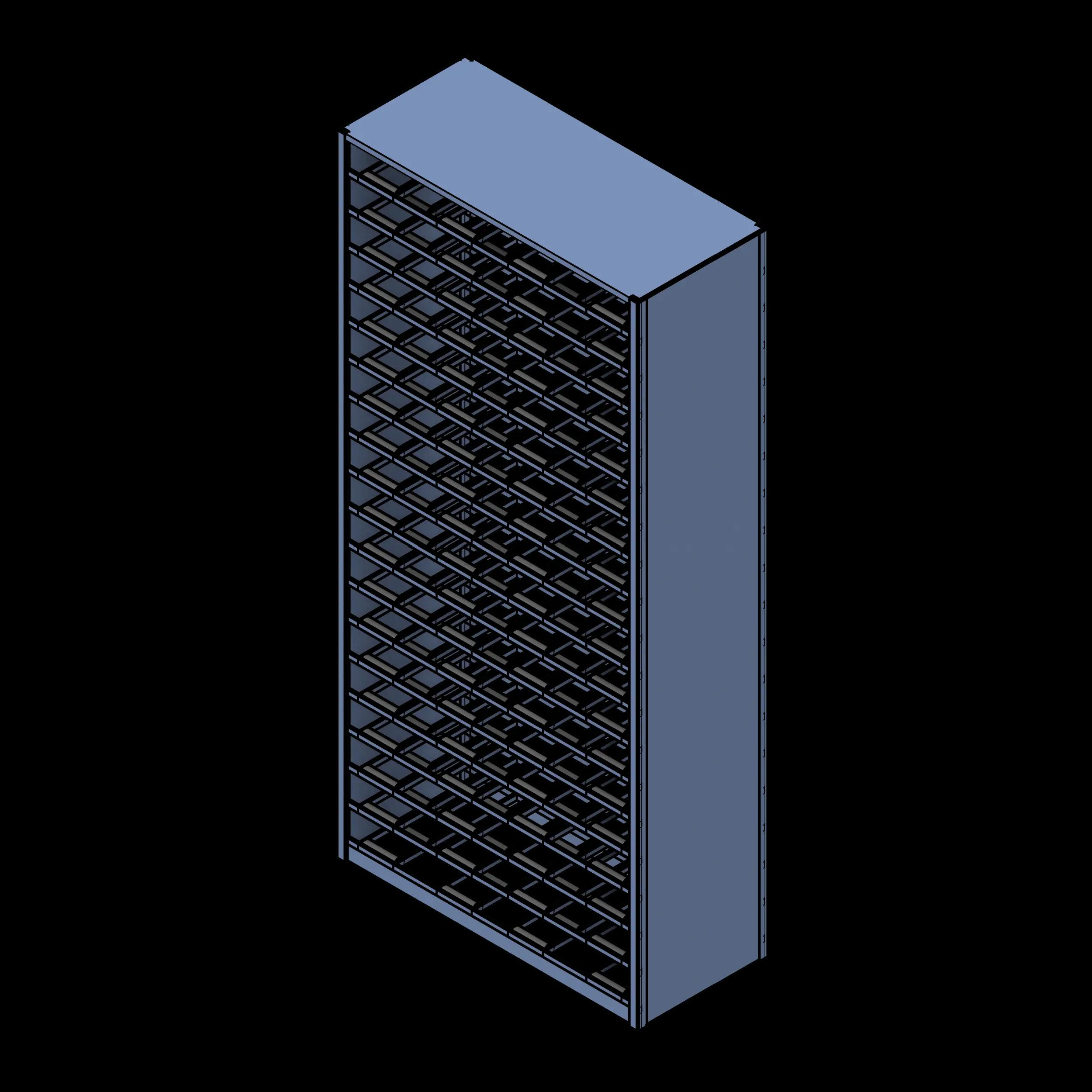

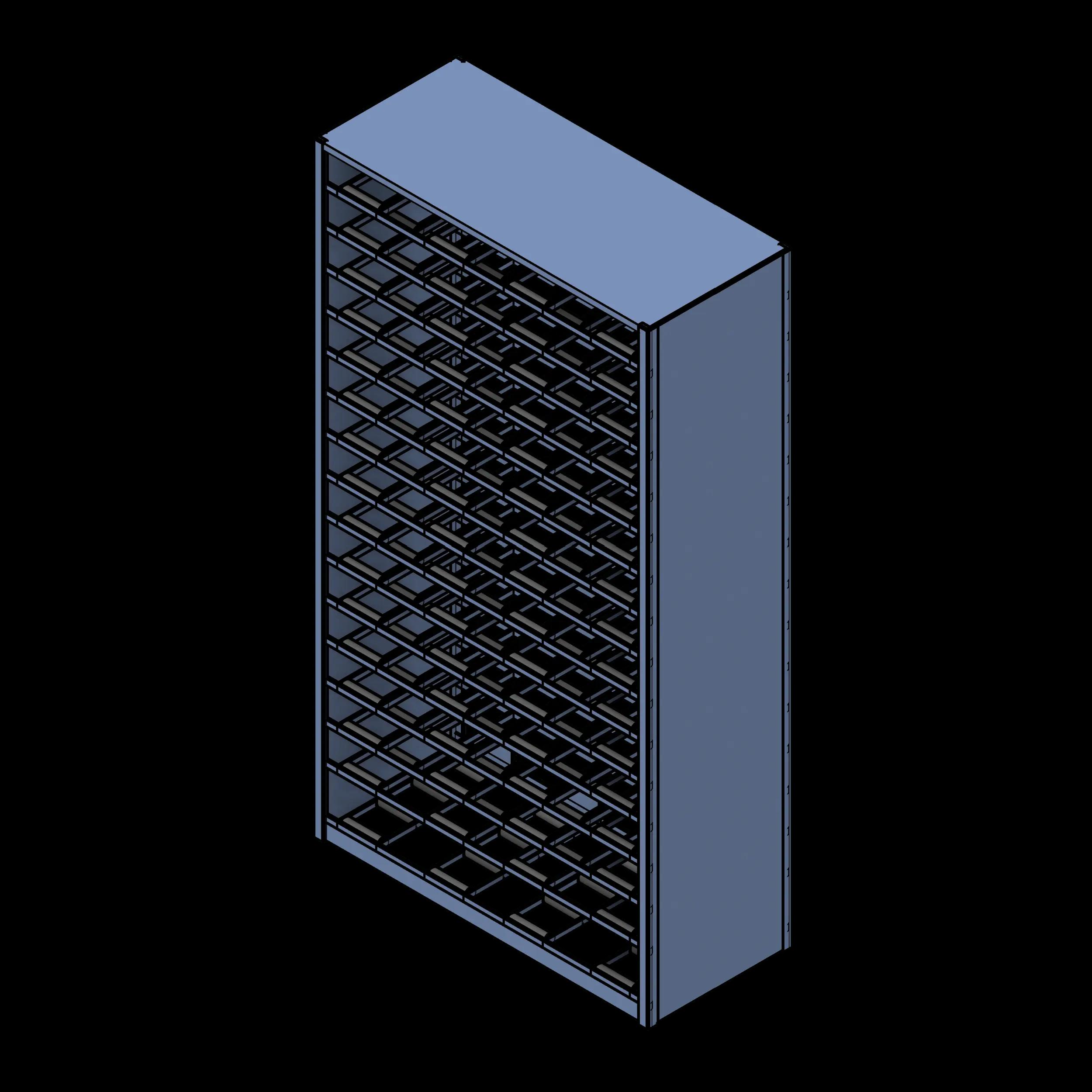

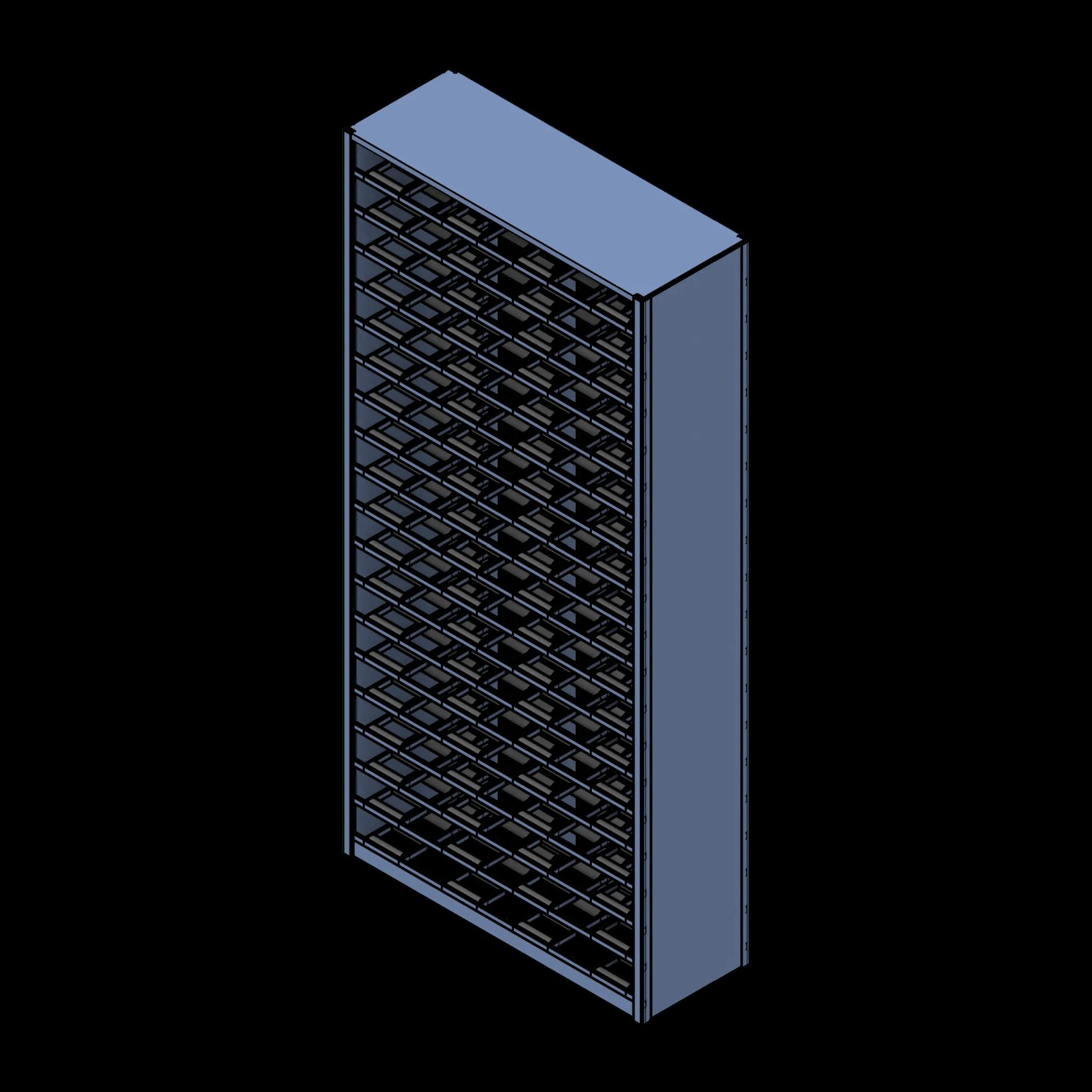

4-Post Shelving Unit with Roller Shelves
This family can be modified to accommodate various depths and two standard full-height cabinetry heights. Number of shelves is driven by unit height and shelf spacing selected. Use the optional backstops to make a unit single-sided.
| Parameter | Value |
|---|---|
| Standard Widths | 42" |
| Minimum Width | 1' 3" (15") |
| Maximum Width | 1' 6" (18") |
| Standard Depths | 15", 18", 30", 36" |
| Minimum Depth | 1' 3" (15") |
| Maximum Depth | 3' 0" (36") |
| Standard Heights | 76 1/4", 88 1/4" |
| Minimum Height | 6' 4 1/4" (76 1/4") |
| Maximum Height | 7' 4 1/4" (88 1/4") |
| Manufacturer | Southwest Solutions Group_DAT |
| Lead Time | Contact SSG for info |
| Model | RS |
| Keynote | 10 56 13 |
| Assembly Code | E20 |
| Author | AWright |
| Toll Free Number | 1-800-803-1083 |
| Property | Value |
|---|---|
| Equalis | No |
| Omnia | No |
| Sourcewell | No |
| Systec | Yes |
| Vizient | Yes |
| Includes Pricing | Yes |
| ADA Compliant | No |
| Has MEP Connectors | No |
| Primary Material | Powder coated steel |
| BIMobject Category | Furniture: Shelving & Storage |
| IFC | Furniture |
| Omniclass | 23-21 11 11 11 |
