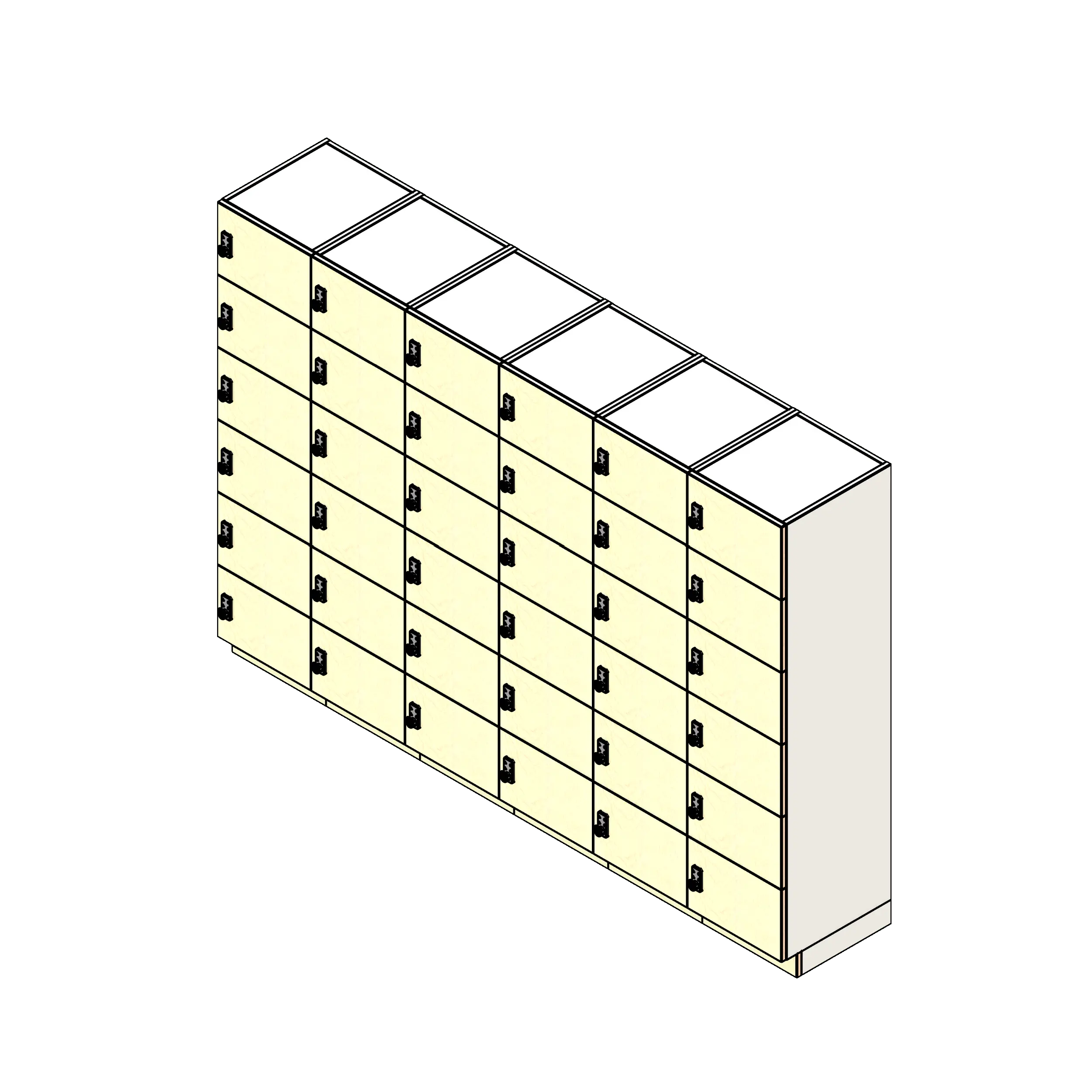

6 Tier - 18"W x 24"D Column Laminate Day Lockers
Product SKU
SKU: SSG-6T-182472
Downloads
- 550 KB
- 8.1 MB
- 52 KB
Description
- Kit is designed for multiple user locker areas
- Locks are cable-free and battery powered
- Kit includes 36 total lockers
This laminate locker bank of 6-tier, 18" W x 24" D columns provides 36 compartments for temporary individual storage in high-traffic universities, airports, gyms, and offices. The 9' wide, 24" deep, 6' high kit combines six multi-door laminate lockers into one six-tier run, fitting projects that need many day-use compartments along a planned 2' deep locker wall. Cable-free, battery-powered locks avoid dependence on building power and use a bright LED to identify available lockers. Users do not need keys or transponders, while a master code can be provided. No external programming device is required. The metal lock housing has a matte chrome front and is rated for up to 100,000 closures. Cabinets use 3/4" industrial-grade double-faced melamine substrate with 2 mm PVC edge banding and hidden cam fasteners. Rail mounting supports installation, and the locker materials include recycled wood-waste particleboard and MDF, water-based adhesives, and low-VOC standards.
Each smart day use locker kit was created for high traffic applications like universities, airports, gyms, or offices. Each lock comes with a brightly shining LED which identifies available lockers. Locks are keyless and cable-free so they are unaffected by power outages.
Design
- Other lock type options can be chosen with a potential upcharge. Including Radial combination locks and RFID locks
- Angled top is optional
- Number of Doors, Width, Depth, and Height can be chosen to fill exact needs
| Dimensions | |
|---|---|
| Width | 18" |
| Cabinet Depth | 24" |
| Height | 72" |
| Depth | 24" |
| Product | |
| Left Hinge | 0 |
| Number of Columns | 6 |
| Day Locker Tiers | 6 |
| Primary Material | Laminate |
| Classification | |
| IFC | Furniture |
| OmniClass | 23-19 13 13 |
| Revit family | |
| Includes Pricing | Yes |
| ADA Compliant | No |
| Has MEP Connectors | No |
| Configurable options |
|
