Flat Drawers Blueprint Storage
Product SKU
Description
- Comes in either 5 drawer of 10 drawer settings
- Ideal for use in architecture firms, construction offices, and art studios
- Primary Material: Powder coated steel
- Available options include 6" toe kick, 20" high base, and a range of paper sizes.
Flat file drawer
Store your blueprints and other flat files compactly with a drawer unit specified to the architectural paper size you need. Options allow for the storage of flat media between 24x36" (ARCH C) and 36x48" (ARCH E), as well as the choice between two base models.
- shelves, cubbies, or drawers
- full-height, work surface height, or mobile
- store rolled or flat

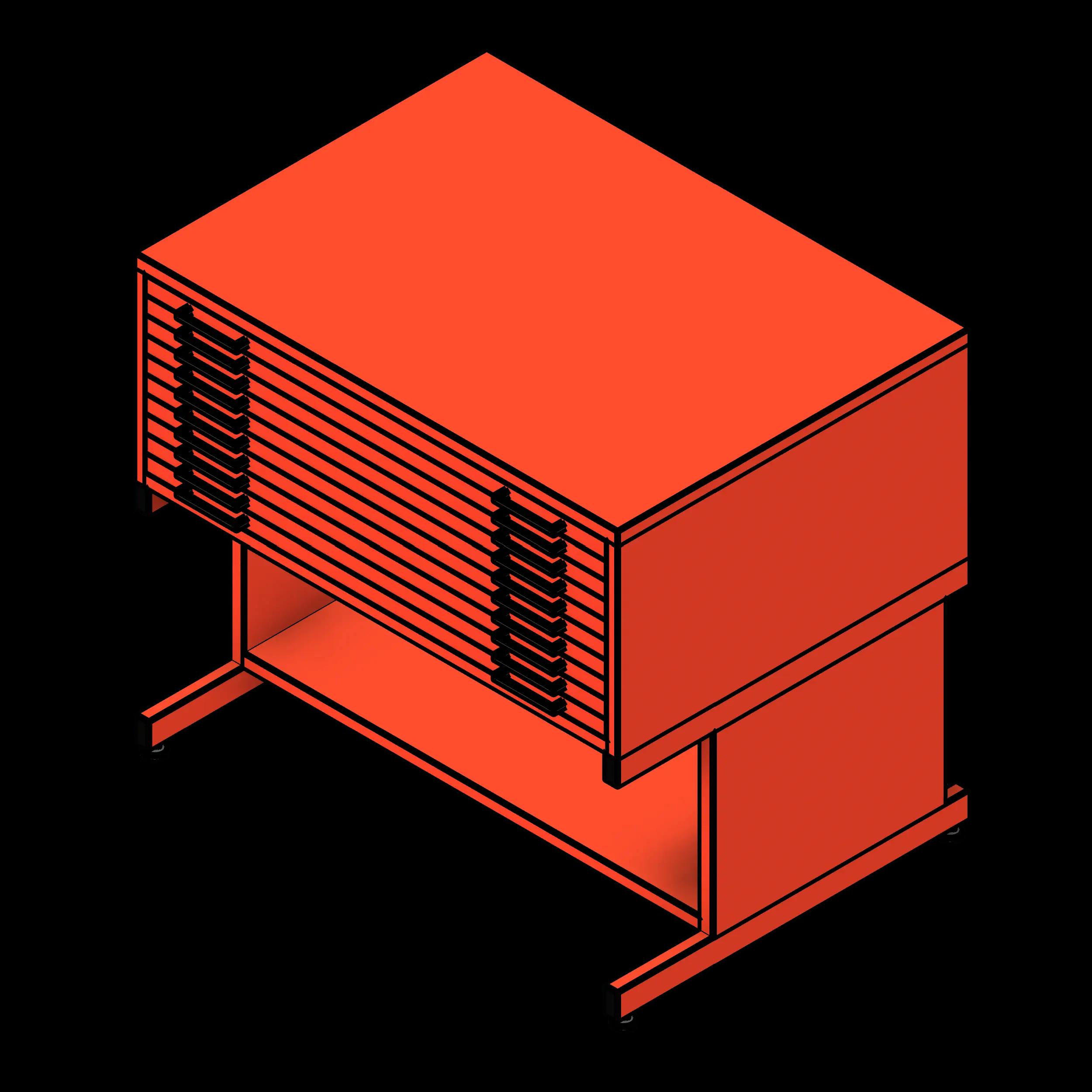

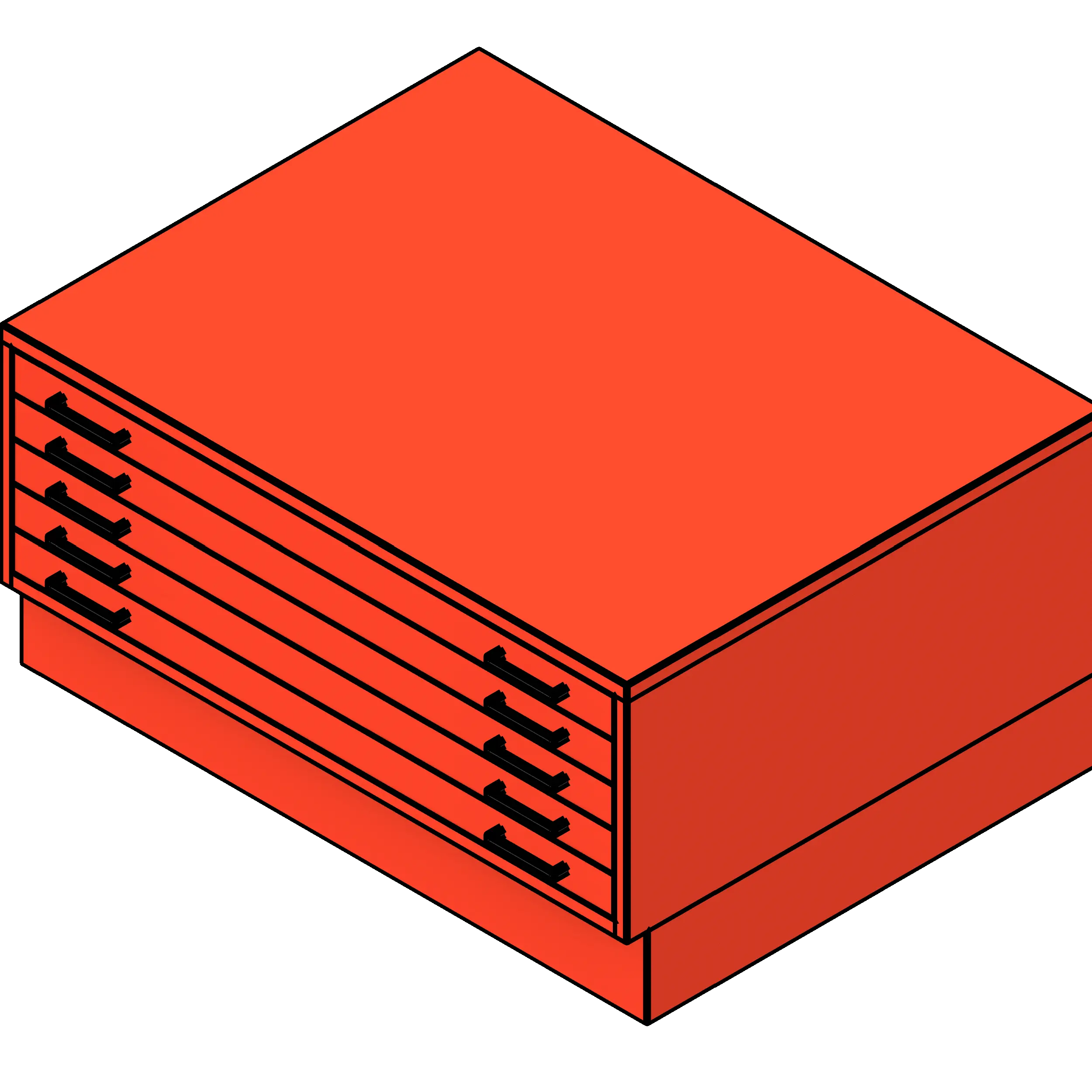

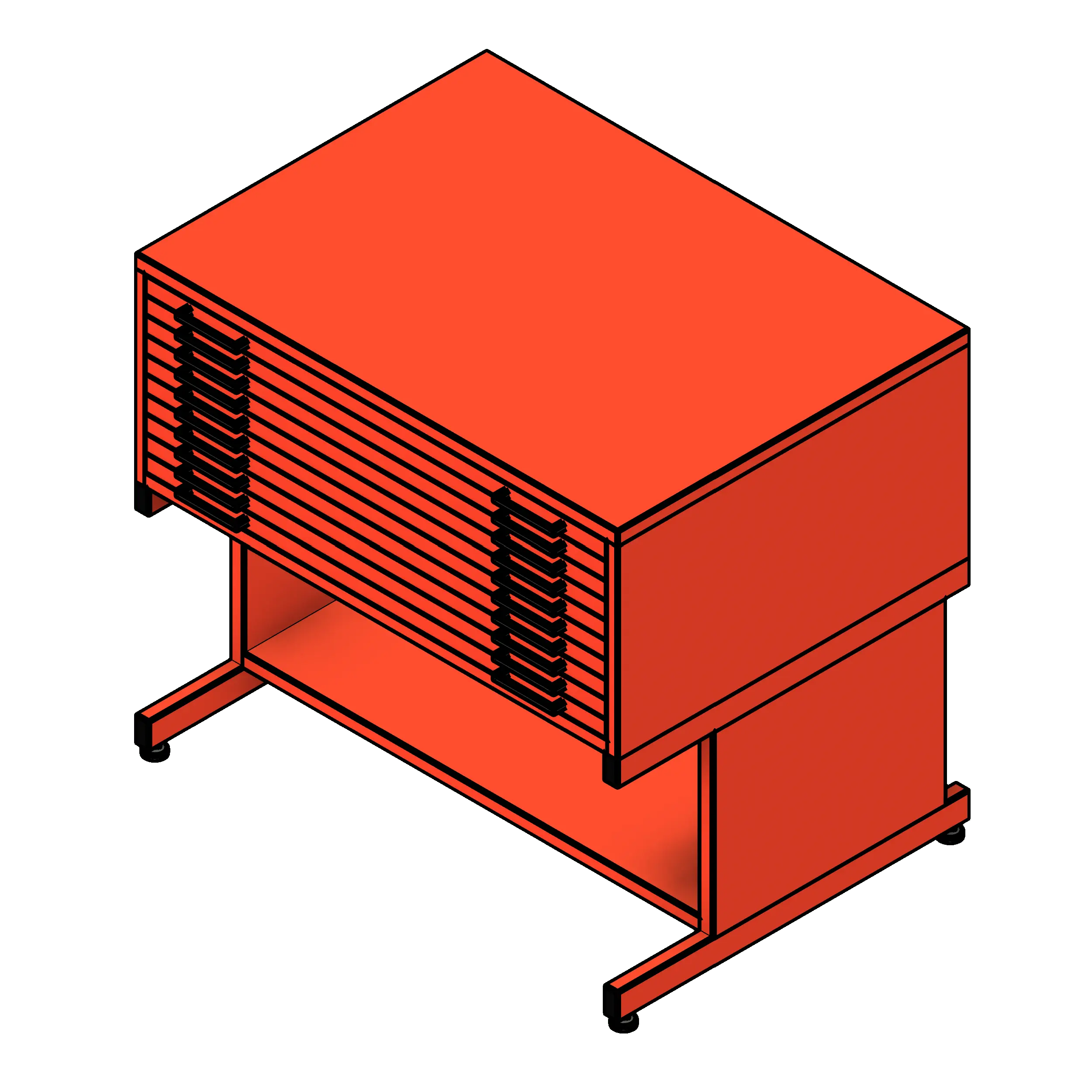

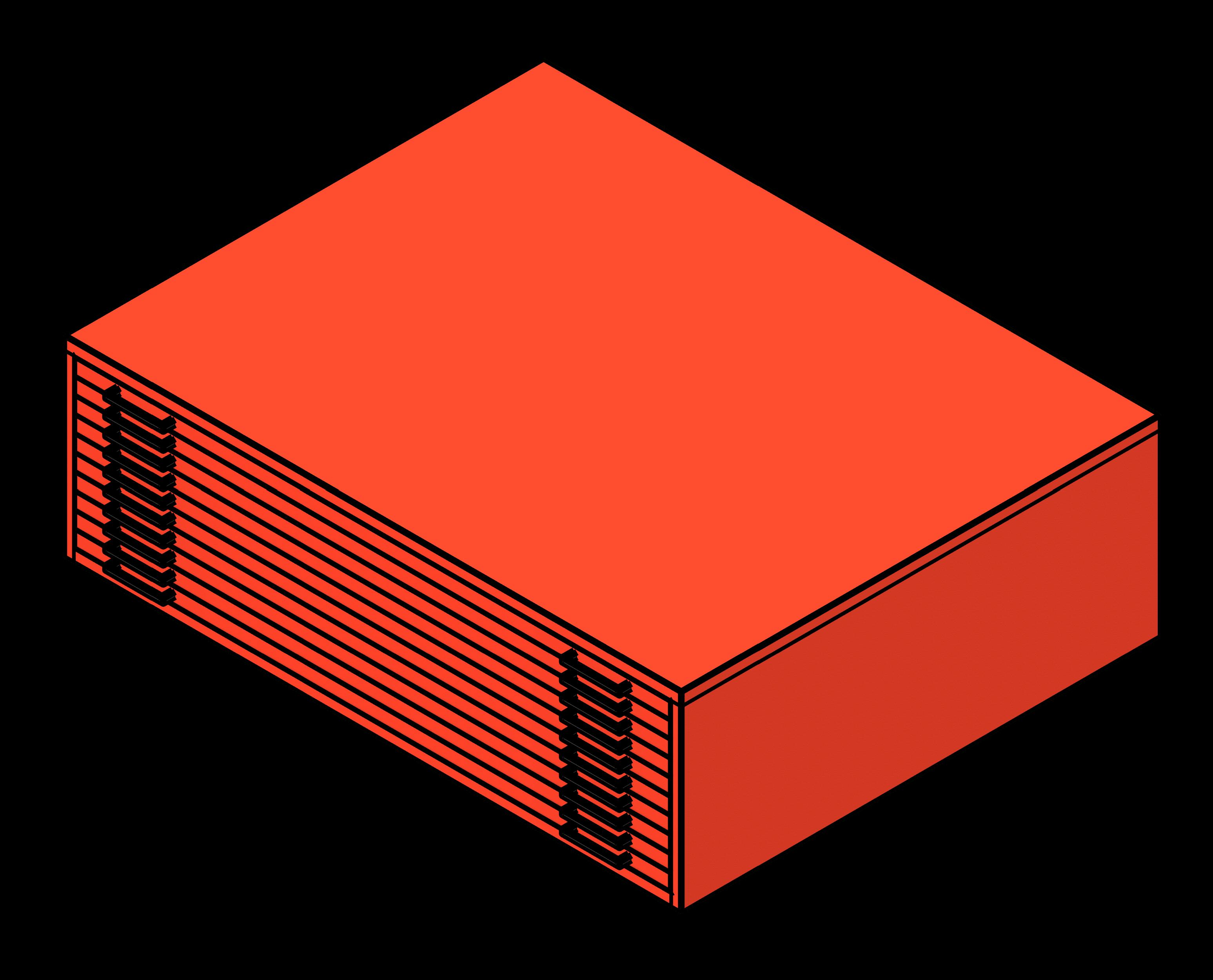

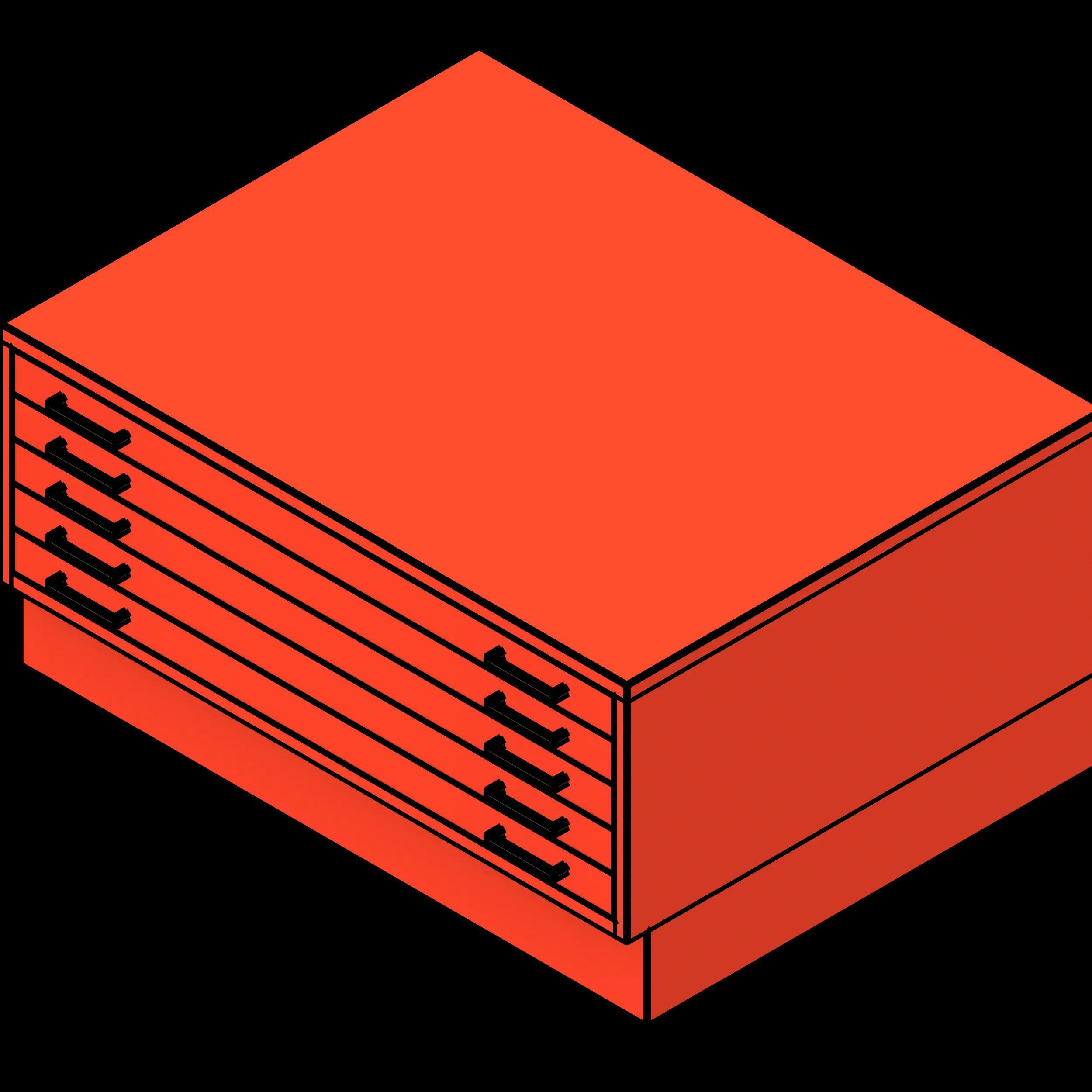

Our Flat File unit allows you to simply select your desired paper size you'd like to store and the size of the cabinet will scale accordingly. The unit comes in options of 5 or 10 drawers with either no stand, a 6 inch toe-kick, or a 20 inch base.
Rolled blueprint and flat file shelves act as a great solution for materials that need to be stored in specific ways. The shelving unit comes in a variety of dimensions, and rolled blueprint shelves can come with casters or a workspace on its top.
| Parameter | Value |
|---|---|
| Standard Widths | 3' 4 3/8", 3' 10 3/8", 4' 5 1/2" |
| Minimum Width | 3.36458333333333 |
| Maximum Width | 4.45833333333333 |
| Standard Depths | 2' 5 3/8", 2' 11 3/8", 3' 5 1/2" |
| Minimum Depth | 2.44791666666667 |
| Maximum Depth | 3.45833333333333 |
| Standard Heights | 1' 4 1/2" |
| Minimum Height | 1.375 |
| Maximum Height | 1.375 |
| Manufacturer | Southwest Solutions Group_DAT |
| Lead Time | 20 - 30 Days |
| Model | SMS-07 |
| Assembly Code | E20 |
| Author | JWimer |
| Toll Free Number | 1-800-803-1083 |
| Property | Value |
|---|---|
| Equalis | No |
| Omnia | No |
| Sourcewell | No |
| Systec | No |
| Vizient | No |
| Includes Pricing | Yes |
| ADA Compliant | No |
| Has MEP Connectors | No |
| Primary Material | Powder coated steel |
| BIMobject Category | Furniture: Shelving & Storage |
| IFC | Furniture |
