Roll Down Security Shutter 4 Post Shelving
Product SKU
Description
- Ideal for use in mobile shelving solutions - Doors that open flush to the shelving leave aisle spaces clear of obstructions
- Use where storage solutions need to be secure: Office, Healthcare, law enforcement, military, pharmacy, athletics, automotive, museum
- Spring Assisted Manual operation or Motorized (key, switch, or wifi operated) at additional cost

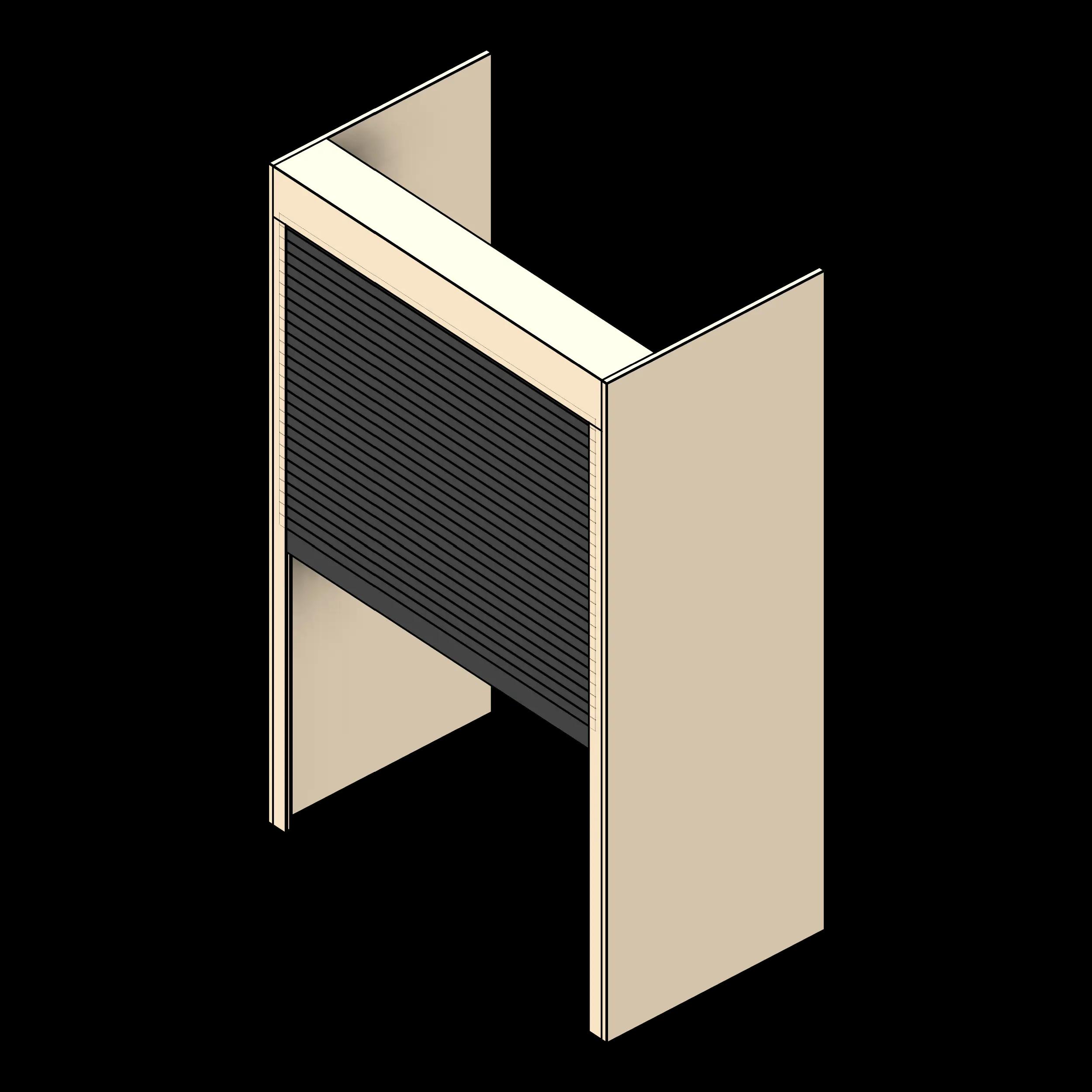

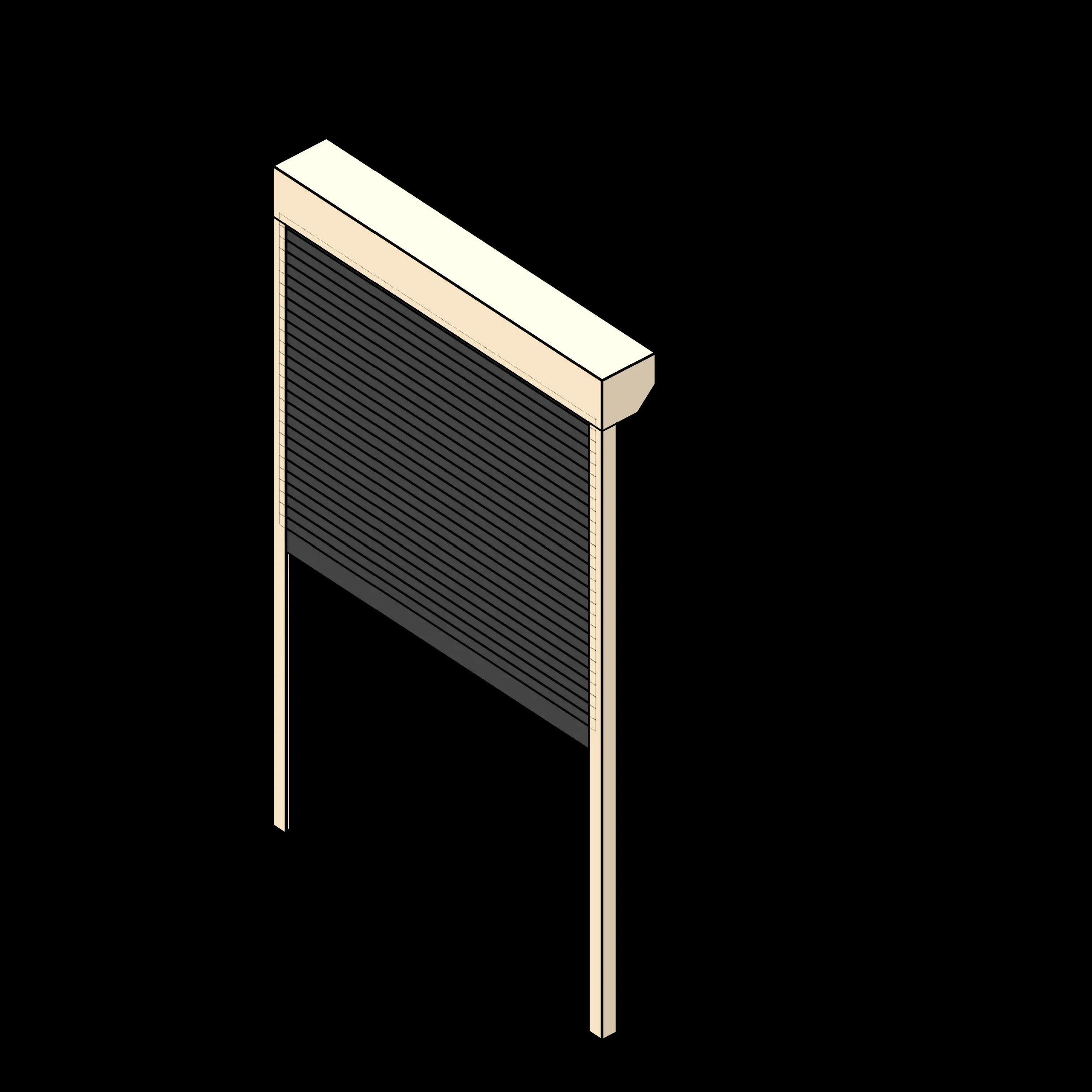

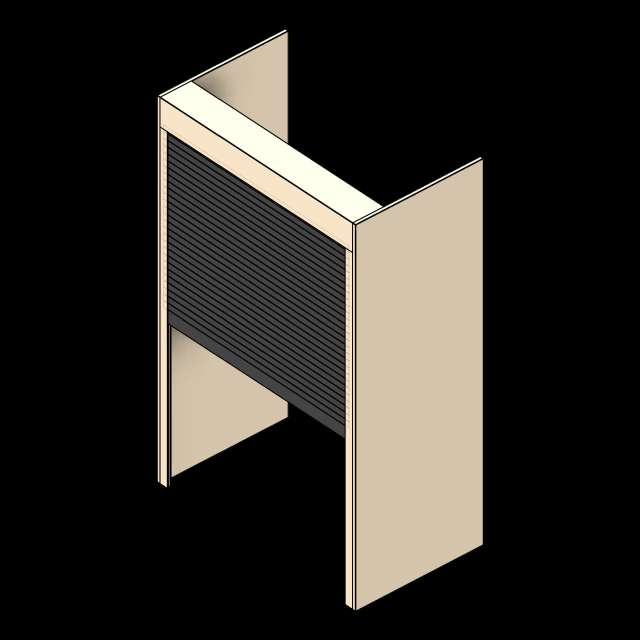

Roll-Down Security Shutter for SSG 4-Post Families
Roll-Down Shutters are an easy solution to cleanly secure your 4-Post shelving solution. Top mounting and a wide range of width and heights makes this product compatible with virtually any shelving or filing rack. Optional motorized operation for additional cost.
The security shutter model line is designed to be highly flexible and adaptable with every Revit model built to reflect its real world counterparts as closely as possible. Stretches to accommodate our 4 Post shelving units between 30" - 144" wide and 48 - 125" tall to secure products, merchandise, equipment, and other valuable items for high-capacity and secure storage. Additional features include:
- Optional end panels give a row of secure cabinets a clean look - available in all powder coat colors and wood laminates
- Individual finish material control over frame, shutter, and end panels
- Pricing adjusts with options selected. Optional motorized control options will reflect in pricing only
| Parameter | Value |
|---|---|
| Minimum Width | 2.5 |
| Maximum Width | 12 |
| Minimum Depth | 2 |
| Maximum Depth | 2.5 |
| Minimum Height | 4 |
| Maximum Height | 10.3333333333333 |
| Manufacturer | Southwest Solutions Group_PEN |
| Lead Time | 2-3 Weeks |
| Construction Type | Welded, Cold-Rolled Steel |
| Keynote | 10 71 13.13 |
| Assembly Code | E10 |
| Author | KBruxvoort / AWright |
| Toll Free Number | 1-800-803-1083 |
| Property | Value |
|---|---|
| Equalis | No |
| Omnia | No |
| Sourcewell | No |
| Systec | Yes |
| Vizient | Yes |
| Includes Pricing | Yes |
| ADA Compliant | No |
| Has MEP Connectors | No |
| Primary Material | Powder coated steel |
| Secondary Material | Laminate |
| BIMobject Category | Furniture: Shelving & Storage |
| IFC | Furniture |
| Omniclass | 23-17 21 11 13 |
