Small Instrument Laminate Instrument Locker
Product SKU
Description
- Modular and customizable

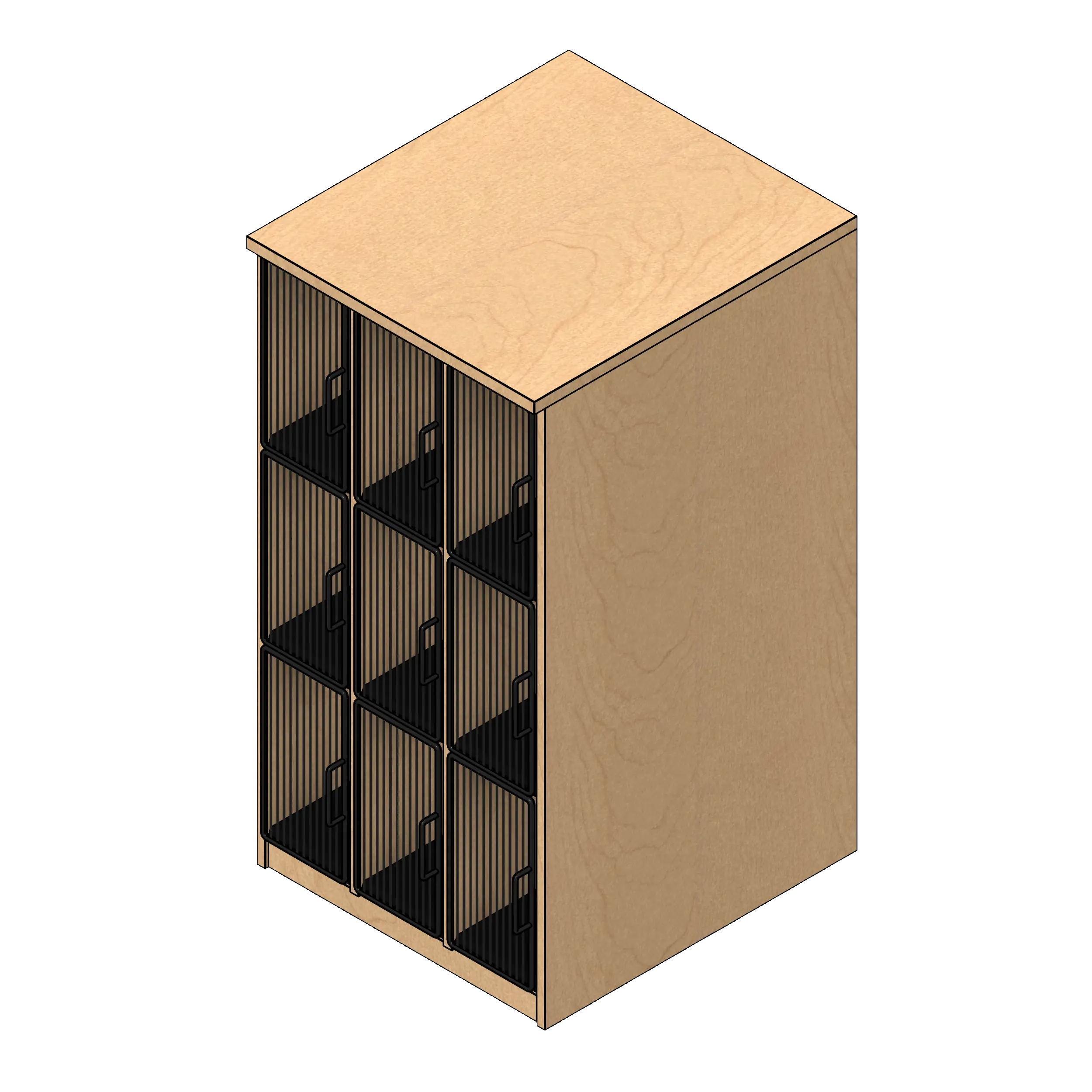

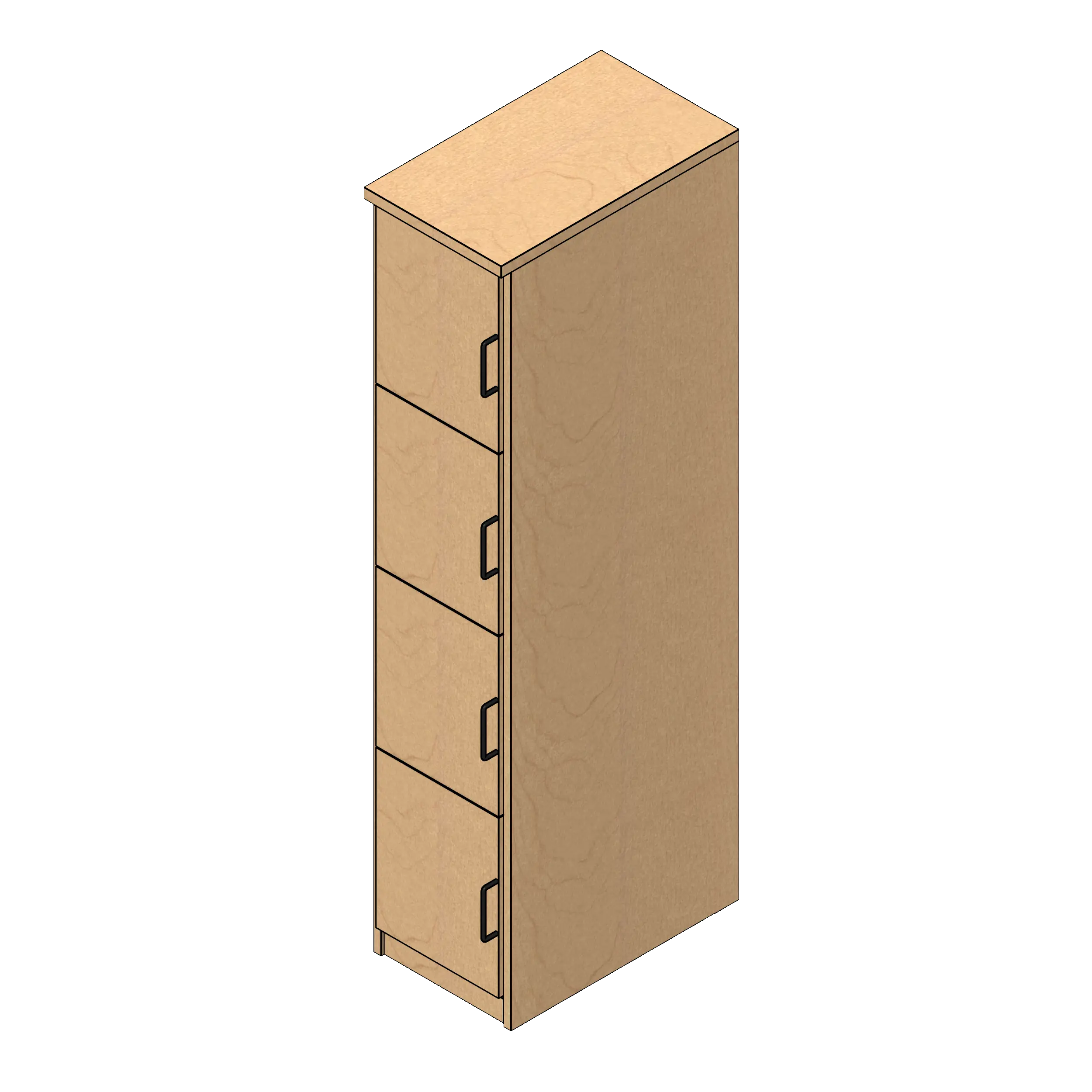

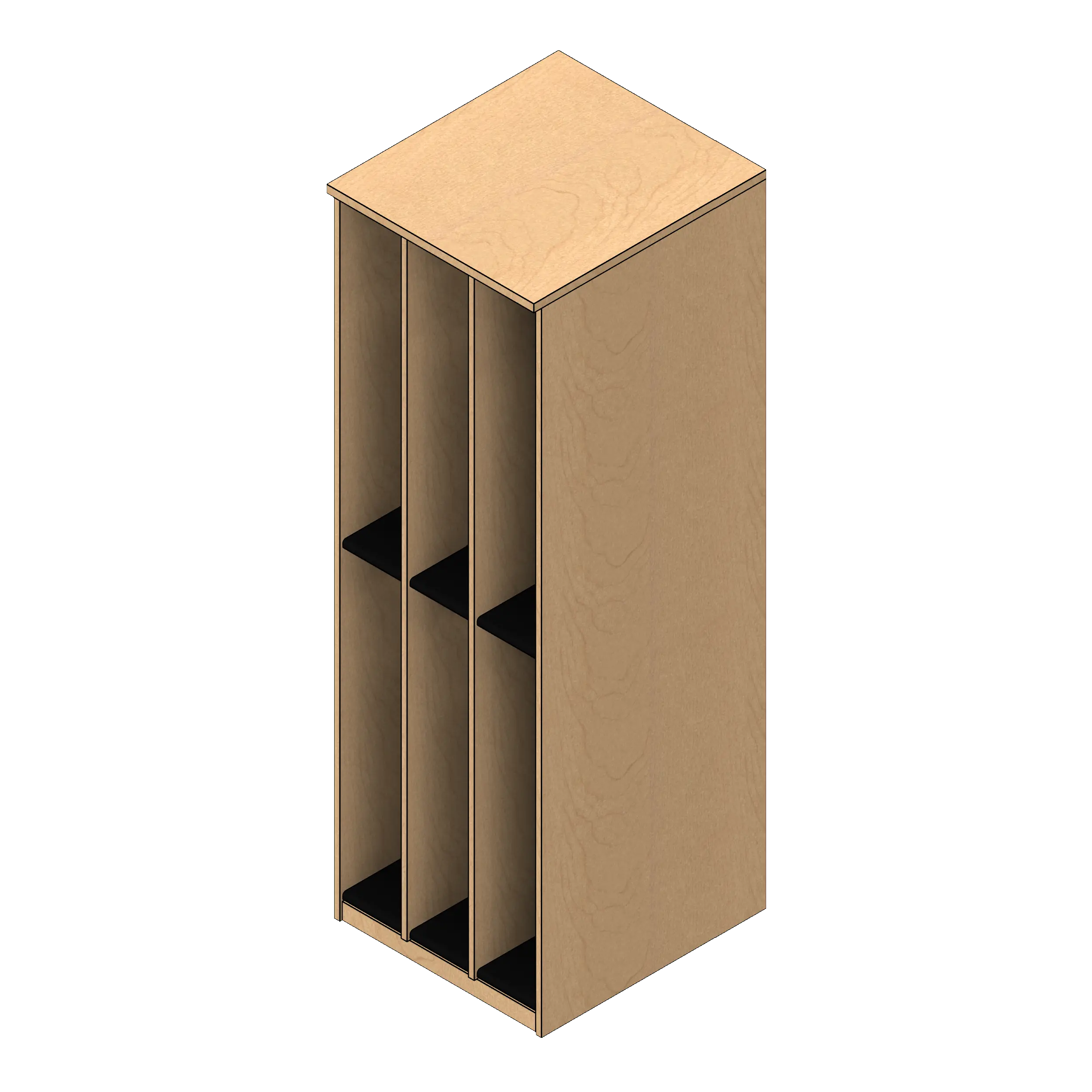

- Available compartment sizes: A, B, K, and L
- View documents or Technical Details for specific dimensions of compartments
- Build your lockers for your specific instrument storage needs within Revit with simple, intuitive adjustments
Revit 2020 (0.95 MB)
Revit 2021 (0.95 MB)
Revit 2022 (0.95 MB)
Revit 2023 (0.95 MB)
Revit 2024 (0.95 MB)
Revit 2025 (0.95 MB)
Plastic Laminate Small Instrument Locker
A modular instrument locker comprised of a number of A, B, K, or L compartments. View technical details for compartment sizes based on specific instruments or dimensions in inches.

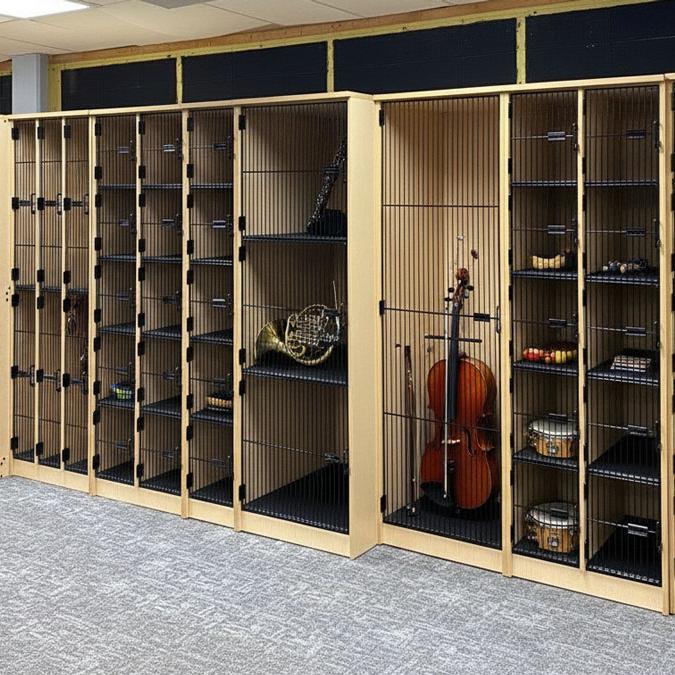

These modular instrument storage lockers are stand-alone cabinets that install easily and allow for arranging, re-arranging, and adding to your music room as your needs change and grow.
Features
- Shelves are fully doweled and coated on top and front edge for additional durability and longevity
- All cabinets available with laminate doors, grille doors, or open faced
- Customizable to fit your needs
| Parameter | Value |
|---|---|
| Standard Widths | 18 1/4", 19", 27" |
| Minimum Width | 1' 6 1/4" (18 1/4") |
| Maximum Width | 2' 3" (27") |
| Standard Depths | 24", 30 1/4", 40 1/4" |
| Minimum Depth | 2' 0" (24") |
| Maximum Depth | 3' 4 1/4" (40 1/4") |
| Standard Heights | 35 3/8", 51 1/2", 67 3/8", 83 1/4" |
| Minimum Height | 2' 11 3/8" (35 3/8") |
| Maximum Height | 6' 11 1/4" (83 1/4") |
| Manufacturer | Southwest Solutions Group_WIS |
| Lead Time | 4-6 Weeks |
| Model | M |
| Keynote | 10 51 23 |
| Assembly Code | E20 |
| Author | AWright |
| Toll Free Number | 1-800-803-1083 |
| Property | Value |
|---|---|
| Includes Sustainability | Yes |
| Includes Pricing | Yes |
| ADA Compliant | No |
| Has MEP Connectors | No |
| Primary Material | Laminate |
| BIMobject Category | Furniture: Shelving & Storage |
| IFC | Furniture |
| Omniclass | 23-19 13 13 |
