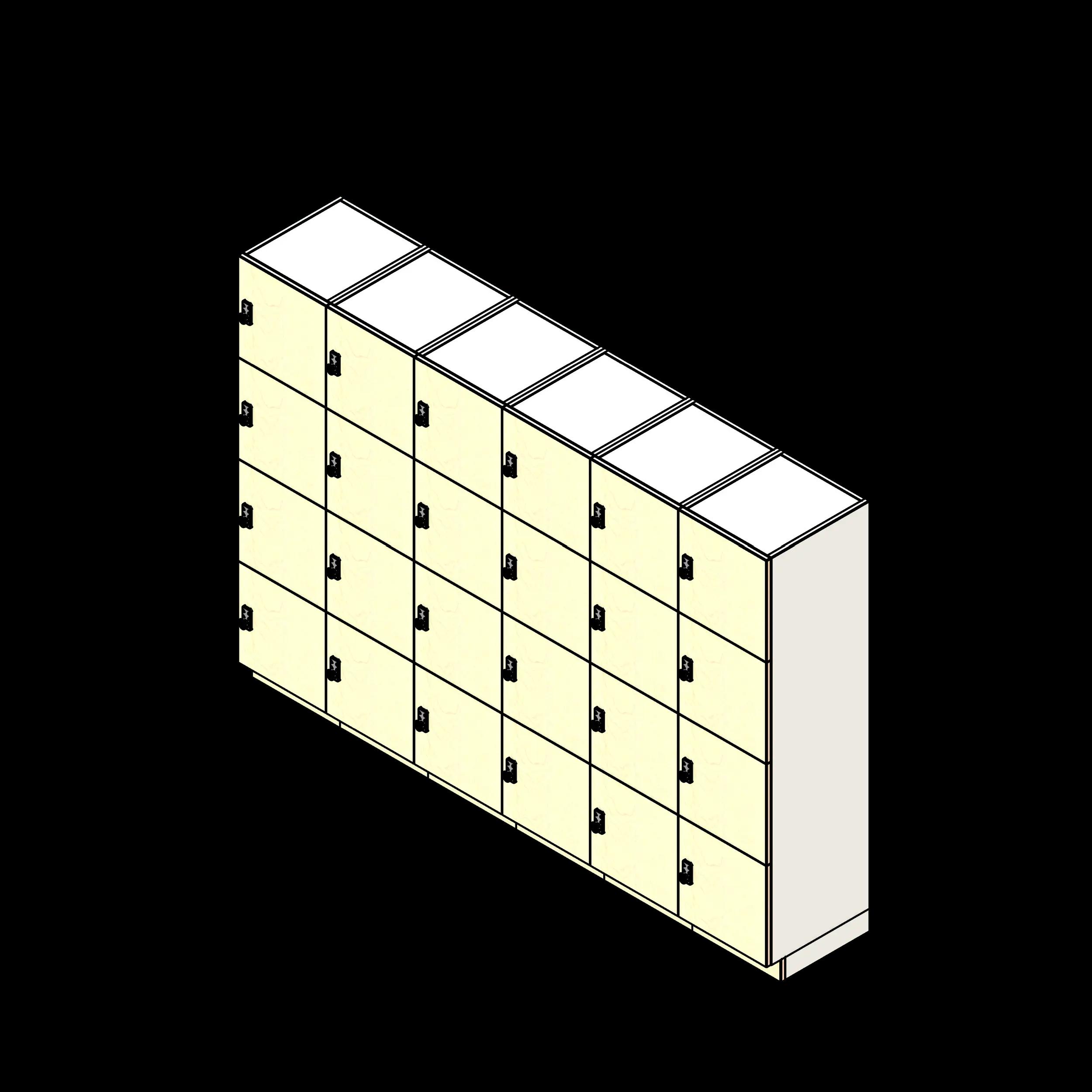

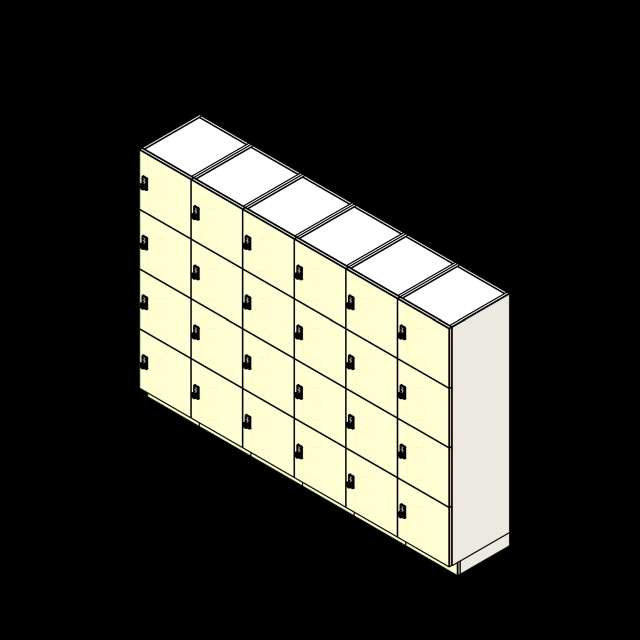

4 Tier - 18"W x 24"D Column Laminate Day Lockers
Product SKU
SKU: SSG-4T-182472
Downloads
- 520 KB
- 8.1 MB
- 52 KB
Description
- Kit is designed for multiple user locker areas
- Locks are cable-free and battery powered
- Kit includes 24 total lockers
This laminate day locker kit of 4-tier, 18" W x 24" D columns provides 24 lockers for high-traffic shared storage areas. This 9' wide, 24" deep, 6' high kit combines six multi-door laminate locker units, giving universities, offices, airports, gyms, and similar facilities a defined bank of temporary storage without extending beyond a 24" wall projection. Each locker uses a battery-powered, cable-free keyless lock, so users can secure belongings without keys or transponders and the lockers remain unaffected by power outages. Bright LED indicators identify available lockers, helping users move through busy locker areas more easily. The locks have metal outer housings, matte chrome fronts, latch-bolt burglary protection, and a stated lifespan of up to 100,000 closures. A master code is possible. Cabinets use 3/4" industrial-grade 40–50 lb double-faced melamine substrate with 2 mm PVC edge banding and hidden cam fasteners. Rail mounting supports installation, while recycled wood-waste particleboard and MDF, water-based adhesives, recycled packaging and pallets, and low-VOC standards support project sustainability requirements.
Each smart day use locker kit was created for high traffic applications like universities, airports, gyms, or offices. Each lock comes with a brightly shining LED which identifies available lockers. Locks are keyless and cable-free so they are unaffected by power outages.
Design
- Other lock type options can be chosen with a potential upcharge. Including Radial combination locks and RFID locks
- Angled top is optional
- Number of Doors, Width, Depth, and Height can be chosen to fill exact needs
| Dimensions | |
|---|---|
| Width | 18" |
| Cabinet Depth | 24" |
| Height | 72" |
| Depth | 24" |
| Product | |
| Left Hinge | 0 |
| Number of Columns | 6 |
| Day Locker Tiers | 4 |
| Primary Material | Laminate |
| Classification | |
| IFC | Furniture |
| OmniClass | 23-19 13 13 |
| Revit family | |
| Includes Pricing | Yes |
| ADA Compliant | No |
| Has MEP Connectors | No |
| Configurable options |
|
