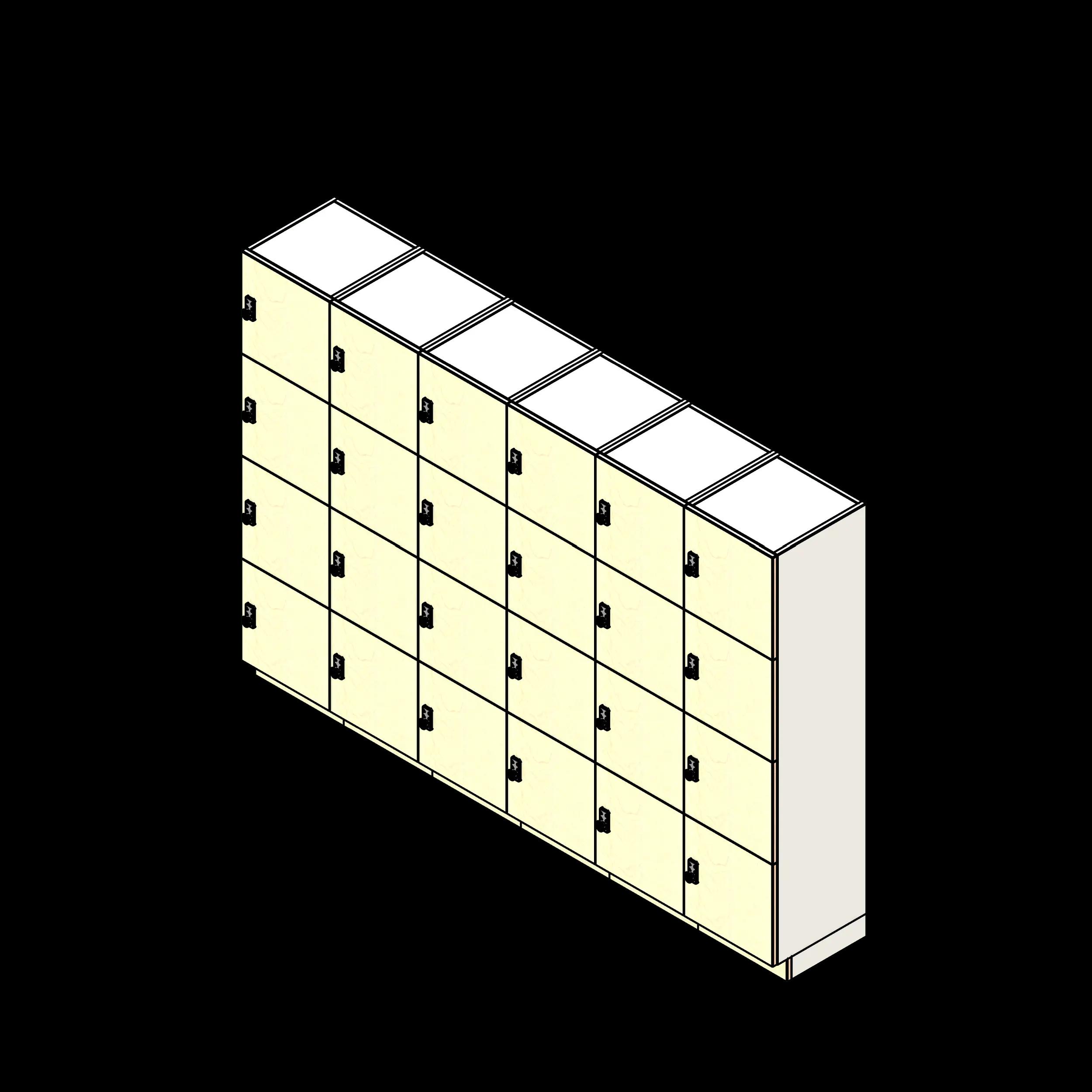

4 Tier - 18"W x 18"D Column Laminate Day Lockers
Product SKU
SKU: SSG-4T-181872
Downloads
- 515 KB
- 8.1 MB
- 52 KB
Description
- Kit is designed for multiple user locker areas
- Locks are cable-free and battery powered
- Kit includes 24 total lockers
4 Tier - 18"W x 18"D Column Laminate Day Lockers provide 24 keyless day-use lockers for shared storage in high-traffic universities, airports, gyms, and offices. This 9' wide, 18" deep, 6' high kit uses six multi-door laminate locker units to create four tiers of individual storage while keeping the locker run to an 18" projection. It suits circulation areas and shared-use spaces that need more individual locker positions without moving to a 24"-deep layout. Cable-free, battery-powered locks require no keys or transponders and remain unaffected by power outages. A bright LED identifies available lockers, helping users find open storage in busy areas. The locks have metal outer housings, matte chrome fronts, latch-bolt burglary protection, and a lifespan of up to 100,000 closures; a master code is possible without external programming devices. Download the free Revit family.
Each smart day use locker kit was created for high traffic applications like universities, airports, gyms, or offices. Each lock comes with a brightly shining LED which identifies available lockers. Locks are keyless and cable-free so they are unaffected by power outages.
Design
- Other lock type options can be chosen with a potential upcharge. Including Radial combination locks and RFID locks
- Angled top is optional
- Number of Doors, Width, Depth, and Height can be chosen to fill exact needs
| Dimensions | |
|---|---|
| Width | 18" |
| Cabinet Depth | 18" |
| Height | 72" |
| Depth | 18" |
| Product | |
| Left Hinge | 0 |
| Number of Columns | 6 |
| Day Locker Tiers | 4 |
| Primary Material | Laminate |
| Classification | |
| IFC | Furniture |
| OmniClass | 23-19 13 13 |
| Revit family | |
| Includes Pricing | Yes |
| ADA Compliant | No |
| Has MEP Connectors | No |
| Configurable options |
|
