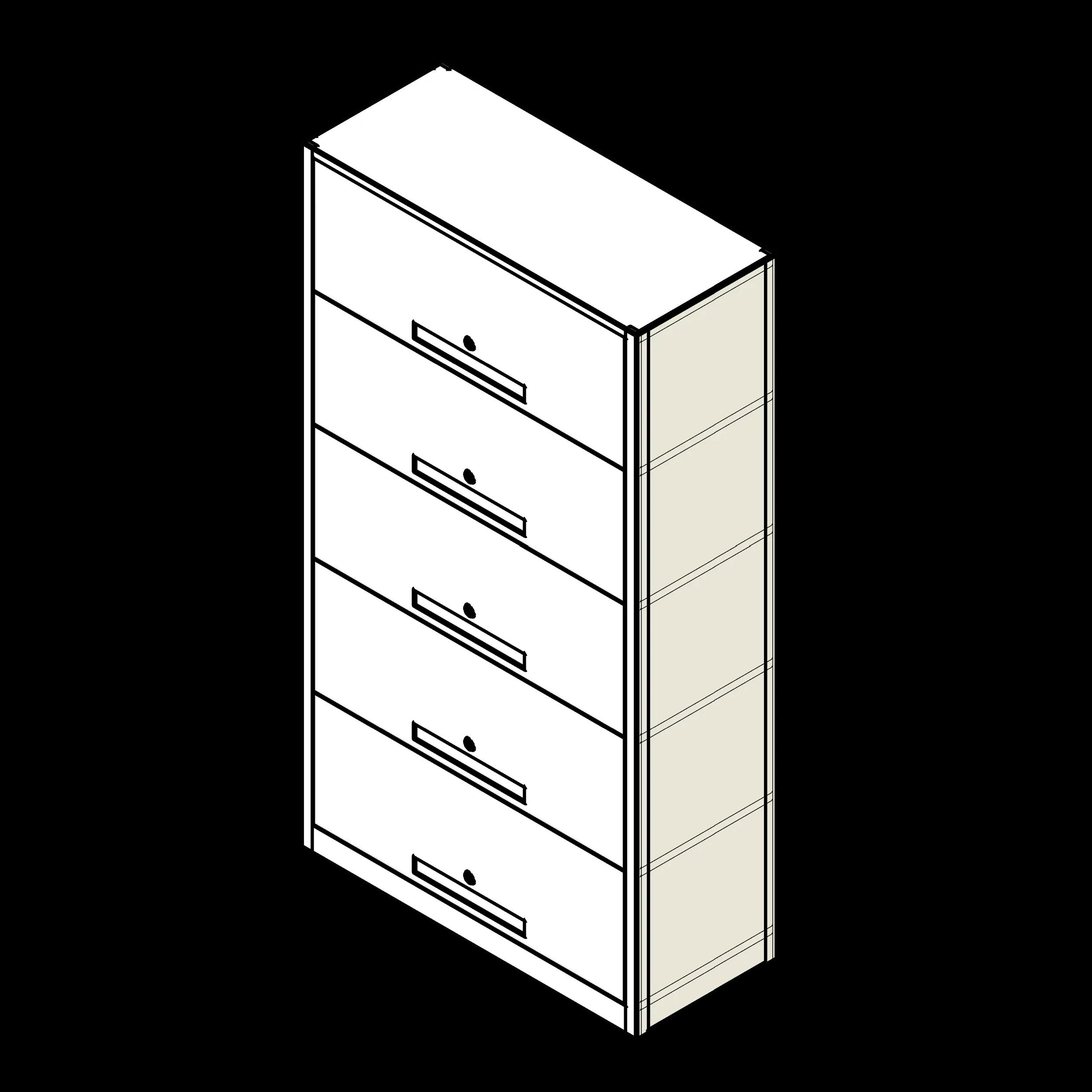

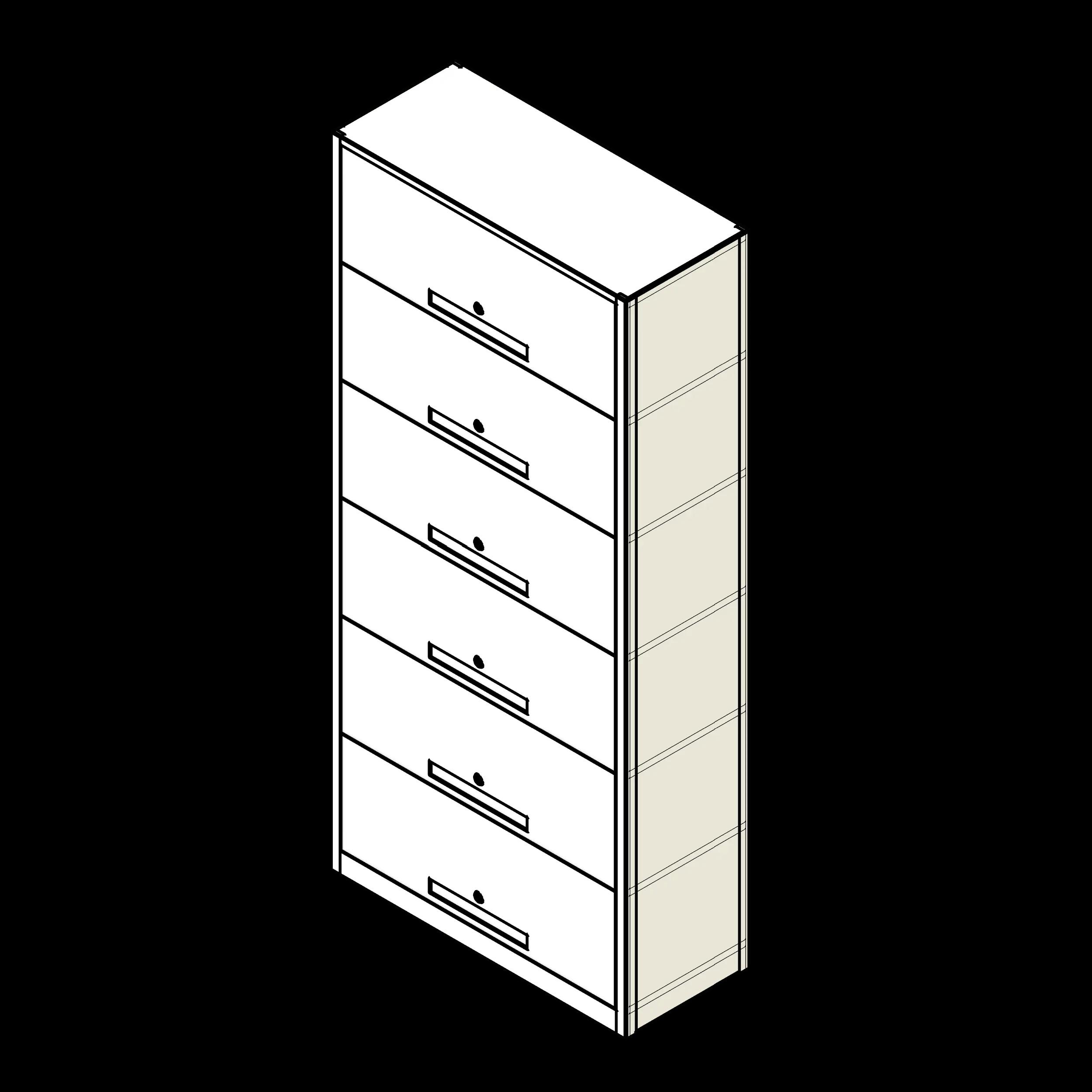

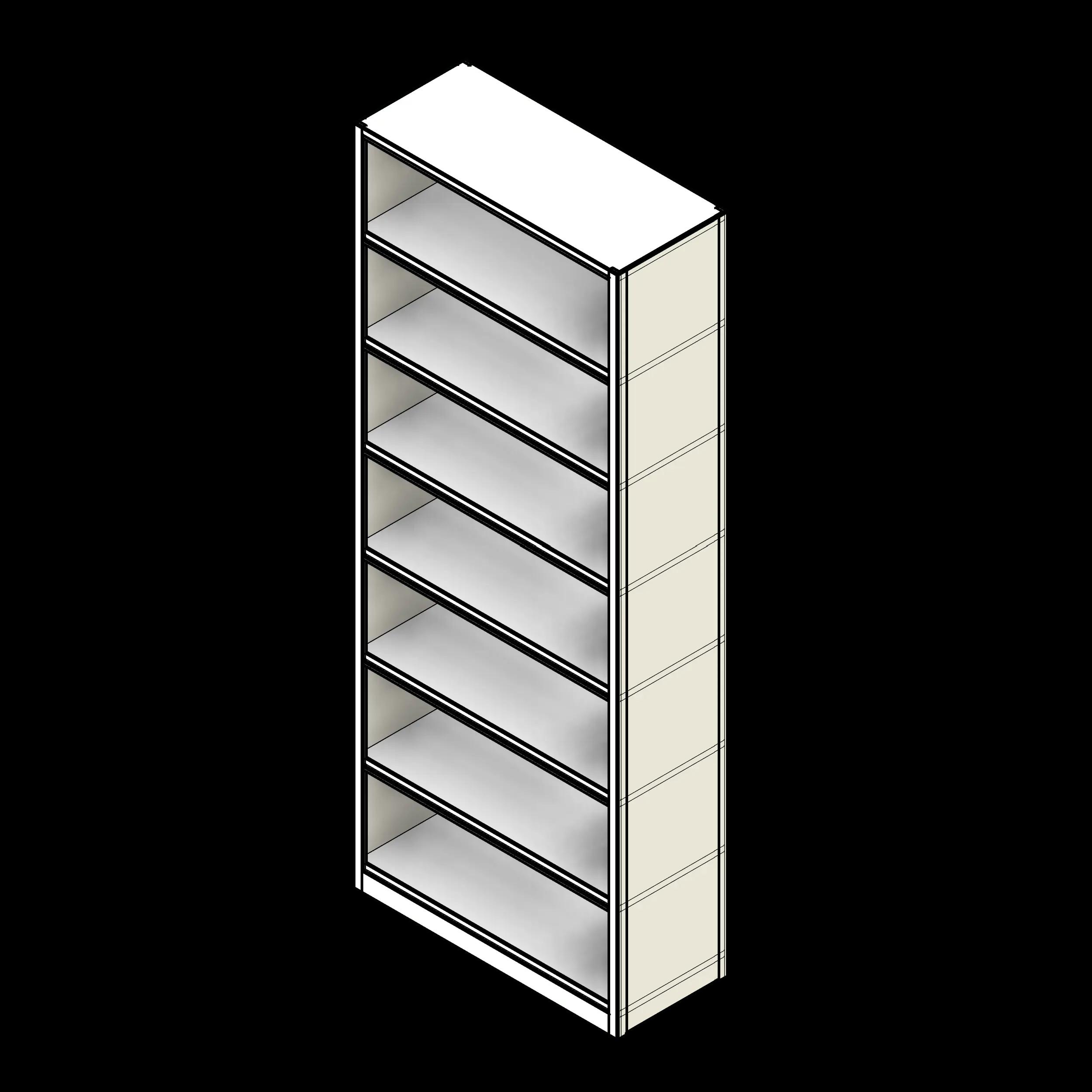

4 Post File with Flip-Up Doors

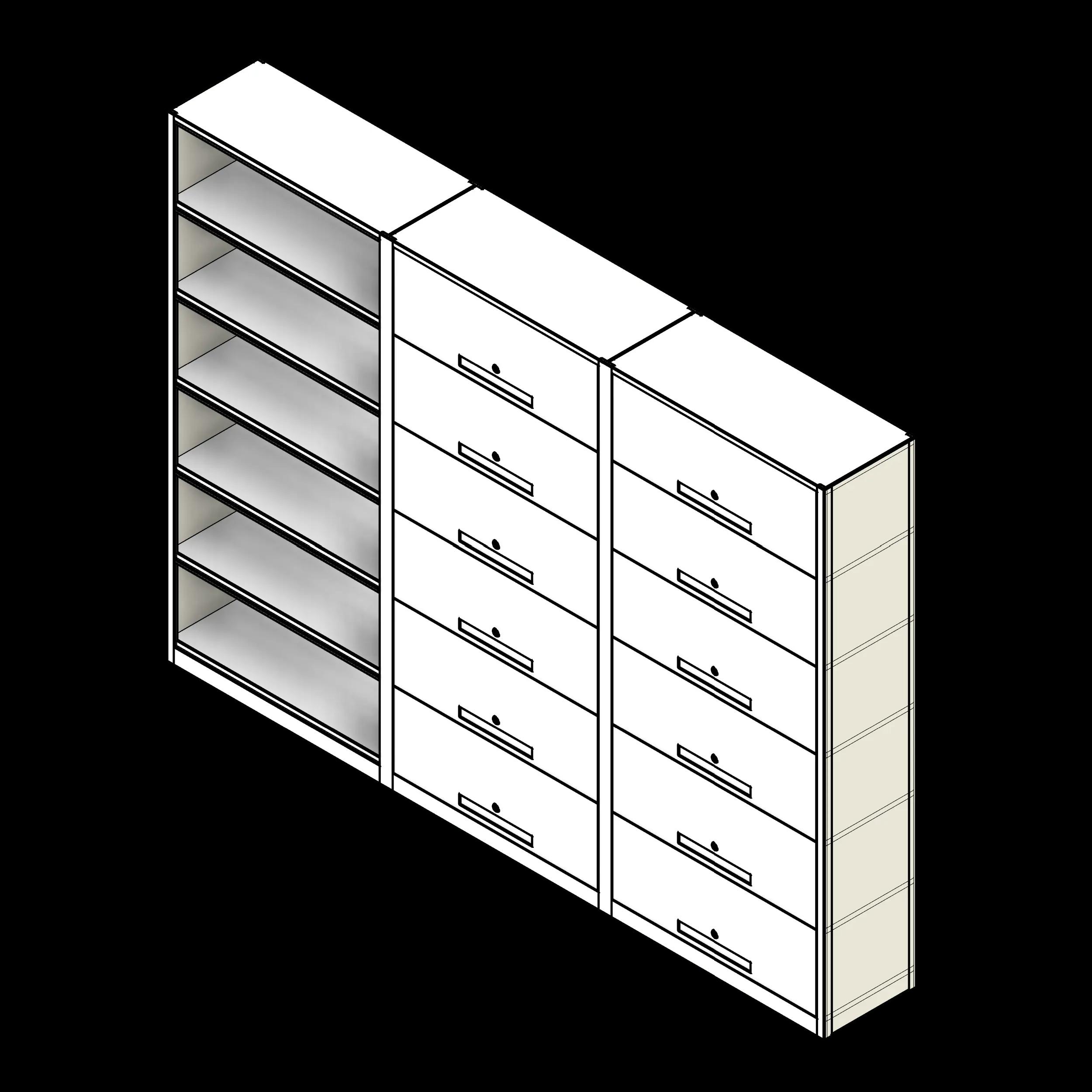

This family is designed to make planning your next filing storage project easy. To use it, click on the image in the fetch app and click inside your Revit project to place it. Use the parameters in the properties browser to select the overall cabinet depth, receding door height, and the number of tiers desired. The family also includes a back panel and a system of starter and adder configuration options to create more complex rows of systemized shelving.
| Parameter | Value |
|---|---|
| Minimum Number of Levels | 5 |
| Maximum Number of Levels | 7 |
| Standard Widths | 30", 36", 42", 48" |
| Minimum Width | 2.5 |
| Maximum Width | 4 |
| Standard Depths | 15", 18" |
| Minimum Depth | 1.25 |
| Maximum Depth | 1.5 |
| Standard Heights | 58 1/4" - 101 1/4" |
| Minimum Height | 4.85416666666667 |
| Maximum Height | 8.4375 |
| Manufacturer | Southwest Solutions Group_SPA |
| Lead Time | 4-6 Weeks |
| Product Code | no code |
| zM | 28098.13 |
| Model | 4P |
| Keynote | 10 56 13.13 |
| Assembly Code | E20 |
| Author | AWright |
| Toll Free Number | 1-800-803-1083 |
| URL Specification Manual | https://app.fetchbim.com/Family/421bc516-e5ba-45b6-999e-2a444b9d4668/File/PDF-SpecManual |
| Property | Value |
|---|---|
| Equalis | Yes |
| Includes Sustainability | Yes |
| Omnia | Yes |
| Sourcewell | Yes |
| Systec | Yes |
| Vizient | Yes |
| Includes Pricing | Yes |
| ADA Compliant | No |
| Has MEP Connectors | No |
| Includes Sustainability | Yes |
| Primary Material | Powder coated steel |
| BIMobject Category | Furniture: Shelving & Storage |
| IFC | Furniture |
| Omniclass | 23-21 11 11 19 |
