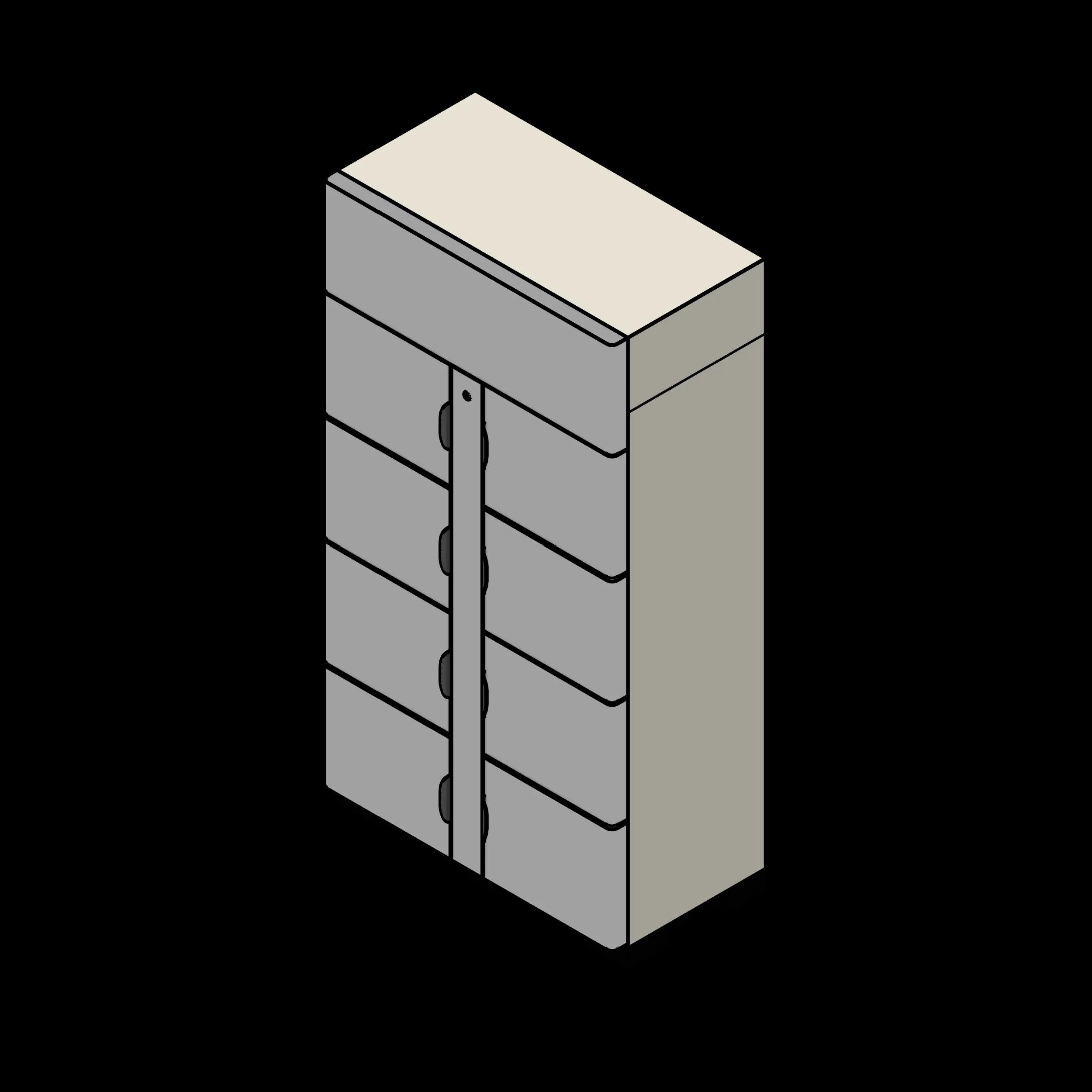

Temperature Controlled Smart Locker
Product SKU
Description
- Frequently used in multi-family residential projects or anywhere where package security is needed.

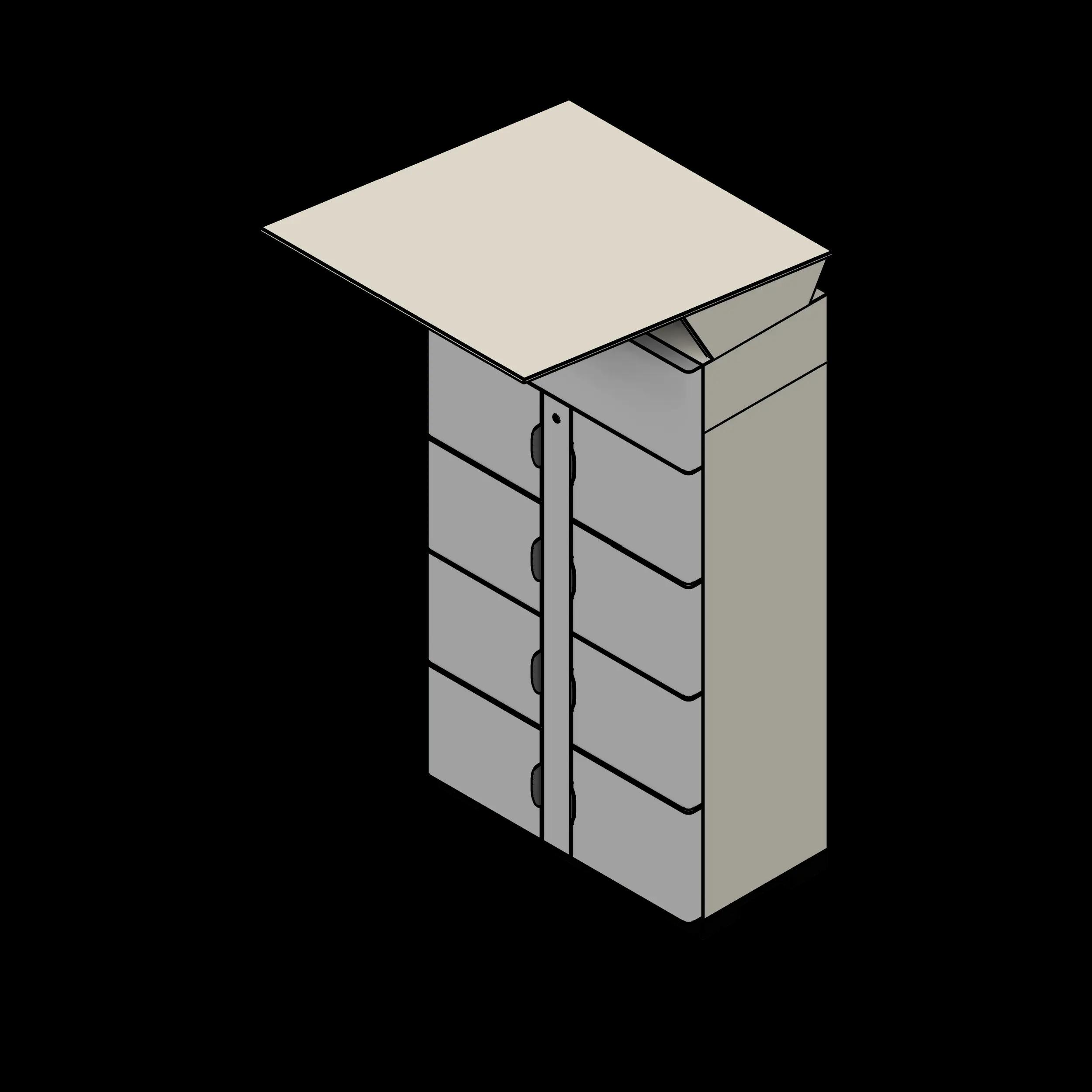

- 8-door locker with insulated openings available as indoor or outdoor unit
- Choose between freezer, refrigerated, ambient, or heated lockers
Temperature Controlled Smart Locker
To use this family, insert the model from the Fetch app and then use the type selector to choose the desired configuration. The catalog name details the number of doors, whether the unit is a control unit (with console) or adder (without console), and the number of small, medium, and large doors.
| Parameter | Value |
|---|---|
| Standard Widths | 43 79/256" |
| Minimum Width | 3' 7 1/4" (43 1/4") |
| Maximum Width | 3' 7 1/4" (43 1/4") |
| Standard Depths | 21 167/256" |
| Minimum Depth | 1' 9 5/8" (21 5/8") |
| Maximum Depth | 1' 9 5/8" (21 5/8") |
| Standard Heights | 84 27/32" |
| Minimum Height | 7' 0 7/8" (84 7/8") |
| Maximum Height | 7' 0 7/8" (84 7/8") |
| Manufacturer | Southwest Solutions Group_SMI |
| Lead Time | Ships in 14 to 16 weeks |
| Model | SM |
| Keynote | 10 55 26 |
| Assembly Code | E1030.70 |
| Author | AWright |
| Toll Free Number | 1-800-803-1083 |
| Property | Value |
|---|---|
| Includes Pricing | Yes |
| ADA Compliant | Yes |
| Has MEP Connectors | Yes |
| Primary Material | Powder coated steel |
| BIMobject Category | Furniture: Shelving & Storage |
| IFC | Furniture |
| Omniclass | 23.40.90.14.11 |
