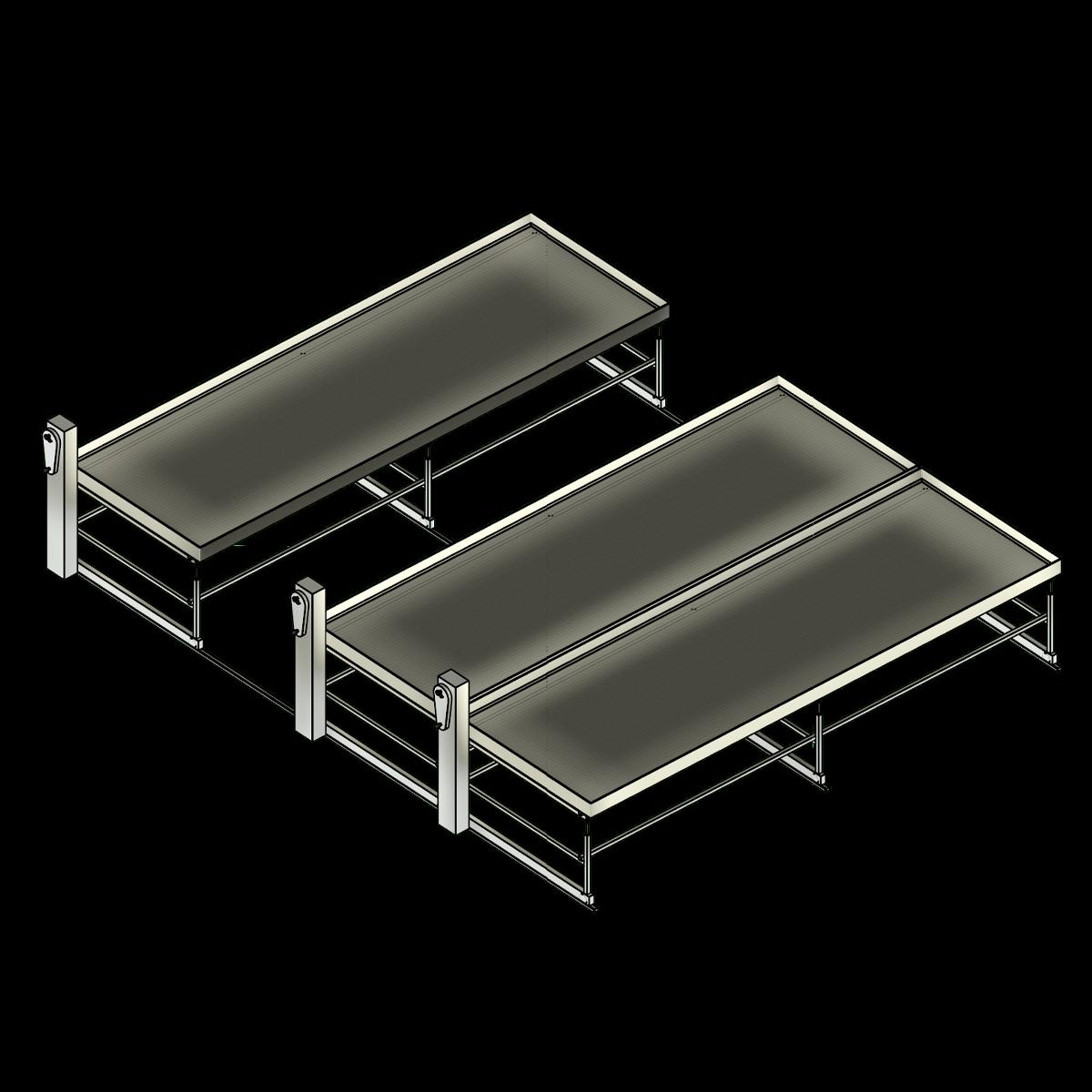

SSG Bench Horticulture High Density SST Mechanical Assist

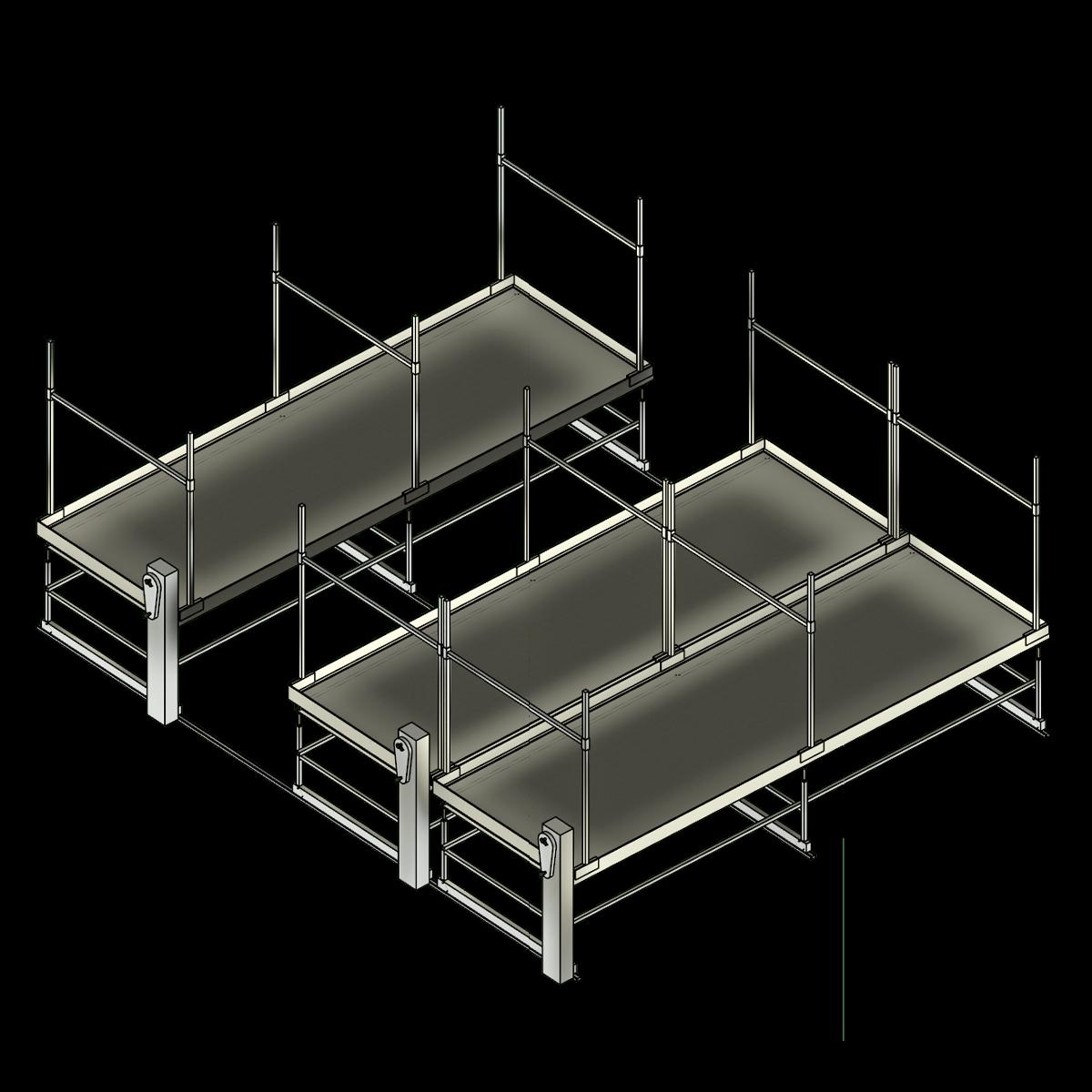

SSG Bench Horticulture High Density SST Mechanical Assist Plant Support

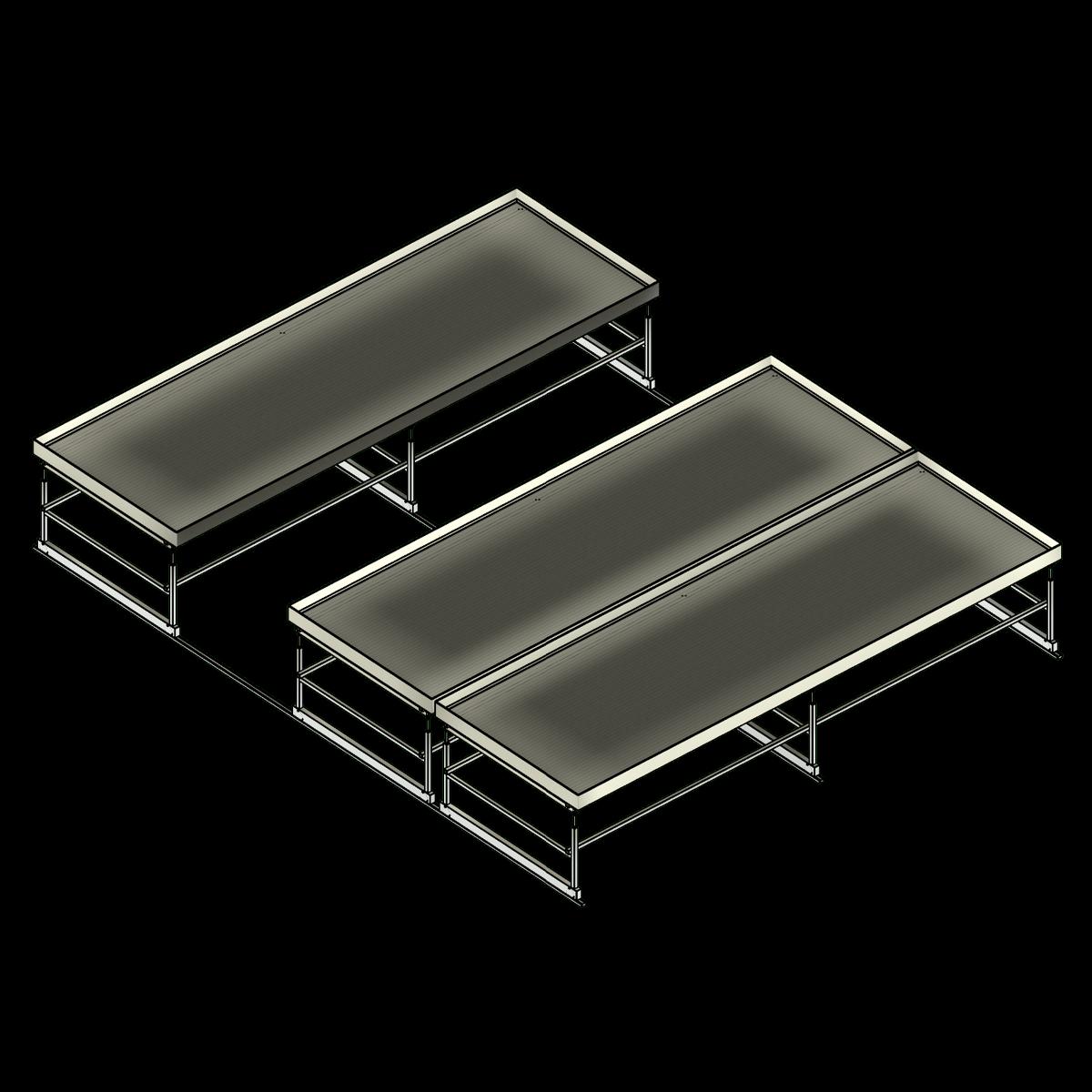

SSG Bench Horticulture High Density SST Manual

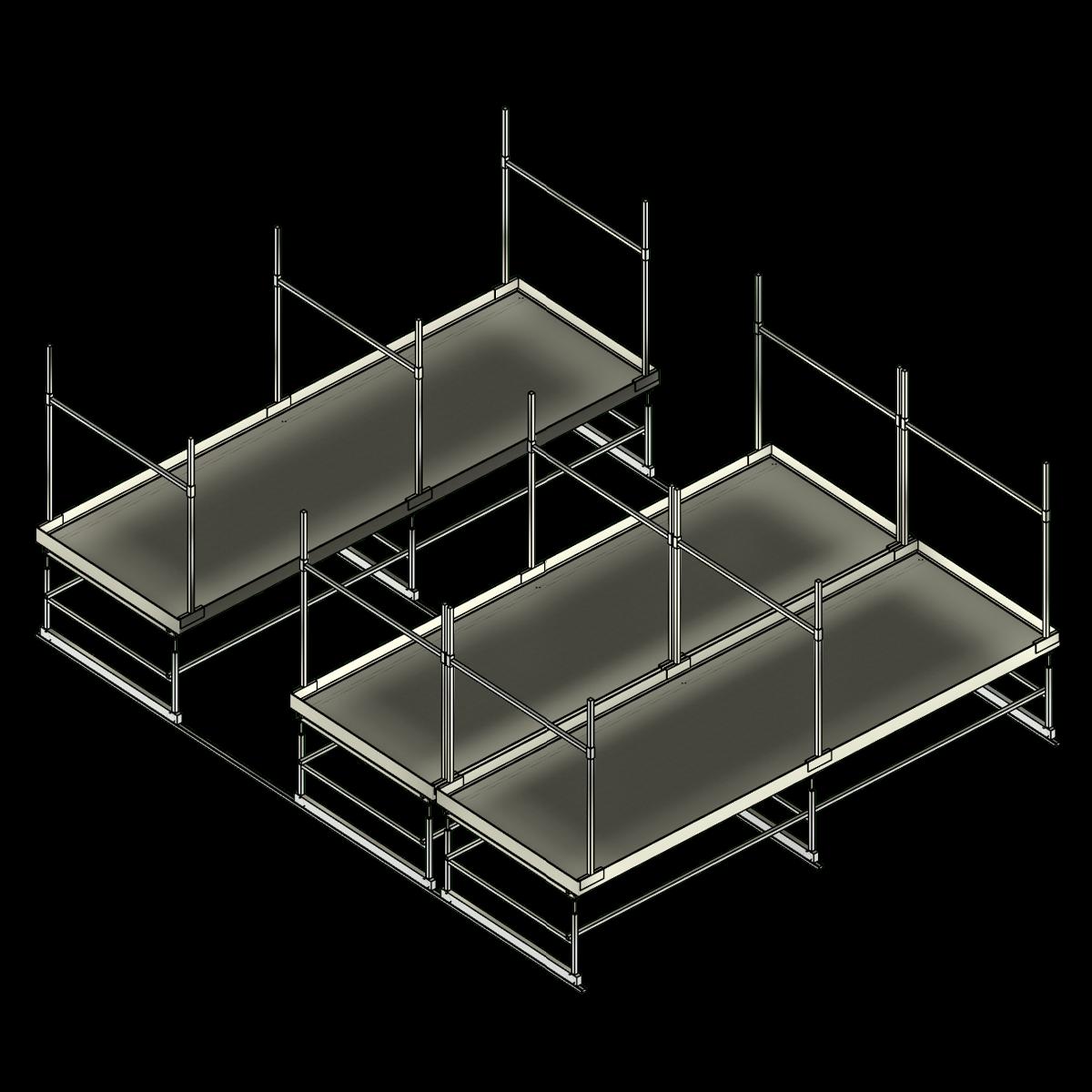

SSG Bench Horticulture High Density SST Manual Plant Support

High Density Horticulture Benching Revit family, view 8

High Density Horticulture Benching Revit family, view 9

2026.7.10.1

· Updated Jul 10, 2026

High Density Horticulture Benching

Ideal for commercial greenhouses, research facilities, nurseries, and indoor growing operations
Maximizes growing canopy by eliminating unnecessary permanent aisles
Rolling bench system available with manual or mechanical assist operation
Galvanized steel construction designed for heavy daily cultivation and irrigation loads
Custom bench sizes, track layouts, adjustable heights, and optional plant support systems

Family

Pricing

Revit 2023 (1.89 MB)

Revit 2024 (1.89 MB)

Revit 2025 (1.89 MB)

Revit 2026 (1.89 MB)

Revit 2027 (1.89 MB)

(0.34 MB)

Questions

Need some help? Send us a message if you have any sales or model related questions.

High Density Horticulture Benching

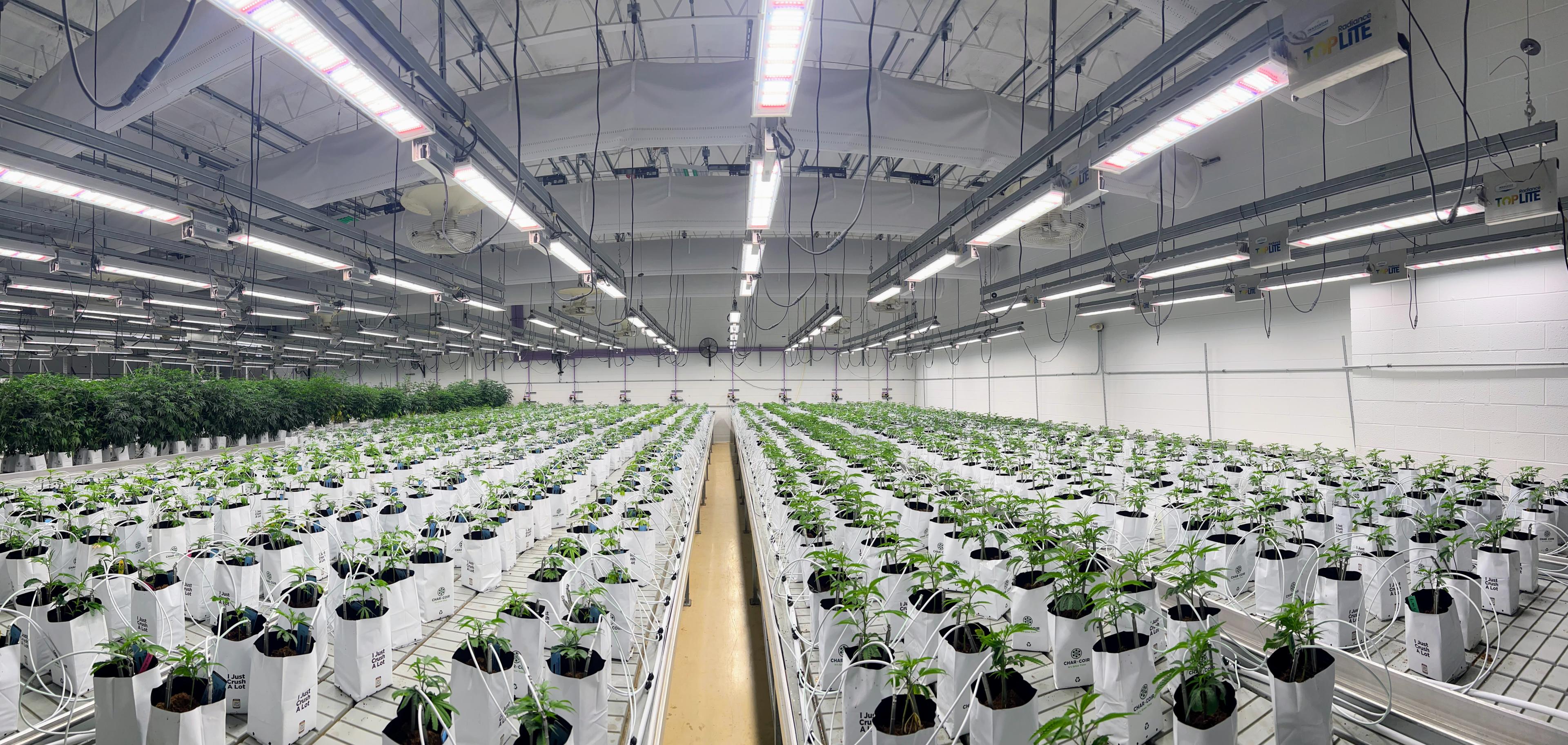

High-density horticulture benching systems maximize greenhouse growing capacity by replacing multiple fixed aisles with movable bench rows that create access only where it's needed. Benches roll along integrated tracks, allowing growers to increase productive canopy space while maintaining convenient access for planting, irrigation, maintenance, and harvesting.

High-density horticulture benching systems increase greenhouse productivity by allowing bench rows to move laterally on an integrated track system, creating access aisles only where needed. This design significantly increases available growing space while maintaining safe, ergonomic access for daily operations. The Revit family includes customizable galvanized steel benches with adjustable heights, interchangeable growing surfaces such as ebb-and-flow trays or expanded metal tops, optional plant support systems, and manual or mechanically assisted rolling configurations. Ideal for modeling efficient controlled-environment agriculture layouts where maximizing cultivation area is a priority.

Parameter	Value
Rear Clerance	0' 2" (2")
Top Clearance	1' 6" (18")
Minimum Number of Carriages	2
Minimum Aisle Width	3' 0" (36")
Standard Widths	36", 48", 54", 60", 66", 72", 78"
Minimum Width	3' 0" (36")
Maximum Width	6' 6" (78")
Minimum Depth	8' 0" (96")
Standard Heights	14" - 38" (1" increments)
Minimum Height	1' 2" (14")
Maximum Height	3' 2" (38")
Manufacturer	Southwest Solutions Group_CMF
MasterFormat	11 93 00
UniFormat	E1090.40 – Horticultural Equipment

Property	Value
Includes Pricing	Yes
ADA Compliant	No
Has MEP Connectors	No
Includes Sustainability	No
Primary Material	Galvanized steel
IFC	Furniture
MasterFormat	11 93 00
OmniClass	23.40.70.34 – Agricultural Equipment
UniFormat	E1090.40 – Horticultural Equipment

Product Overview

Horticulture benching systems are designed for commercial cultivation, greenhouse production, research facilities, and retail growing environments.
Engineered to recover fixed aisle space while maintaining efficient access for planting, irrigation, pruning, scouting, harvesting, cleaning, and daily crop work
Custom-built to order with no stock SKU; each bench is manufactured for project-specific dimensions and layouts
Made in USA with full installation support, including CAD drawings, anchors, and delivery quotes available

Available Configurations

Stationary Bench
Standard Roll Bench
Max Roll Bench
Track Bench (Manual)
Track Bench (Mechanical Assist)
Ebb & Flow or expanded metal bench tops
Optional adjustable plant support system
Custom widths, lengths, and heights available

Materials & Finishes

Frame Material: 1" galvanized steel tubing
Bench Top Options: Expanded metal or Ebb & Flow trays
Optional adjustable plant support system: 1" galvanized steel tubing
Steel hardware with corrosion-resistant finish
Galvanized steel construction designed for humid greenhouse environments

Construction

Welded and bolted steel frame assembly
2'-6' 6" widths available (depending on bench type)
Custom lengths from 4'-120' (depending on bench type) in 1" increments
Adjustable working heights from 9"-38" (depending on bench type)
Modular frame design enables multiple benches to be placed side-by-side for efficient layouts
Custom-built to order with installation support available
Engineered for heavy daily use in commercial greenhouse and controlled-environment agriculture applications

Operation

Stationary: Fixed bench with optional floor anchoring
Standard Roll: Side-to-side rolling bench requiring concrete floor anchoring
Max Roll: Extended-travel rolling bench requiring concrete floor anchoring

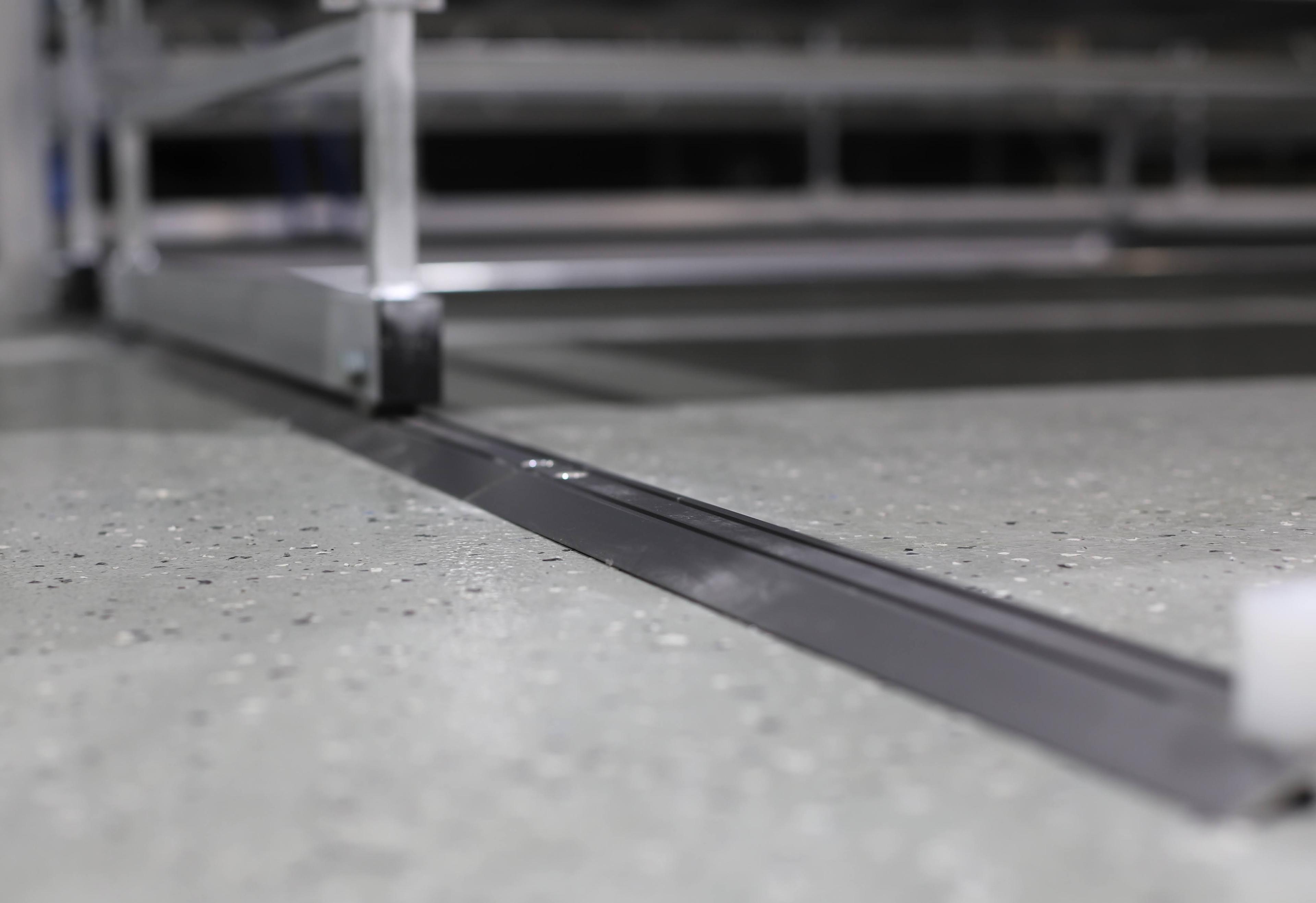

Track Bench (Manual): Surface or recessed track-mounted manual rolling system

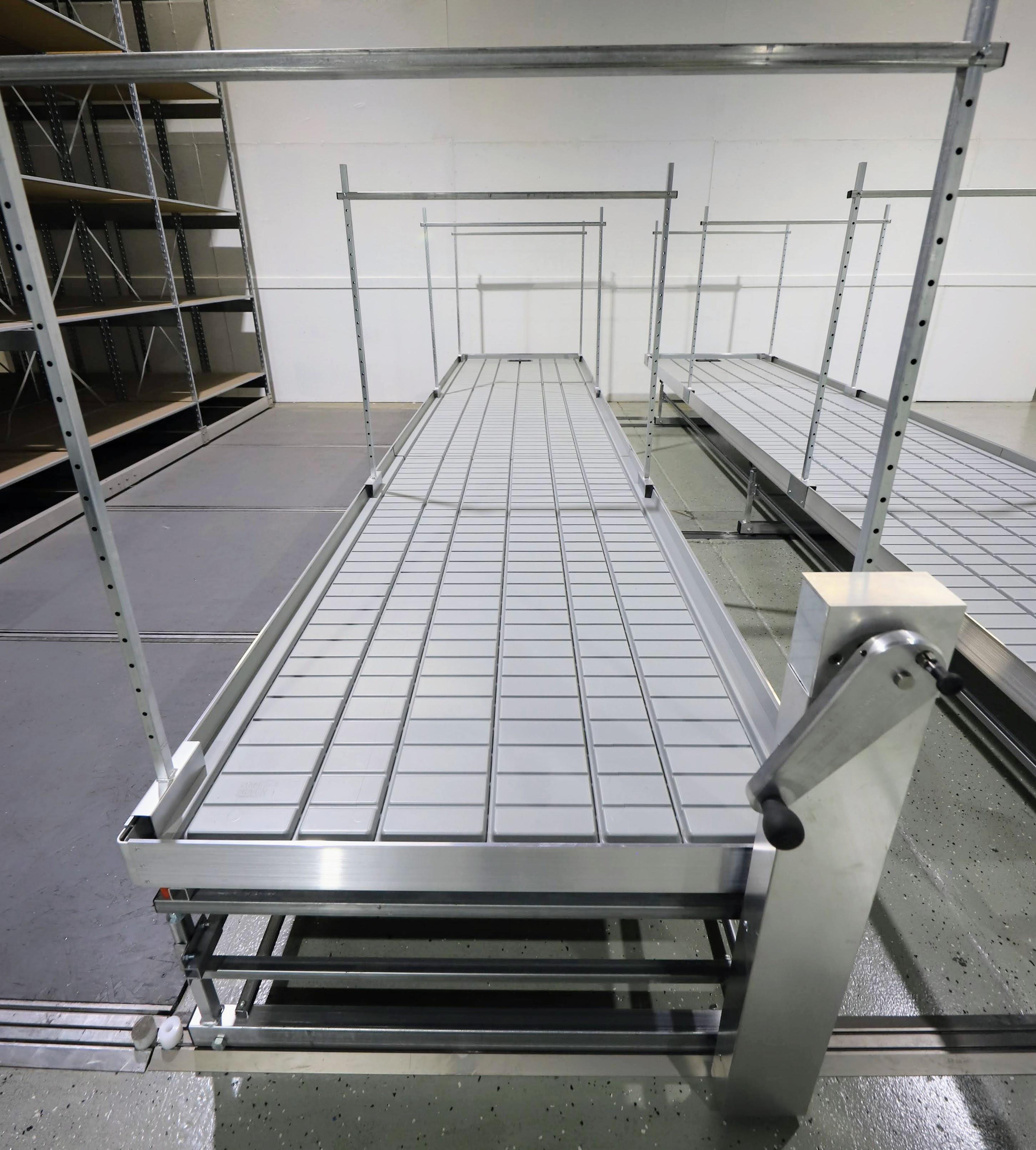

Track Bench (Mechanical): Surface or recessed track-mounted bench with chain-driven mechanical assist

Performance

Up to 90% maximum canopy coverage
Compatible with Ebb & Flow irrigation trays
Available in custom widths, lengths, heights, and bench layouts
Existing benches can be upgraded to sub-irrigation with an ebb & flow tray retrofit
Ebb & Flow tray systems require plumbing access at the tray end

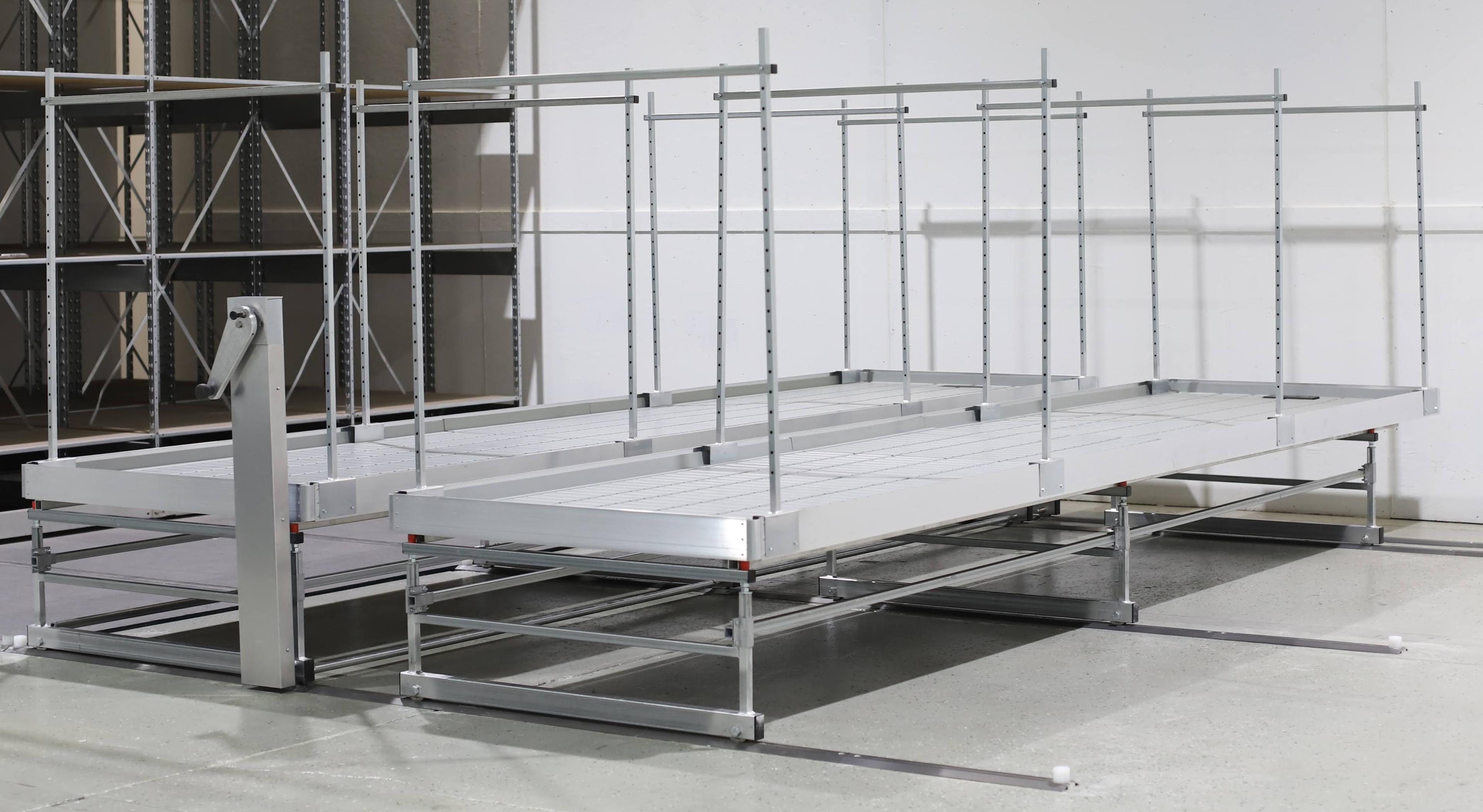

Optional plant support system for added plant stability and organized canopy management
Plant support uprights attach to side rails with adjustable crossbar height.
Designed to improve airflow, irrigation management, workflow efficiency, and usable canopy within commercial greenhouse and controlled-environment agriculture facilities

Safety

Up to 35 lbs. per square foot tray loading capacity
Ebb & Flow tray systems require bench structures capable of supporting approximately 4 lbs./ft² under irrigation
Track-mounted systems require floor anchoring for stable operation
Bench leveling supports proper Ebb & Flow irrigation performance

Power

Stationary / Standard Roll / Max Roll / Manual Track: No power required
Mechanical Track: Chain-driven mechanical assist system (power requirements vary by configuration)

Design and Installation Support

Bench layouts designed around room dimensions, workflow, drainage, and cultivation requirements.
Layout and space analysis available at no charge
CAD drawings provided for planning and Revit coordination workflows
Suitable for commercial greenhouses, research facilities, nurseries, controlled-environment agriculture (CEA), and high-density cultivation projects
