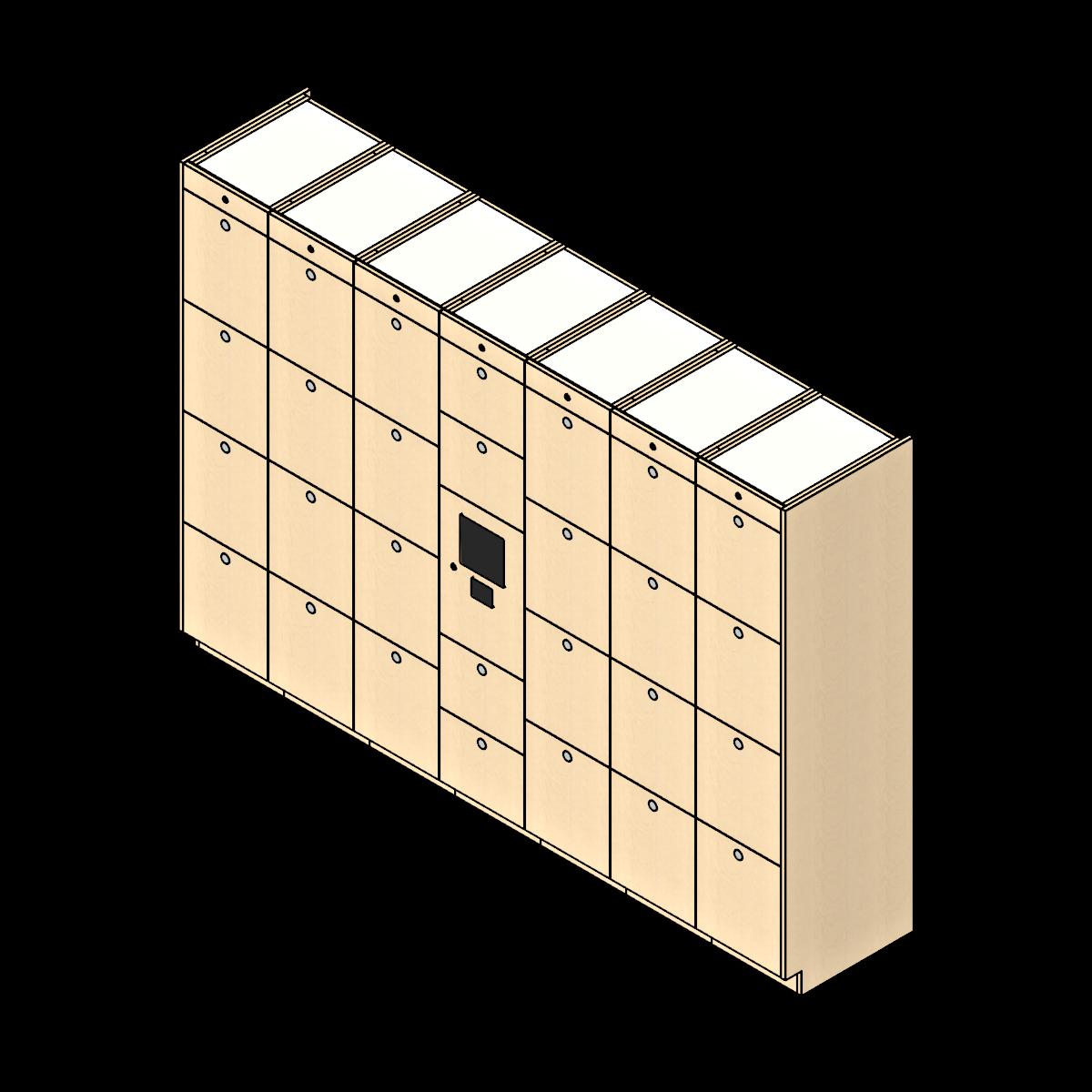

28 Openings, 7 Columns Employee Shared Use Lockers
Product SKU
SKU: ssg-28
Description
- Provides a secure and fully automated way for employees to share locker space throughout the day or week
- Integrated remote management software and app allows employees and guests to reserve lockers for scheduled amounts of time
- Appropriate locker door opens with correct code, barcode, or RFID scan
Smart lockers allow employees to have secure locker storage while reducing the amount of floor space for lockers on campus by having personnel share locker space. Users can reserve a locker online or in an app for a block of time that can only be accessed by them for as long as they need it. When a employee's reserved locker is available, they will be automatically notified via text, email, or app notification and can then access their locker at any time with the supplied code or barcode. Locker systems can be infinitely expanded to fit any size campus size. Locker units can be installed indoors or outdoors with the optional canopy to protect from rain and weather. Temperature-controlled lockers can also be added to any parcel locker configuration to provide convenient heated or cooled compartments.
Physically, the smart locker systems consist of a bank of modular lockers, with one of the lockers dedicated to housing the system hardware and power supply. A typical bank of parcel lockers is comprised of columns, with each column consisting of either six small lockers per column, a mixture of five or six small and medium lockers per column, or two large lockers per column. Each column features a proprietary locking raceway that incorporates the required number of smart locking devices for the number of lockers in each column. Electronic locker systems are available in a variety of finishes to complement or match the environments in which they are installed.
Design
- Optional canopy for outdoor units
- Front and side aprons conceal adjustable legs
- Temperature-controlled units are available
- 1 Touch Screen is needed for every 256 Openings.
- A soffit above the lockers is Not Recommended for easy access.
- Minimum of 2" of clearance is needed between locker bank and wall
Software
Controller software integrates with existing facility management systems such as:
- Brynka
- SC Logic
- Servicen W
- LDAP
- Others with API access
| Parameter | Value |
|---|
| Property | Value |
|---|---|
| Includes Pricing | Yes |
| ADA Compliant | Yes |
| Has MEP Connectors | Yes |
| Width | 9' 6" (114") |
| Depth | 2' 0" (24") |
| Height | 6' 8" (80") |
| # of Openings | 28 |
| Qty: Extra Small Doors | 0 |
| Qty: Small Doors | 4 |
| Qty: Medium Doors | 24 |
| Qty: Large Doors | 0 |
| Qty: Oversize Doors | 0 |
| Qty: Full Doors | 0 |
| Qty: Touchscreens | 1 |
| Primary Material | Laminate |
| IFC | Furniture |
| MasterFormat | 10 55 26 – Parcel Lockers |
| OmniClass | 23-40 70 27 24 17 – Package Transfer Units |
| UniFormat | E1030.70 – Postal, Packaging, and Shipping Equipment |
