Collections Storage Sample Project

This BIM-ready space balances high-density storage efficiency with conservation best practices. From paintings and textiles to large sculptural objects and archival materials, the layout accommodates diverse collection types within a single, cohesive storage facility.

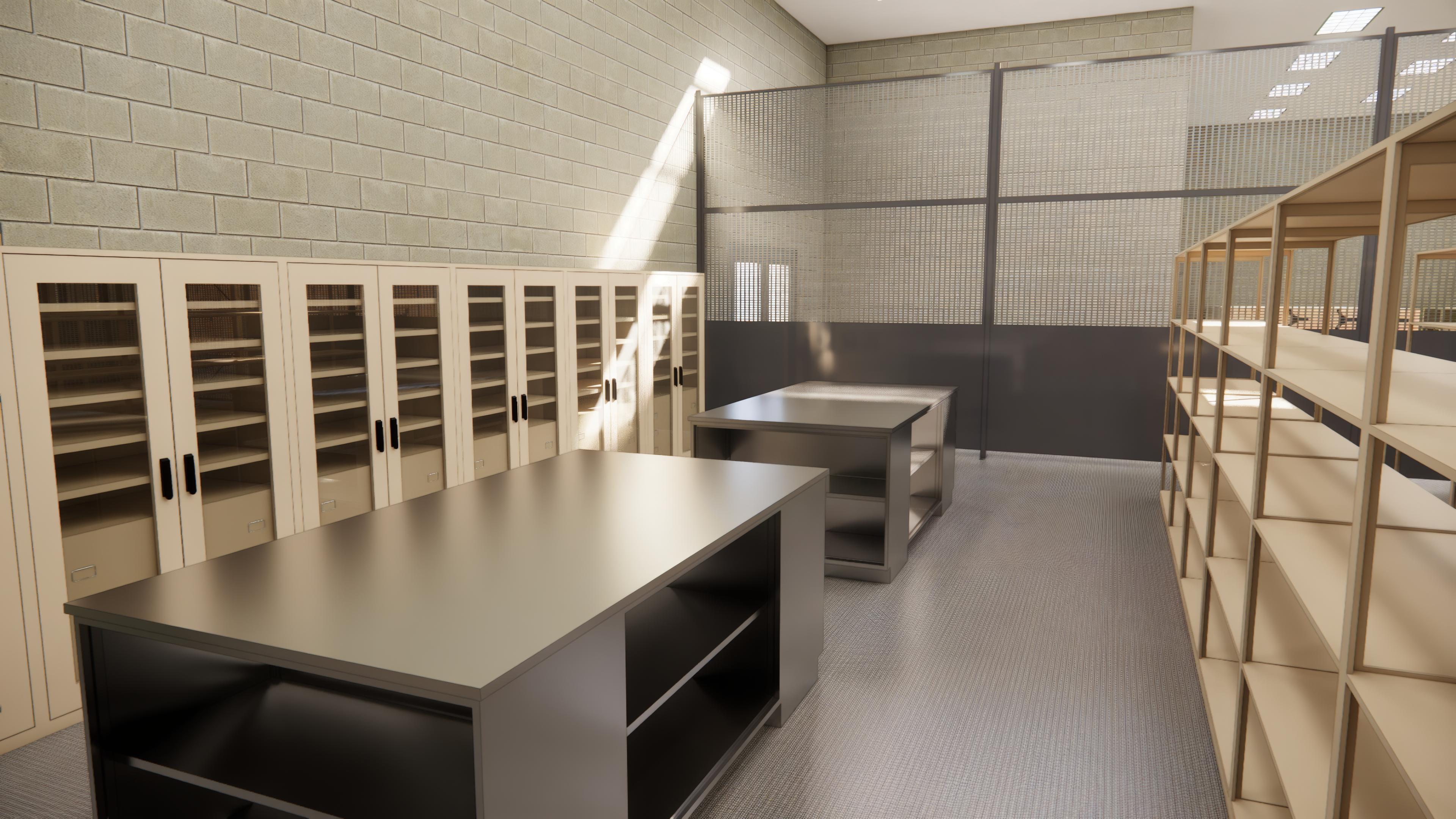

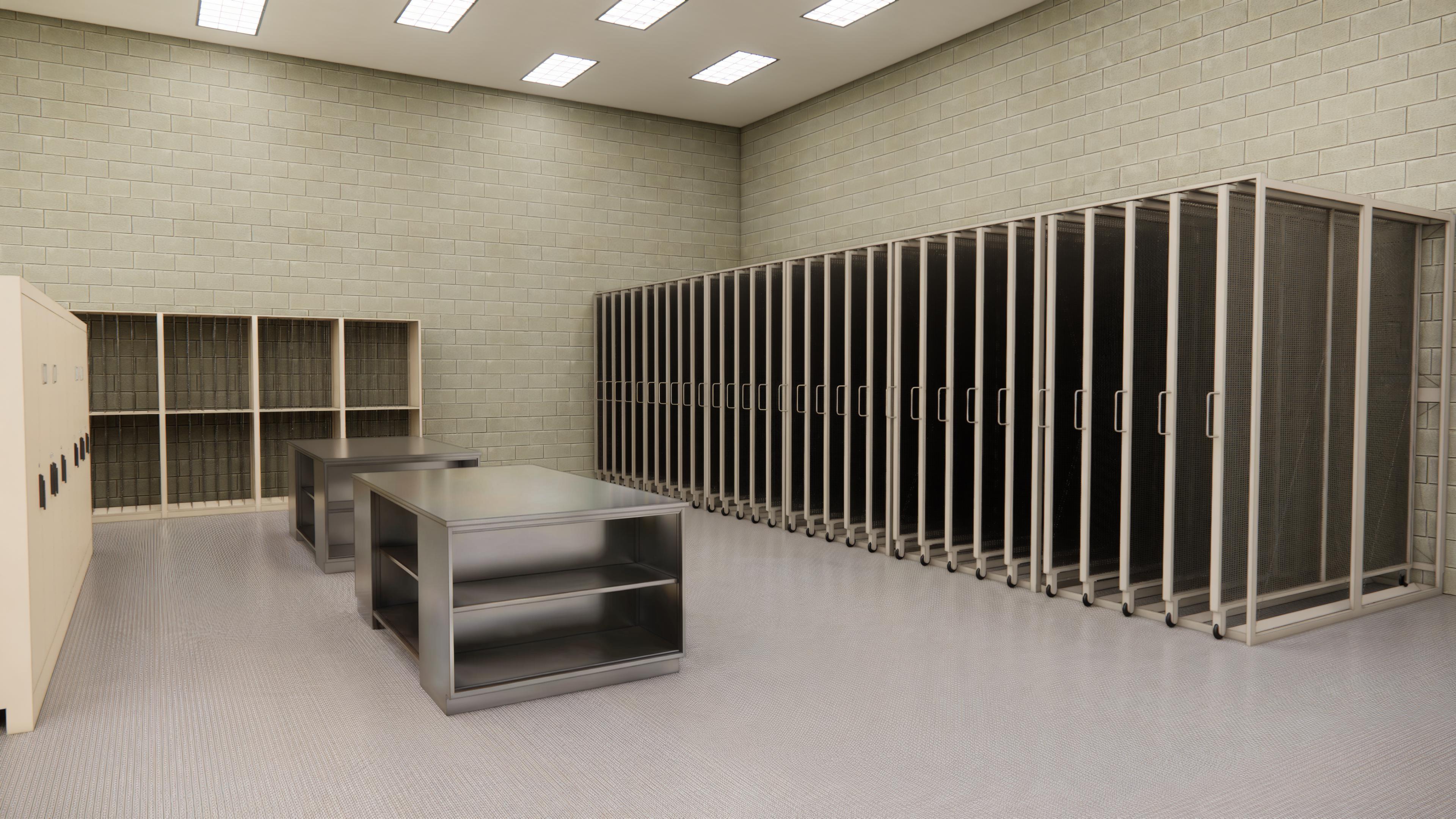

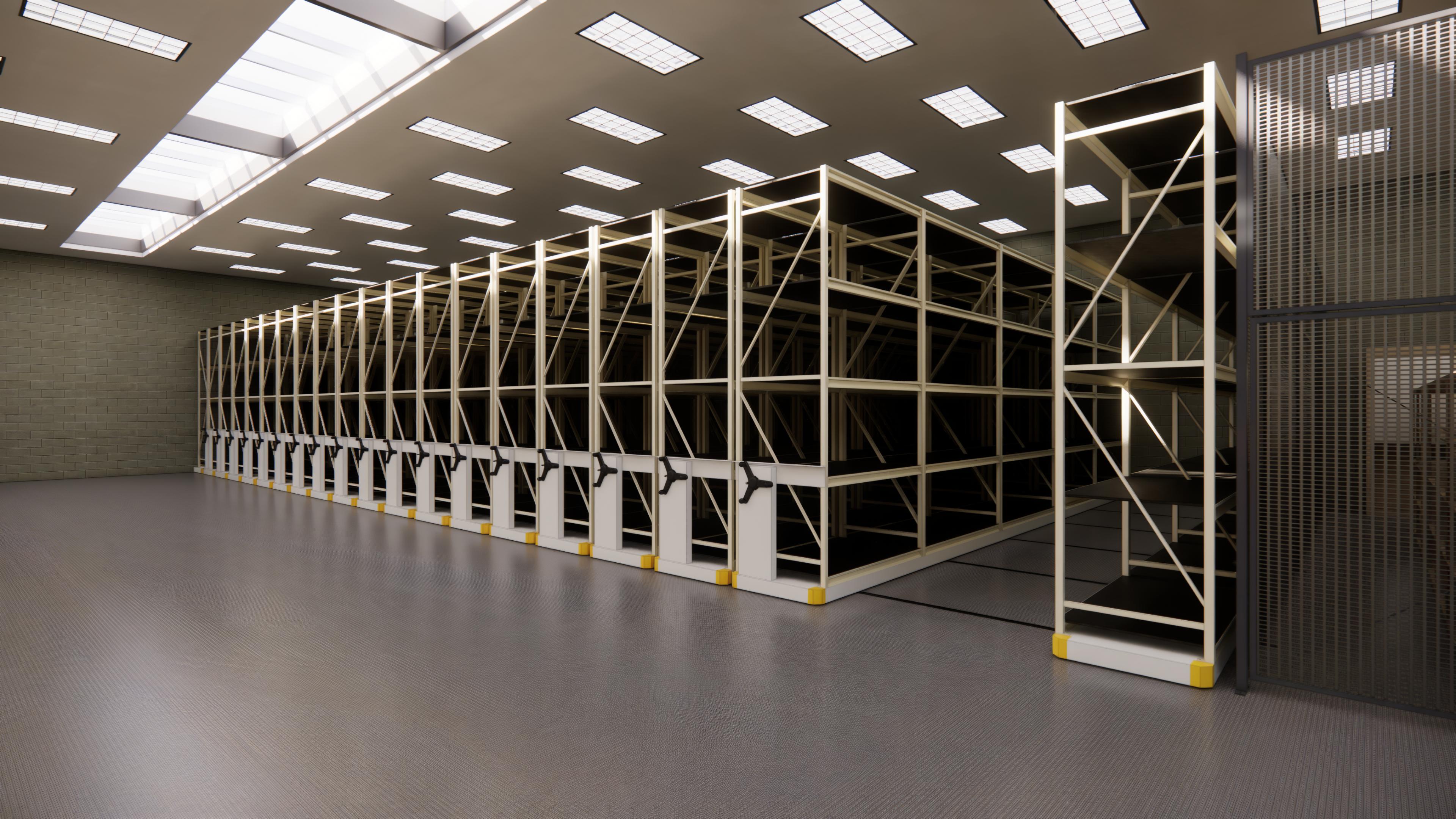

Multiple high-density shelving systems and compact storage racks maximize floor space while maintaining clear circulation paths for staff and equipment. Pullout wire panels provide secure vertical art storage for framed works, while oversized cabinets protect large or irregular artifacts. Dedicated garment storage supports textile preservation with appropriate hanging systems and protective enclosures. A secure, caged intake area allows new artifacts to be cataloged, inspected, and processed prior to entering the main collection, reinforcing security and chain-of-custody procedures.

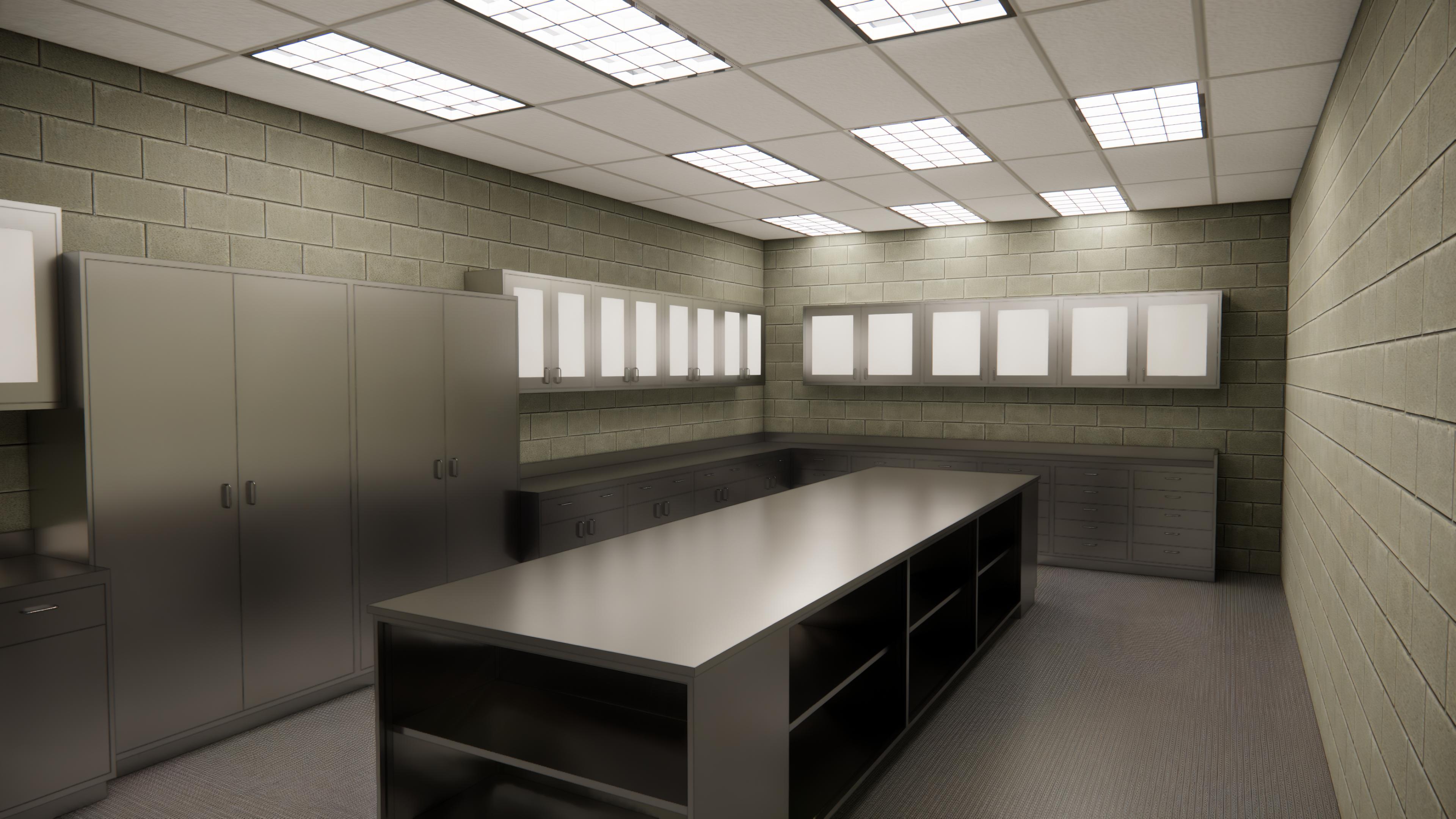

Adjacent to the main storage zone, a small conservation room includes stainless steel cabinets and specialized work surfaces designed for light conservation and preservation activities. Accurate Revit families representing shelving units, cabinetry, security partitions, and conservation equipment, making this Revit model ideal for architects, museum planners, and BIM professionals designing cultural, institutional, or archival facilities. Fully BIM-ready and adaptable, the model supports space planning, security coordination, and long-term collection growth strategies.
