Tool Crib Sample Project
Product SKU
Downloads
Description

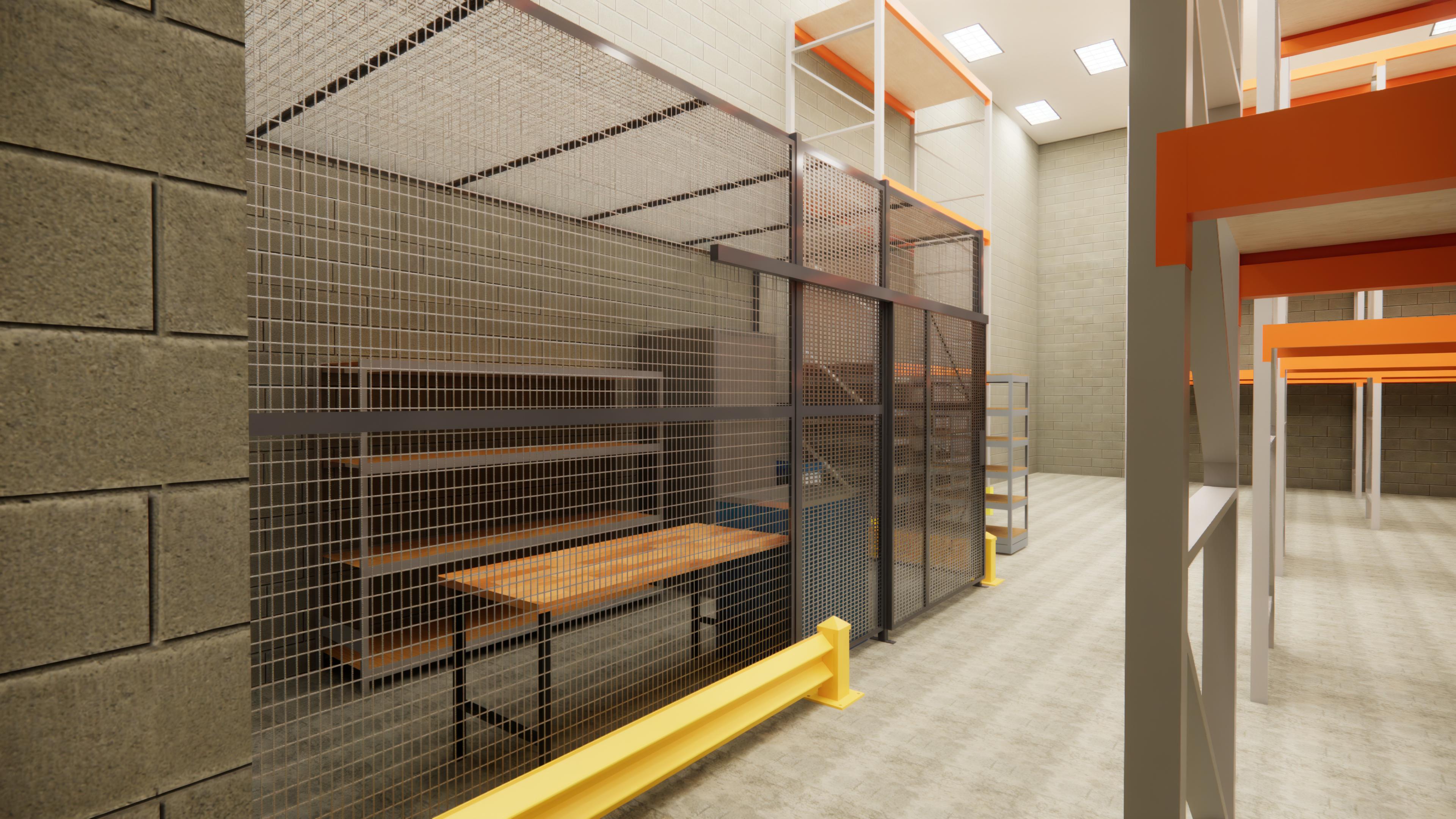

- Wire partition system defines secure, modular tool storage layout with shelving, bin, and controlled access zones for tools and equipment.

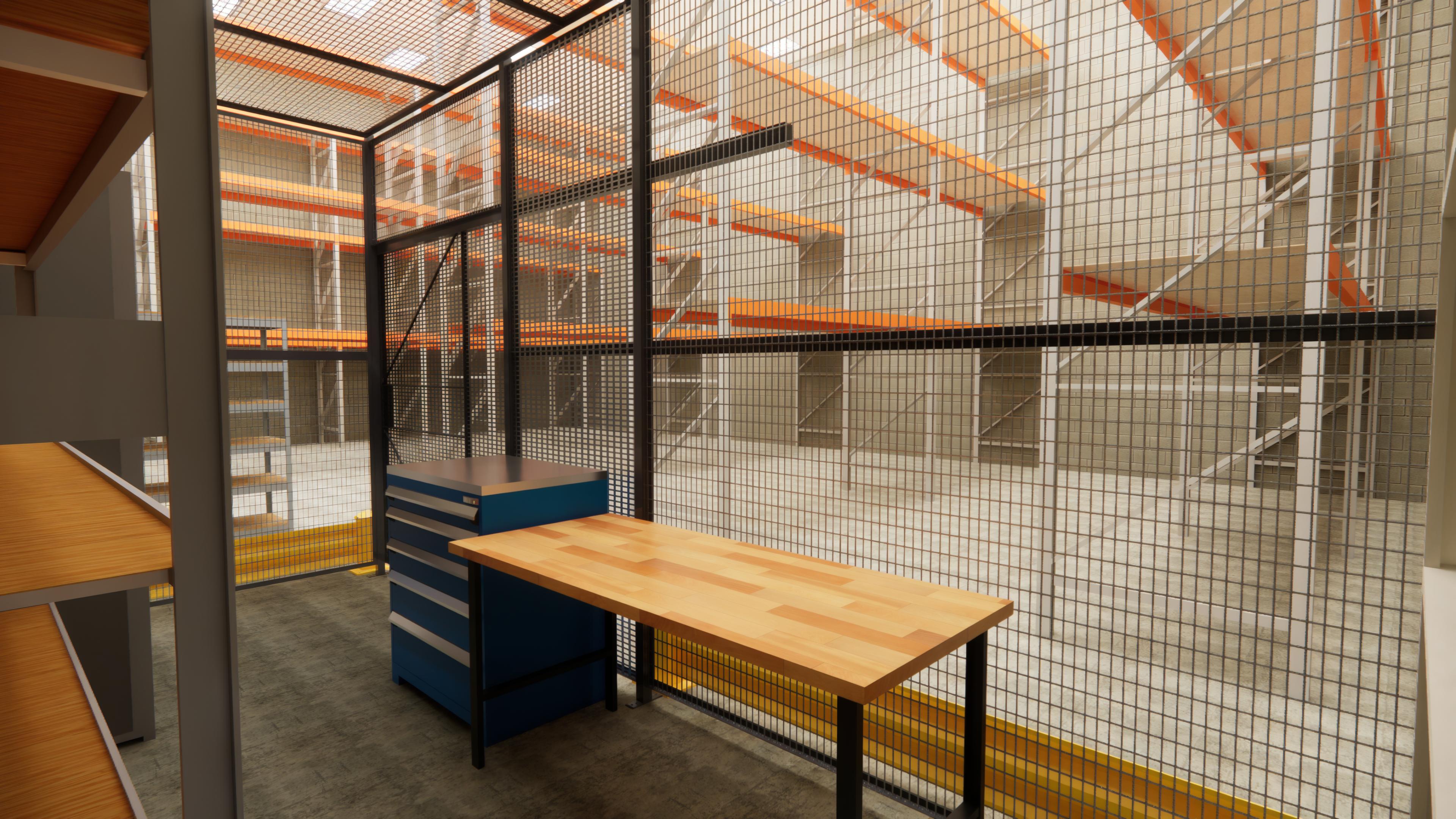

- Integrated workbench and issue/return areas supporting streamlined tool management operations.
- Flexible Revit families for wire cages, racks, barriers, and casework that adapt to different facility standards.
- BIM-ready Revit model optimized for industrial workflows, asset tracking, and space efficiency.
Designed to centralize tool storage, distributions, and inventory control, this space supports operational efficiency while maintaining safety and accountability. The layout emphasizes clear circulation paths, controlled access, and durable finishes appropriate for high-use industrial environments.

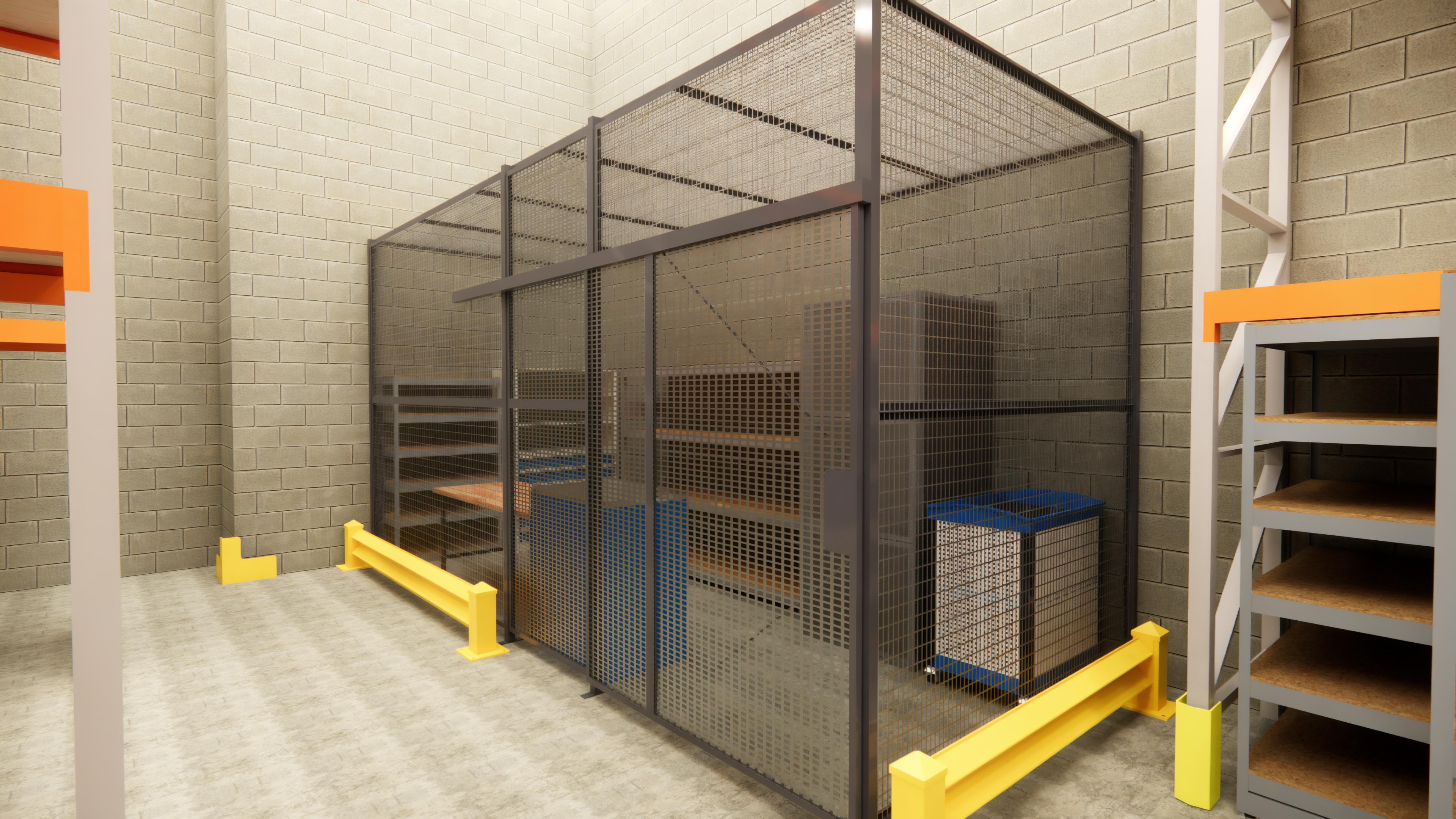

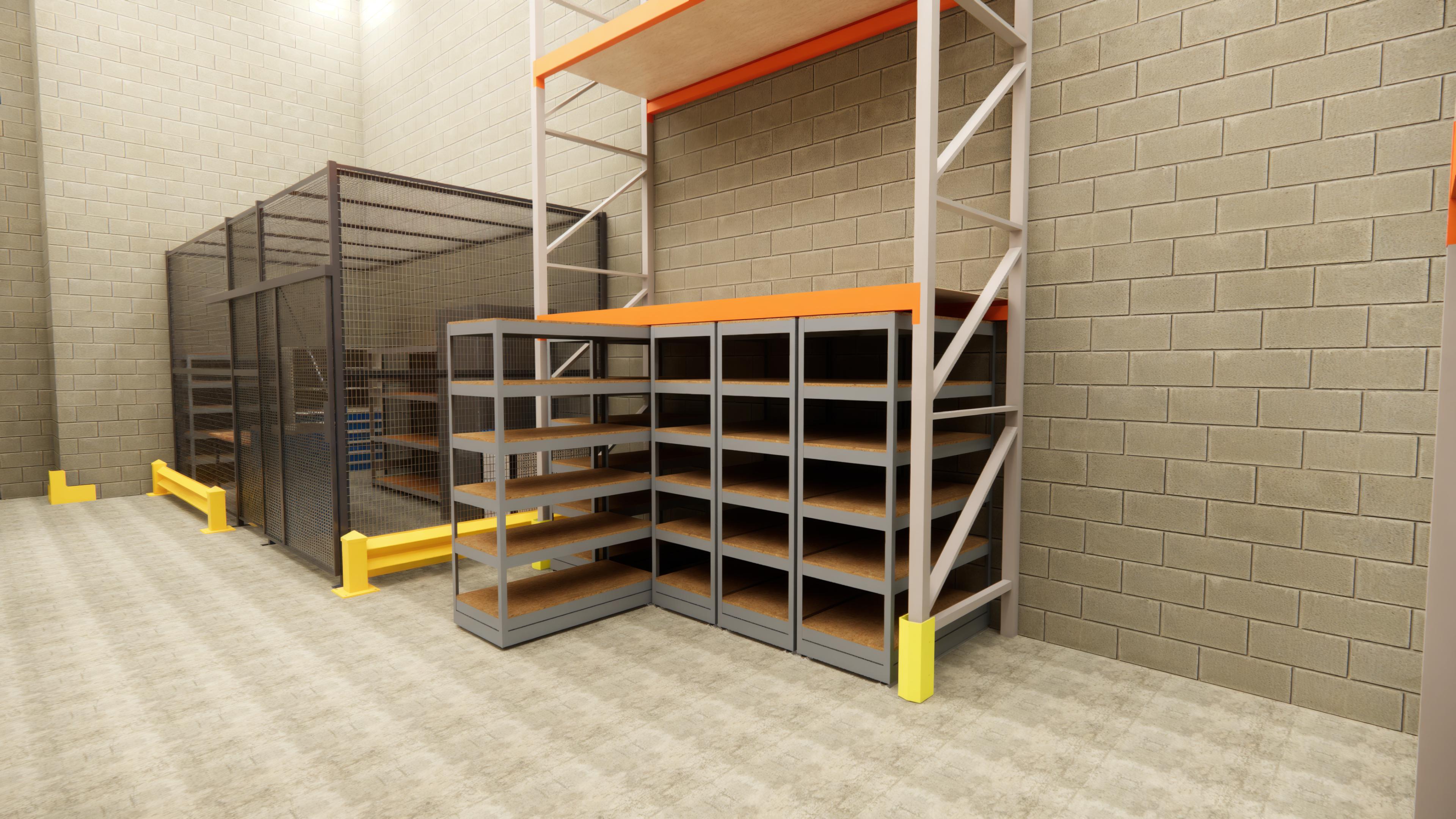

This Revit model includes modular shelving systems, pallet-style storage, enclosed cage areas, and integrated work surfaces for tool checkout, maintenance, or kitting. Protective barriers and defined zones help separate pedestrian circulation from storage and handling areas, reinforcing workplace safety standards. The overall configuration can be scaled or reconfigured to suit different production volumes or facility footprints.
Built with BIM-ready accuracy, the tool crib model provides architects, designers, and BIM professionals with reliable Revit families for industrial shelving, workbenches, and storage enclosures. The model supports early coordination, clash detection, and downstream facility management, making it an effective starting point for industrial design, renovation, or standardization across multiple sites.
| Revit family | |
|---|---|
| Includes Pricing | Yes |
| ADA Compliant | Yes |
| Has MEP Connectors | No |
| Includes Sustainability | No |
