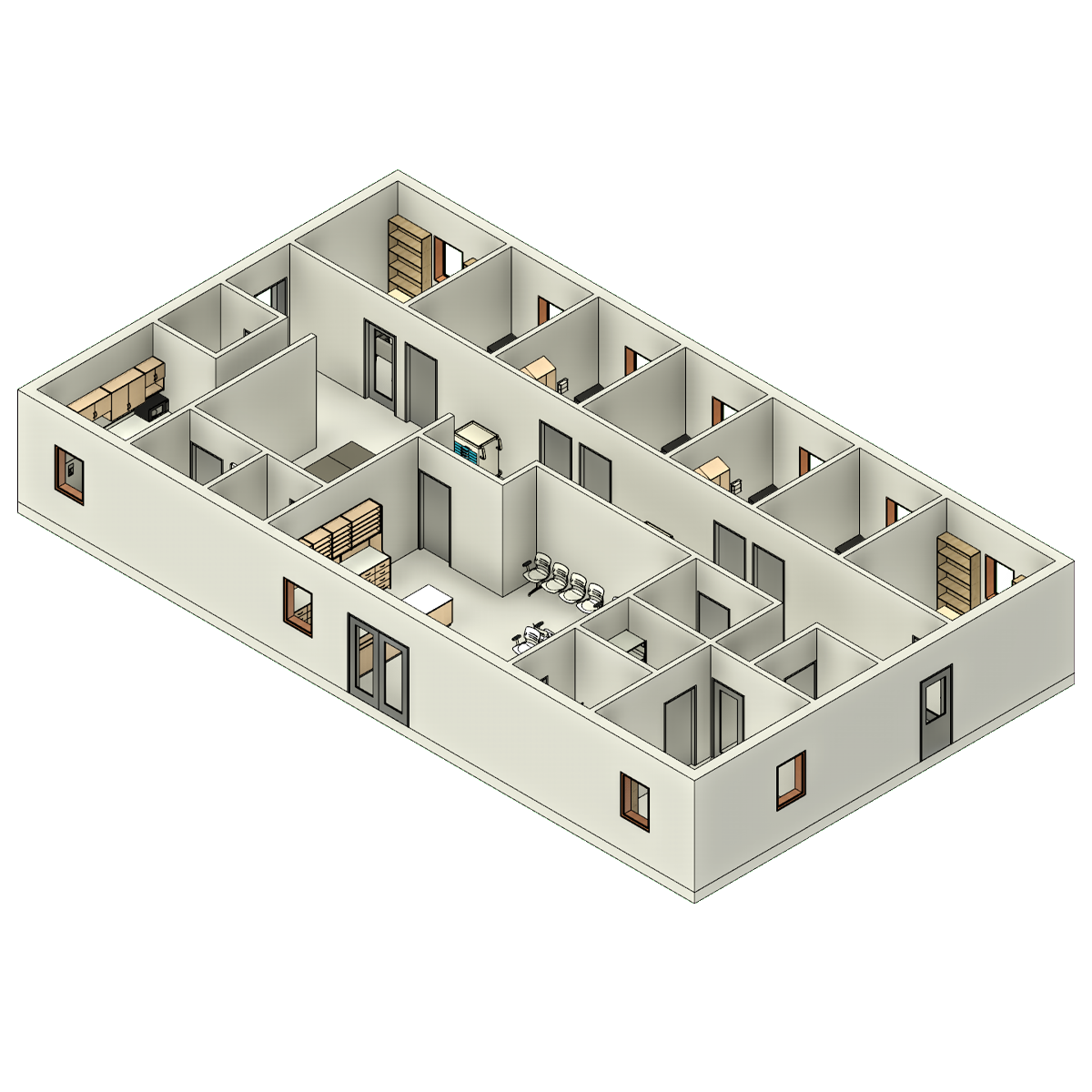

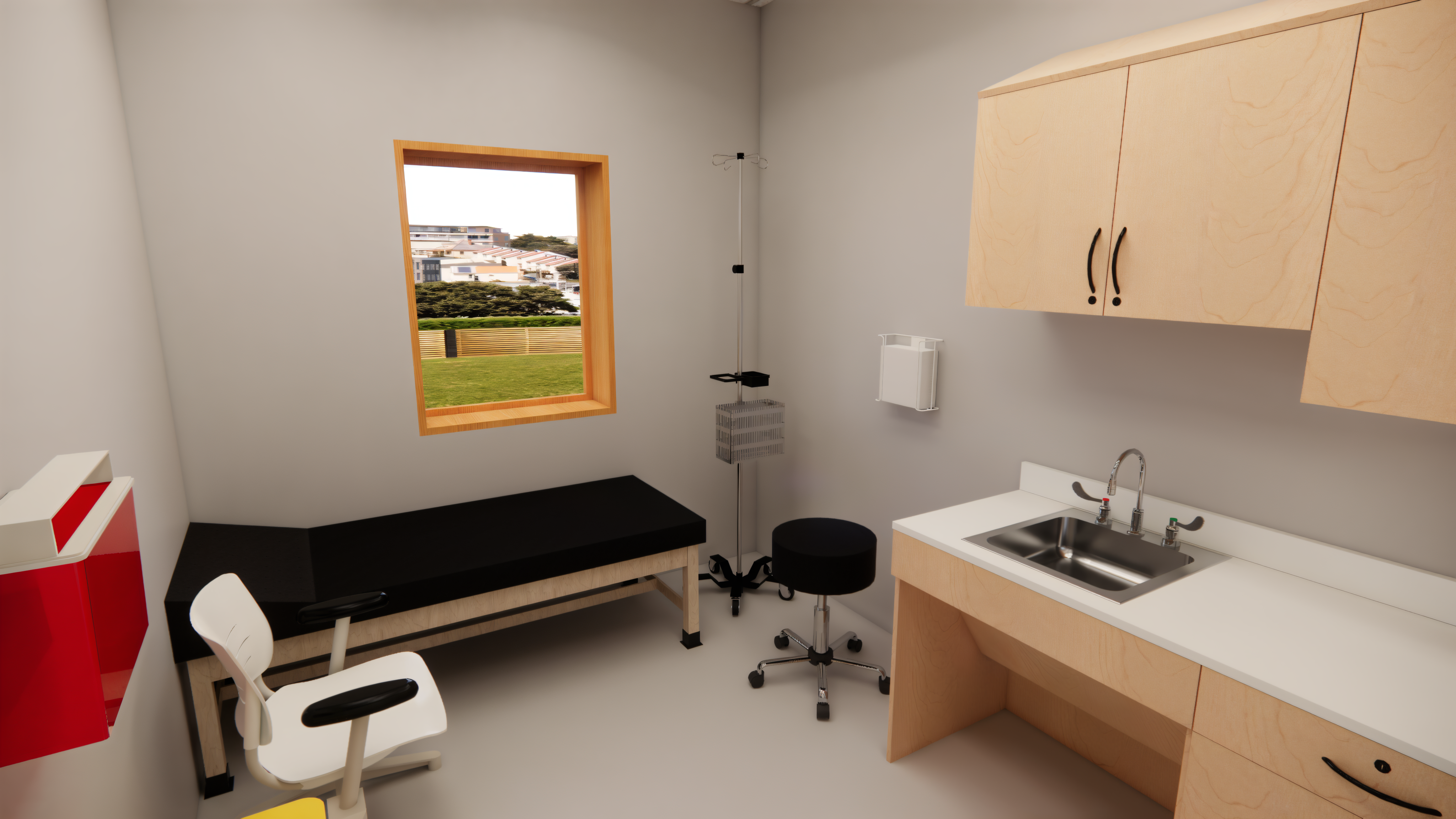

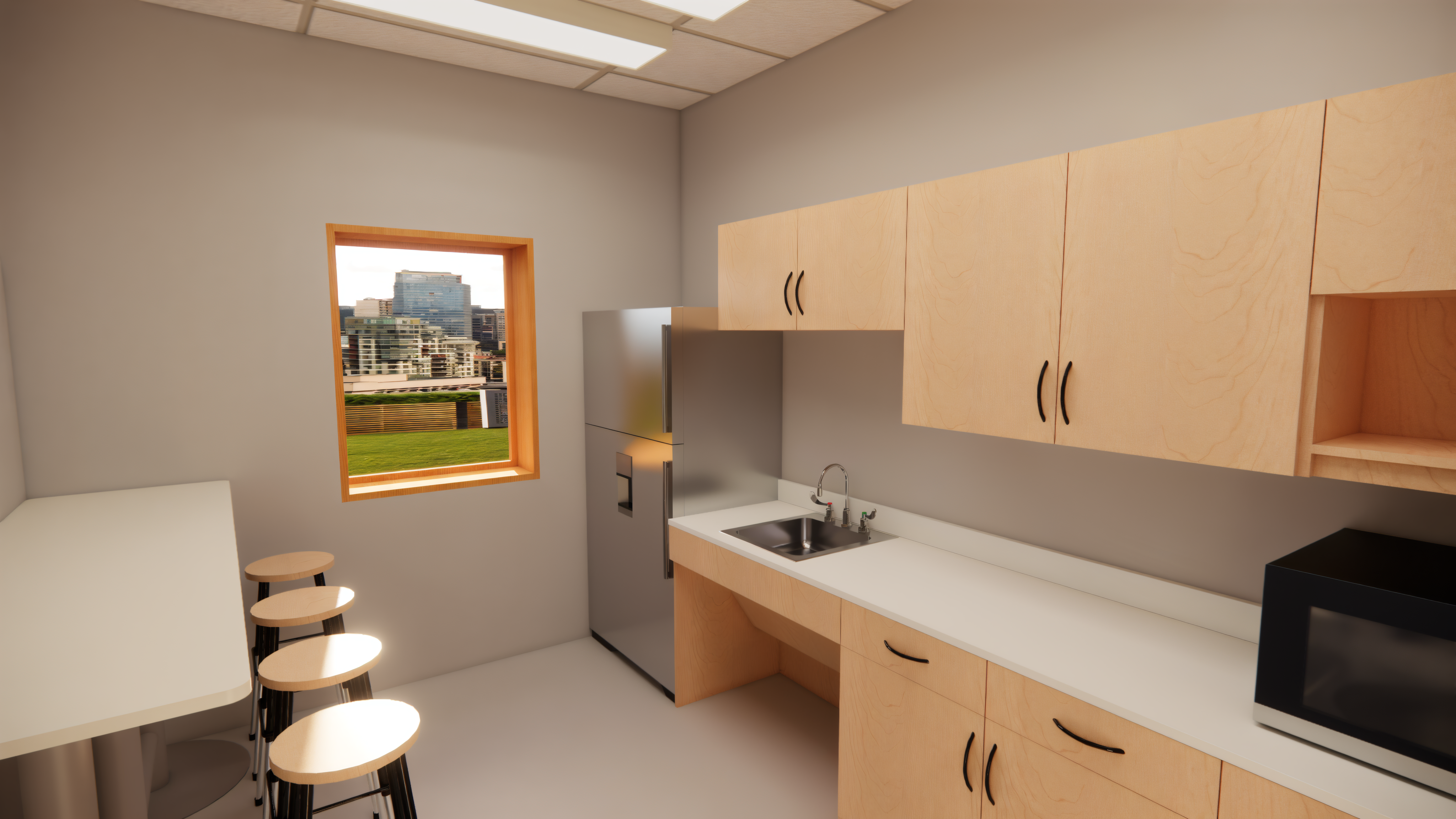

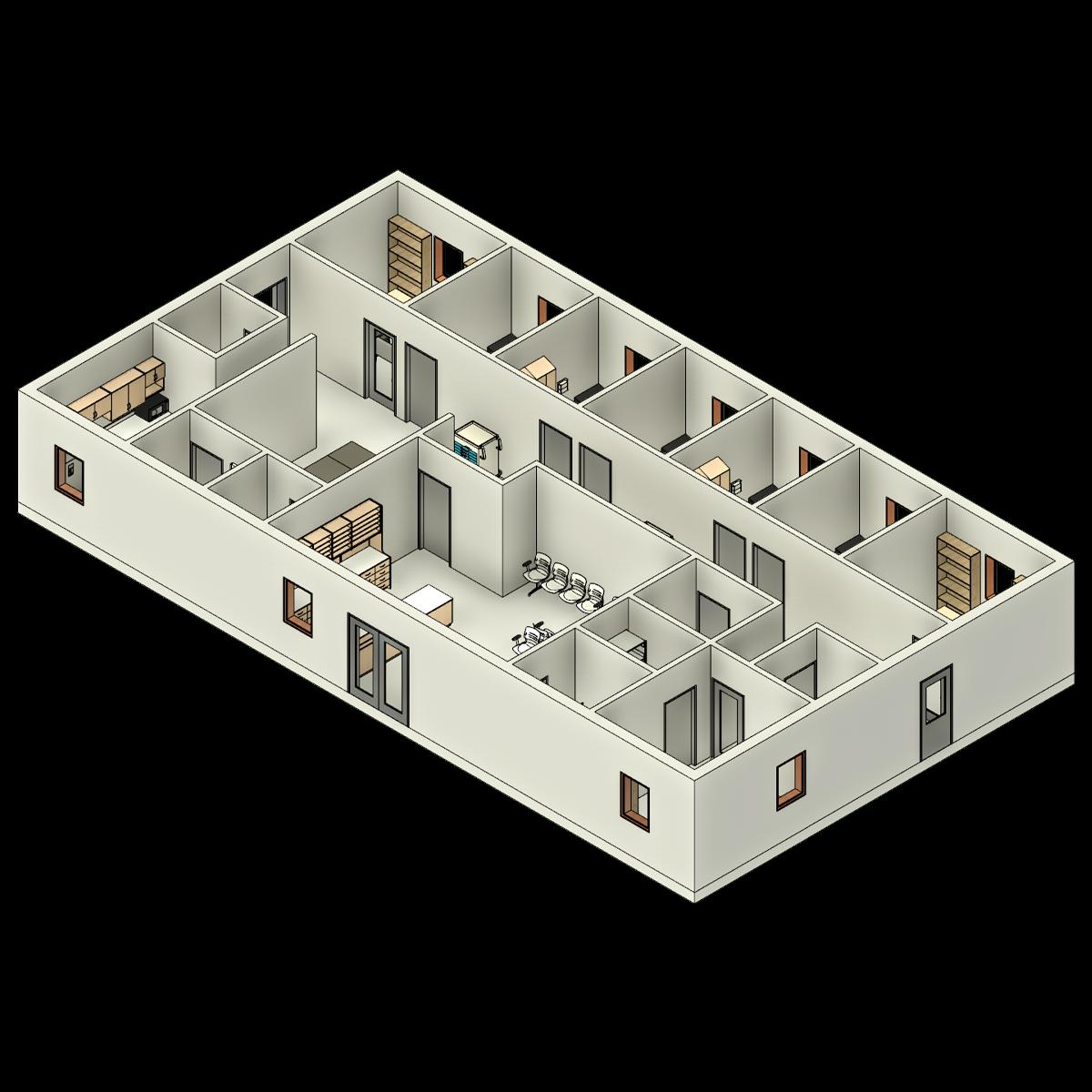

The floor plan features a waiting room with a reception desk, multiple patient examination rooms, a nurse's station, small staff offices, and dedicated storage areas for supplies and equipment. A break room is also incorporated to support staff wellness during long shifts.

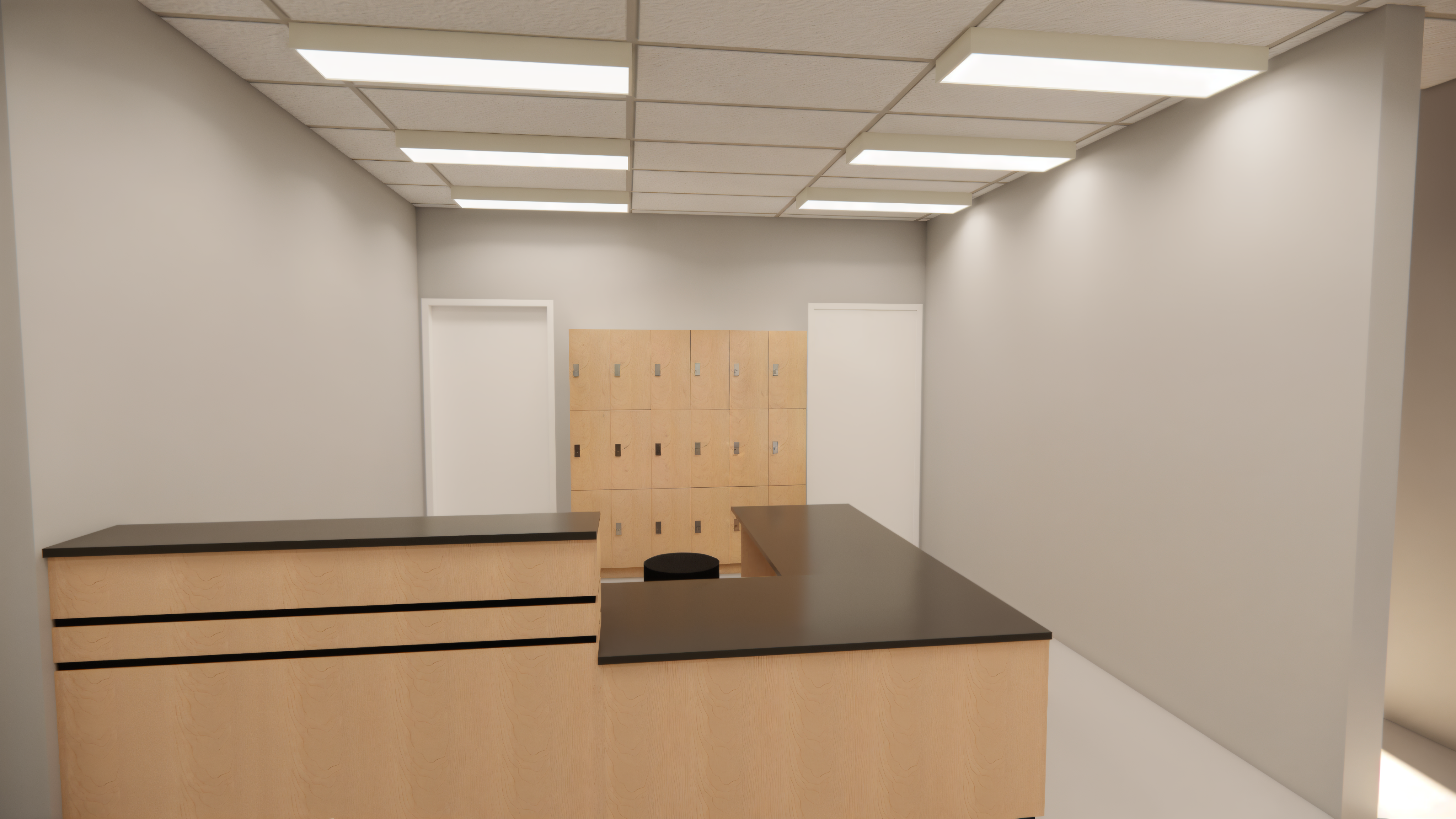

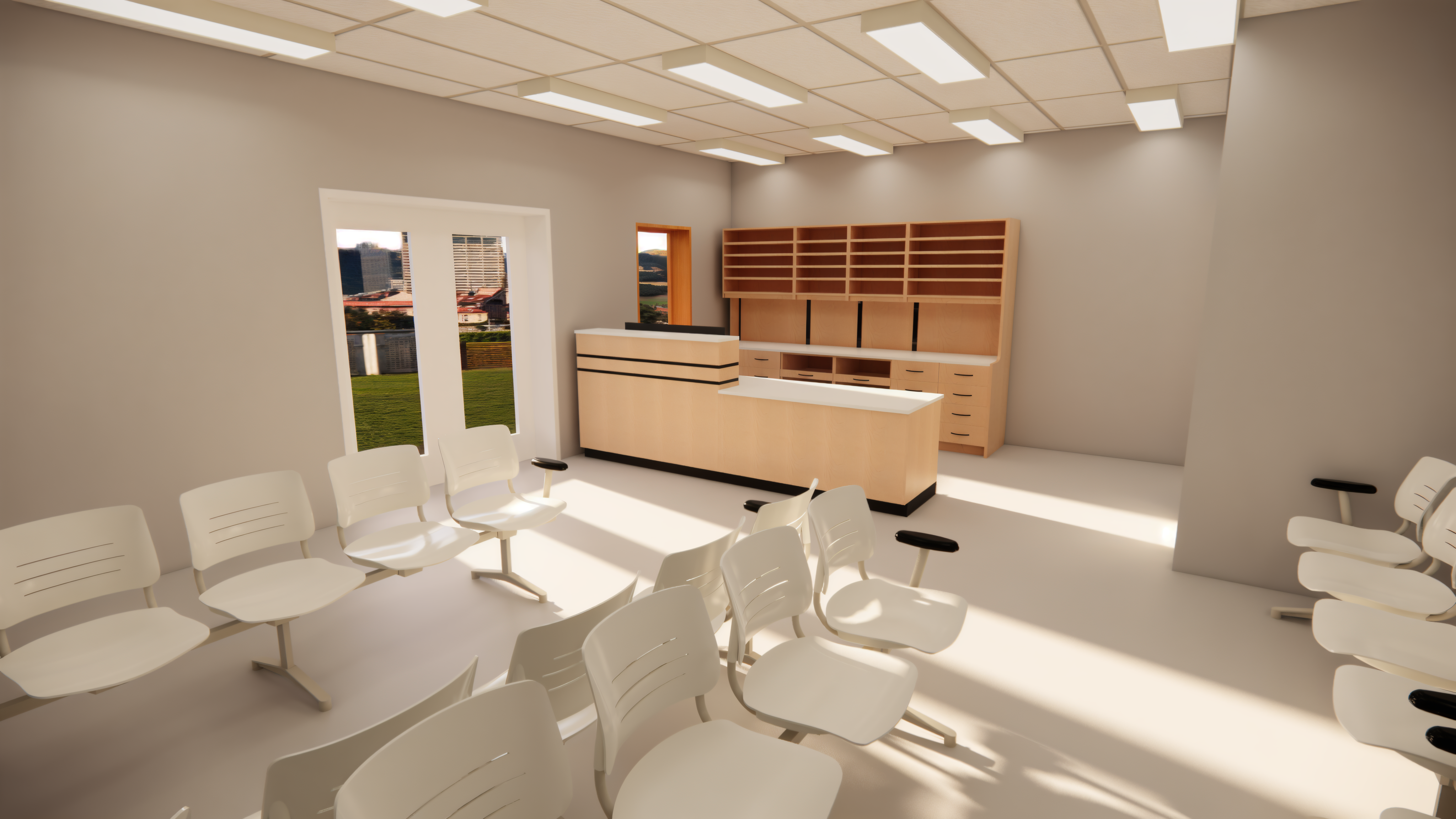

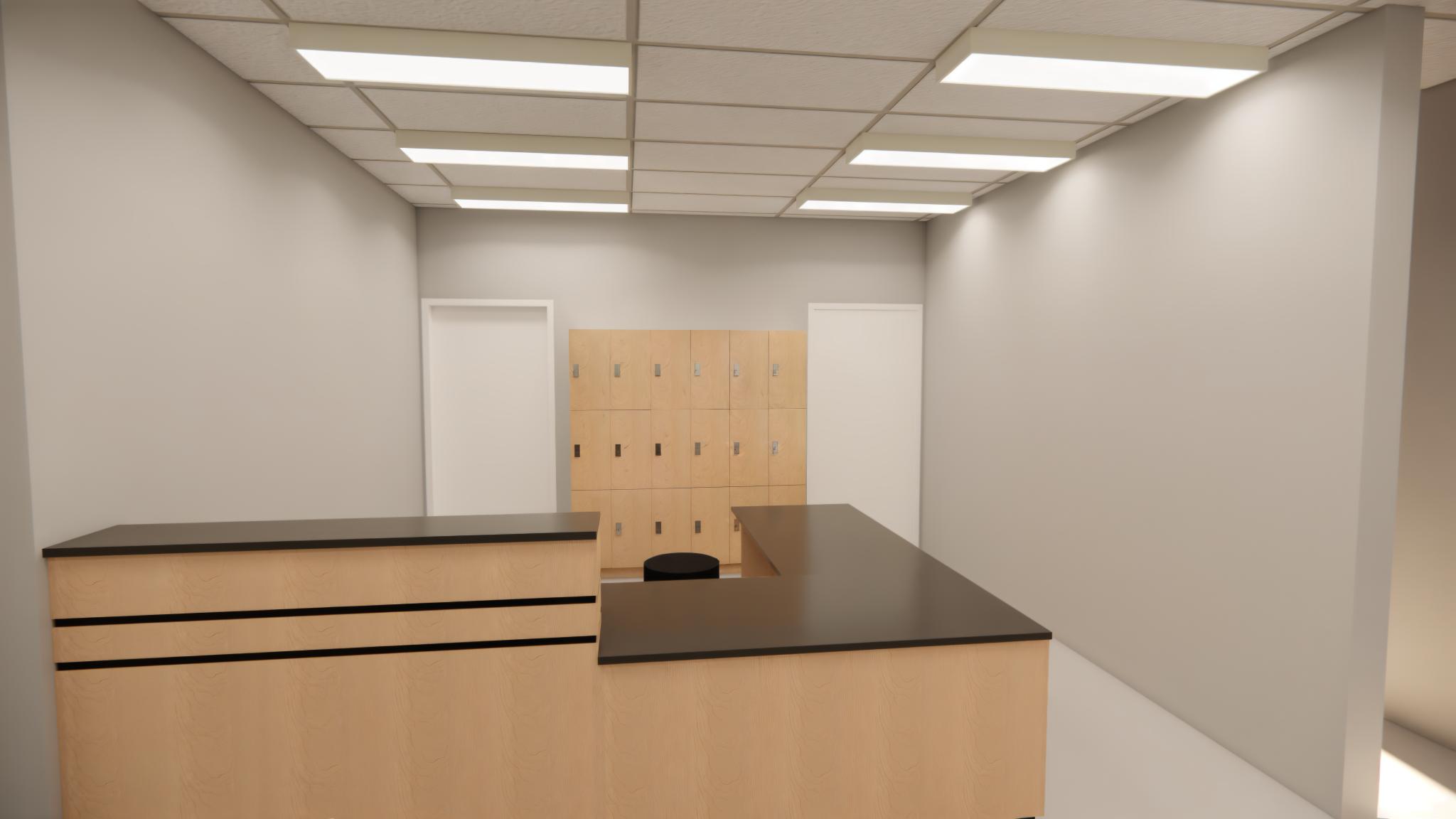

The design strikes a balance between functional flow and patient-centered care. The reception and waiting area provide a clear entry sequence, while adjacent exam rooms enable efficient patient turnover. The nurse station is centrally located to support visibility and communication across the clinic. Casework, seating, and modular storage elements are modeled with precision to aid architects and designers in planning real-world healthcare environments.

This BIM-ready clinic model serves as a practical template for small medical practices, urgent care facilities, or specialty clinics. By including accurate Revit families for furniture, cabinetry, and fixtures, the model helps project teams streamline documentation and adapt layouts to meet diverse healthcare needs.
