Heavy Duty Drawers 4-Post Shelving
Product SKU
Description
- Industry Application: Ideal for offices, warehouses, and healthcare facilities.
- Adjustable Heights: Ranges from 40 1/4" to 143 3/4" in 1.5" increments.
- Load Capacity: Supports up to 40 lbs/linear foot with minimal deflection.
- Customizable Storage: Includes modular heavy-duty drawers, unique to this line.

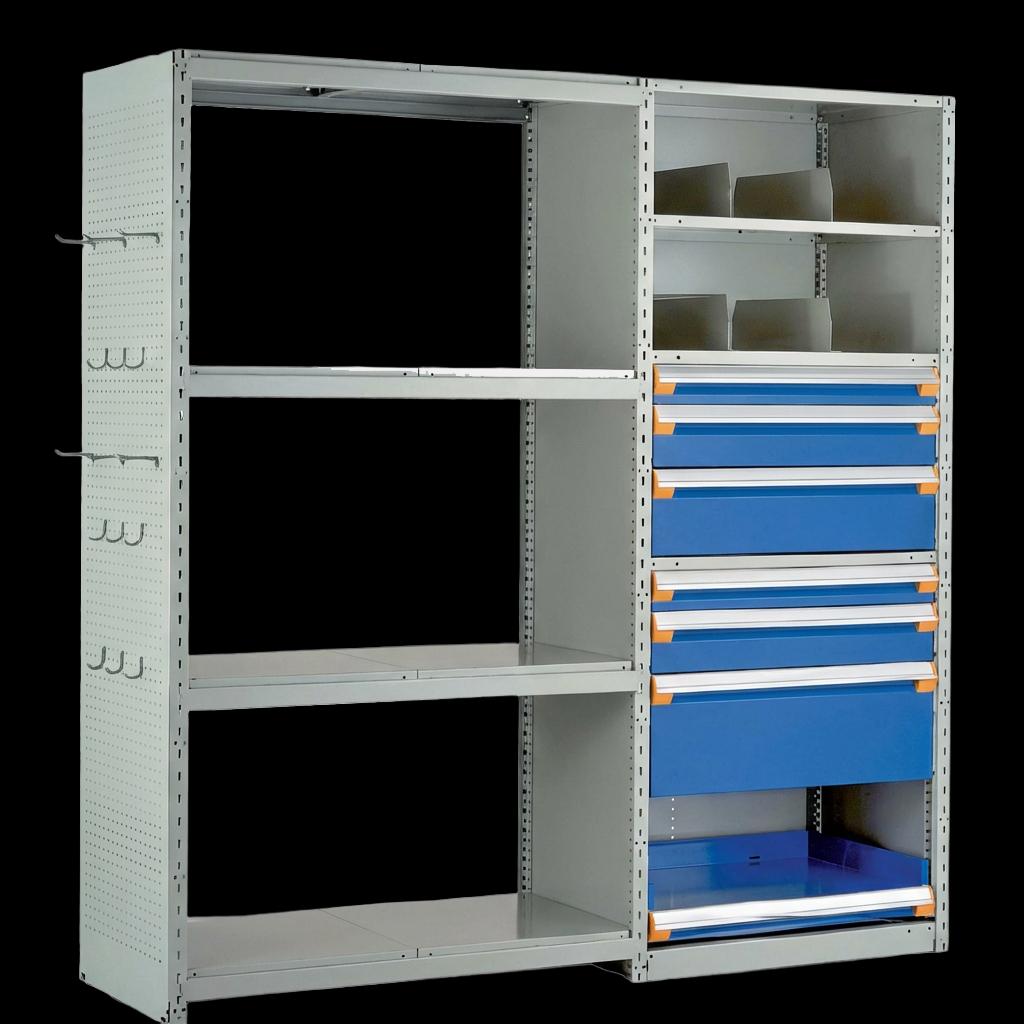

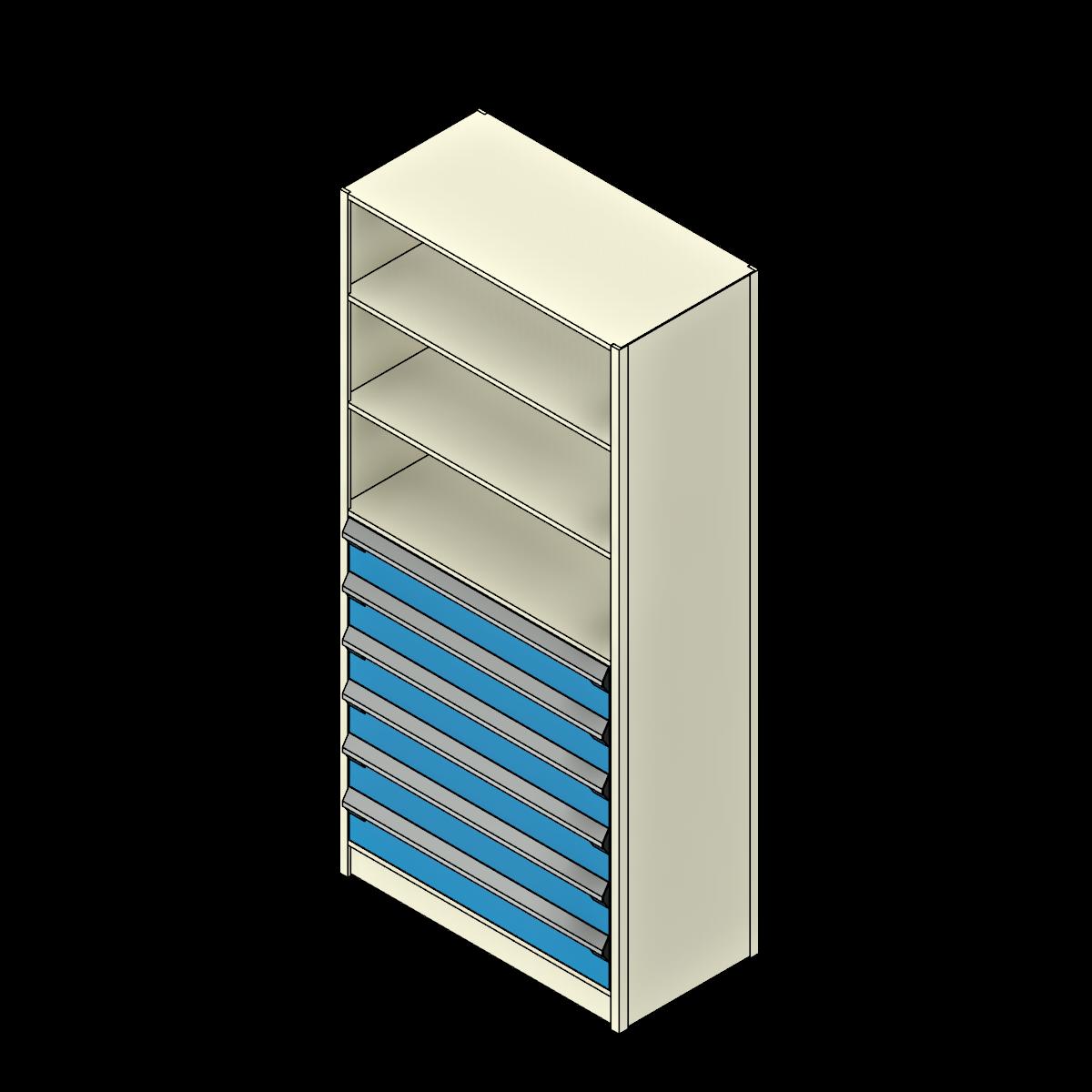

4-Post Shelving with Heavy Duty Drawers
This shelving system features a unique 4-post design, supporting shelves at each corner with upright posts, allowing for easy assembly and customization without the need for nuts or bolts. Available in both mobile and static configurations, the system supports single-faced or double-faced shelving and offers adjustable heights, widths, and depths to meet specific project requirements.
The 4-Post Shelving is constructed from cold-rolled steel with a durable powder coat finish available in multiple standard and custom colors. It provides superior strength, able to support up to 40 pounds per linear foot, and is designed to withstand seismic activity. With a flexible configuration, it includes modular heavy-duty drawers for additional storage and sorting power.

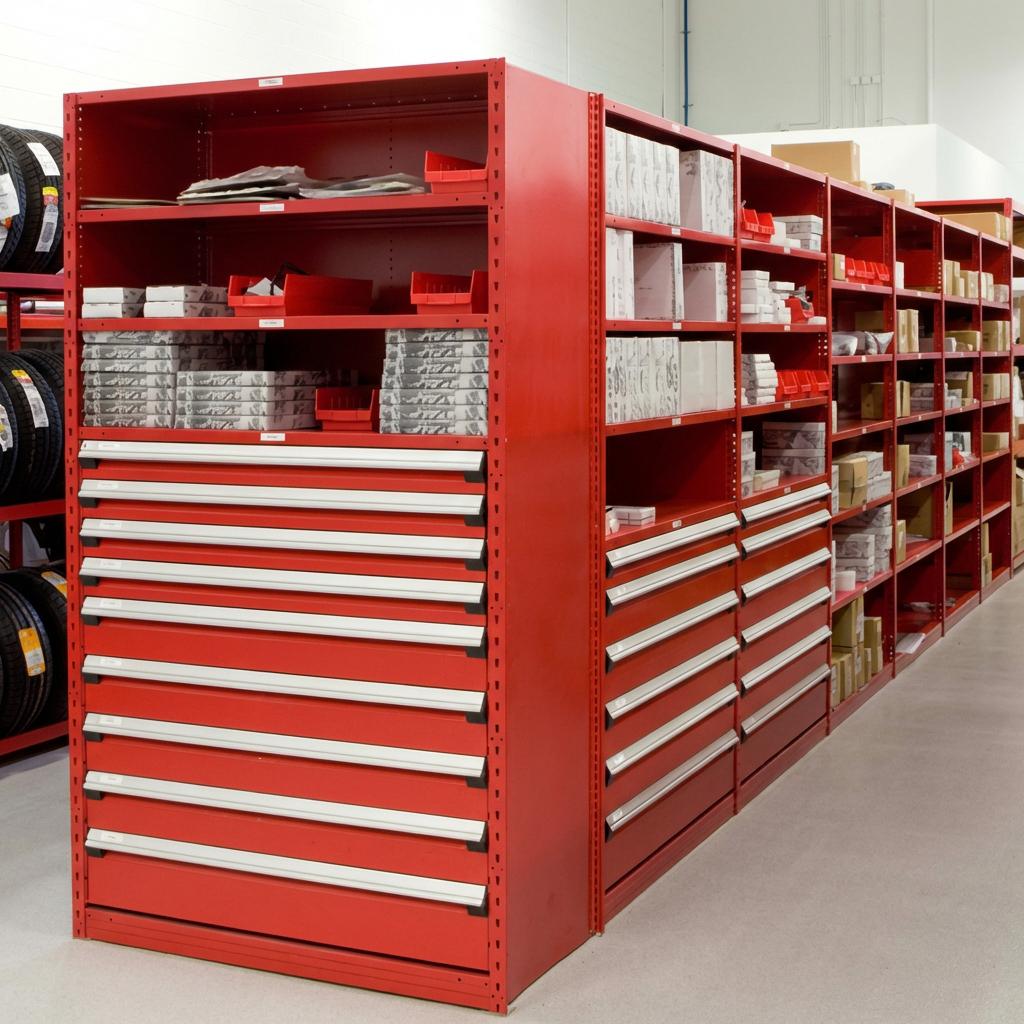

Ideal for use in offices, warehouses, healthcare facilities, and more, the 4-Post Shelving System with modular heavy-duty drawers enhances visibility, accessibility, and storage capacity while maintaining a sleek, furniture-grade appearance. It integrates seamlessly into Revit for architects and designers, ensuring accurate specification and visualization in architectural plans.
| Parameter | Value |
|---|---|
| Minimum Number of Shelves | 1 |
| Maximum Number of Shelves | 7 |
| Standard Widths | 30", 36", 42", 48" |
| Minimum Width | 2' 6" (30") |
| Maximum Width | 4' 0" (48") |
| Standard Depths | 15", 18", 24" |
| Minimum Depth | 1' 3" (15") |
| Maximum Depth | 2' 0" (24") |
| Standard Drawer Space | 12", 18", 24", 30", 34", 36", 46", 48" |
| Minimum Drawer Space | 1' 0" (12") |
| Maximum Drawer Space | 4' 0" (48") |
| Standard Drawer Heights | 3", 4", 5", 6", 7", 8", 9", 10", 12", 14" |
| Minimum Drawer Height | 0' 3" (3") |
| Maximum Drawer Height | 1' 2" (14") |
| Standard Heights | 39 1/4", 51 1/4", 75 1/4", 87 1/4", 99 1/4", 111 1/4", 123 1/4" |
| Minimum Height | 3' 3 1/4" (39 1/4") |
| Maximum Height | 10' 3 1/4" (123 1/4") |
| Manufacturer | Southwest Solutions Group_SPA |
| Lead Time | 4-6 Weeks |
| Model | 4P |
| MasterFormat | 10 56 13.16 – Post-and-Shelf Metal Storage Shelving |
| UniFormat | E20 – Furnishings |
| Property | Value |
|---|---|
| Includes Pricing | Yes |
| ADA Compliant | No |
| Has MEP Connectors | No |
| Includes Sustainability | Yes |
| Primary Material | Powder coated steel |
| IFC | Furniture |
| OmniClass | 23-21 11 11 11 |
| Omnia | Yes |
| Sourcewell | Yes |
| Equalis | Yes |
| Vizient | Yes |
| Systec | Yes |
