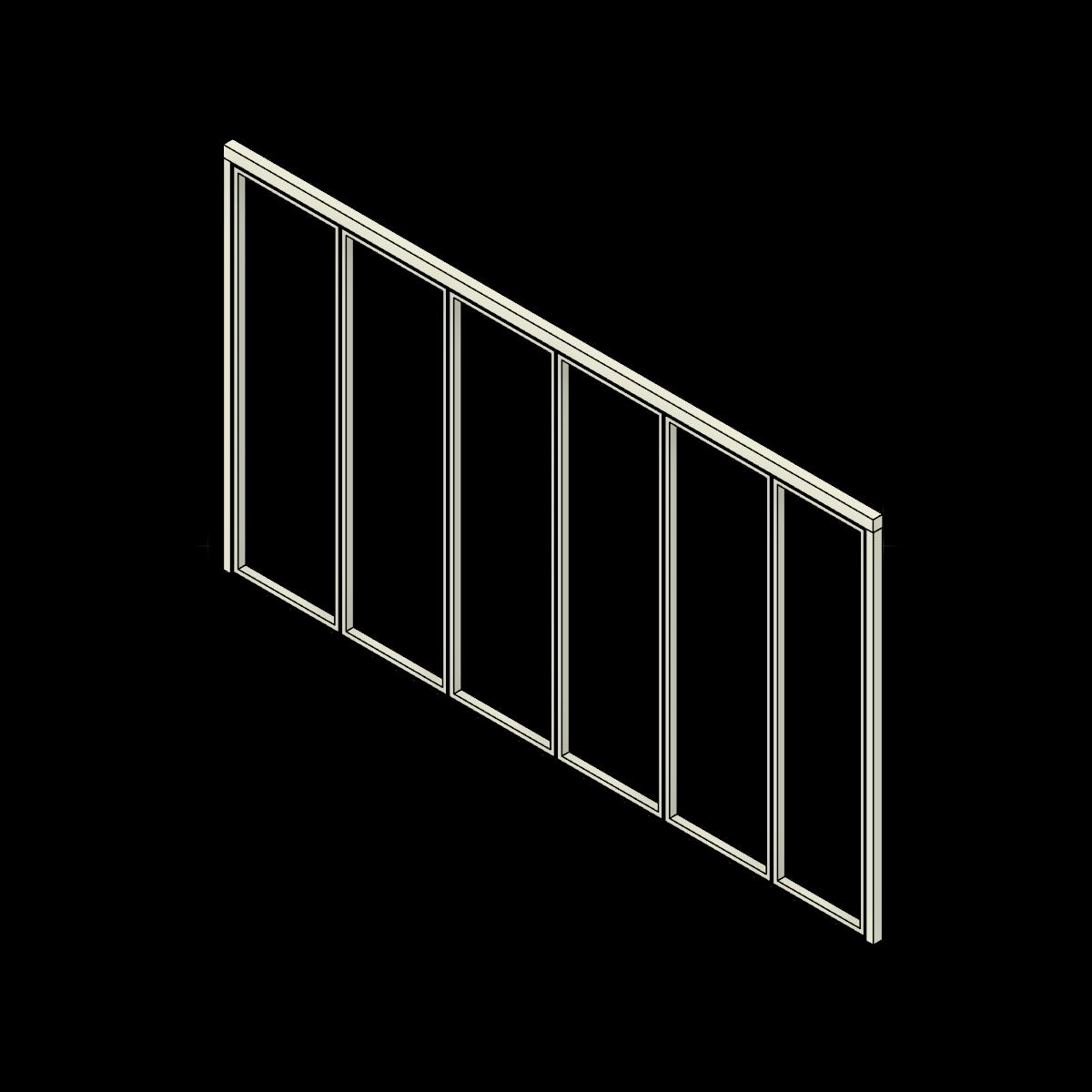

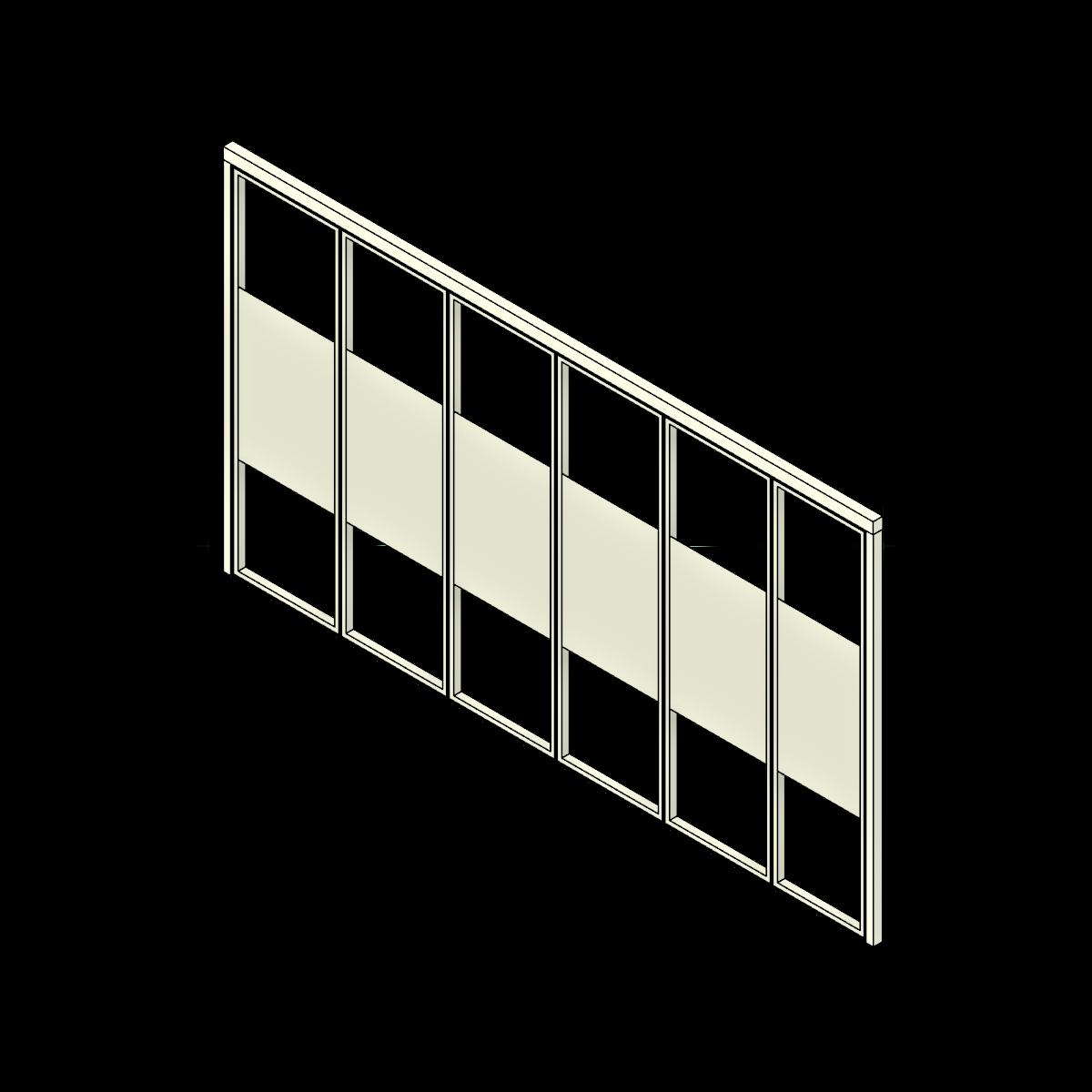

SSG Wall Moveable Glass Continuous Hinge PCA Back Painted
 SSG Wall Moveable Glass Continuous Hinge PCA

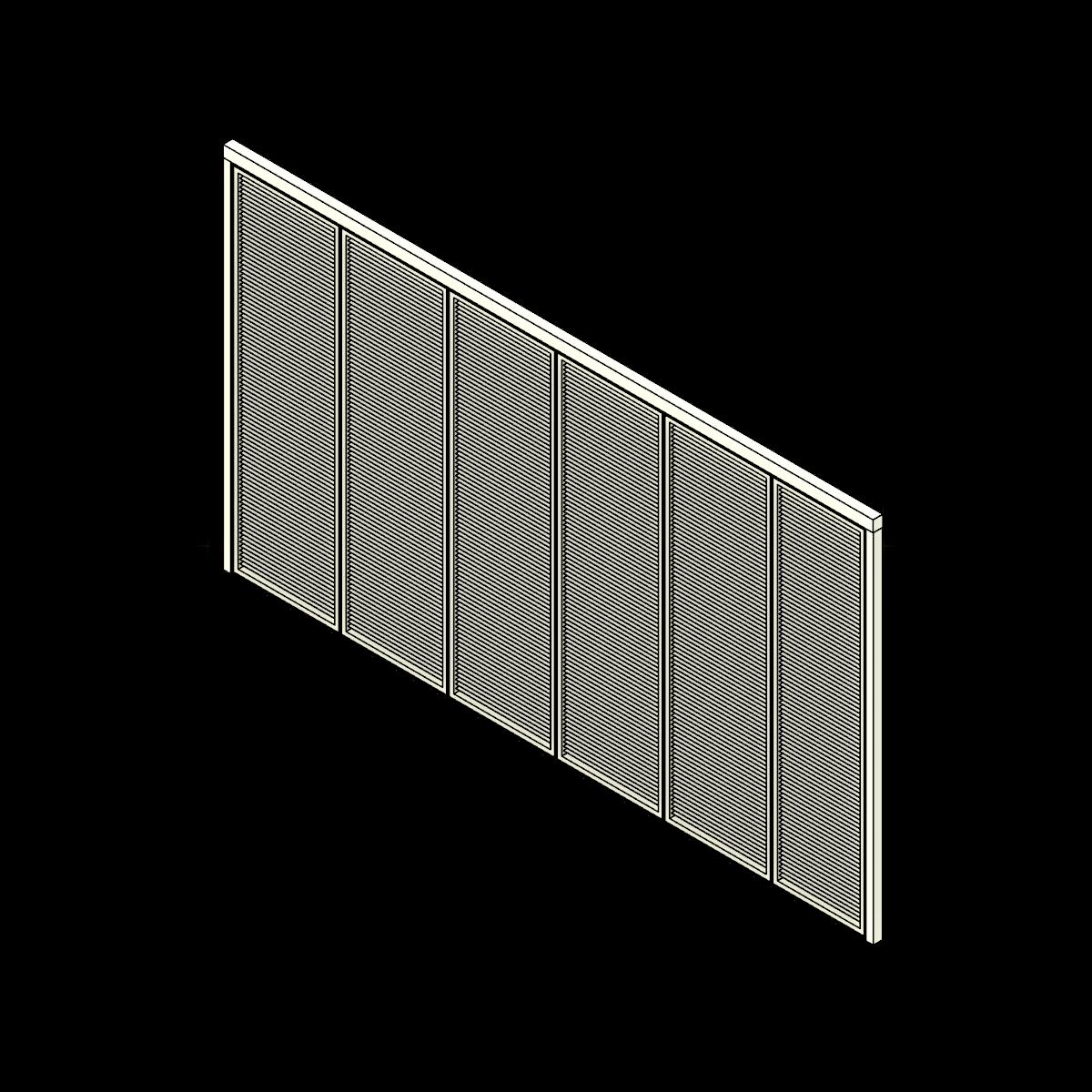

 SSG Wall Moveable Glass Continuous Hinge PCA Internal Blinds

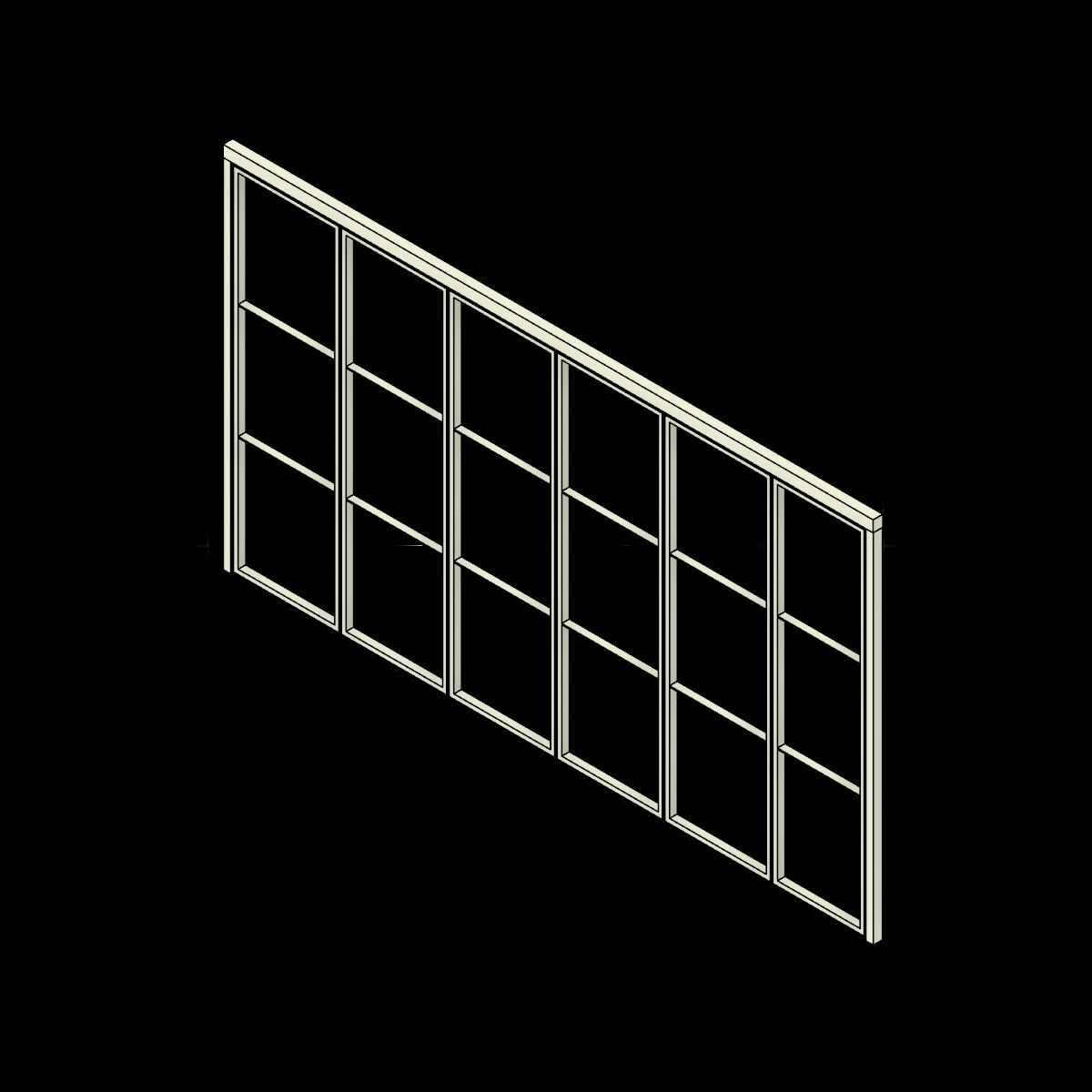

 SSG Wall Moveable Glass Continuous Hinge PCA Internal Muntins
 SSG Wall Moveable Glass Continuous Hinge PCA Back Painted
 SSG Wall Moveable Glass Continuous Hinge PCA
 SSG Wall Moveable Glass Continuous Hinge PCA Internal Blinds
 SSG Wall Moveable Glass Continuous Hinge PCA Internal Muntins
2025.12.17.1

Product SKU

Description

  • Ideal for commercial interiors needing acoustic separation.
  • Acoustic sound control for high-performance environments.
  • Continuous-hinged panels allow effortless movement and setup.
  • 2-13/16" (71 mm) aluminum framed panel for sleek aesthetics.
a square with short lines outside the corner
Family
icon of a person with gears next to its head
ADA
Revit file icon
Revit 2022 (1.39 MB)
Revit file icon
Revit 2023 (1.39 MB)
Revit file icon
Revit 2024 (1.39 MB)
Revit file icon
Revit 2025 (1.39 MB)
Revit file icon
Revit 2026 (1.39 MB)
adobe reader icon
(0.39 MB)
adobe reader icon
(0.20 MB)
Questions
Need some help? Send us a message if you have any sales or model related questions.

Continuously Hinged Folding Glass Panel Partitions

The Continuously-Hinged Panels Movable Glass Walls are an innovative solution for flexible interior spaces, offering a blend of aesthetic appeal and acoustic performance.

With a sleek 2-13/16” (71 mm) aluminum frame, these panels provide a sound control rating of 43 STC, ideal for creating private, noise-controlled environments without compromising on style. The panels can be configured for top or floor support, making them adaptable to various architectural settings. Their continuously hinged design enables effortless manual operation and quick setup, making them ideal for dynamic spaces such as conference rooms, offices, and educational facilities.

The panels can be stacked in centerline or offset configurations and support bi-parting remote operation. They feature optional, switchable glass for privacy and are compatible with both manual and fixed-operation seals. With options for custom glass finishes and internal accessories such as blinds or muntins, these panels offer a high degree of customization to meet unique design requirements. Their lightweight design, at 6.35 lbs. per sq. ft. (31 kg/m²), ensures ease of installation and operation, making them a practical choice for architects and designers seeking versatile, high-performance partition solutions.

ParameterValue
Standard Widths> 48"
Minimum Width4' 0" (48")
Standard Depths3 1/8"
Minimum Depth0' 3 1/8" (3 1/8")
Maximum Depth0' 3 1/8" (3 1/8")
Standard Heights72" - 118"
Minimum Height6' 0" (72")
Maximum Height9' 10" (118")
ManufacturerSouthwest Solutions Group_KWI
Lead TimeContact SSG for more information
ModelFPP
Keynote10 22 39.13
Assembly CodeC1010.20
AuthorAWright
Toll Free Number1-800-803-1083
PropertyValue
Includes PricingNo
ADA CompliantYes
Has MEP ConnectorsNo
Includes SustainabilityNo
Primary MaterialPowder coated aluminum
Secondary MaterialGlass
BIMobject CategoryWalls: Folding & Moving Walls
IFCFurniture
Omniclass23.25.40.17.14
OmniaNo
SourcewellNo
EqualisNo
VizientNo
SystecNo
