Product SKU
Description
- Ideal for laboratory environments requiring emergency eyewash stations.
- Equipped with dual spray heads for comprehensive eye and face coverage.
- This model includes an in-line dual check backflow preventer.
Revit 2022 (1.02 MB)
Revit 2023 (1.02 MB)
Revit 2024 (1.02 MB)
Revit 2025 (1.02 MB)
Revit 2026 (1.02 MB)
(0.15 MB)

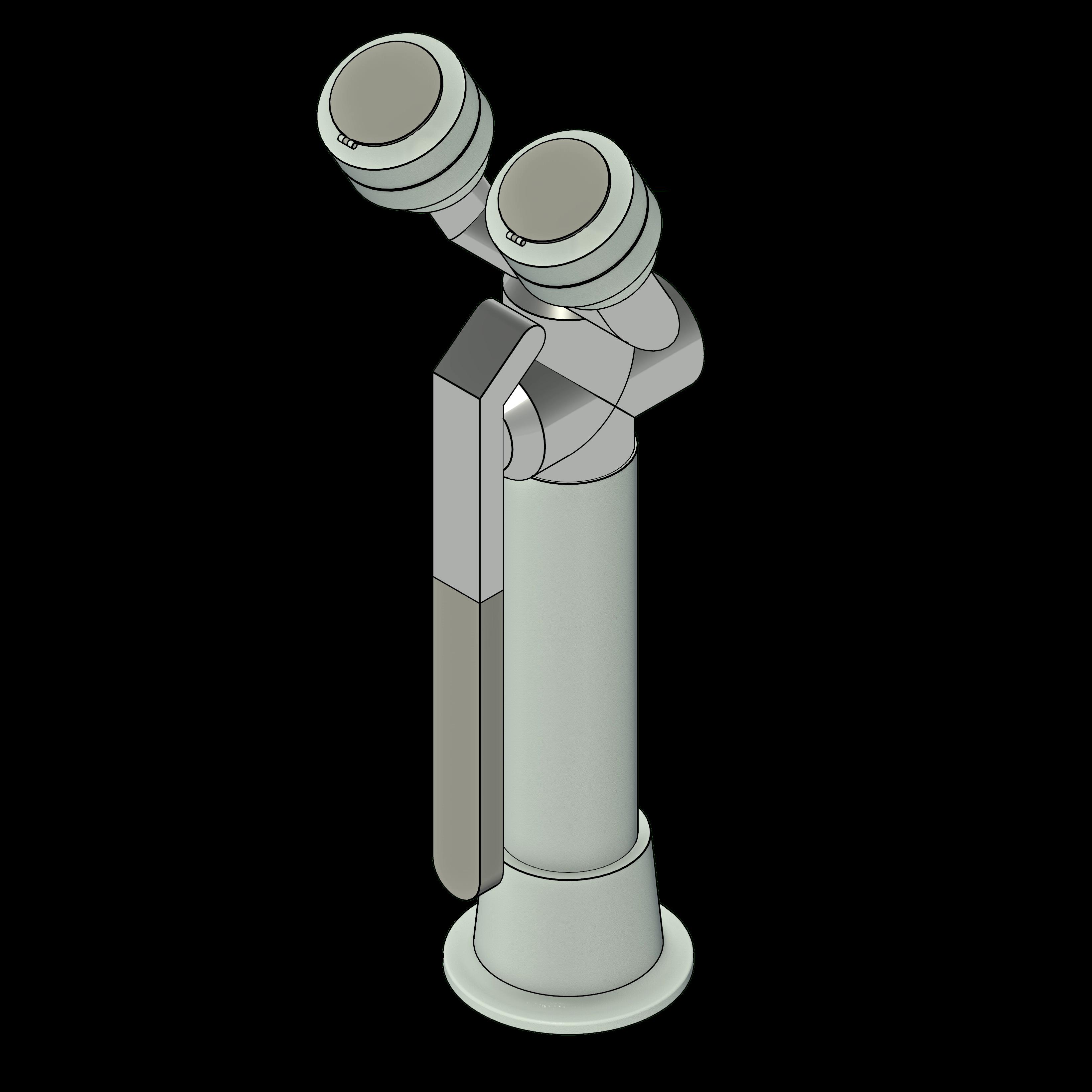

Eyewash Deck Mounted Drench Hose
The Eyewash/Drench Hose Unit, designed for deck mounting, serves a dual purpose, offering both eyewash and drench hose functionalities, making it an essential safety feature in laboratory environments. Ideal for laboratory use, this unit fits seamlessly into any countertop with its convenient deck flange, promising reliable performance and easy accessibility in emergencies.
This versatile unit can be used as a fixed eyewash, allowing hands-free operation, or as a drench hose to rinse any part of the user's eyes, face, or body. Equipped with two GS-Plus™ spray heads, each featuring a "flip top" dust cover, internal flow control, and a filter, it ensures clean and regulated water flow. The sturdy build includes a forged brass squeeze valve with a stainless-steel lever handle and a locking clip for continuous water flow. For enhanced safety, the backflow preventer option ensures compliance with plumbing standards. To use this family, open the fetch app, then click on the model to insert it into your project.
| Parameter | Value |
|---|---|
| Keynote | 22 45 29 |
| Standard Widths | 2 3/8" |
| Minimum Width | 0' 2 3/8" (2 3/8") |
| Maximum Width | 0' 2 3/8" (2 3/8") |
| Standard Depths | 2 3/8" |
| Minimum Depth | 0' 2 3/8" (2 3/8") |
| Maximum Depth | 0' 2 3/8" (2 3/8") |
| Standard Heights | 10 1/8" |
| Minimum Height | 0' 10 1/8" (10 1/8") |
| Maximum Height | 0' 10 1/8" (10 1/8") |
| Manufacturer | Southwest Solutions Group_PRI |
| Lead Time | 2-3 Weeks |
| Model | 1022 |
| Assembly Code | E10 |
| Author | AZuniga |
| Toll Free Number | 1-800-803-1083 |
| Property | Value |
|---|---|
| Equalis | No |
| Omnia | No |
| Sourcewell | No |
| Systec | No |
| Vizient | No |
| Includes Pricing | Yes |
| ADA Compliant | Yes |
| Has MEP Connectors | Yes |
| Primary Material | Powder coated steel |
| BIMobject Category | Medical: Laboratory Equipment |
| IFC | Furniture |
| Meta Description | Deck-mounted Eyewash/Drench Hose Unit with Backflow Preventer offers ANSI-compliant emergency safety and dual functionality. Features include a durable brass valve and easy countertop installation. Enhance safety in your space, download the Revit family now! |
| Meta Title | Deck-Mounted Eyewash/Drench Hose Unit Revit Family |
