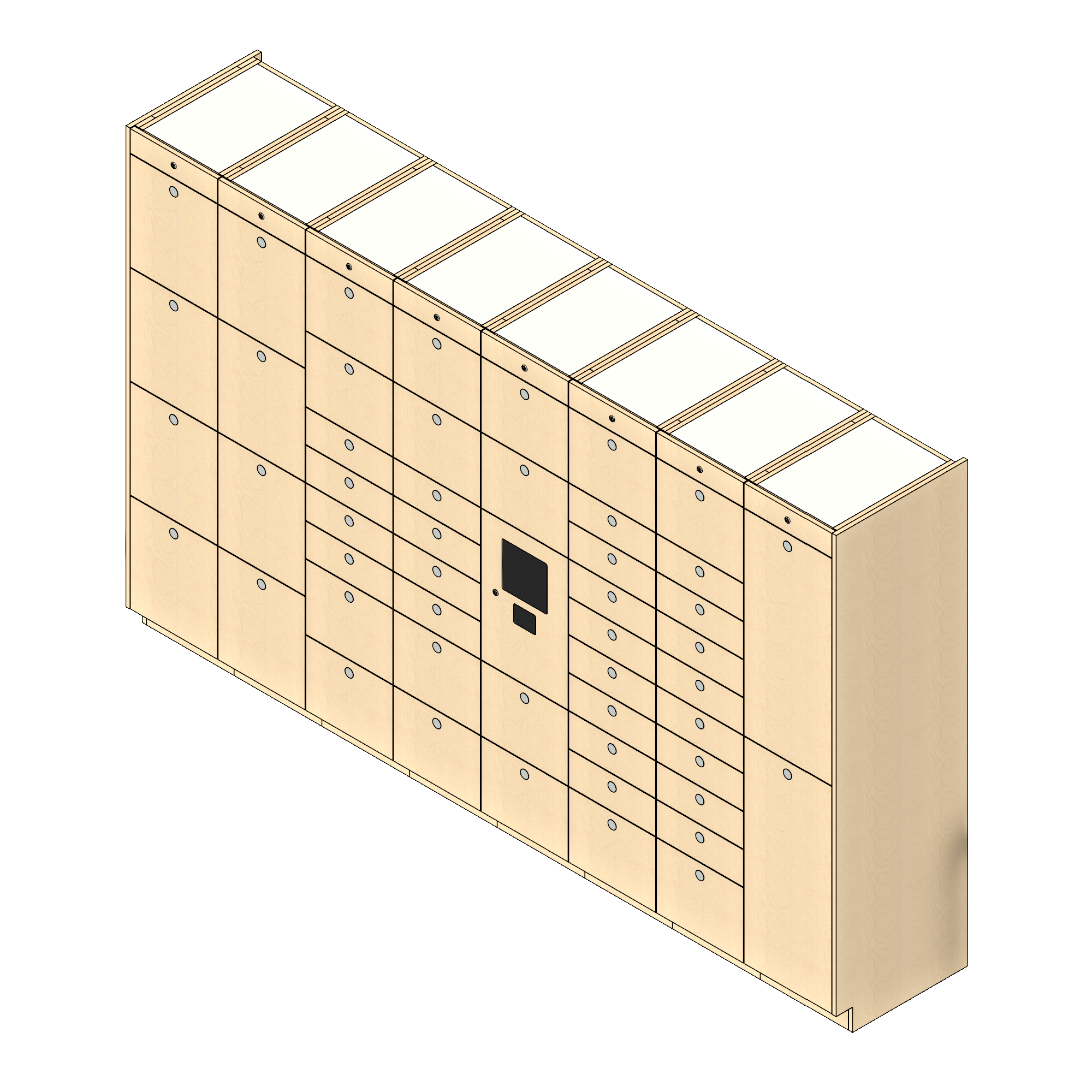

50 Total Openings Retail In Store Pickup Lockers
Product SKU
SKU: ssg-50
Description
- Provides a secure and fully automated way for customers to order online and pickup items from a retail location at any time convenient to them
- Integrated remote management software and app allows stores to easily manage their online pickup orders
- Appropriate locker door opens with correct code, barcode, or RFID scan
Retail smart lockers allow customers to shop online and pick up their order whenever is most convenient for them without an attendant or even after hours. Customers can shop and checkout in their web browser or in an app and specify in-store pickup. Once an employee has gathered their order together and the items are placed in a locker, the customer will be automatically notified via text, email, or app notification and can then access their locker at any time with the supplied code or barcode. Locker systems can be infinitely expanded to fit any size campus size. Locker units can be installed indoors or outdoors with the optional canopy to protect from rain and weather. Temperature-controlled lockers can also be added to any parcel locker configuration to provide convenient heated or cooled compartments.
Physically, the smart locker systems consist of a bank of modular lockers, with one of the lockers dedicated to housing the system hardware and power supply. A typical bank of parcel lockers is comprised of columns, with each column consisting of either six small lockers per column, a mixture of five or six small and medium lockers per column, or two large lockers per column. Each column features a proprietary locking raceway that incorporates the required number of smart locking devices for the number of lockers in each column. Electronic locker systems are available in a variety of finishes to complement or match the environments in which they are installed.
Design
- Optional canopy for outdoor units
- Front and side aprons conceal adjustable legs
- Temperature-controlled units are available
- 1 Touch Screen is needed for every 256 Openings.
- A soffit above the lockers is Not Recommended for easy access.
- Minimum of 2" of clearance is needed between locker bank and wall
Software
Controller software integrates with existing facility management systems such as:
- BOPIS
- Others with API access
| Parameter | Value |
|---|---|
| ADD Top Panel | 1 |
| Property | Value |
|---|---|
| Includes Pricing | Yes |
| ADA Compliant | Yes |
| Has MEP Connectors | Yes |
| Width | 11' 5" (137") |
| Depth | 2' 0" (24") |
| Height | 6' 4" (76") |
| # of Openings | 50 |
| Qty: Extra Small Doors | 24 |
| Qty: Small Doors | 16 |
| Qty: Medium Doors | 0 |
| Qty: Large Doors | 8 |
| Qty: Oversize Doors | 2 |
| Qty: Full Doors | 0 |
| Qty: Touchscreens | 1 |
| Primary Material | Laminate |
| IFC | Furniture |
| MasterFormat | 10 55 26 – Parcel Lockers |
| OmniClass | 23-40 70 27 24 17 – Package Transfer Units |
| UniFormat | E1030.70 – Postal, Packaging, and Shipping Equipment |
