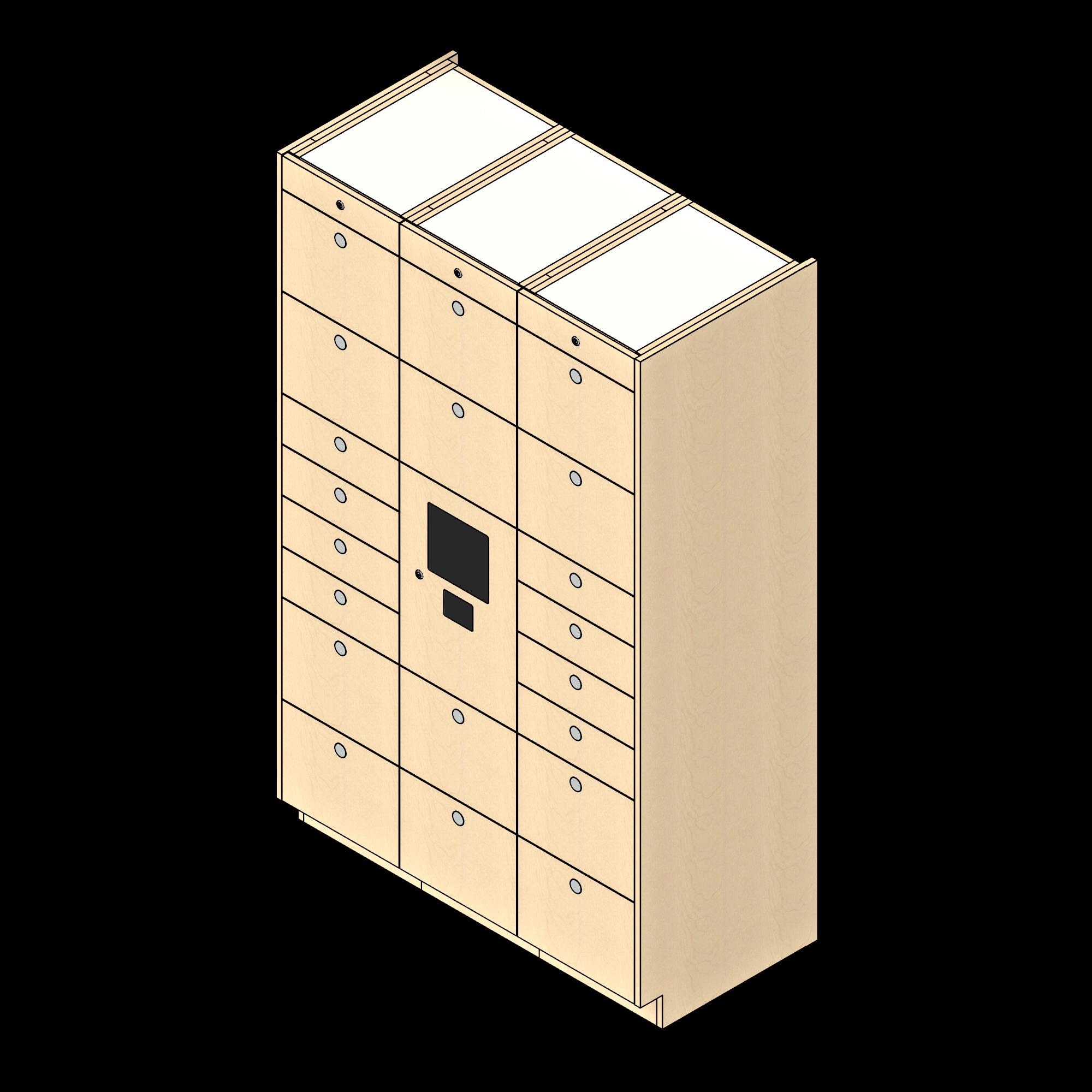

20 Total Openings Laminate Smart Locker

Product SKU

SKU: ssg-20

Description

  • Unit includes 15" Touch Screen w/ Wireless Barcode Scanner
  • Provides a centralized parcel exchange point that ensures an improved chain of custody
  • Recipient instantly receives a Text or Email notification that the package has arrived
icon for pricing which is a dollar sign
Model group
icon of a person with gears next to its head
Pricing
icon of a person with gears next to its head
ADA
icon of a person with gears next to its head
Connectors
Questions
Need some help? Send us a message if you have any sales or model related questions.

Physically, the smart locker systems consist of a bank of modular lockers with one of the lockers dedicated to housing the system hardware and power supply. A typical bank of parcel lockers is comprised of columns, with each column consisting of either six small lockers per column, a mixture of five or six small and medium lockers per column or two large lockers per column. Each column features a proprietary locking raceway that incorporates the required number of smart locking devices for the number of lockers in each column. Electronic locker systems are available in a variety of finishes to complement or match the environments in which they are installed.

Design

  • Optional canopy for outdoor units
  • 1 Touch Screen is needed for every 120 Openings.
  • A soffit above the lockers is Not Recommended for ease of access.
  • Minimum of 2" of Clearance is needed between locker bank and wall
ParameterValue
ADD Top Panel1
PropertyValue
Includes PricingYes
ADA CompliantYes
Has MEP ConnectorsYes
Width4' 6" (54")
Depth2' 0" (24")
Height6' 4" (76")
# of Openings20
Qty: Extra Small Doors8
Qty: Small Doors12
Qty: Medium Doors0
Qty: Large Doors0
Qty: Oversize Doors0
Qty: Full Doors0
Qty: Touchscreens1
Primary MaterialLaminate
skussg-20
BIMobject CategoryFurniture: Shelving & Storage
IFCFurniture
Keynote10 55 26
Omniclass23-40 70 27 24 17
Assembly CodeE1030.70
