Name: Shelves Museum Preservation Cabinet
Availability: InStock

BIM Library> All families>Shelves Museum Preservation Cabinet

SSG Cabinet Museum Preservation Shelves PCS 30x24x72 4 Shelves

SSG Cabinet Museum Preservation Shelves PCS 24x24x42 Mobile

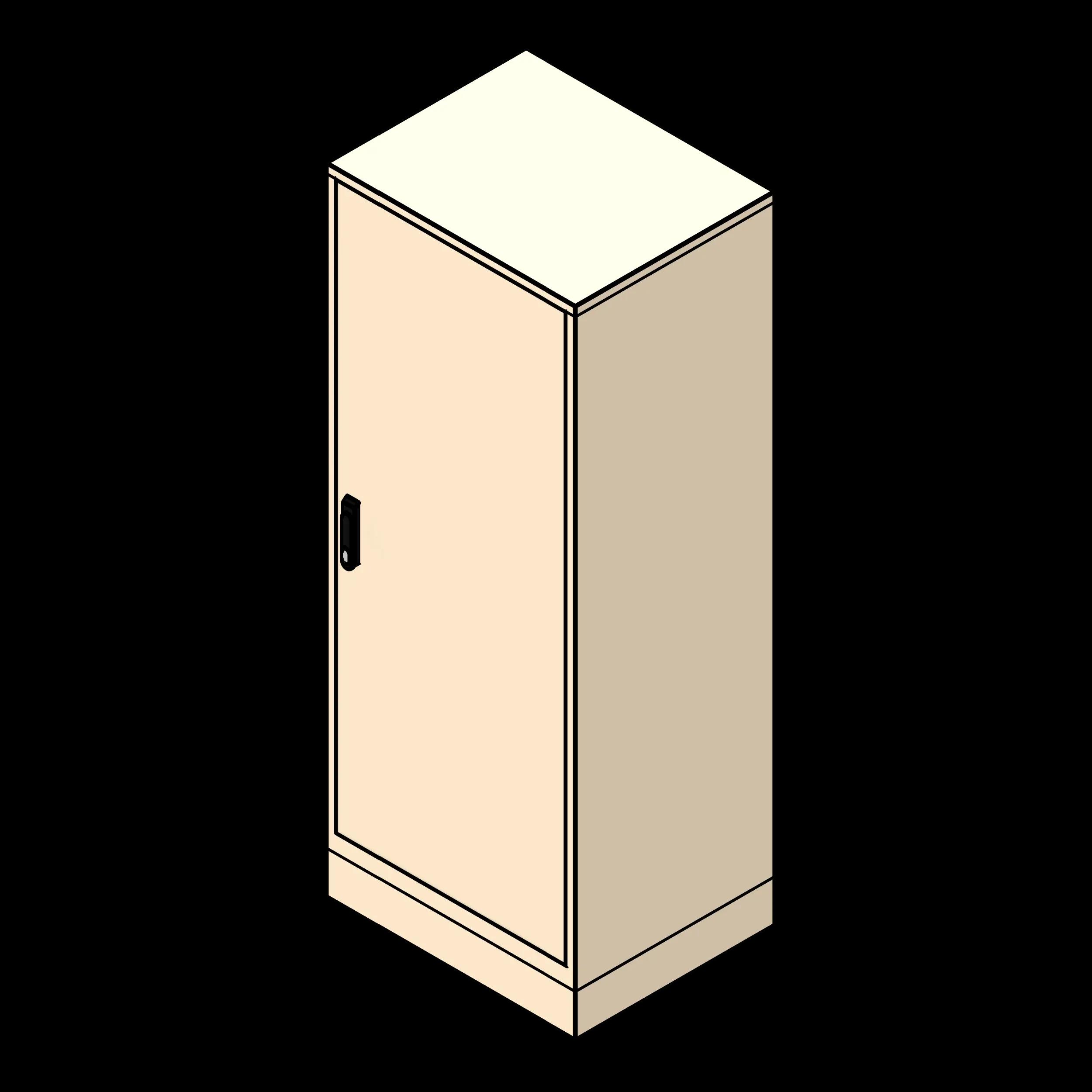

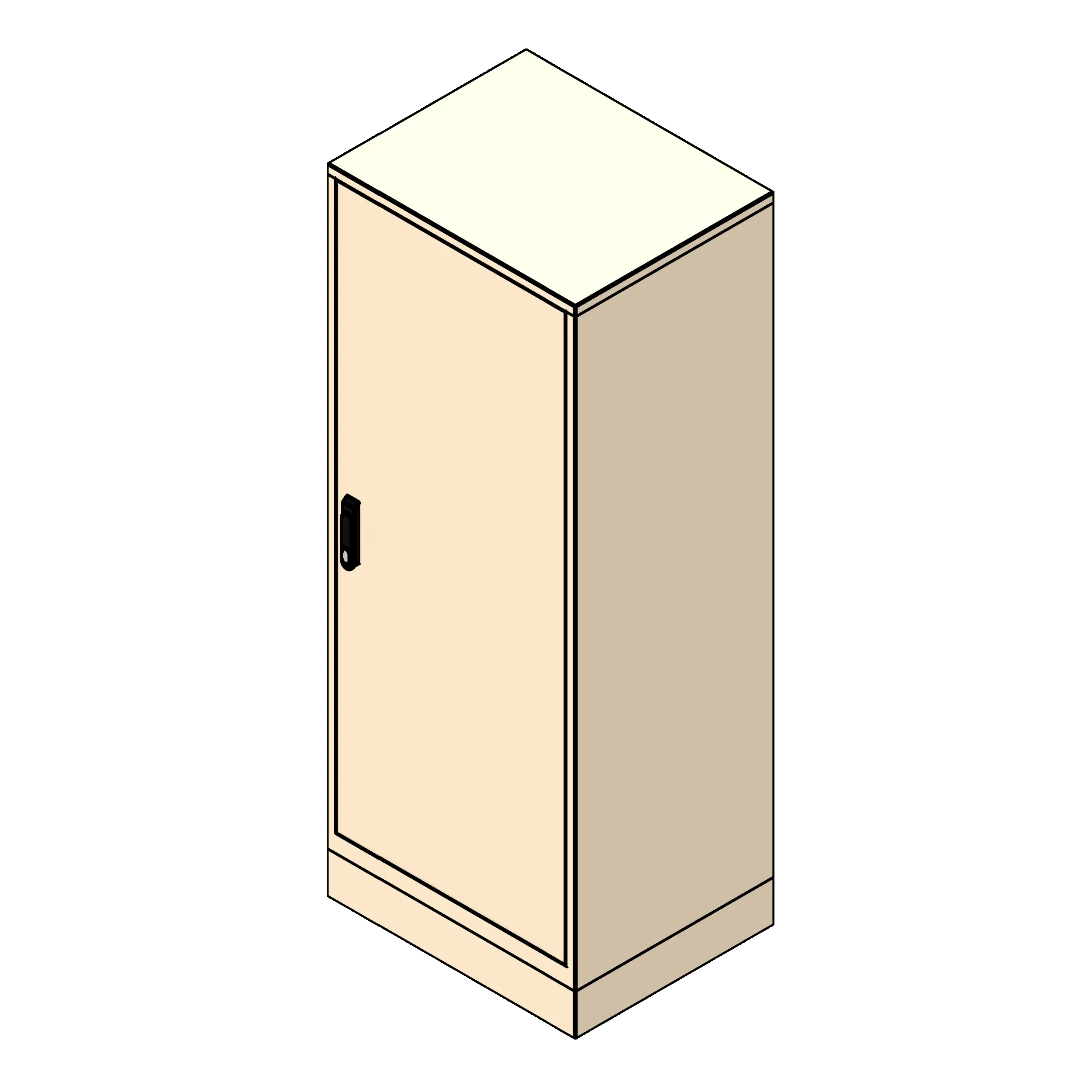

SSG Cabinet Museum Preservation Shelves PCS 30x24x72 Right Hinge Solid Door Base

SSG Cabinet Museum Preservation Shelves PCS 48x30x72 Split Shelves

2024.4.23.0

Ideal for museums and similar areas
Adjustable number of shelves to provide a variety of storage customization
Optional divider in larger units (42"W and above) with ability to customize number of shelves independently on either side
Optional casters can be added or removed to create a mobile storage unit at any time
Provides protection against external elements such as water, fire, and smoke

Family

Pricing

Revit 2020 (0.96 MB)

Revit 2021 (0.96 MB)

Revit 2022 (0.96 MB)

Revit 2023 (0.96 MB)

Revit 2024 (0.96 MB)

Revit 2025 (0.96 MB)

Revit 2026 (0.96 MB)

(1.32 MB)

(0.03 MB)

(0.12 MB)

Questions

Need some help? Send us a message if you have any sales or model related questions.

Museum Preservation Cabinet - Shelves

This museum shelving cabinet is perfect for collections that need protection from environmental conditions. With easy assembly and durable materials, this storage solution is designed for long-lasting use.

The museum storage cabinet is designed to be highly flexible and adaptable with every Revit model built to reflect its real world counterparts as closely as possible. Use the built in shelf and drawer options to visualize your storage solutions.

All shelves, drawers, and doors are assembled without the use of nuts, bolts, or clips. All shelving and drawer units are designed for expansion and are available as mobile-ready for easy conversion. Available full-height center dividers allow for different drawer or shelving configurations on each side of the divider. Available depths make it an ideal choice for any collection or museum applications.

Parameter	Value
Standard Widths	30", 36", 42", 48", 60"
Minimum Width	2' 0" (24")
Maximum Width	5' 0" (60")
Standard Depths	18", 24", 30", 36"
Minimum Depth	1' 6" (18")
Maximum Depth	3' 0" (36")
Standard Heights	42", 60", 72", 84", 96"
Minimum Height	3' 6" (42")
Maximum Height	8' 0" (96")
Manufacturer	Southwest Solutions Group_SPA
Lead Time	Ships in 3-4 Weeks
Model	VK920
Keynote	10 51 13
Assembly Code	E1040.10
Author	AWright
Toll Free Number	1-800-803-1083

Property	Value
Includes Pricing	Yes
ADA Compliant	No
Has MEP Connectors	No
Includes Sustainability	Yes
Primary Material	Powder coated steel
BIMobject Category	Furniture: Shelving & Storage
IFC	Furniture
Omniclass	23.40.50.36.11.11
Omnia	Yes
Sourcewell	Yes
Equalis	Yes
Vizient	Yes
Systec	Yes

Model	Width	Depth	Height	Weight
SSG-VK920-301842	2' 6" (30")	1' 6" (18")	3' 6" (42")	285
SSG-VK920-301860	2' 6" (30")	1' 6" (18")	5' 0" (60")	328
SSG-VK920-301872	2' 6" (30")	1' 6" (18")	6' 0" (72")	357
SSG-VK920-301884	2' 6" (30")	1' 6" (18")	7' 0" (84")	385
SSG-VK920-301896	2' 6" (30")	1' 6" (18")	8' 0" (96")	414
SSG-VK920-302442	2' 6" (30")	2' 0" (24")	3' 6" (42")	327
SSG-VK920-302460	2' 6" (30")	2' 0" (24")	5' 0" (60")	373
SSG-VK920-302472	2' 6" (30")	2' 0" (24")	6' 0" (72")	404
SSG-VK920-302484	2' 6" (30")	2' 0" (24")	7' 0" (84")	413
SSG-VK920-302496	2' 6" (30")	2' 0" (24")	8' 0" (96")	464
SSG-VK920-303042	2' 6" (30")	2' 6" (30")	3' 6" (42")	369
SSG-VK920-303060	2' 6" (30")	2' 6" (30")	5' 0" (60")	418
SSG-VK920-303072	2' 6" (30")	2' 6" (30")	6' 0" (72")	451
SSG-VK920-303084	2' 6" (30")	2' 6" (30")	7' 0" (84")	483
SSG-VK920-303096	2' 6" (30")	2' 6" (30")	8' 0" (96")	515
SSG-VK920-303642	2' 6" (30")	3' 0" (36")	3' 6" (42")	411
SSG-VK920-303660	2' 6" (30")	3' 0" (36")	5' 0" (60")	463
SSG-VK920-303672	2' 6" (30")	3' 0" (36")	6' 0" (72")	497
SSG-VK920-303684	2' 6" (30")	3' 0" (36")	7' 0" (84")	532
SSG-VK920-303696	2' 6" (30")	3' 0" (36")	8' 0" (96")	566
SSG-VK920-361842	3' 0" (36")	1' 6" (18")	3' 6" (42")	326
SSG-VK920-361860	3' 0" (36")	1' 6" (18")	5' 0" (60")	373
SSG-VK920-361872	3' 0" (36")	1' 6" (18")	6' 0" (72")	404
SSG-VK920-361884	3' 0" (36")	1' 6" (18")	7' 0" (84")	434
SSG-VK920-361896	3' 0" (36")	1' 6" (18")	8' 0" (96")	465
SSG-VK920-362442	3' 0" (36")	2' 0" (24")	3' 6" (42")	374
SSG-VK920-362460	3' 0" (36")	2' 0" (24")	5' 0" (60")	423
SSG-VK920-362472	3' 0" (36")	2' 0" (24")	6' 0" (72")	496
SSG-VK920-362484	3' 0" (36")	2' 0" (24")	7' 0" (84")	466
SSG-VK920-362496	3' 0" (36")	2' 0" (24")	8' 0" (96")	521
SSG-VK920-363042	3' 0" (36")	2' 6" (30")	3' 6" (42")	421
SSG-VK920-363060	3' 0" (36")	2' 6" (30")	5' 0" (60")	473
SSG-VK920-363072	3' 0" (36")	2' 6" (30")	6' 0" (72")	508
SSG-VK920-363084	3' 0" (36")	2' 6" (30")	7' 0" (84")	542
SSG-VK920-363096	3' 0" (36")	2' 6" (30")	8' 0" (96")	577
SSG-VK920-363642	3' 0" (36")	3' 0" (36")	3' 6" (42")	468
SSG-VK920-363660	3' 0" (36")	3' 0" (36")	5' 0" (60")	524
SSG-VK920-363672	3' 0" (36")	3' 0" (36")	6' 0" (72")	560
SSG-VK920-363684	3' 0" (36")	3' 0" (36")	7' 0" (84")	597
SSG-VK920-363696	3' 0" (36")	3' 0" (36")	8' 0" (96")	633
SSG-VK920-421842	3' 6" (42")	1' 6" (18")	3' 6" (42")	280
SSG-VK920-421860	3' 6" (42")	1' 6" (18")	5' 0" (60")	332
SSG-VK920-421872	3' 6" (42")	1' 6" (18")	6' 0" (72")	367
SSG-VK920-421884	3' 6" (42")	1' 6" (18")	7' 0" (84")	401
SSG-VK920-421896	3' 6" (42")	1' 6" (18")	8' 0" (96")	436
SSG-VK920-422442	3' 6" (42")	2' 0" (24")	3' 6" (42")	315
SSG-VK920-422460	3' 6" (42")	2' 0" (24")	5' 0" (60")	371
SSG-VK920-422472	3' 6" (42")	2' 0" (24")	6' 0" (72")	409
SSG-VK920-422484	3' 6" (42")	2' 0" (24")	7' 0" (84")	423
SSG-VK920-422496	3' 6" (42")	2' 0" (24")	8' 0" (96")	484
SSG-VK920-423042	3' 6" (42")	2' 6" (30")	3' 6" (42")	350
SSG-VK920-423060	3' 6" (42")	2' 6" (30")	5' 0" (60")	411
SSG-VK920-423072	3' 6" (42")	2' 6" (30")	6' 0" (72")	451
SSG-VK920-423084	3' 6" (42")	2' 6" (30")	7' 0" (84")	491
SSG-VK920-423096	3' 6" (42")	2' 6" (30")	8' 0" (96")	532
SSG-VK920-423642	3' 6" (42")	3' 0" (36")	3' 6" (42")	381
SSG-VK920-423660	3' 6" (42")	3' 0" (36")	5' 0" (60")	449
SSG-VK920-423672	3' 6" (42")	3' 0" (36")	6' 0" (72")	493
SSG-VK920-423684	3' 6" (42")	3' 0" (36")	7' 0" (84")	536
SSG-VK920-423696	3' 6" (42")	3' 0" (36")	8' 0" (96")	580
SSG-VK920-481842	4' 0" (48")	1' 6" (18")	3' 6" (42")	305
SSG-VK920-481860	4' 0" (48")	1' 6" (18")	5' 0" (60")	364
SSG-VK920-481872	4' 0" (48")	1' 6" (18")	6' 0" (72")	404
SSG-VK920-481884	4' 0" (48")	1' 6" (18")	7' 0" (84")	443
SSG-VK920-481896	4' 0" (48")	1' 6" (18")	8' 0" (96")	482
SSG-VK920-482442	4' 0" (48")	2' 0" (24")	3' 6" (42")	342
SSG-VK920-482460	4' 0" (48")	2' 0" (24")	5' 0" (60")	406
SSG-VK920-482472	4' 0" (48")	2' 0" (24")	6' 0" (72")	448
SSG-VK920-482484	4' 0" (48")	2' 0" (24")	7' 0" (84")	466
SSG-VK920-482496	4' 0" (48")	2' 0" (24")	8' 0" (96")	532
SSG-VK920-483042	4' 0" (48")	2' 6" (30")	3' 6" (42")	379
SSG-VK920-483060	4' 0" (48")	2' 6" (30")	5' 0" (60")	447
SSG-VK920-483072	4' 0" (48")	2' 6" (30")	6' 0" (72")	492
SSG-VK920-483084	4' 0" (48")	2' 6" (30")	7' 0" (84")	537
SSG-VK920-483096	4' 0" (48")	2' 6" (30")	8' 0" (96")	582
SSG-VK920-483642	4' 0" (48")	3' 0" (36")	3' 6" (42")	413
SSG-VK920-483660	4' 0" (48")	3' 0" (36")	5' 0" (60")	488
SSG-VK920-483672	4' 0" (48")	3' 0" (36")	6' 0" (72")	536
SSG-VK920-483684	4' 0" (48")	3' 0" (36")	7' 0" (84")	584
SSG-VK920-483696	4' 0" (48")	3' 0" (36")	8' 0" (96")	632
SSG-VK920-601842	5' 0" (60")	1' 6" (18")	3' 6" (42")	355
SSG-VK920-601860	5' 0" (60")	1' 6" (18")	5' 0" (60")	428
SSG-VK920-601872	5' 0" (60")	1' 6" (18")	6' 0" (72")	477
SSG-VK920-601884	5' 0" (60")	1' 6" (18")	7' 0" (84")	526
SSG-VK920-601896	5' 0" (60")	1' 6" (18")	8' 0" (96")	575
SSG-VK920-602442	5' 0" (60")	2' 0" (24")	3' 6" (42")	396
SSG-VK920-602460	5' 0" (60")	2' 0" (24")	5' 0" (60")	474
SSG-VK920-602472	5' 0" (60")	2' 0" (24")	6' 0" (72")	526
SSG-VK920-602484	5' 0" (60")	2' 0" (24")	7' 0" (84")	551
SSG-VK920-602496	5' 0" (60")	2' 0" (24")	8' 0" (96")	629
SSG-VK920-603042	5' 0" (60")	2' 6" (30")	3' 6" (42")	437
SSG-VK920-603060	5' 0" (60")	2' 6" (30")	5' 0" (60")	519
SSG-VK920-603072	5' 0" (60")	2' 6" (30")	6' 0" (72")	574
SSG-VK920-603084	5' 0" (60")	2' 6" (30")	7' 0" (84")	629
SSG-VK920-603096	5' 0" (60")	2' 6" (30")	8' 0" (96")	653
SSG-VK920-603642	5' 0" (60")	3' 0" (36")	3' 6" (42")	475
SSG-VK920-603660	5' 0" (60")	3' 0" (36")	5' 0" (60")	565
SSG-VK920-603672	5' 0" (60")	3' 0" (36")	6' 0" (72")	622
SSG-VK920-603684	5' 0" (60")	3' 0" (36")	7' 0" (84")	680
SSG-VK920-603696	5' 0" (60")	3' 0" (36")	8' 0" (96")	738

Museum Preservation Cabinet - Shelves

Shelves

Nominal Shelf Dimensions

Doors

Base

Accessories

Finishes

Sustainability

Product SKU

Description

Museum Preservation Cabinet - Shelves
