Upright Bench Frame
Product SKU
Description
- The bench frame structure is compatible with most workstation tops

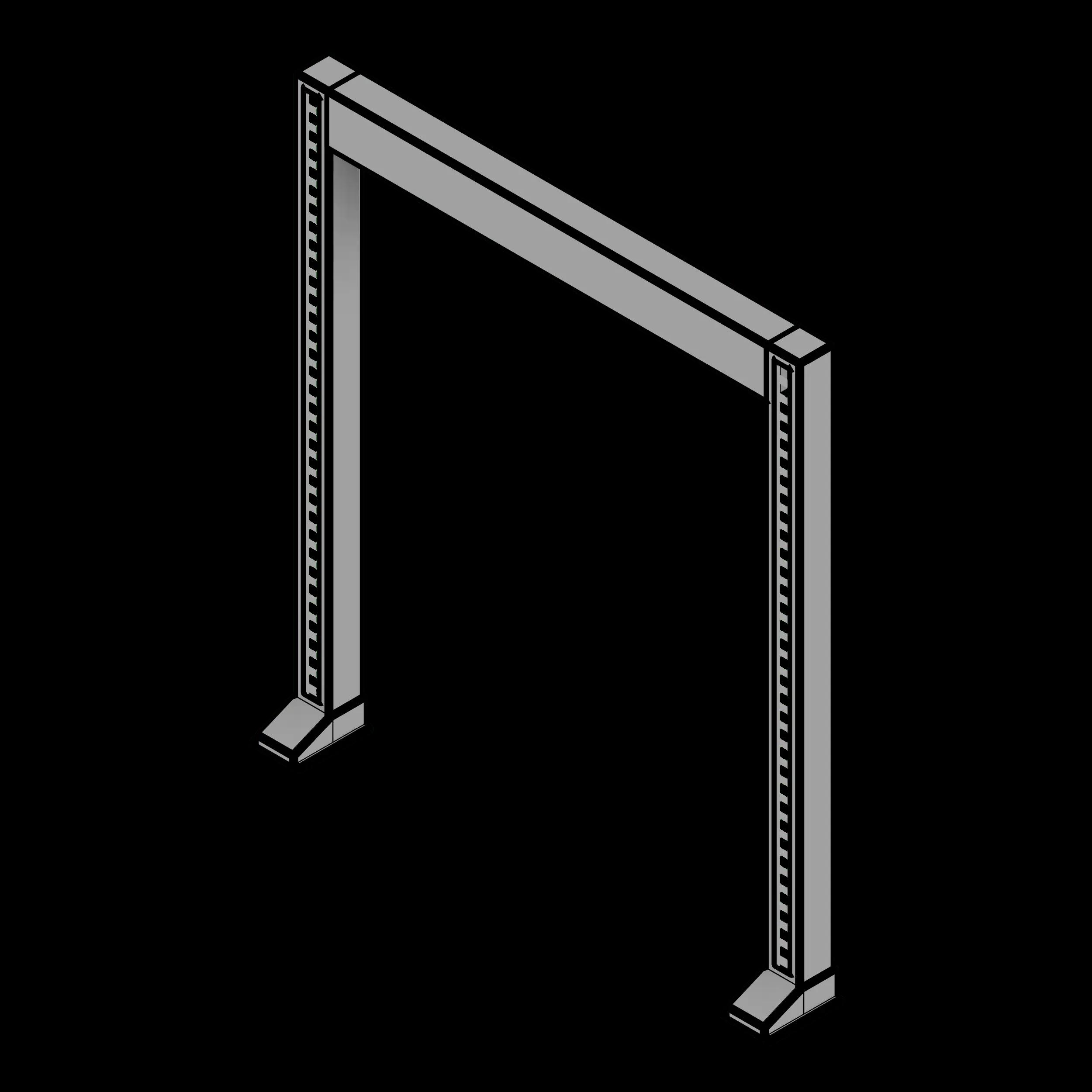

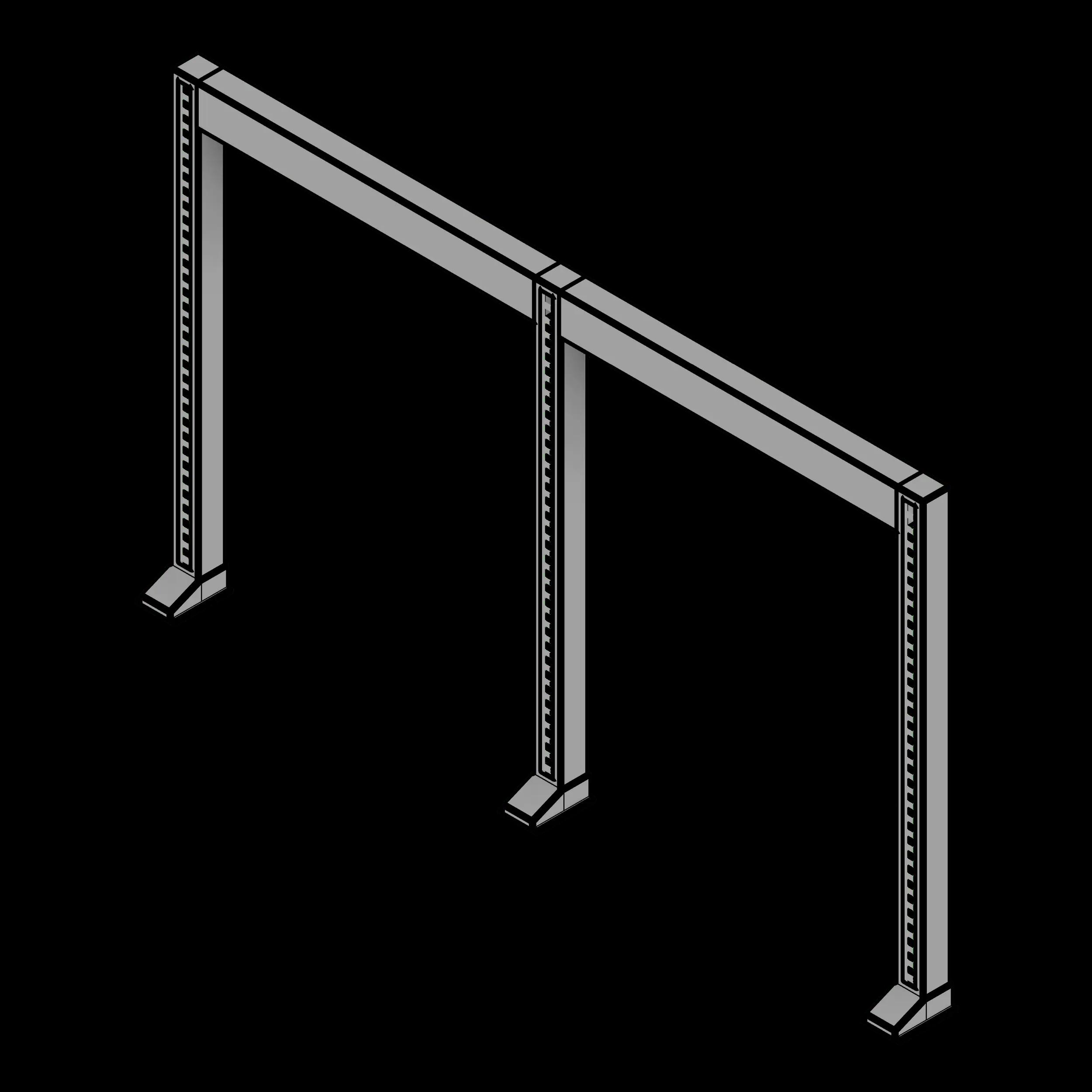

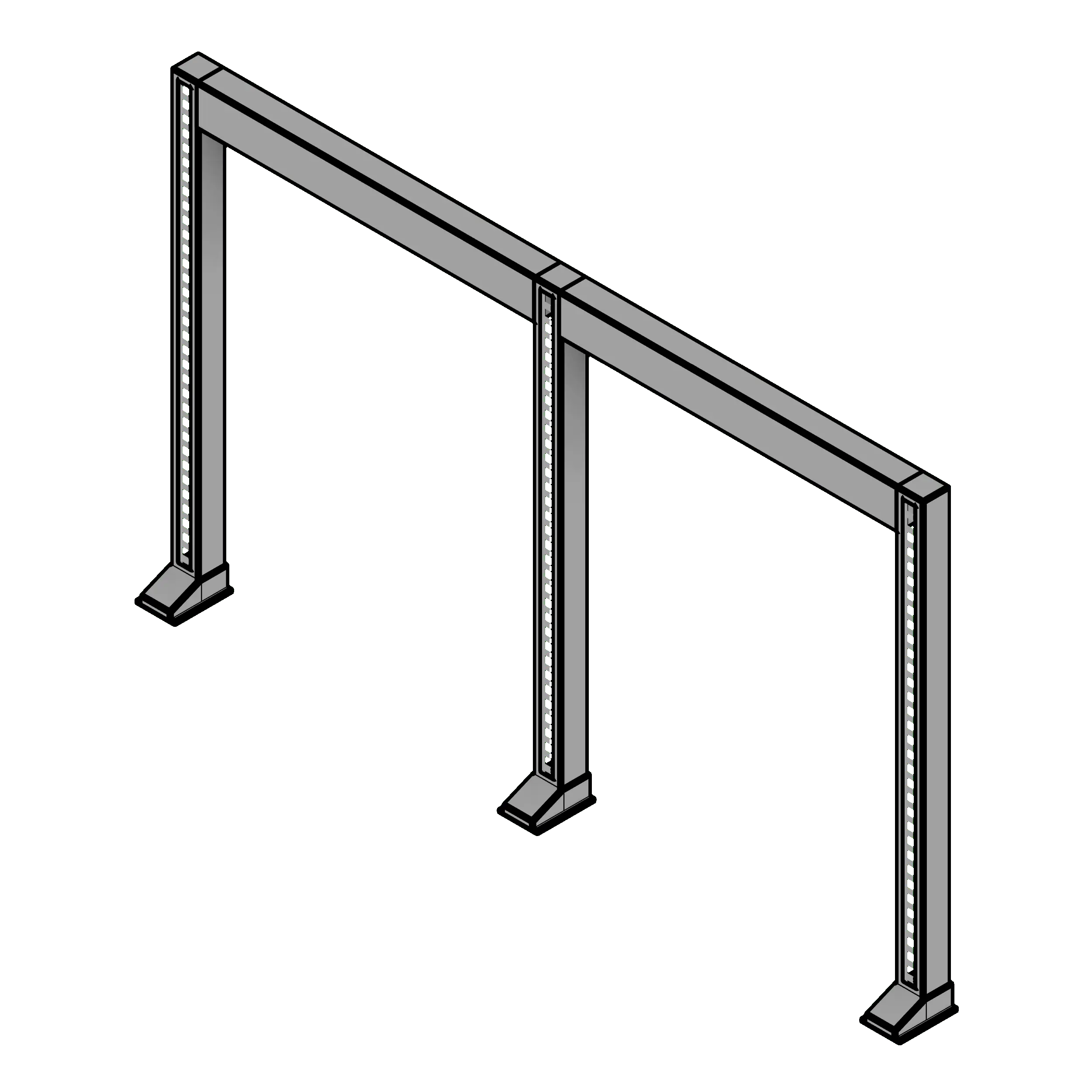

- This structure is available as a single or double frame
- These uprights can also be used for back-to-back workstations
Bench Frame
This multi-purpose bench frame is placed on top of work surfaces. It is available as a single or double frame. It is used to safely hang cabinets or shelves to allow workers to have a place to store items, tools, or parts.
This frame is most commonly used in industrial and manufacturing scenarios. To use this family, open the fetch app, then click on the model to insert it into your project. In the properties browser, under dimensions, you can enter an integer based on your desired width. You can also choose between the two different heights.
| Parameter | Value |
|---|---|
| Standard Widths | 28", 34", 56", 68" |
| Minimum Width | 2' 4" (27") |
| Maximum Width | 5' 8" (68") |
| Standard Depths | 4 1/2" |
| Minimum Depth | 0' 4 1/2" (4 1/2") |
| Maximum Depth | 0' 4 1/2" (4 1/2") |
| Standard Heights | 36", 48" |
| Minimum Height | 3' 0" (36") |
| Maximum Height | 4' 0" (48") |
| Manufacturer | Southwest Solutions Group_ROU |
| Lead Time | 3-4 Weeks |
| Model | WM |
| Keynote | 11 00 00 |
| Assembly Code | E2020 |
| Author | AZuniga |
| Toll Free Number | 1-800-803-1083 |
| Property | Value |
|---|---|
| Includes Pricing | Yes |
| ADA Compliant | No |
| Has MEP Connectors | No |
| Includes Sustainability | Yes |
| Primary Material | Powder coated steel |
| BIMobject Category | Furniture: Shelving & Storage |
| IFC | Furniture |
| Omniclass | 23-40 00 00 |
